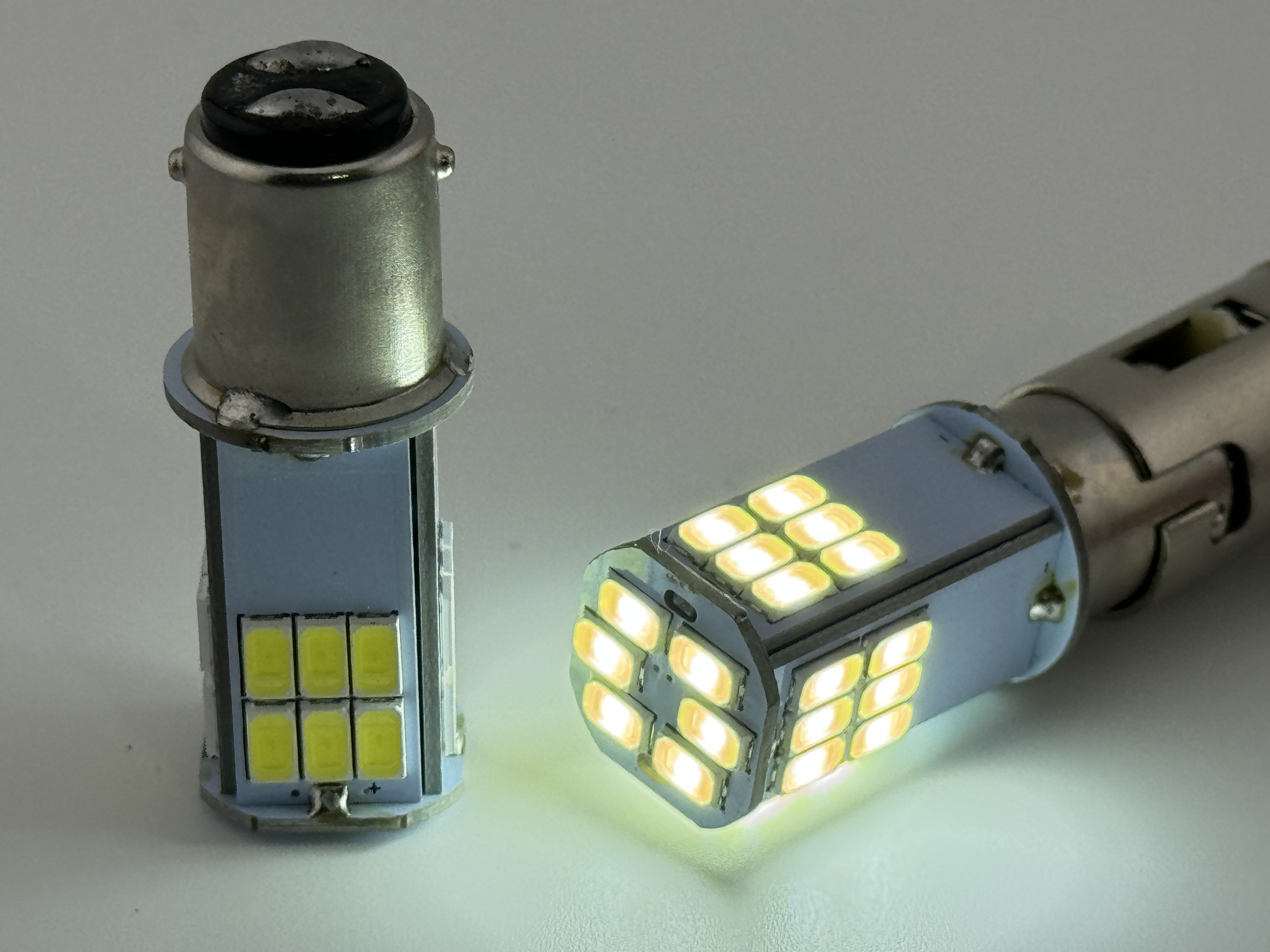

Image of a led headlight for 6 volt positive or negative ground
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

LED Headlight 6 Volt BA15D Base 30 SMD 5730 Dual Filament

Product Code: 78989

Price : $6.25 - $6.79
spacer   Volume Price Information   spacer
 Buy 2 or more and pay $6.65 each (save 2.00%)
 Buy 4 or more and pay $6.59 each (save 3.00%)
 Buy 6 or more and pay $6.52 each (save 4.00%)
 Buy 8 or more and pay $6.45 each (save 5.00%)
 Buy 10 or more and pay $6.38 each (save 6.00%)
 Buy 25 or more and pay $6.31 each (save 7.00%)
 Buy 100 or more and pay $6.25 each (save 8.00%)
Qty:Add To Cart
Add To Saved Cart
Warranty: 12 Months

Headlight bulb 6 Volt Positive Ground or 6 Volt Negative Ground. 6V AC or DC. Up to 700 Lumen. This headlight bulb is up to 50 candle power CP. Dual filament design. Designed for reflector headlights since most of the leds are side firing directly into the reflector. The bulb has some forward firing leds to make it brighter. This LED bulb is designed for early vintage Ford Model T and Ford Model A. Long life up to 30,000 hours. Plug and play remove the old incandescent bulb and replace with LED bulb. The LED uses less power than a incandescent bulb so it is easier on the wiring of the older vehicles. This headlight bulb uses approximately .112 Amp @ 6.9 volts for low beam. This led headlamp bulb uses around .490 amp @ 6.9 volts for hi beam. The bulb comes in White 6000K and Warm white 3000K. The Warm White simulates the original color of a incandescent light bulb. How ever the Warm White is about 5% less output than the 6000K bulb. CE and Rohs certified. The original light bulb was 21 CP/21 CP, then you could upgrade to 21 CP / 32 CP and then finally 32 CP / 32 CP or 32 CP / 50 CP. These original bulbs decline in Lumen output compared to a slow Lumen decline with LEDs. This LED head lamp bulb is 55 CP brighter than all original headlight bulbs. Since these bulbs are non polarity sensitive they work in both positive chassis and negative chassis. The maximum overall length is 1.944 inches. The maximum diameter is .760 inches. This led bulb is 6 volt and 360 degree illumination. These 6 volt led headlights work in tractors and motorcycles. This bulb uses super efficient 5730 smd leds. Each 5730 can output up to 1/2 Watt. Since this led headlight uses so little power really helps out the generator. The headlight uses 30 5730 smd leds. Each 5730 can output up to 1/2 Watt. The 5730 SMD can output up to 50 Lumens for each led. These 5730 smd are operated below 50% so that the leds stay cooler so they last longer. Since the 5730 SMD led operated at 50% power or less the led dissipates around a 1/8 Watt for each led. The headlight uses surface mount technology leds so each led is laid on the printed circuit board (PCB) then the led is soldered to the PCB. Since each led is spaced from other leds helps the headlight stay cooler to it will last longer. Please see warranty information on the product detail page. The printed circuit board solder mask is white so that maximum illumination is possible. The base is 15mm diameter and made to industry standard BA15D male base so the headlight will be a easy installation. To install led headlights, first remove the halogen bulb by pushing down and twist counter clockwise and remove from headlight fixture. Then push and twist clockwise to install the new led headlight. Please clean the reflector and the lens so that maximum led output is possible. The white 6000k is 5% to 10% brighter than the warm white 3000K. The warm white look excellent for that nostalgic incandescence warm white look. The difference between white and warm white is how the smd led is doped with material to output the color from a original blue led. How quick will it take to upgrade your vehicle to led headlights? The time is around 2 to 5 minutes to remove the lens, remove bulb, install led and mount the lens. This bulb will work in both 6 volt positive ground and 6 volt negative ground. We test the led headlight by applying a minus 6 volts to one of the contacts and plus 6 volts to the side pf the base. Since there are two contacts on the bottom we test the low beam by applying ground to one contact and then move the minus 6 volt to to the other contact to see the led light get brighter. These bottom two contacts can be tested with minus ground for plus 6 volts since the led is no polarity. Since the led is bi polar you do not have to worry about rewiring the socket since the led headlight will work with either polarity. Some of the older female sockets are not built to industry standards and if you have trouble fitting the led headlight in to the female socket it is recommended to upgraded the socket to a industry standard BA15D socket. Since this led headlight uses 90% less energy than you halogen or incandescent bulb really helps the socket, wires and eletrical equipment not have to work as hard to provide the proper current and proper voltage to the led head light. If the wires or sockets corroded or have damage should be upgraded to the industry standard wires or sockets or electrical equipment. The led has 6 5730 smd leds for each side. Each side can output 600 Lumen output. The top has 6 5730 smd leds so the top can output up to 600 Lumens. The led illuminates in 360 degrees your reflector and lens so that maximum led light output is possible. Please make sure your generator or alternator is operating properly and not outputting to much voltage or to much current. Some of the older generators can output up to 25 volts which would damage the led headlamps. When inserting the led there is not top or bottom and once twist & locked will be properly aligned with your headlight fixture. Please be careful not to short out led headlamp by adjust the headlight fixture to far in, or adjusting the headlight fixture to far out. Once you upgrade to led lighting you do not have to worry about broken glass or filaments since led headlights are solid state. Compatible with Model A Head Light Bulbs A-13007-C 1919-1931 A-13007-D 1919-1931 1946 Air coup 1919-1931 Ford 1926, 1927 Ford Model T 1928, 1929, 1930, 1931, 1932 Model A A-13007-C Snyders A-13007-D Snyders 6572BX Langs
