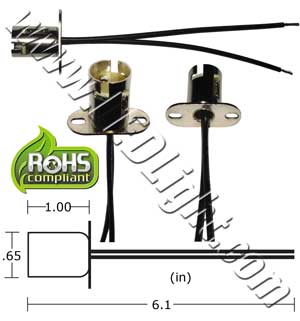

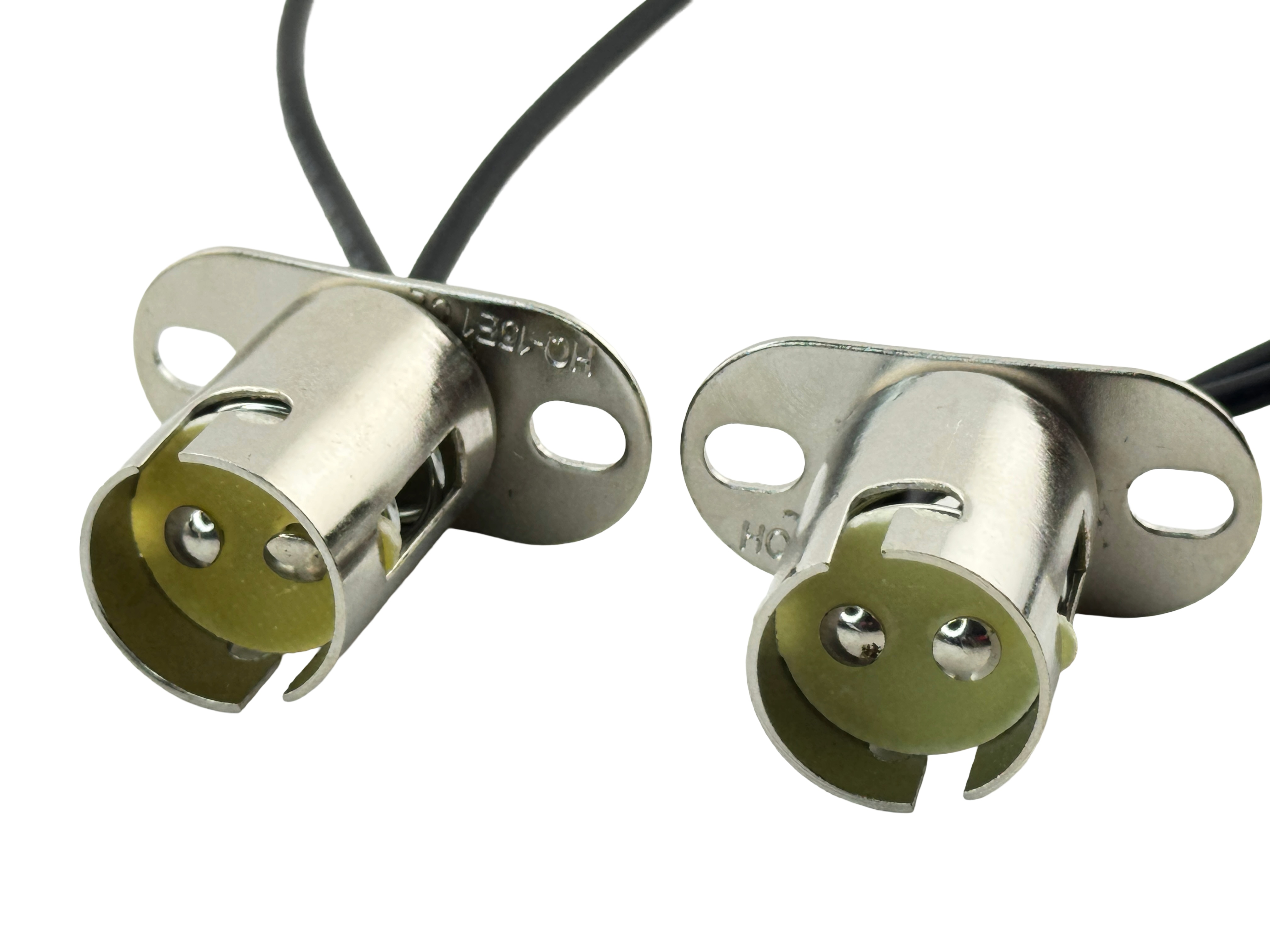

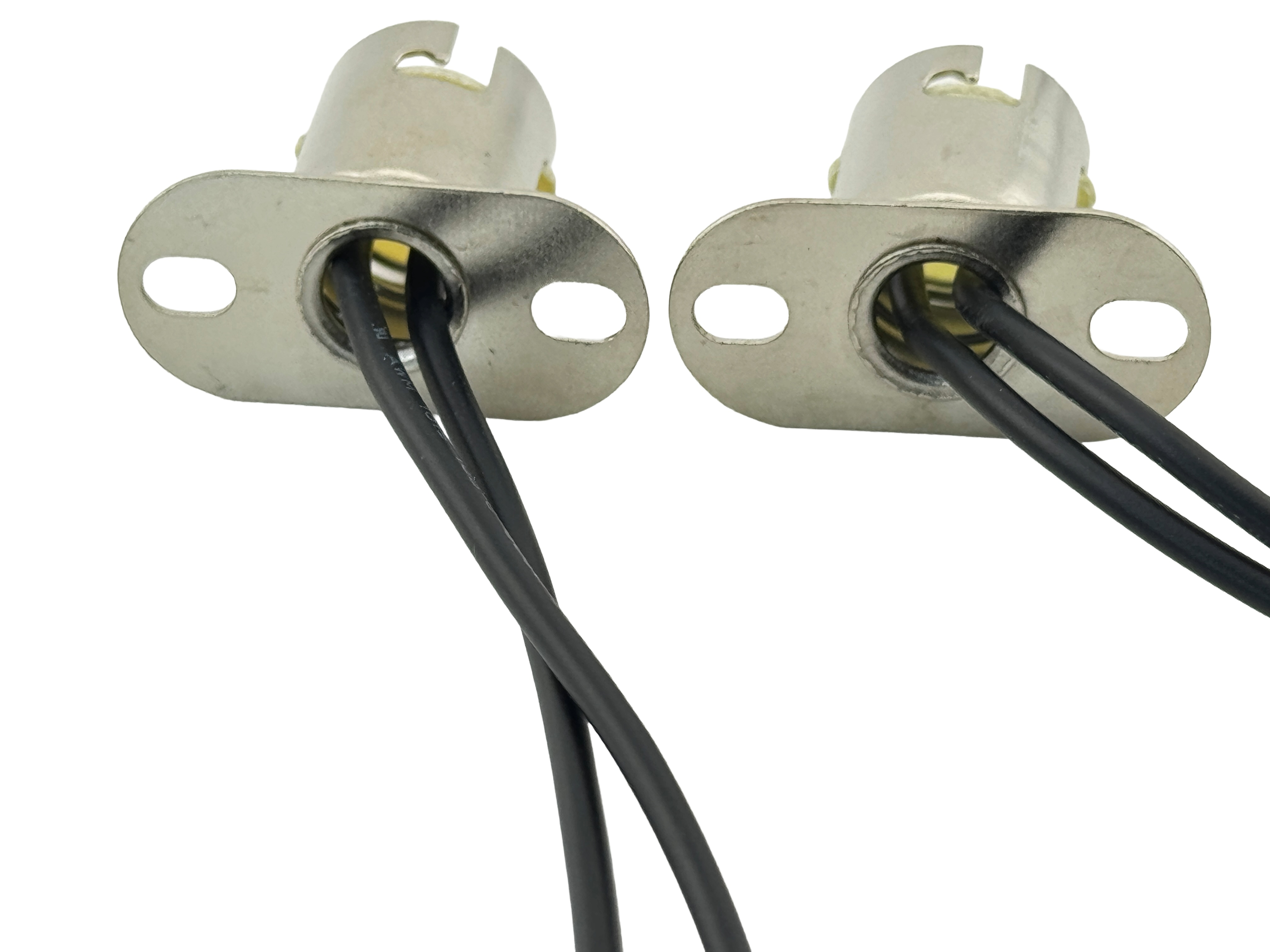

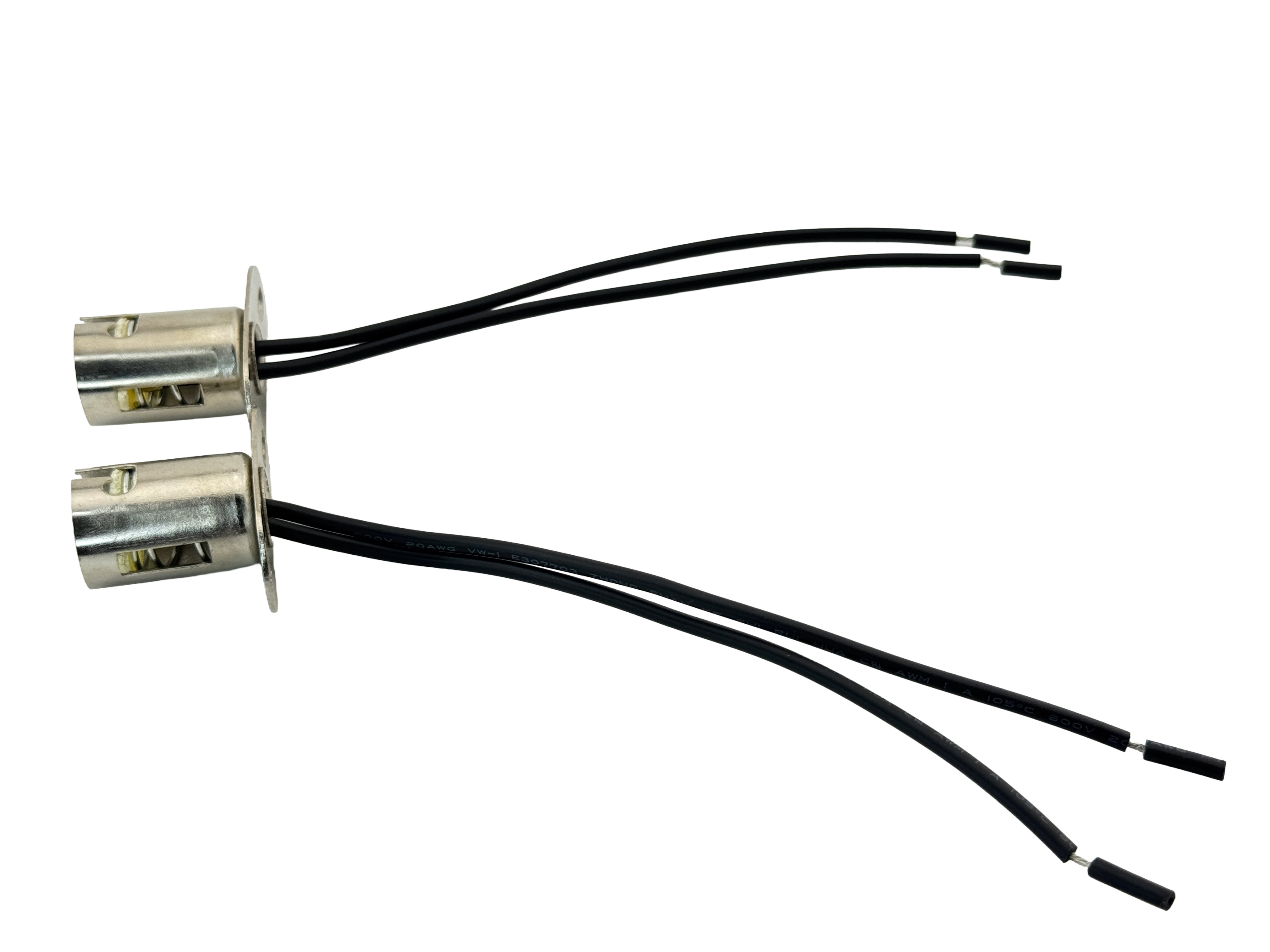

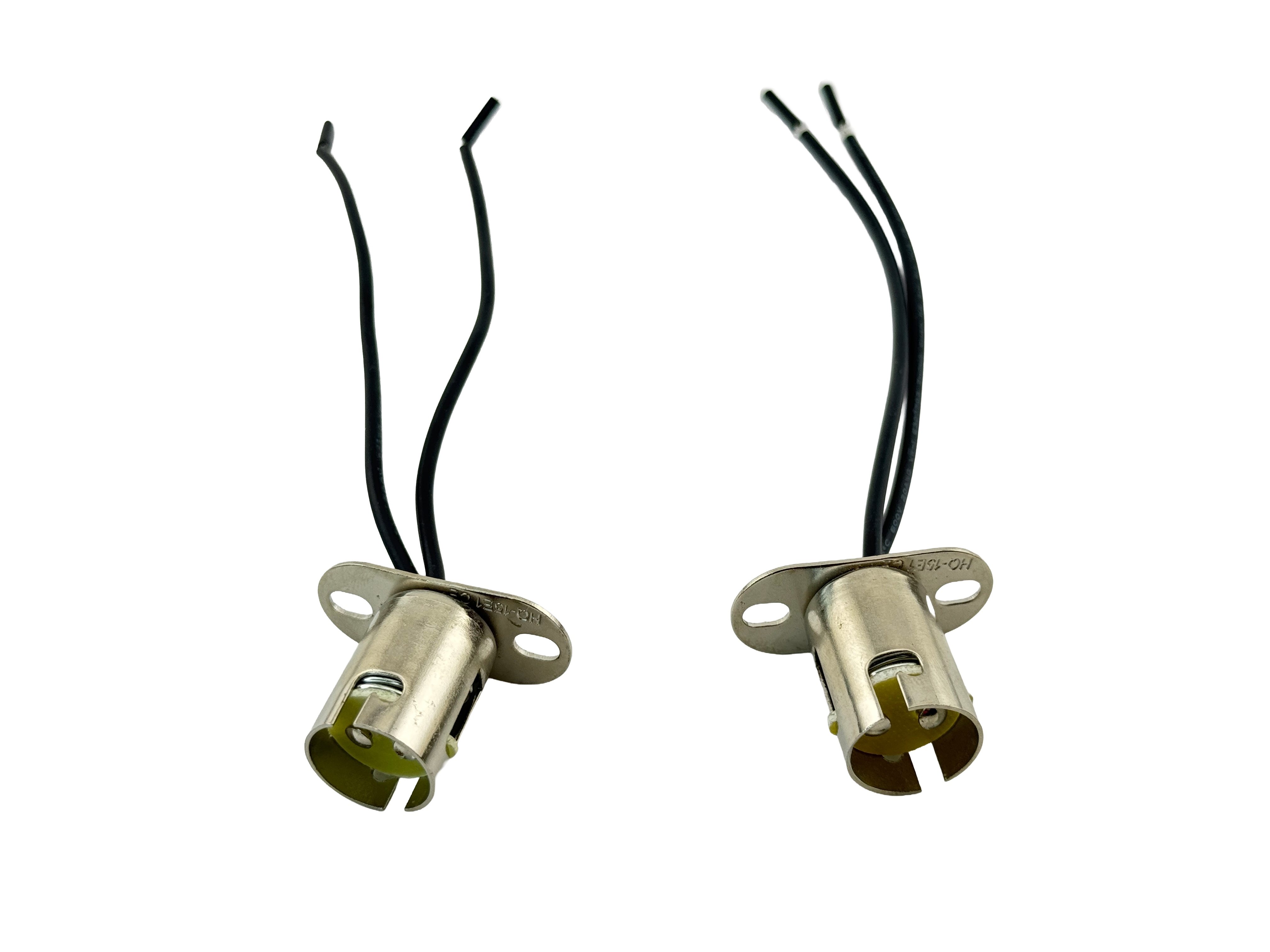

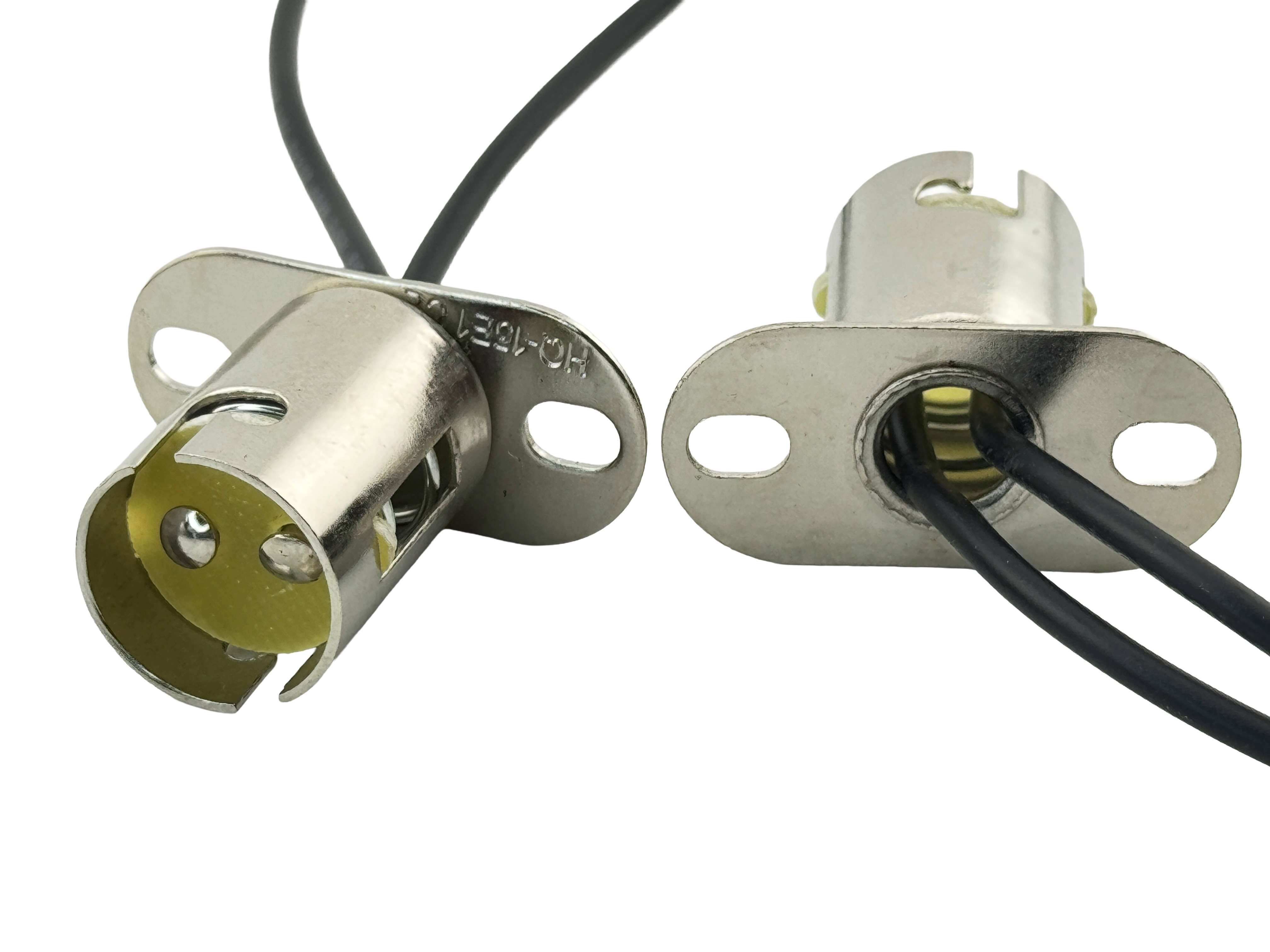

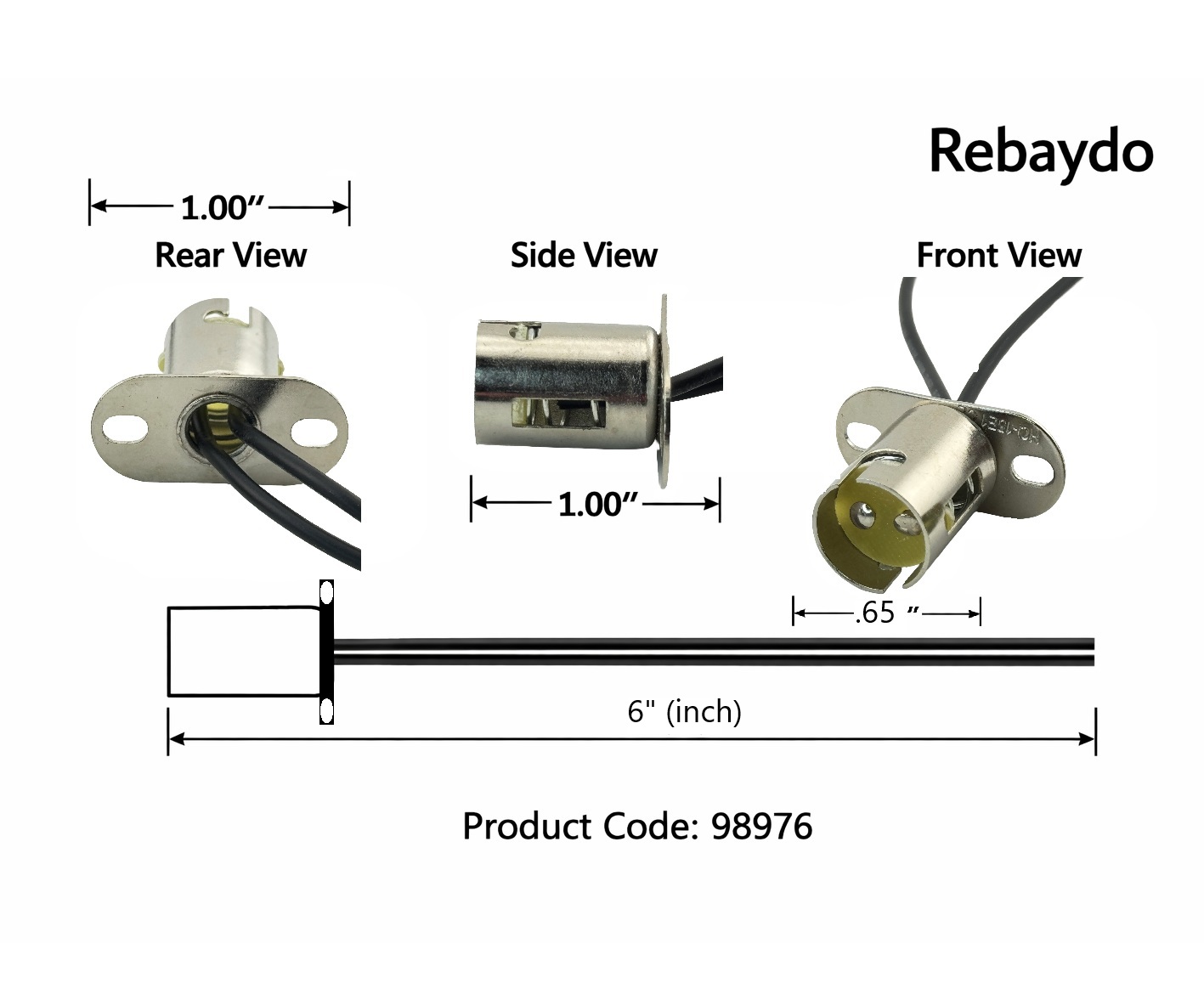

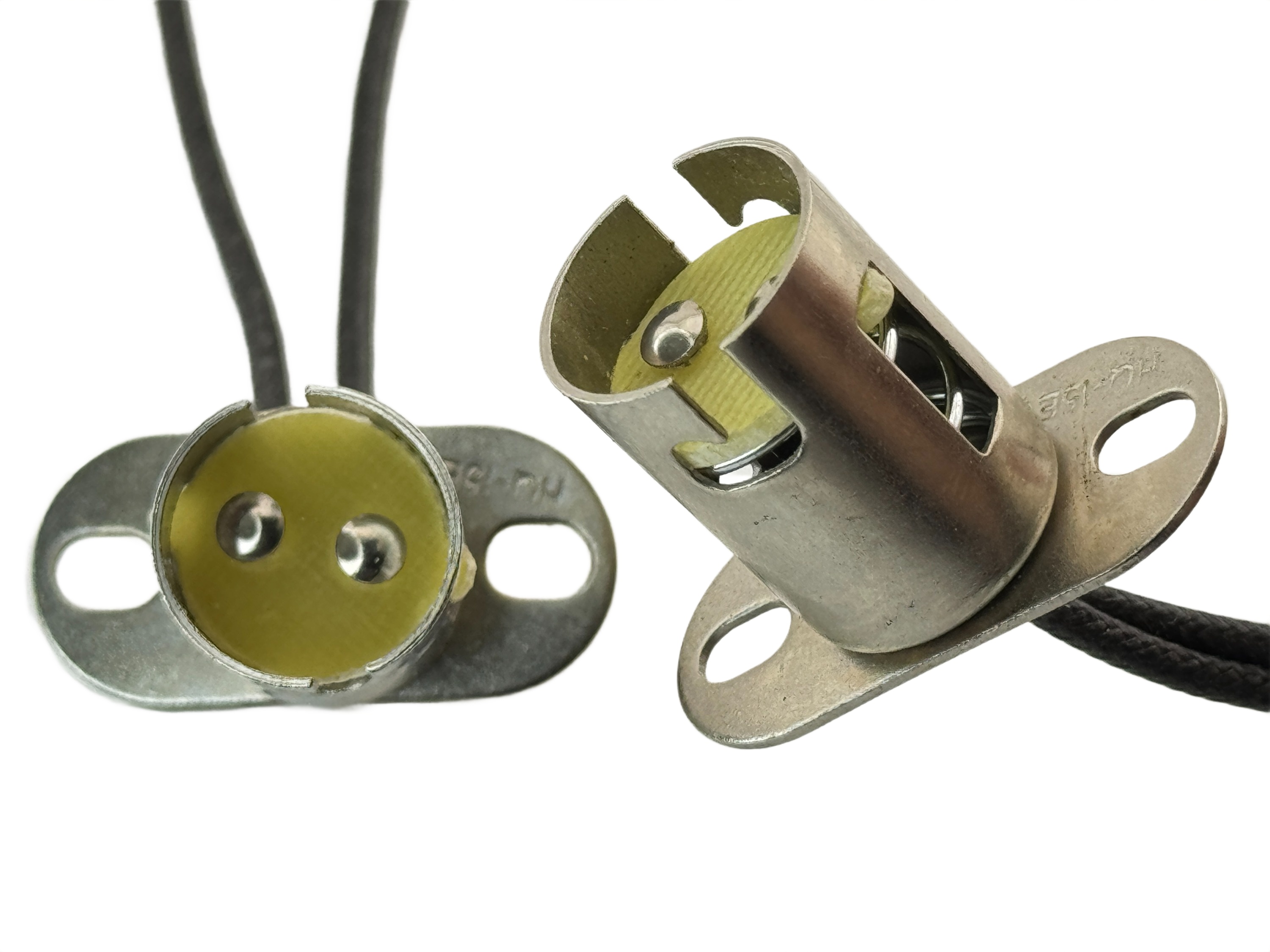

BA15D Socket with wires and surface mount bracket product code 98976

Actual Product may vary from picture shown.
One product per package unless otherwise stated.

BA15D Surface Mount Socket Stand and Wires

Product Code: 98976

Price : $1.37 - $1.49

Volume Price Information

Buy 2 or more and pay $1.46 each (save 2.00%)

Buy 4 or more and pay $1.45 each (save 3.00%)

Buy 6 or more and pay $1.43 each (save 4.00%)

Buy 8 or more and pay $1.42 each (save 5.00%)

Buy 10 or more and pay $1.40 each (save 6.00%)

Buy 25 or more and pay $1.39 each (save 7.00%)

Buy 100 or more and pay $1.37 each (save 8.00%)

Qty:

Warranty: 12 Months

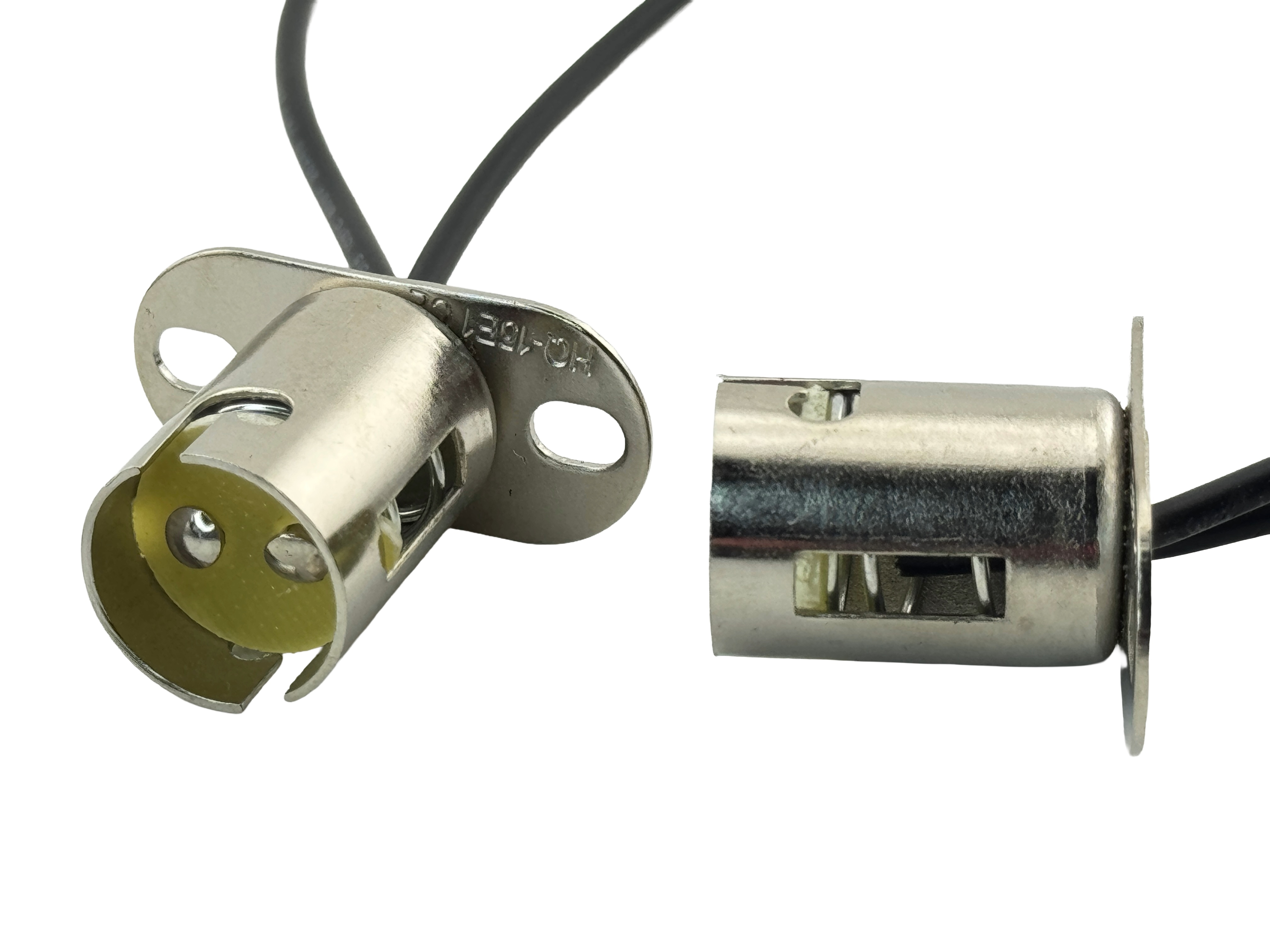

BA15D Socket with wires and surface mount bracket. Plated socket with two wires. Since it is BA15D the bayonets are same height. The bracket is designed for surface mount installation and has two holes for mounting screws. Accepts BA15D bulbs that have two contacts for either single filament such as 1142 or dual filament such as 1158. The socket has three circuits the base and two contacts. Use for AC or DC up to 220 Volts. The socket can handle up to 2 Amps@ 24 Volts. The socket is rated up to 48 Watts of power. Socket is made of iron plated with nickel. The wire is stranded 20 AWG. The contacts are made from brass. CE and Rohs.

Write a Review

Recommended Items:

Surface Mount Bi-Pin Socket with Wires

Product Code: 84375

Price: $2.29Quantity Pricing Available

This socket has holes so you can surface mount your MR 11, MR 16 and G4 lights. Fits the following GU4.0, GX4.0, GU5.3, GX5.3 Socket with pigtail. Use this socket for G4, MR11 and MR16 lights. UL, SA certified.

G4 G5.3 GY6.35 Socket Lamp Holder with Wires

Product Code: 43644

Price: $0.59Quantity Pricing Available

Fits the following GU4.0, GX4.0, GU5.3, GX5.3 Socket with pigtail. Use this socket for G4, MR11 and MR16. Works great for repairing faulty and corroded sockets. Works great for new installations.

B22 male to BA15D female Adapter Socket

Product Code: 87948

Price: $2.39Quantity Pricing Available

B22 male to BA15D female Adapter Socket. Made of flame retardant PBT and metal materials. Rated at 2200 watts @ 220V 10 amps. CE and ROHS listed.

T5 Wedge Socket With 6 Inches Wire T1 3/4

Product Code: 13034

Price: $0.97Quantity Pricing Available

T5 Wedge socket with wires. The wires are 6" long. Use this socket to replace a defective, worn out or corroded contacts, or broken. Made of PBT plastic and metal materials.

BAY15D Socket with Stand

Product Code: 35674

Price: $2.19Quantity Pricing Available

1157 Socket, with stand. This 1157 socket comes with a mounting bracket, great for lighting projects. With two positive wires and the base used as the negative ground, it makes installation quick and easy.

BAY15D Socket with Wires

Product Code: 34346

Price: $1.99Quantity Pricing Available

1157 Socket with pigtail.

T10 Wedge Socket with Wires

Product Code: 89723

Price: $0.98Quantity Pricing Available

T10 Wedge Socket. Works with any T10 or 194 wedge base bulbs. This socket has a negative and positive wire for easy installation.

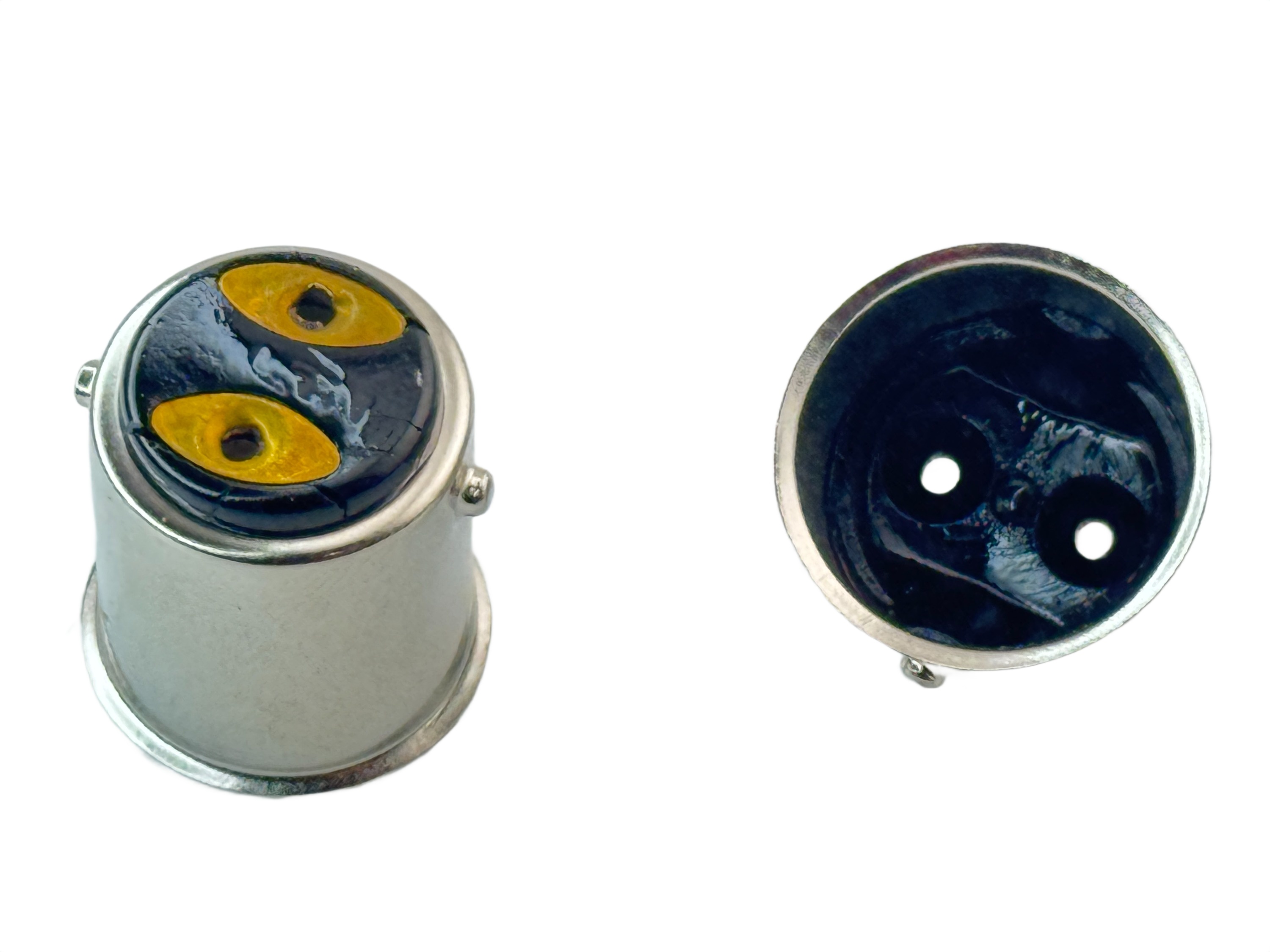

BA15D Copper Plating Solderable
