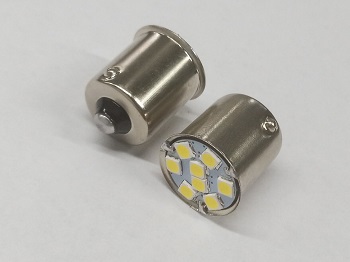

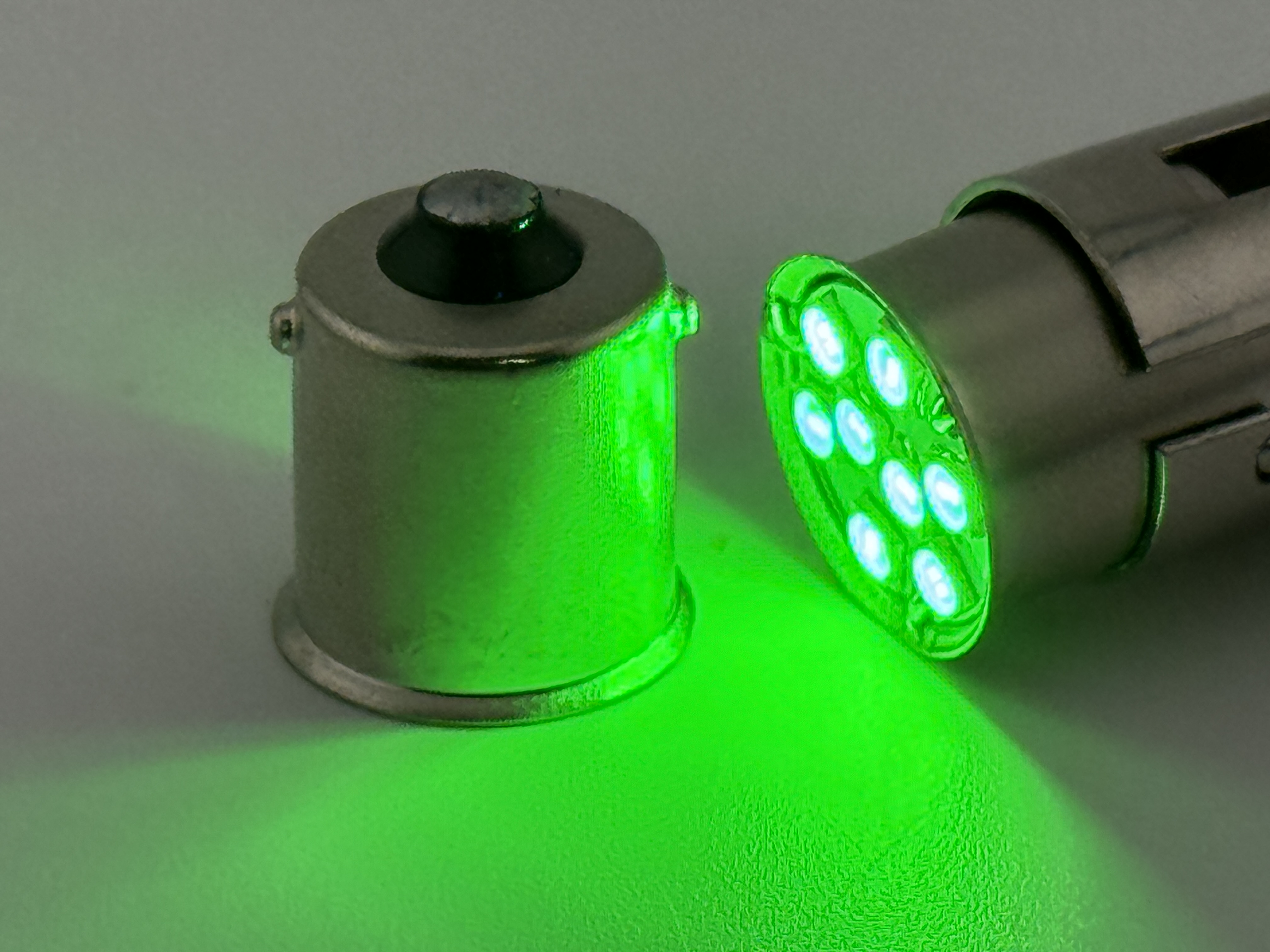

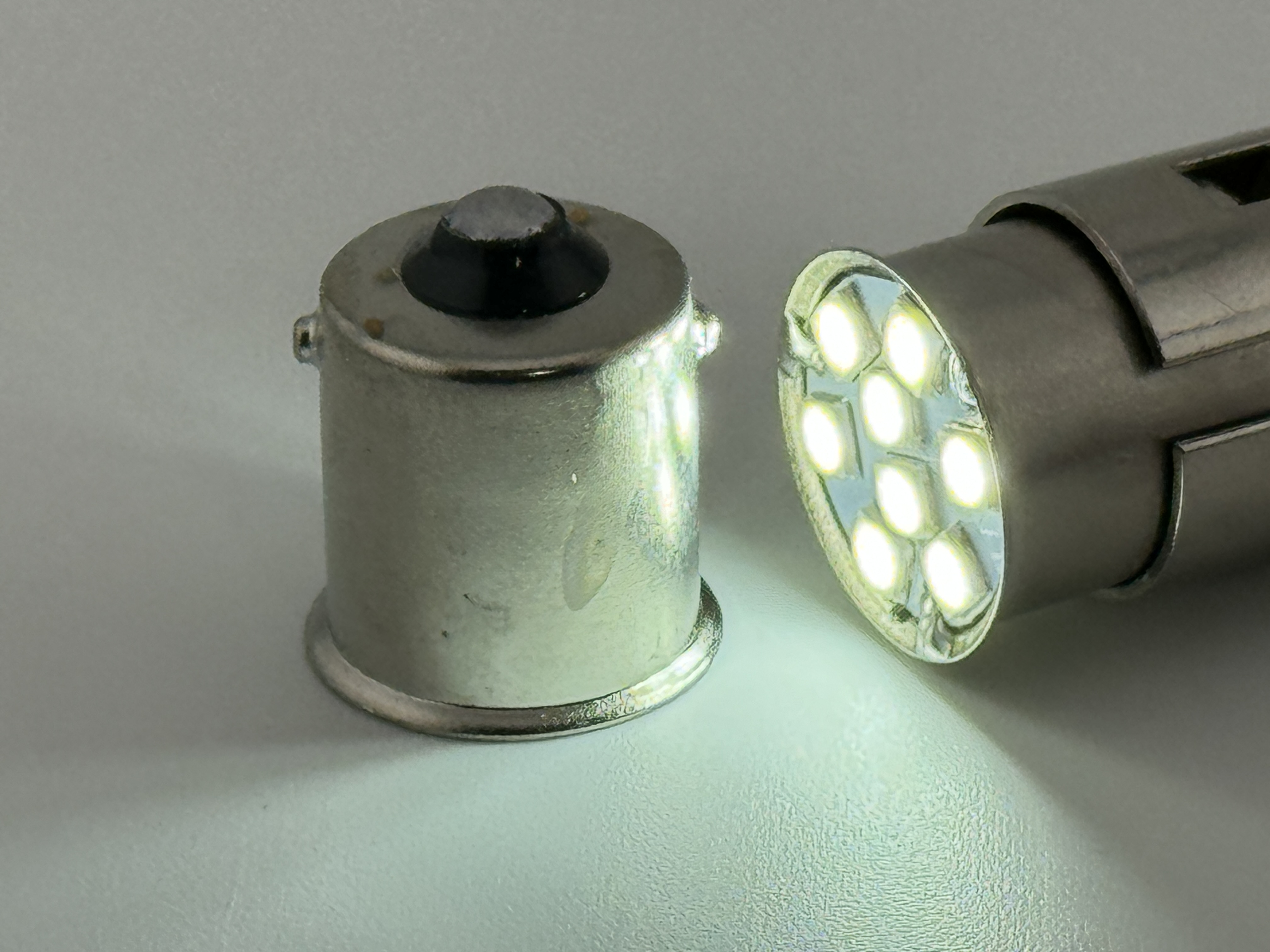

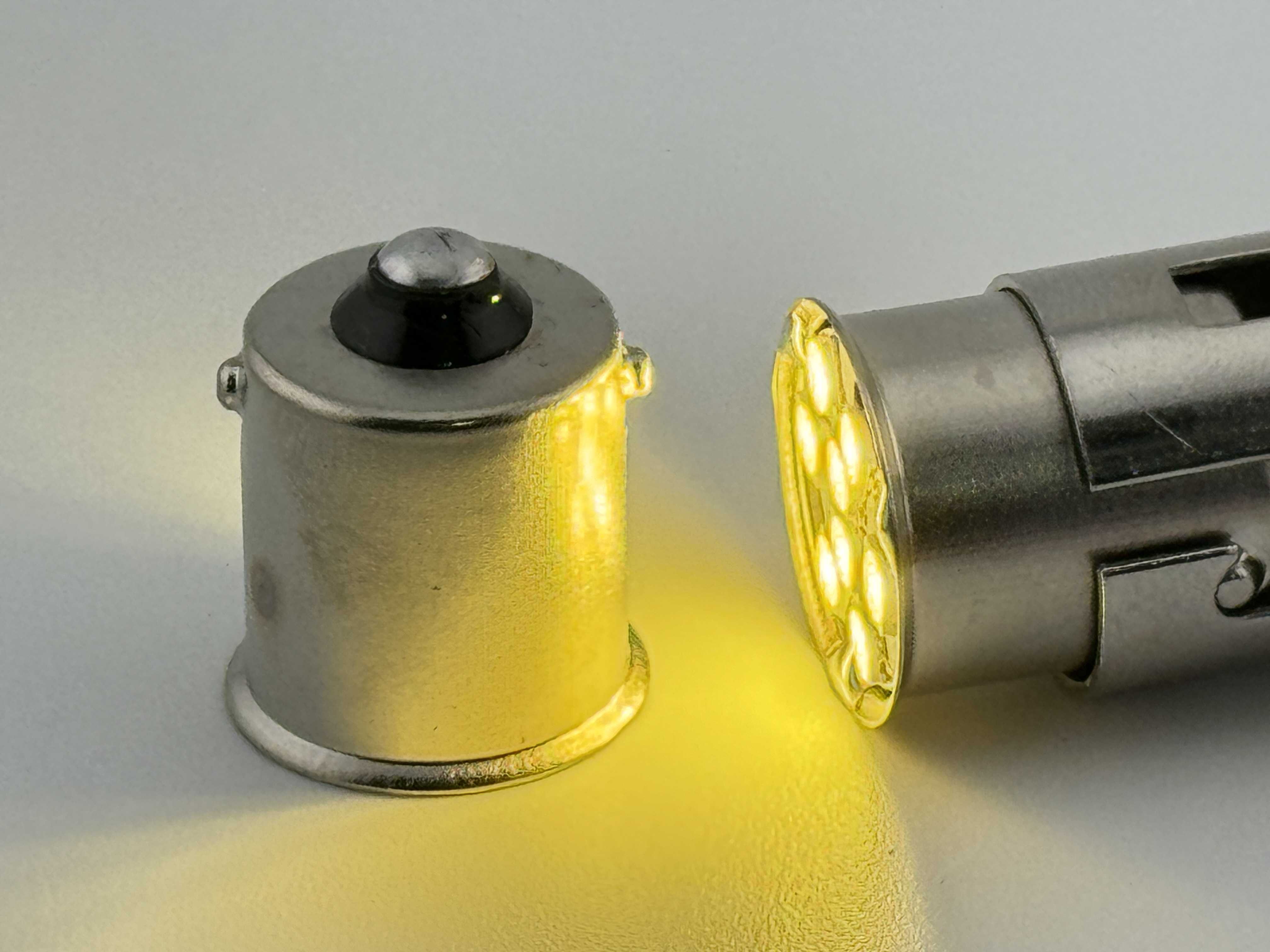

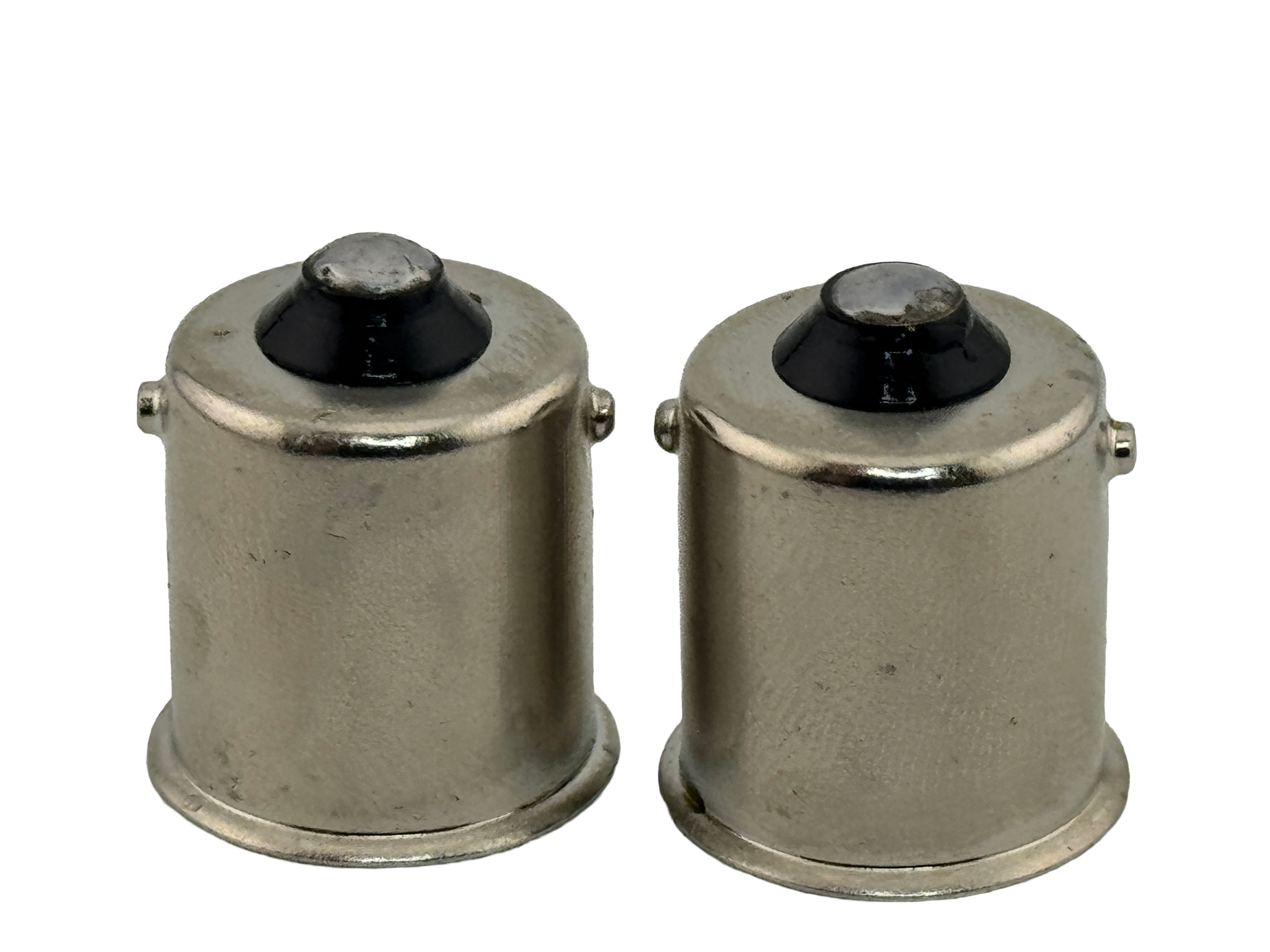

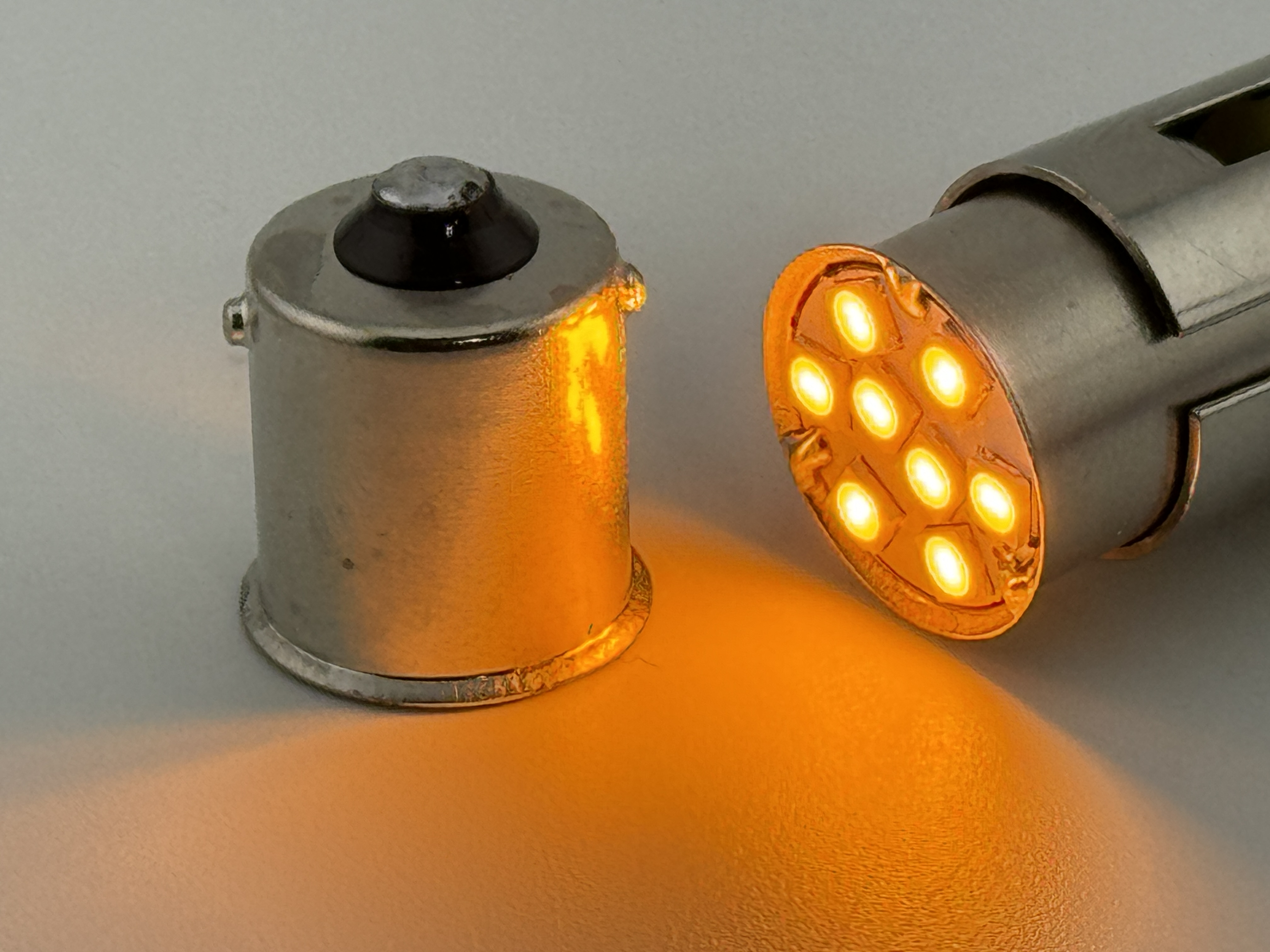

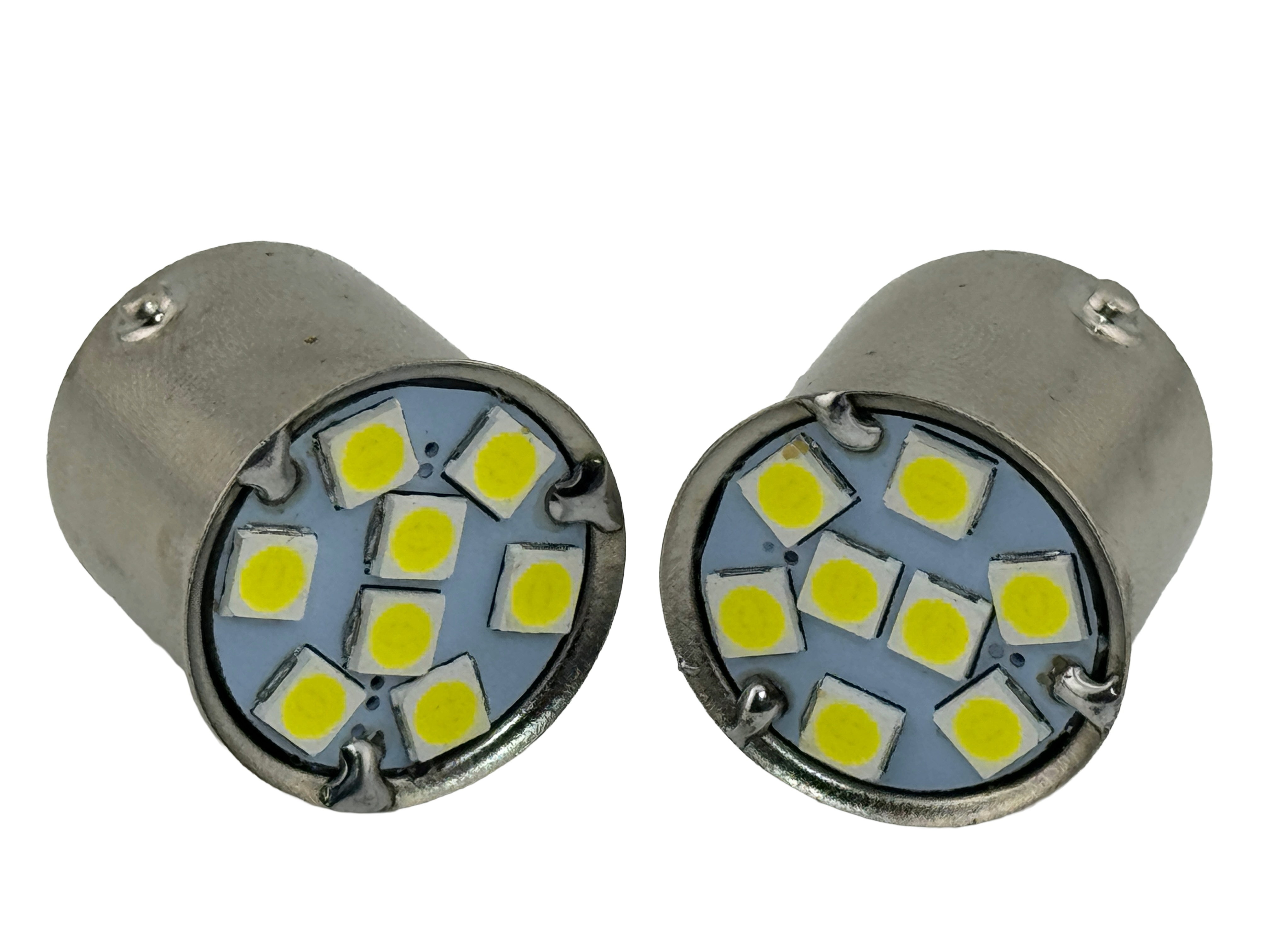

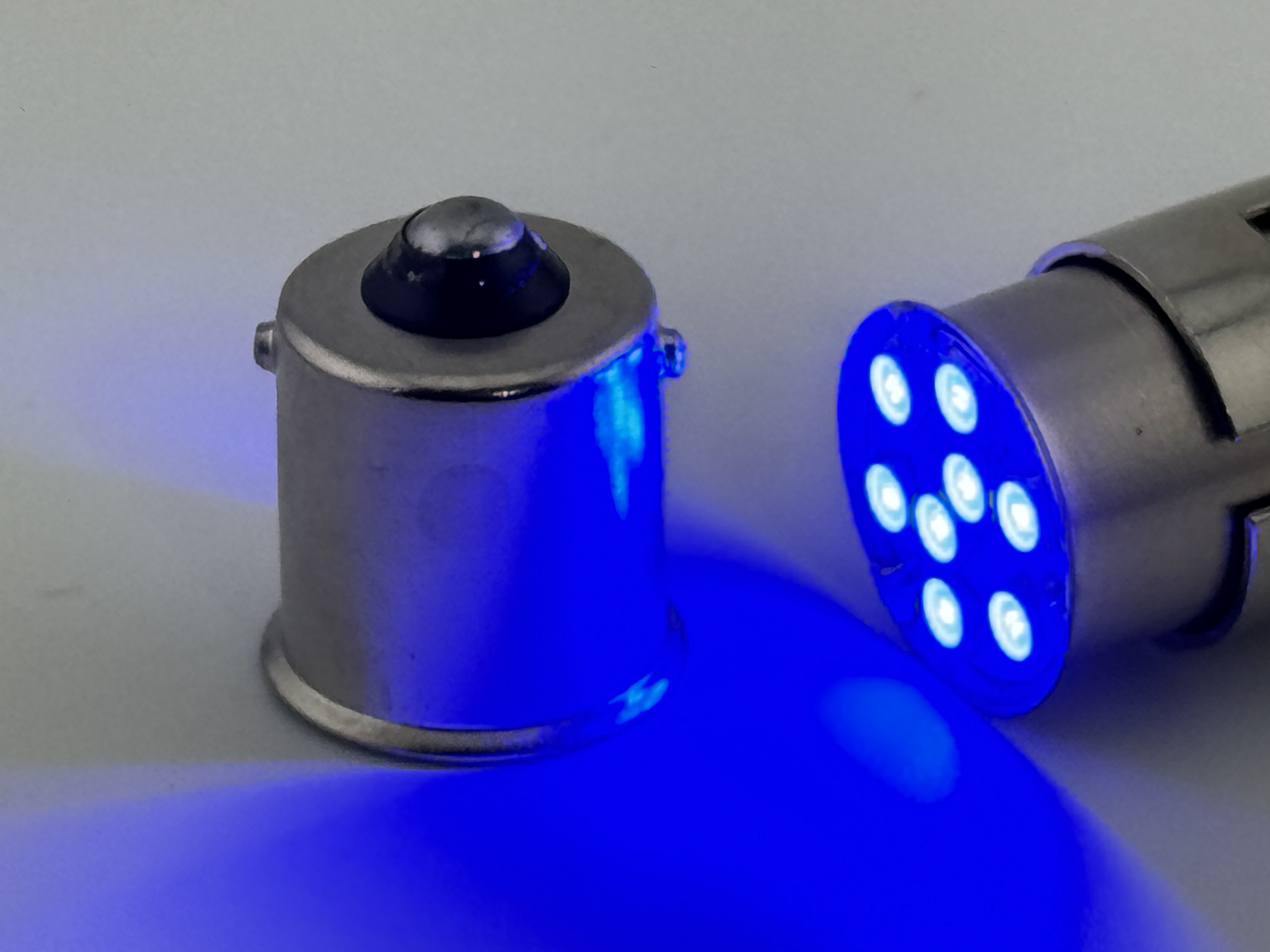

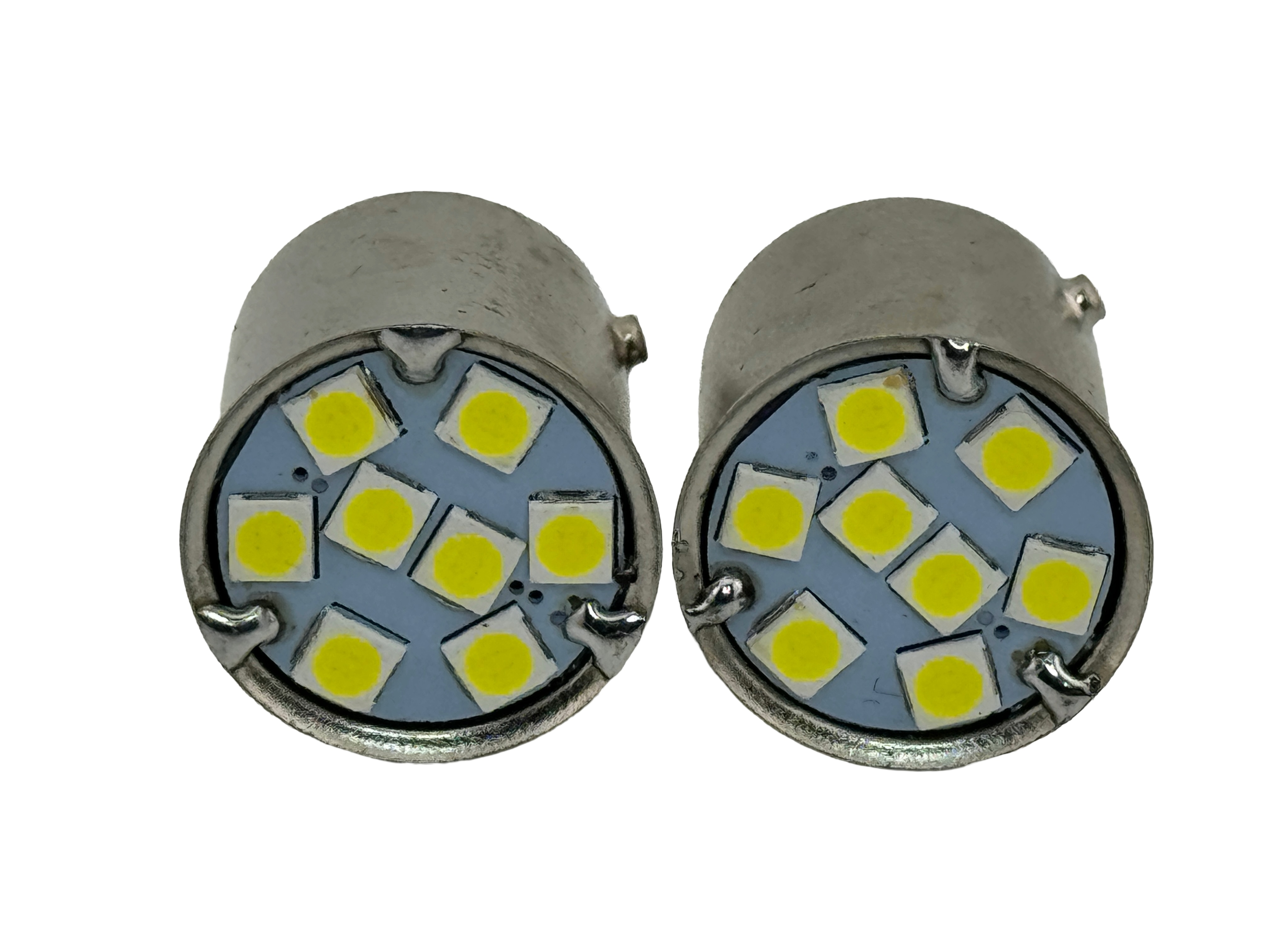

63 LED Bulb. Operates 6 Volt for vintage cars, trucks and motorycles. The base is BA15S single contact. Single filament. Up to 240 Lumen output or up to 18 CP. The lamp has 8 3030 smd. Each 3030 smd can output up to 30 Lumens. Works positive ground and negative ground. Super low profile to fit sockets that have fingers. Amazing long-life up to 30,000 hours. Uses 90% less energy. CE and Rohs. The base is 15mm diameter with two bayonets same height. Available in white 6000k, warm white 3000k, Red 625nm, Yellow 594nm, Green 526nm and Blue 464nm. Great for license plate lights. The viewing angle is 120 degrees. This bulb is dimmable using a variable voltage such as your dashboard dimmer. Upgrade your old lamp to a new super bright led. Your generator/alternator will be happy 90% less energy used. The shape is G6.3.0 MSCP. The filament design is compatible with C-6. This bulb is a true 63 compatible since the board is mounted inside the ba15s base. The overall length M.O.L. is .888 inches. The maximum bulb diameter is .590 inches. Compatible with vintage Ford Model A and Model T's. Comparable to a 20 to 25 Watt incandescent light. Since the lamp is solid-state you do not have to worry about broken glass bulb or filament.
Mazda bulb GE 63
Bantam BRC used in WWII military vehicle
1940 Harley WLA
A-13466 6V 3cp
Louvre Lights used in WWII military vehicles
