6 Ohm 50 Watt Load Equalizer

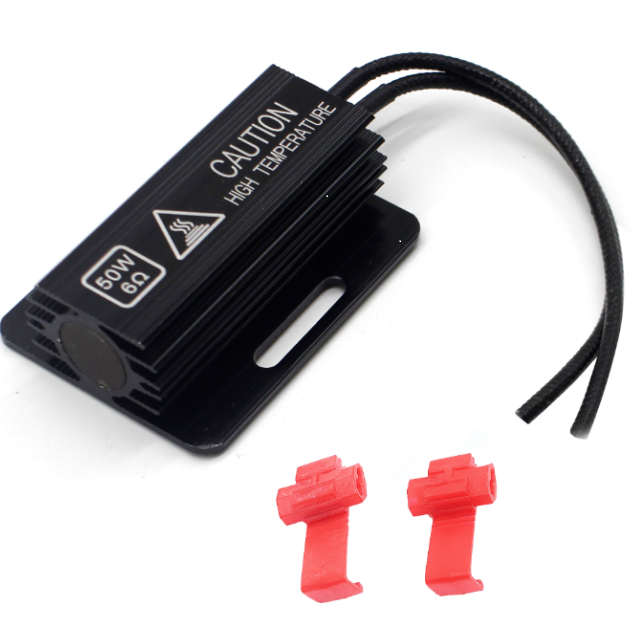

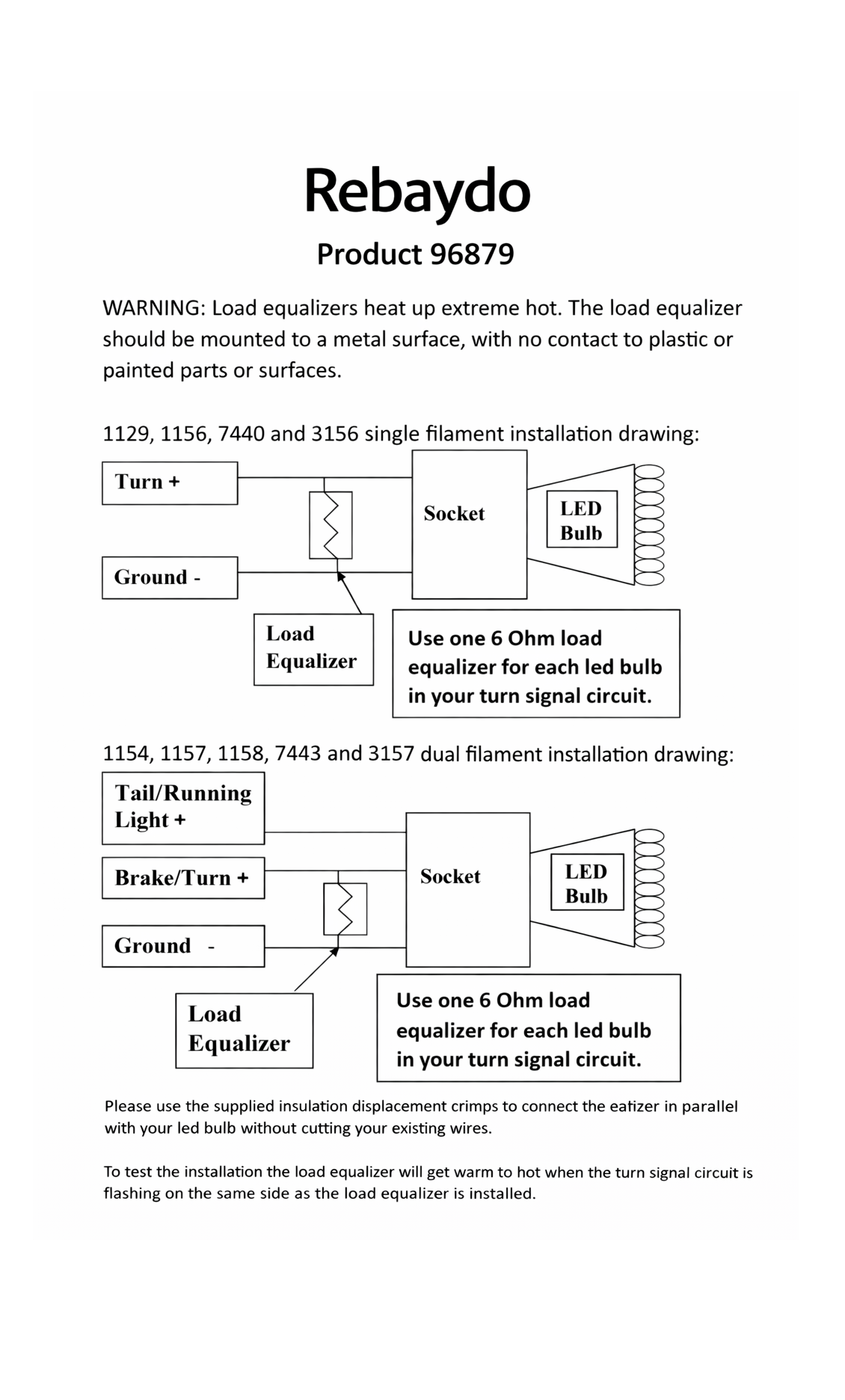

Use one load equalizer for each led bulb in your turn signal circuit. Since this heavy duty load equalizer runs cooler it last longer. Stops hyper flashing and fixes CAN bus errors. Operates 6 Volt or 12 Volt positive ground or negative ground. The wire is 14 AWG high temperature. Comes with two insulation displacement connectors "IDC". Please do not cut your vehicle or motorcycle wires, just crimp the IDC on to your existing wires so that the load equalizers are in parallel with the led bulbs. The resistor body material is made from anodize aluminum. The rated current is up to 4 Amps. Since the load equalizer is 50 Watt power dissipation it runs cooler. The led light equalizer will get hot to the touch so it is recommended to mount to a metal surface. The body has mounting holes so you can easily attach it to a metal surface. The operating temp is around 100 degrees Celsius. Installation instructions included. Once the load equalizer is installed correctly the load equalizer will get warm or hot when you use your turn signal on the same side the load equalizer is installed. The wire length is about 4.5". The load equalizer body width is 1.57". The load equalizer body length is 2.16". The load equalizer body screw mounting slot width is 0.13". The load equalizer body screw mounting slot length is 0.78". The load equalizer body screw center to center slot is 1.30". The load equalizer body height is 0.72". CE.
