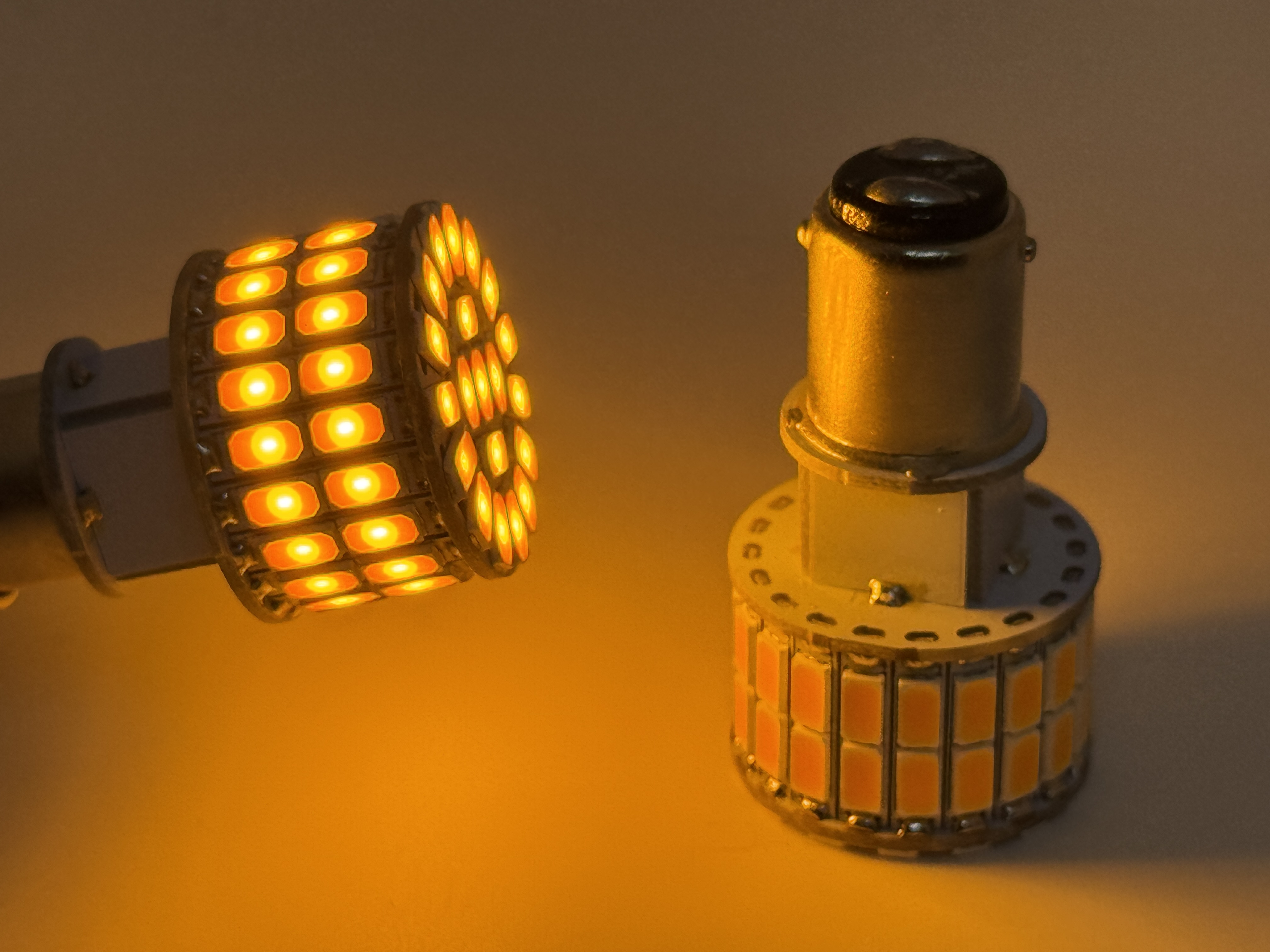

1142 6 Volt LED Bulb BA15D Base 60 SMD Single Filament product 68523
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

1142 6 Volt LED Bulb BA15D Base 60 SMD Single Filament

Product Code: 68523

Price : $7.35 - $7.99
spacer   Volume Price Information   spacer
 Buy 2 or more and pay $7.83 each (save 2.00%)
 Buy 4 or more and pay $7.75 each (save 3.00%)
 Buy 6 or more and pay $7.67 each (save 4.00%)
 Buy 8 or more and pay $7.59 each (save 5.00%)
 Buy 10 or more and pay $7.51 each (save 6.00%)
 Buy 25 or more and pay $7.43 each (save 7.00%)
 Buy 100 or more and pay $7.35 each (save 8.00%)
Qty:Add To Cart
Add To Saved Cart
Warranty: 24 Months

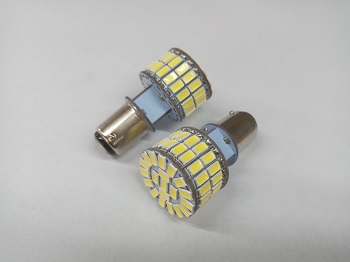

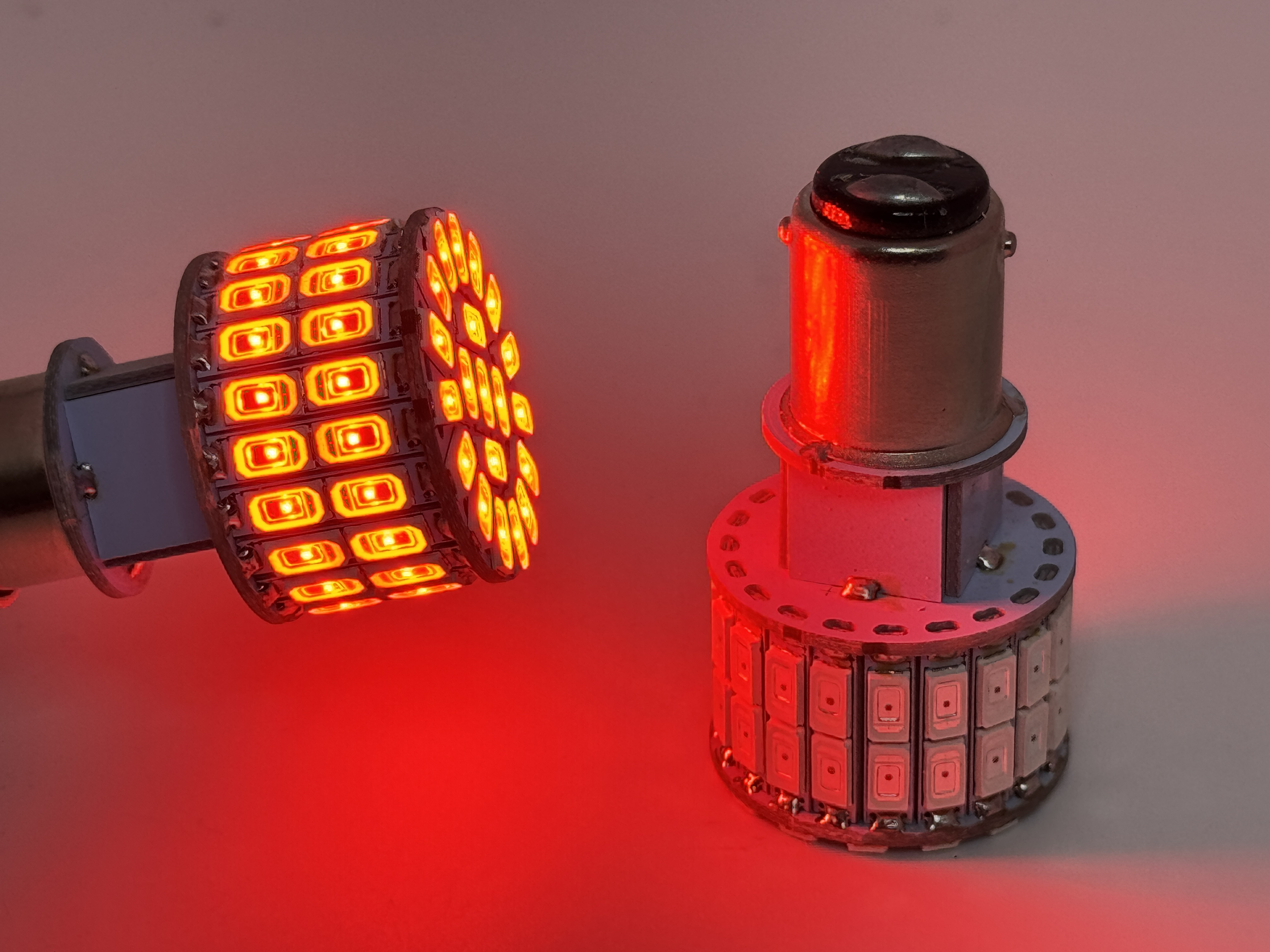

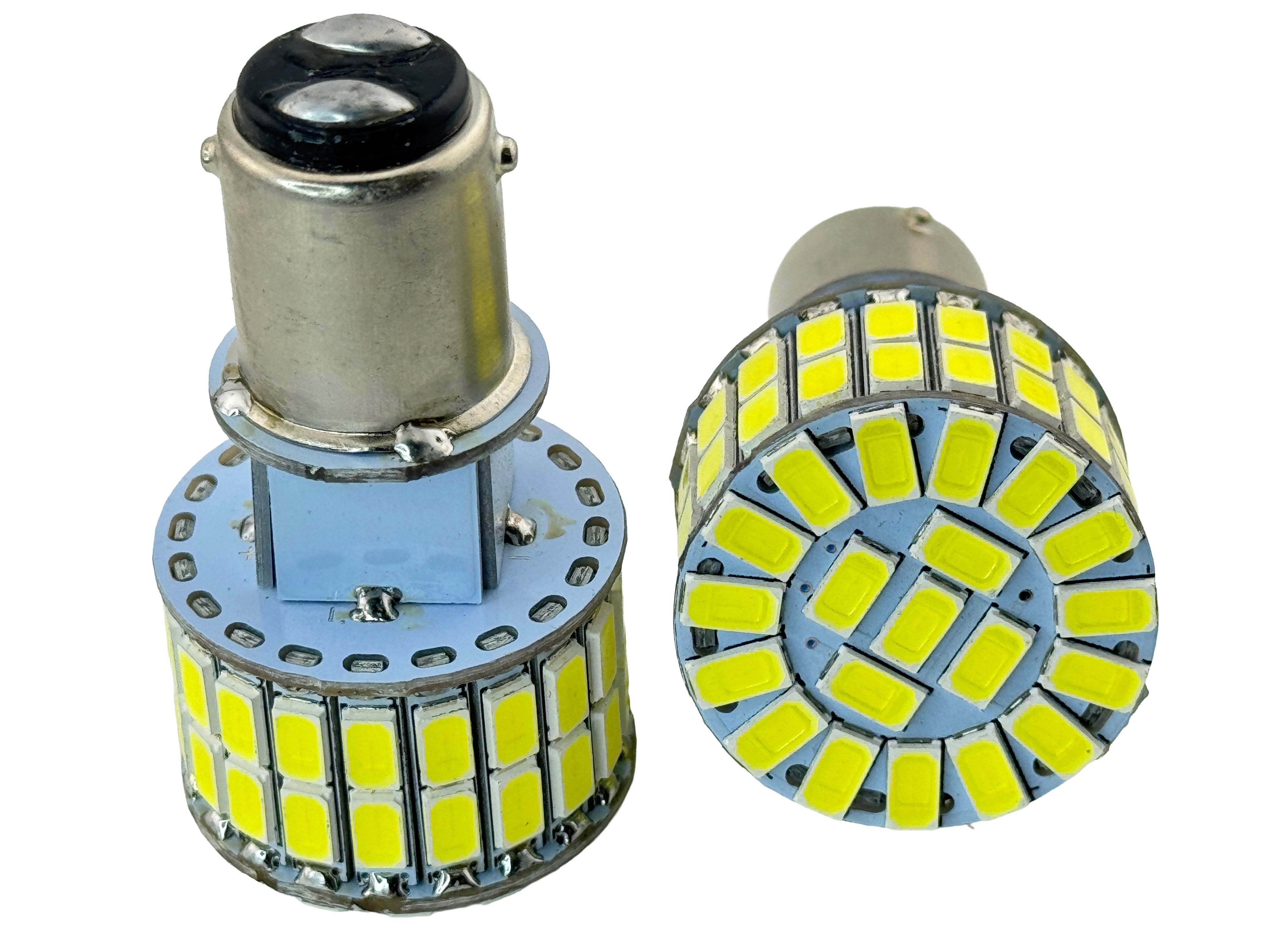

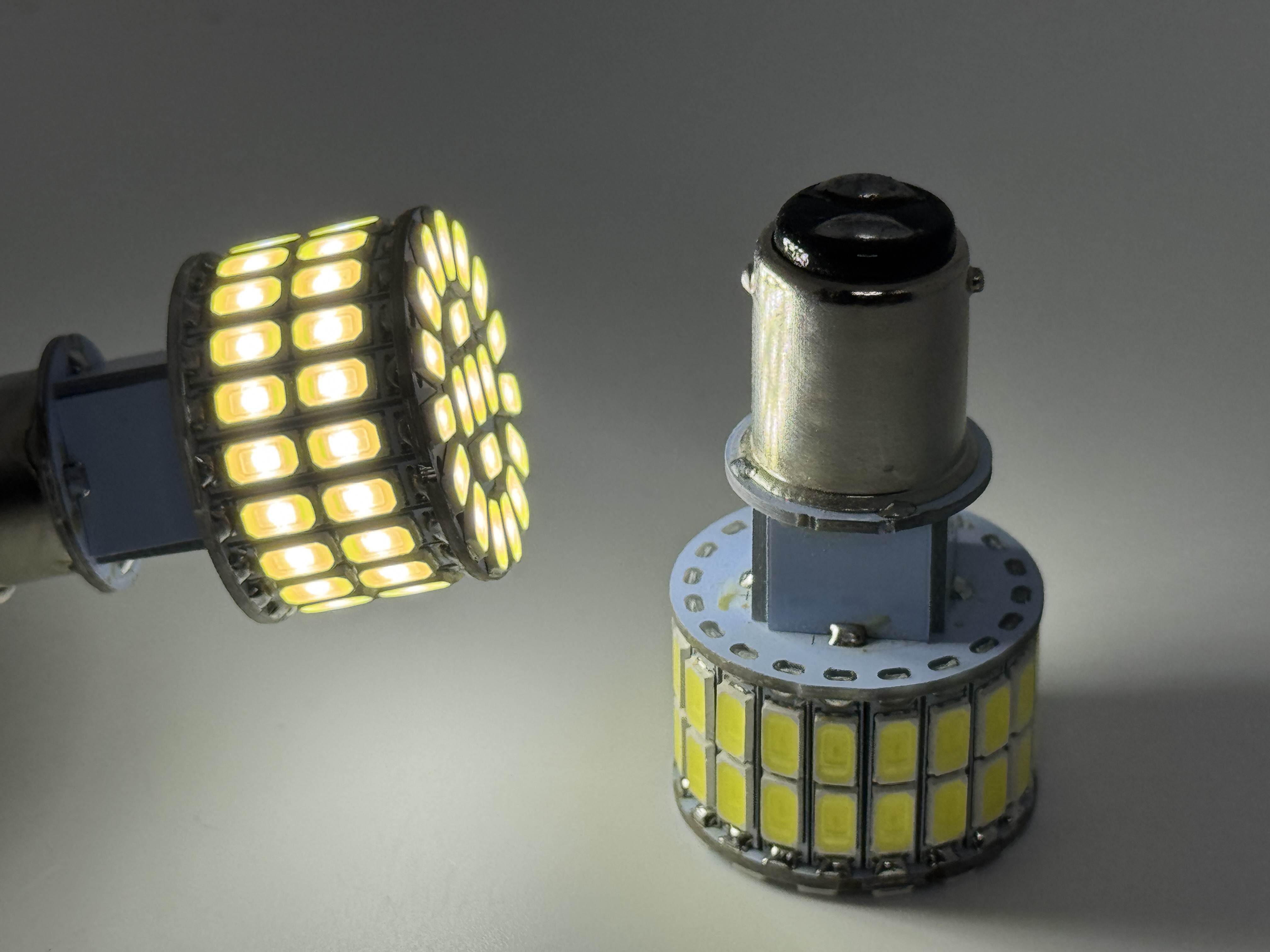

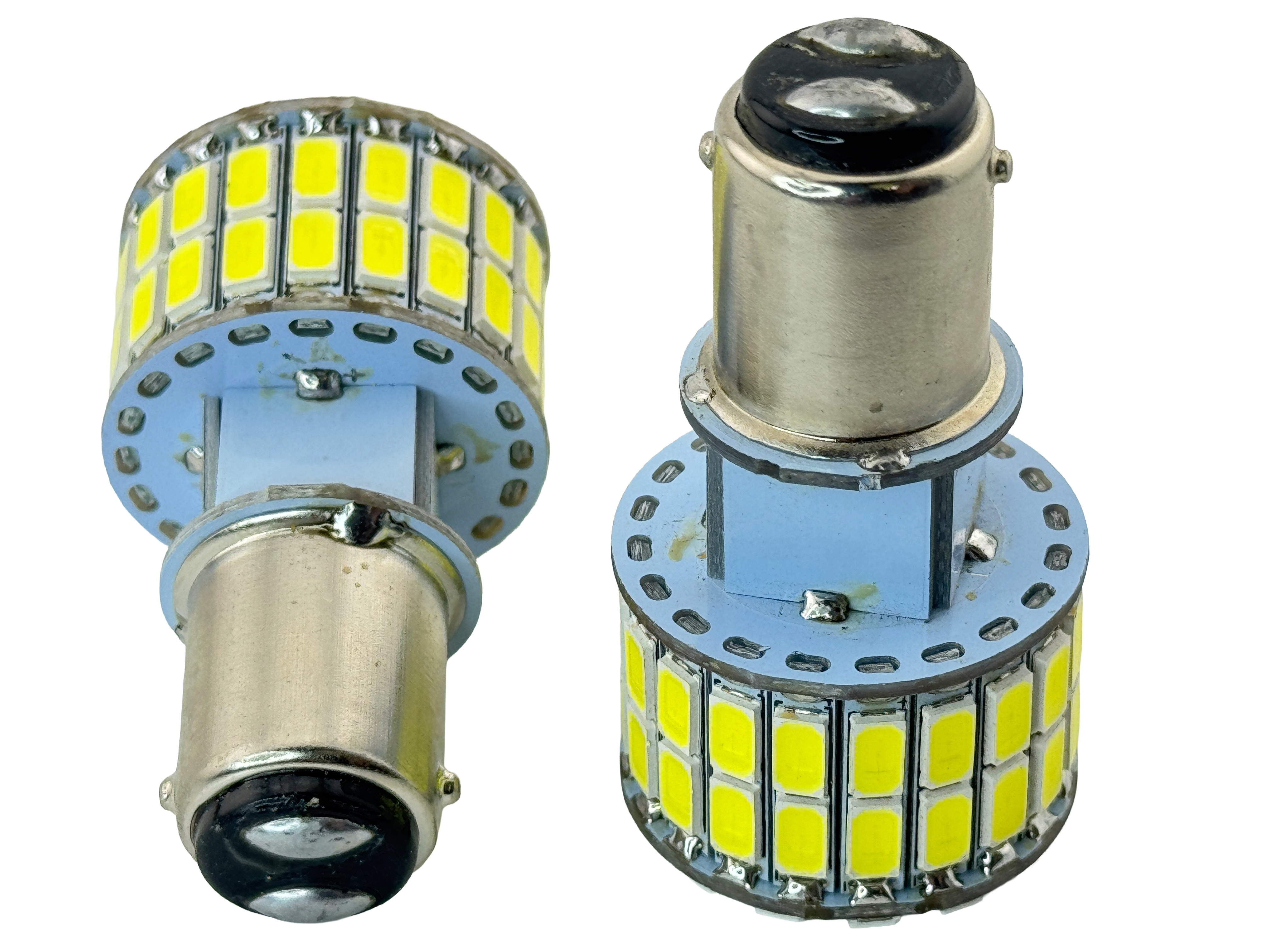

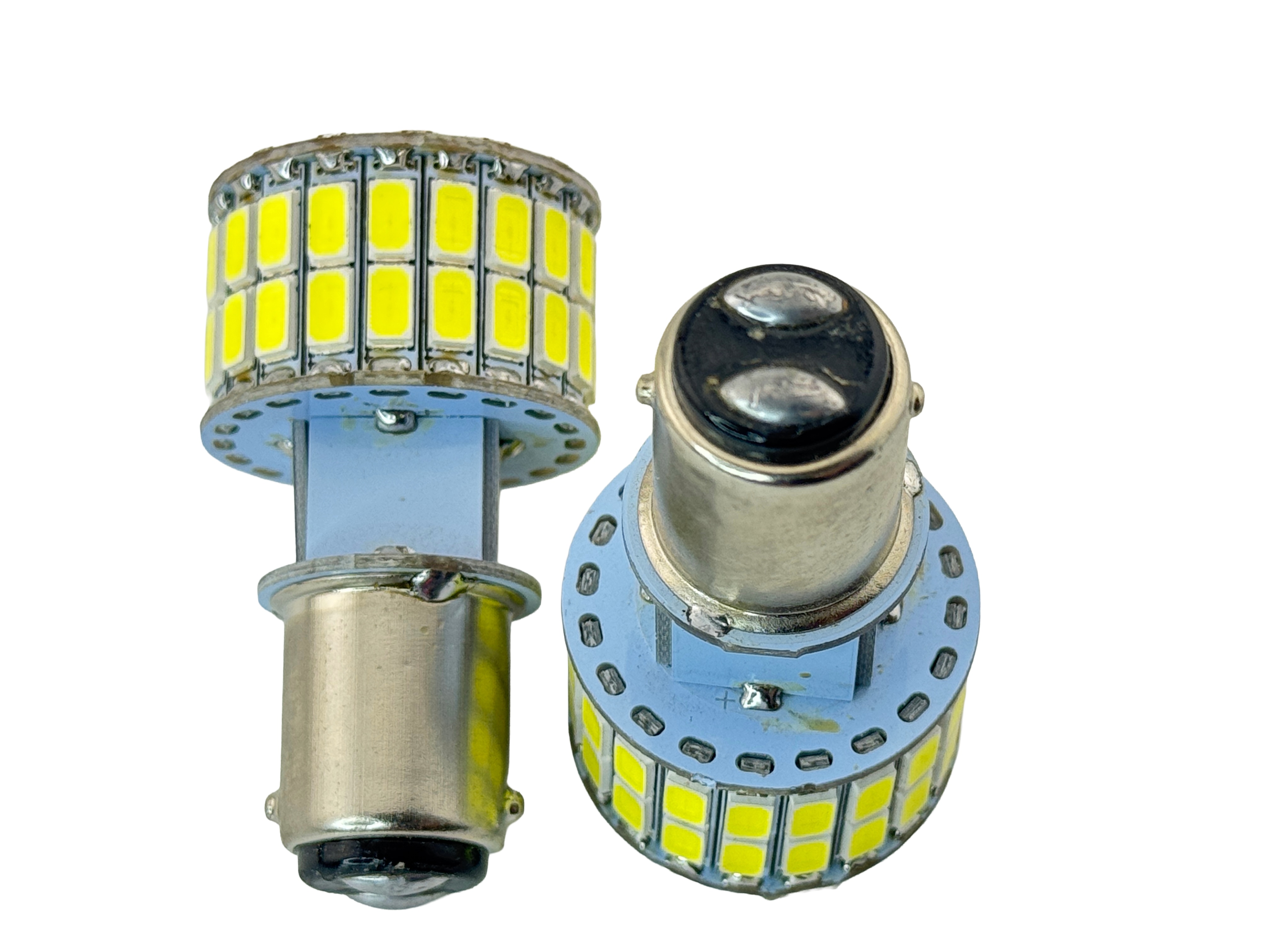

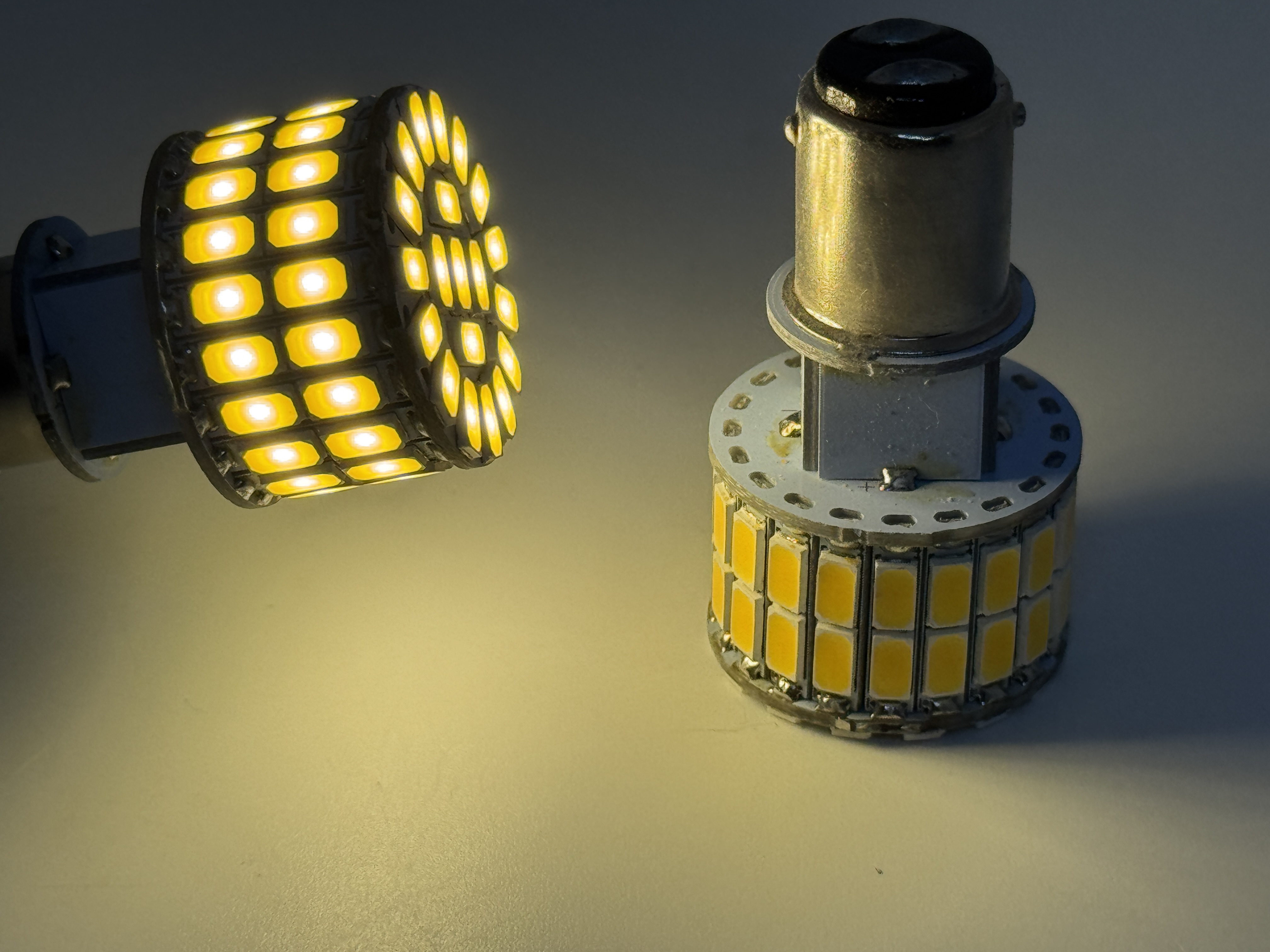

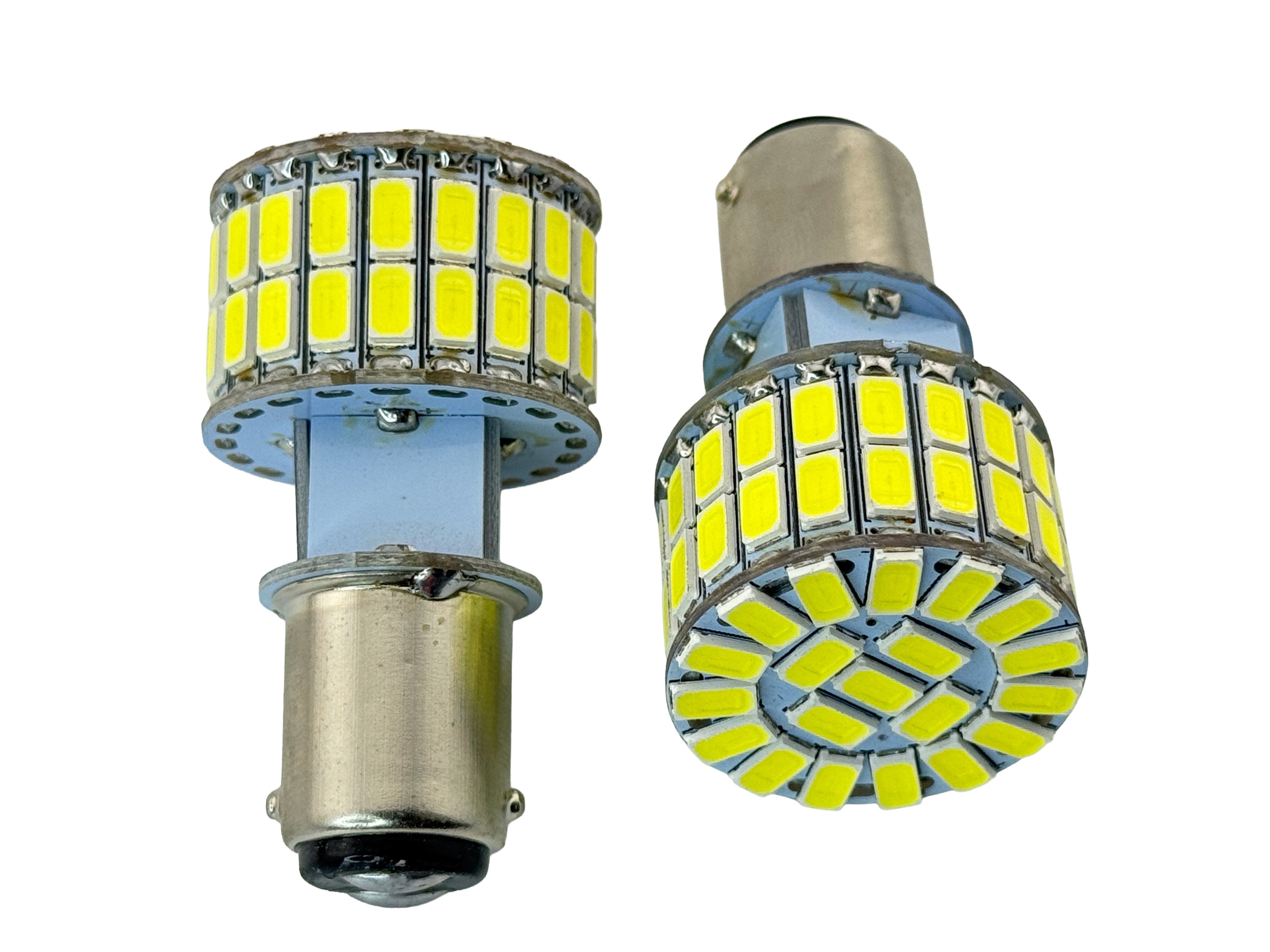

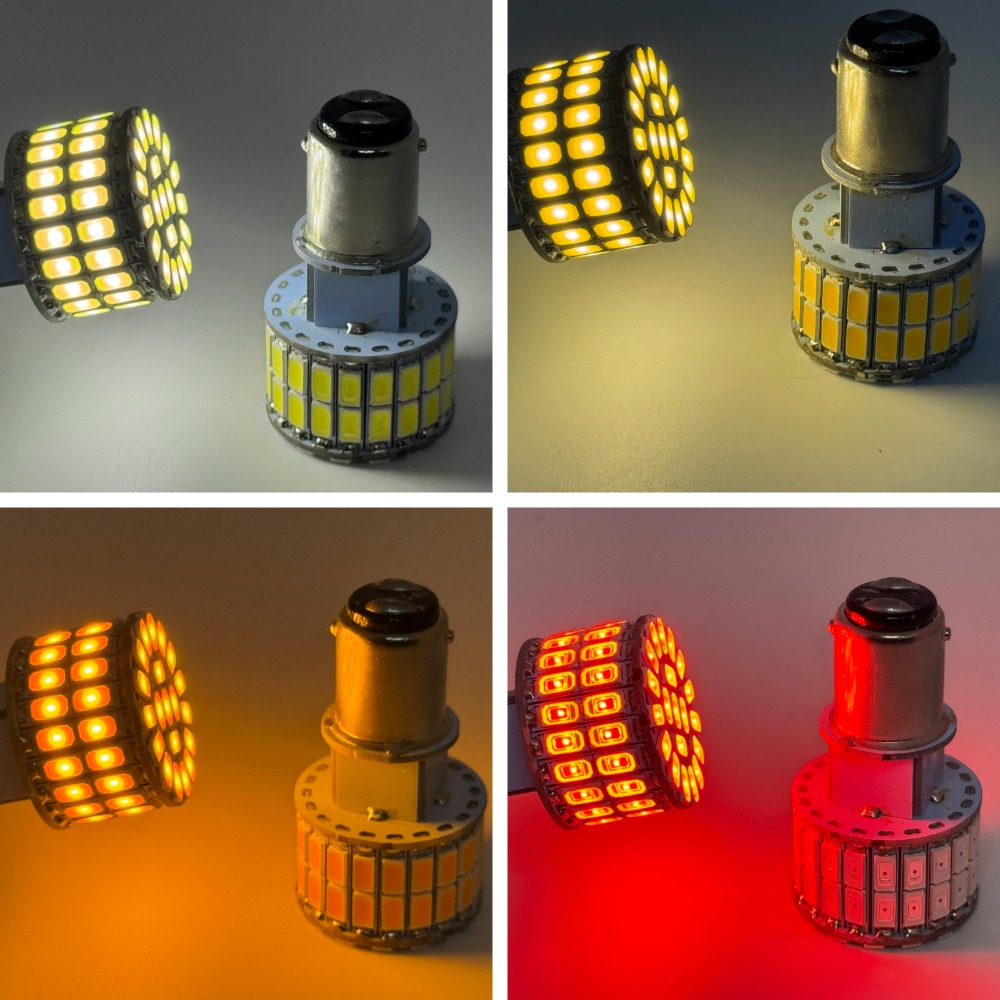

1142 6 Volt LED Bulb. This lamp has 60 5730 smd leds. Up to 850 Lumen output single filament. The BA15D base has two contacts and the bayonets are parallel. Please apply ground to one contact and 6 Volts to the other contact. The leds are are optically aligned with the reflector for maximum led light output. 360 degree viewing angle. Long life up to 30,000 hours. Dim-able using a variable DC power supply such as your dashboard dimmer switch. Works in both positive ground and negative ground vehicles, tractors and trucks. The 1142 has a single filament, meaning this led is only on and off. CE and Rohs listed. Up to 70 CP candle power. Long warranty please see details below. The color options are white 6000k, warm white 3000k, Red 625 nm, Green 526 nm, Blue 464 nm & Yellow 594 nm. The base is BA15D the diameter of the base is 15mm with two contacts. The overall length is 1.944 inches. The maximum diameter is 1.058 inches. Uses about 1 Amp @ 6.3 Volts. Compatible with: 1142 #1142
  Recommended Items:


1142 LED BA15D Base 13 LED 6 to 12 Volt 2.6W Single Filament

1142 LED BA15D Base 13 LED 6 to 12 Volt 2.6W Single Filament
Product Code: 84698
Price: $5.99Quantity Pricing Available

No Description Available





BA15D Female Socket Surface Mount Stand and Wires

BA15D Female Socket Surface Mount Stand and Wires
Product Code: 94788
Price: $1.49Quantity Pricing Available

No Description Available





1142 LED BA15D 24 LED 6 Volt Positive Ground Single Filament

1142 LED BA15D 24 LED 6 Volt Positive Ground Single Filament
Product Code: 87848
Price: $4.79Quantity Pricing Available

No Description Available

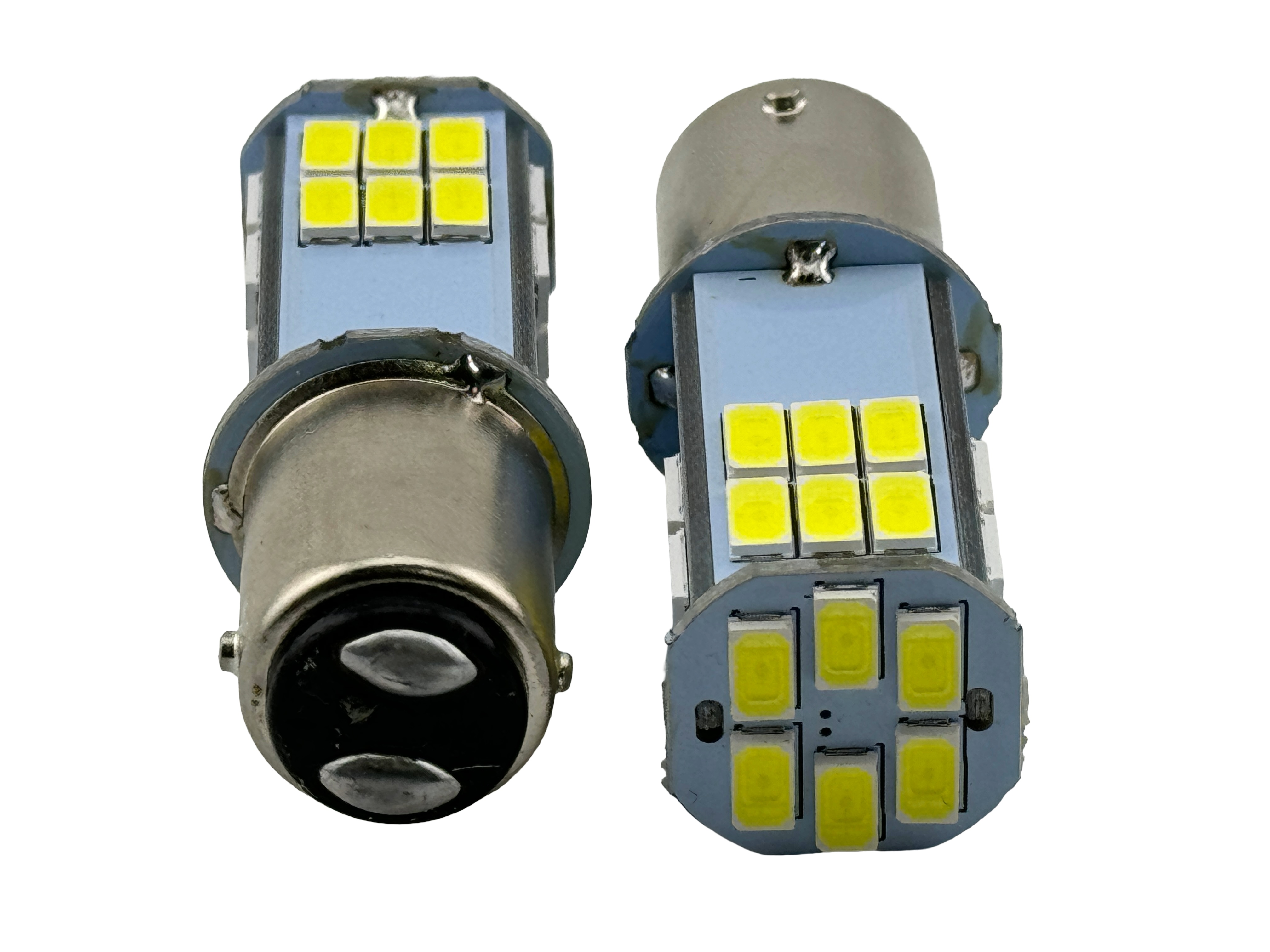

 1142 LED Miniature Bulb 6 Volt BA15D Base 30 SMD
