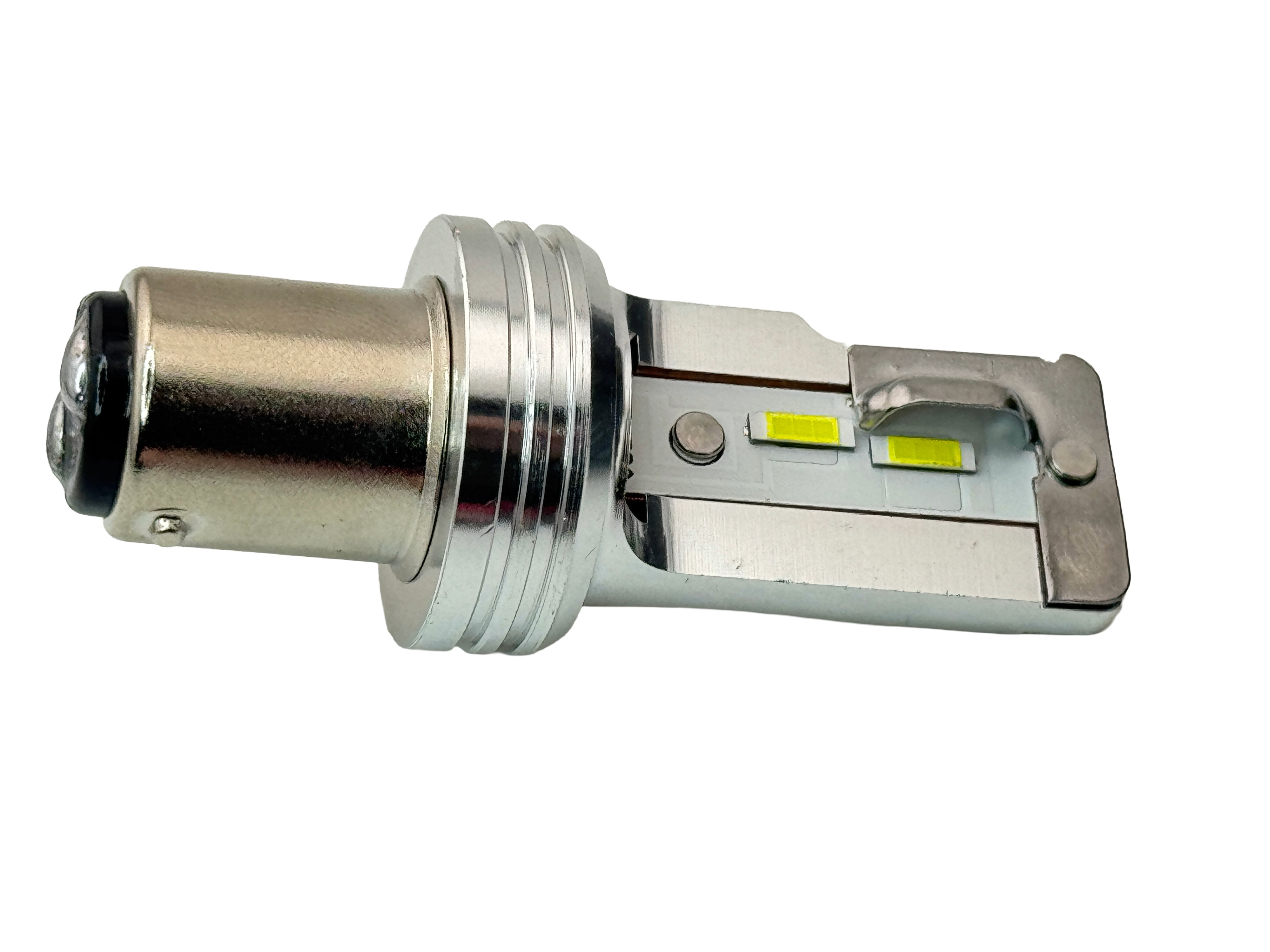

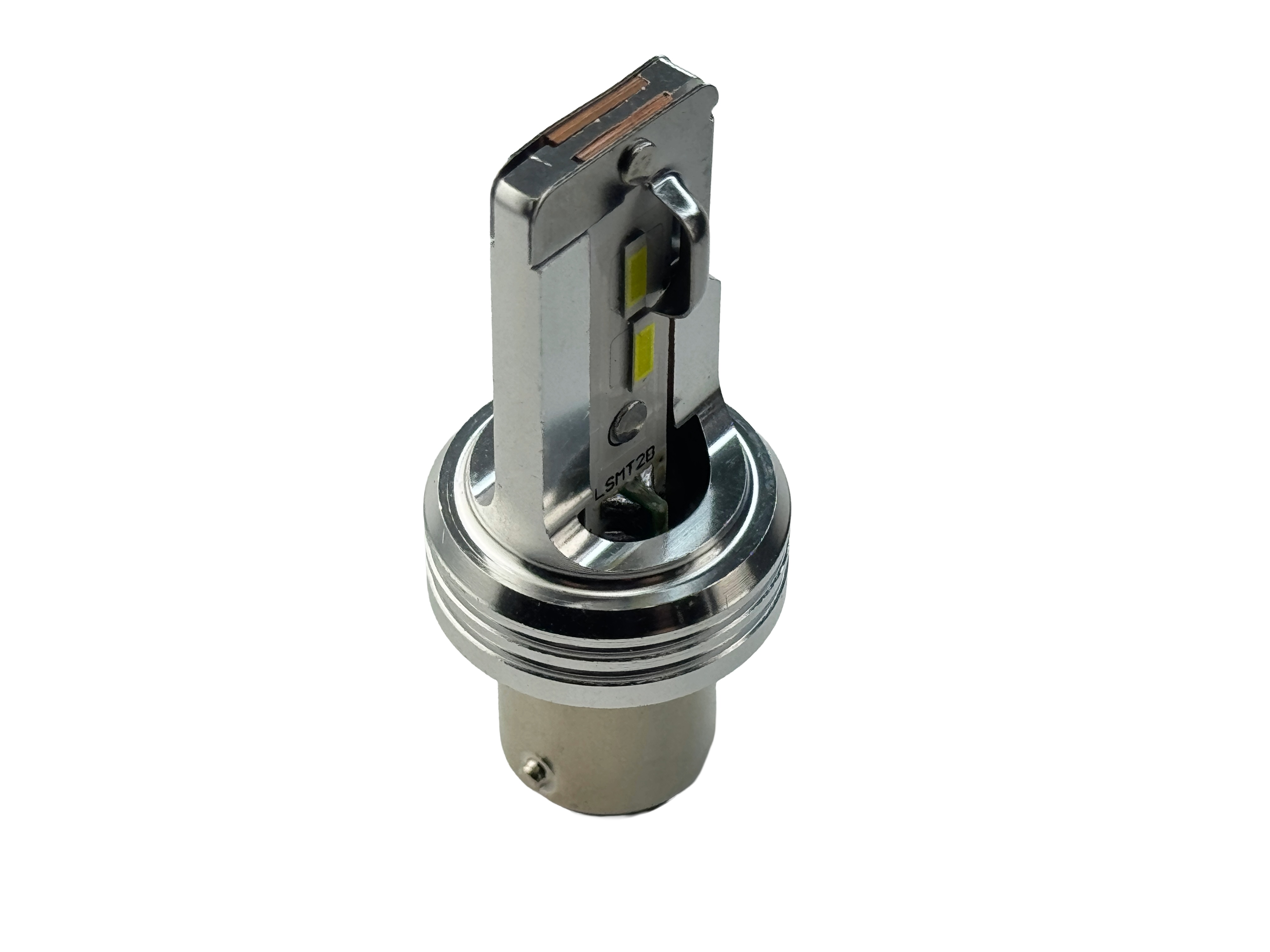

BA15D LED Headlight Dual Filament 6 to 9 Volts Non Polarized product 96457
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

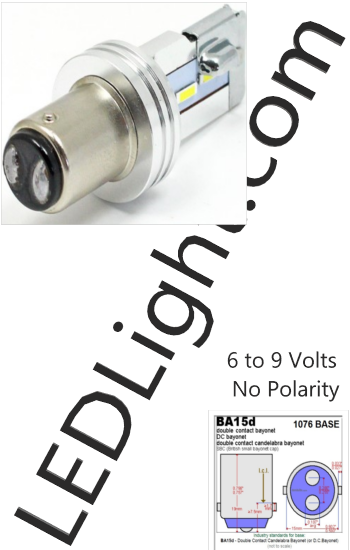

BA15D LED Headlight Dual Filament 6 to 9 Volts Non Polarized Zero Degrees

Product Code: 96457

USD Price: 22.99
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%
Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 12 Months

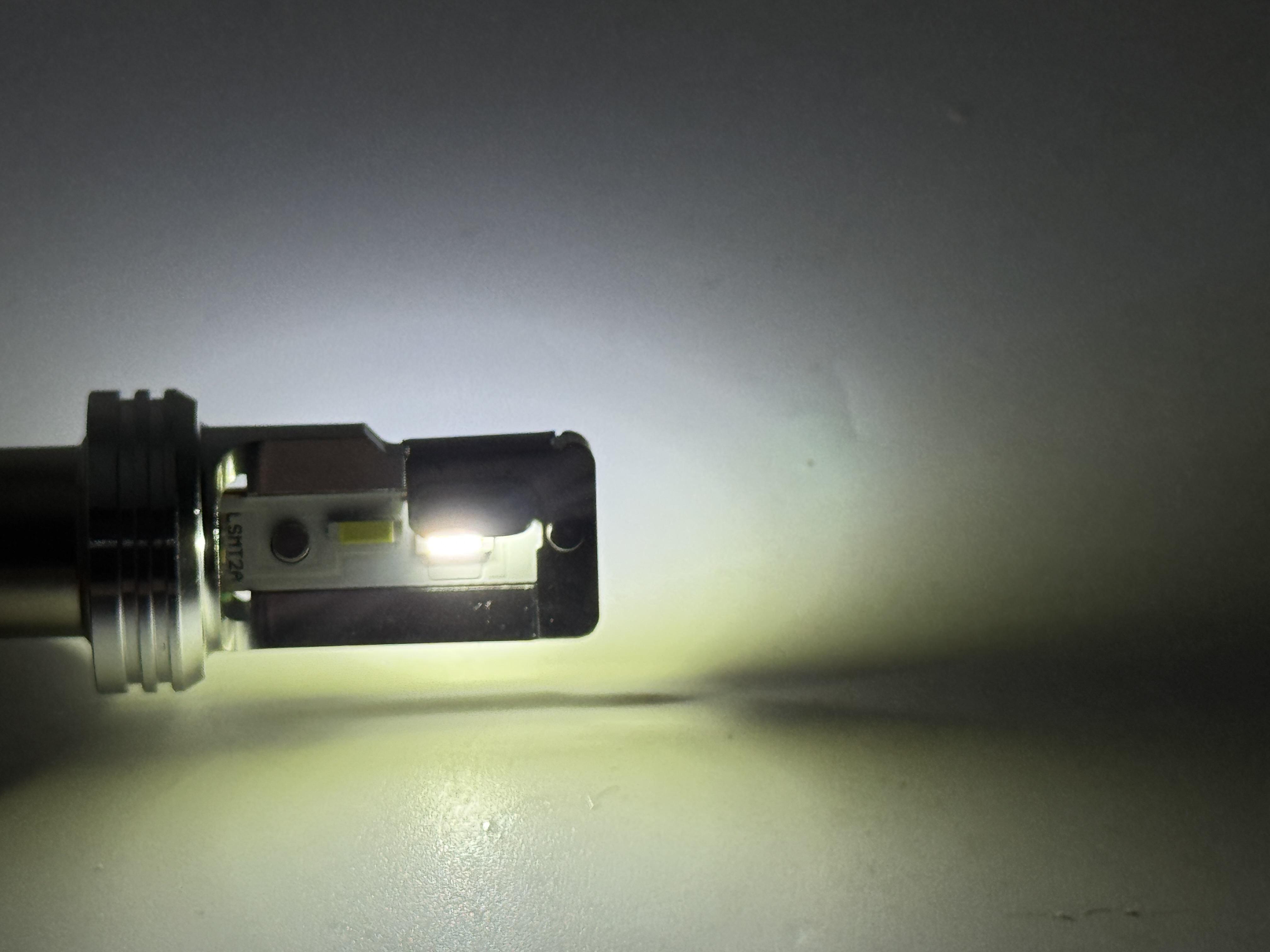

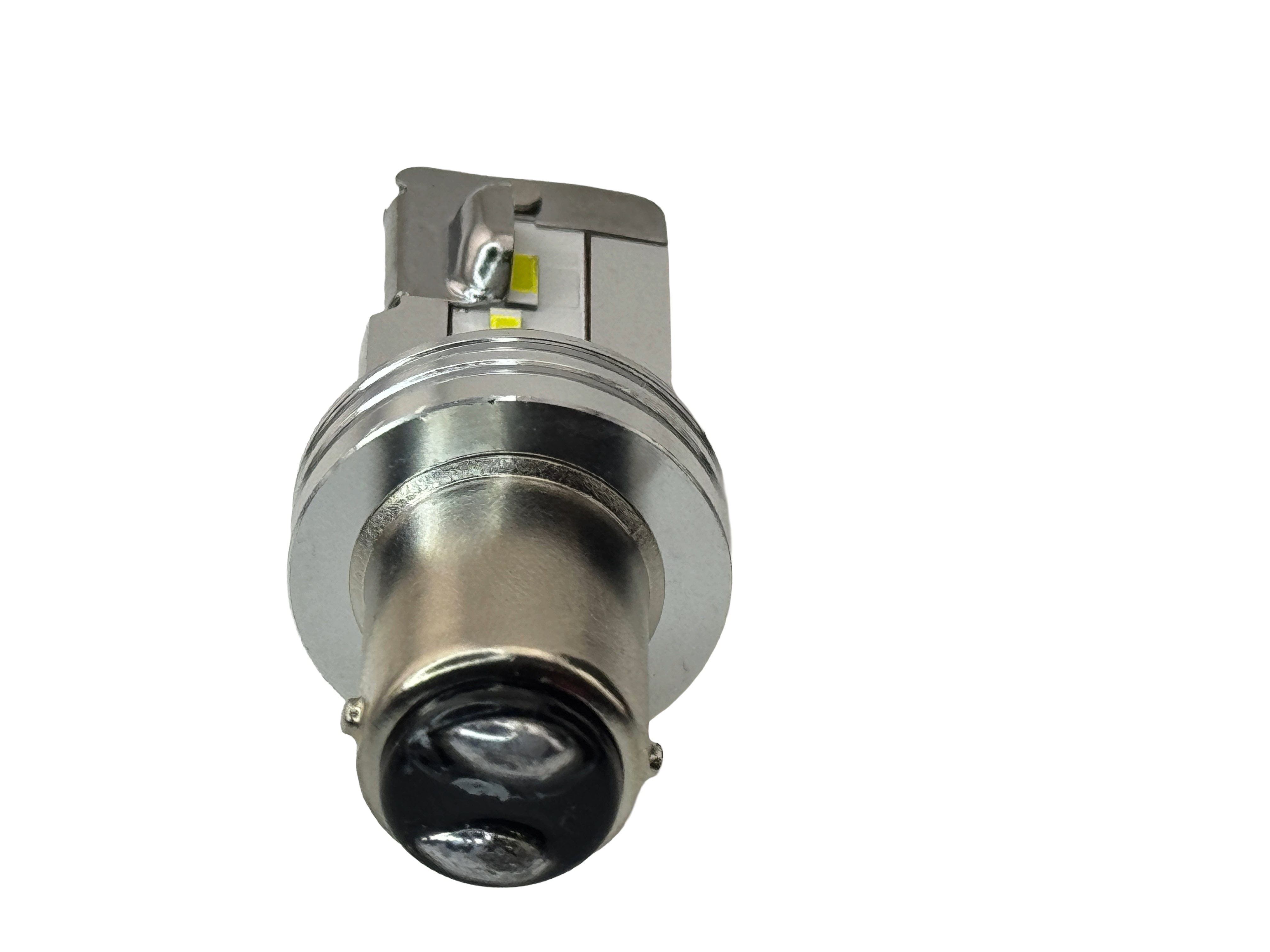

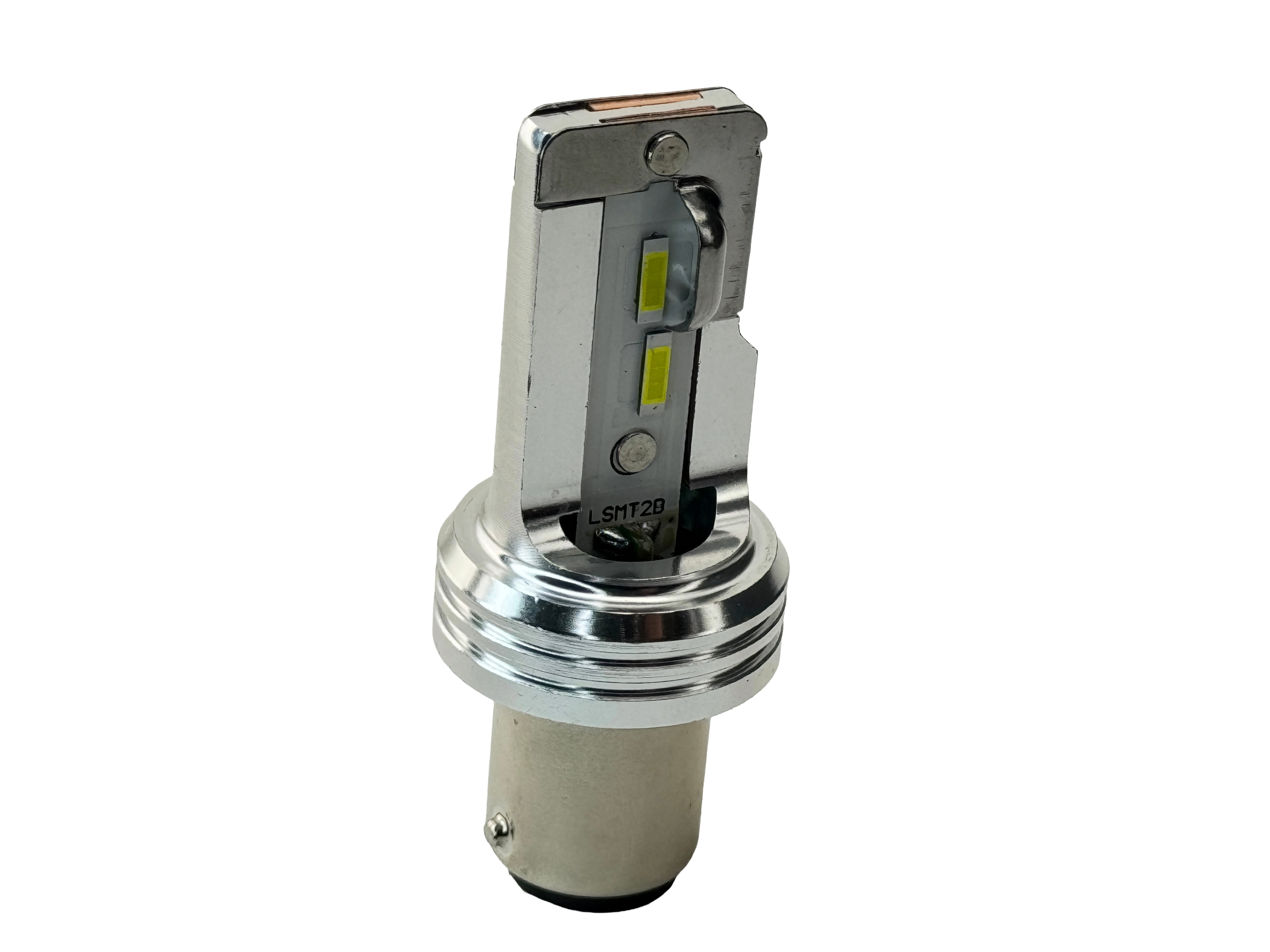

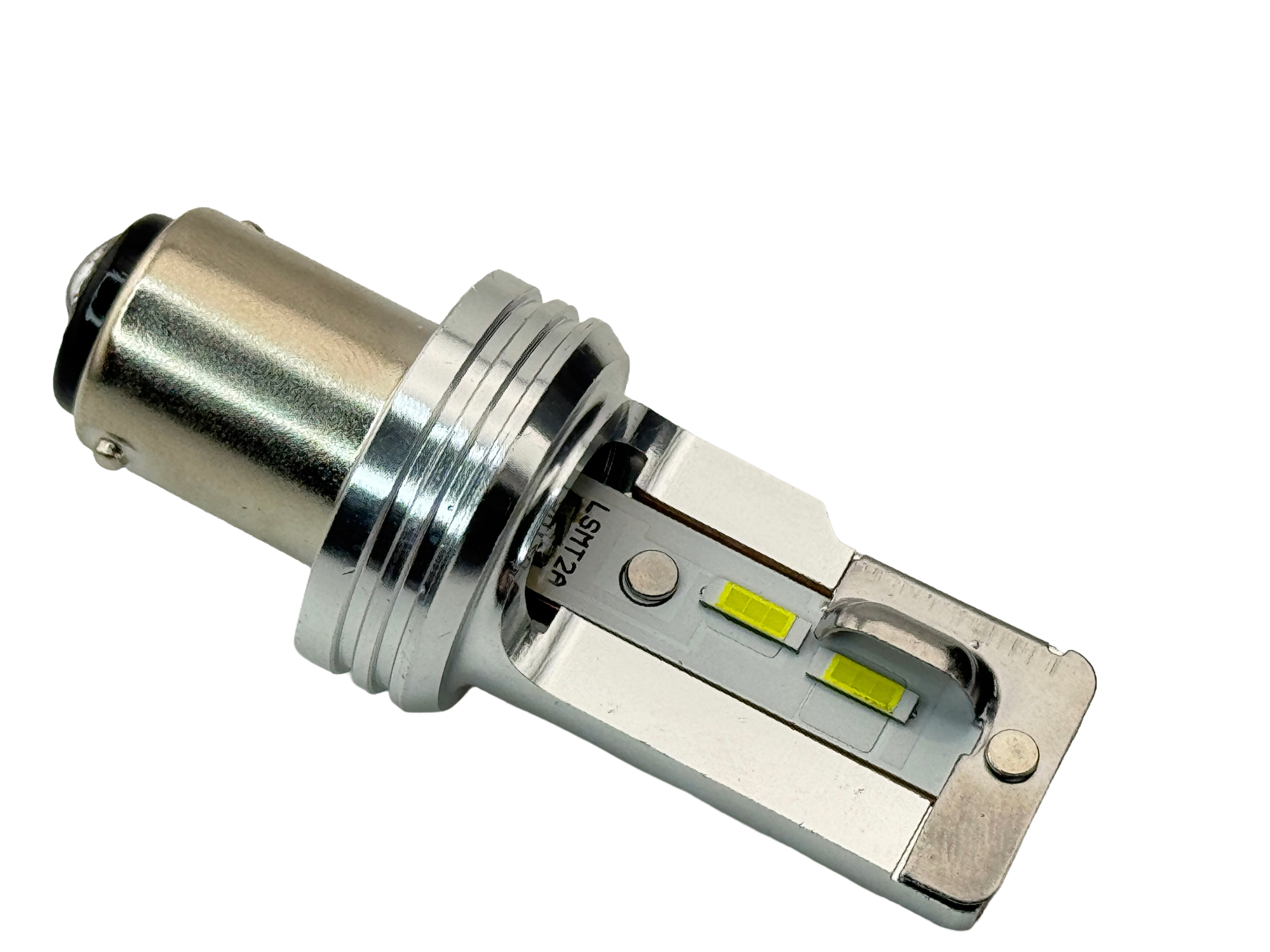

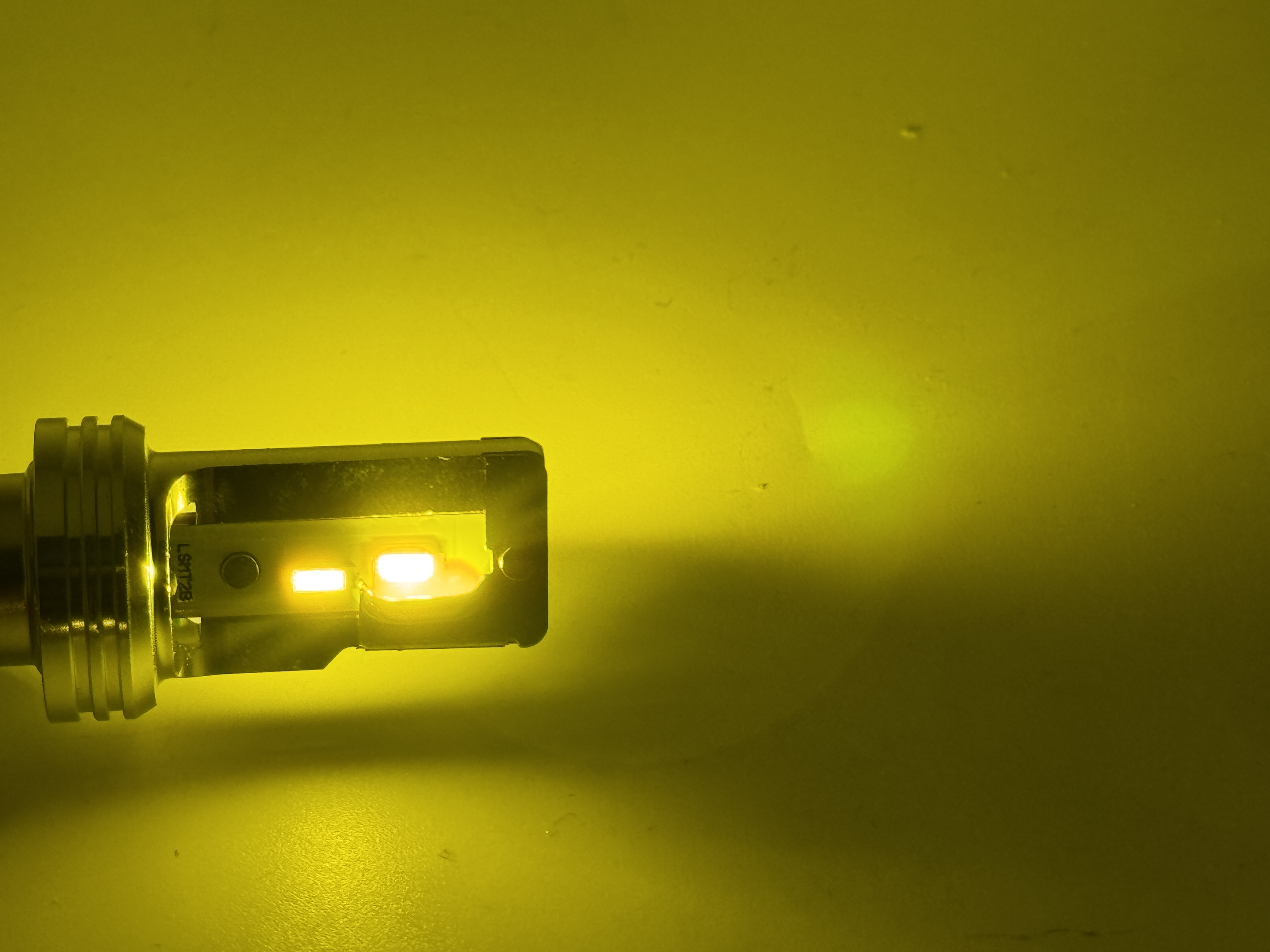

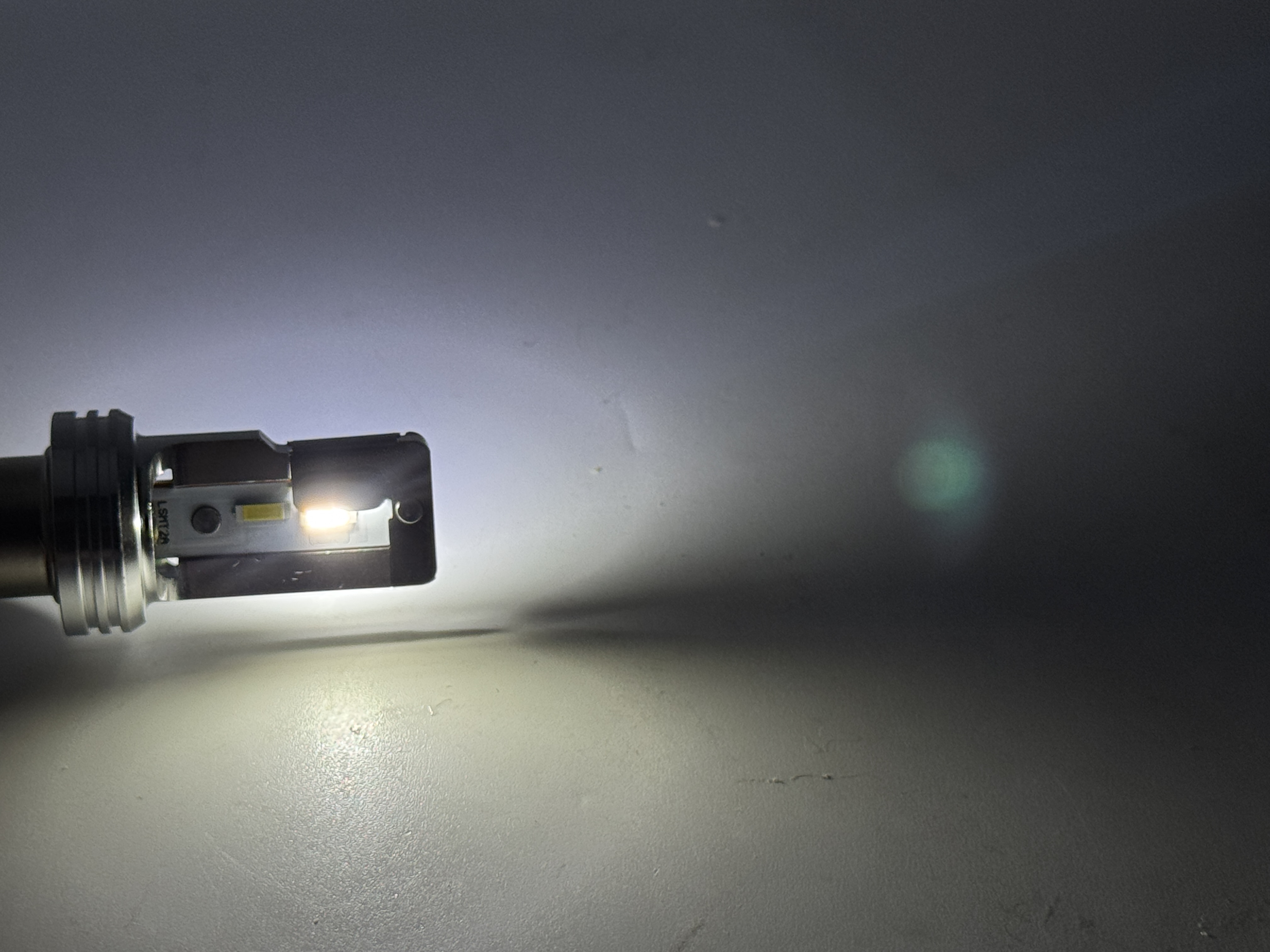

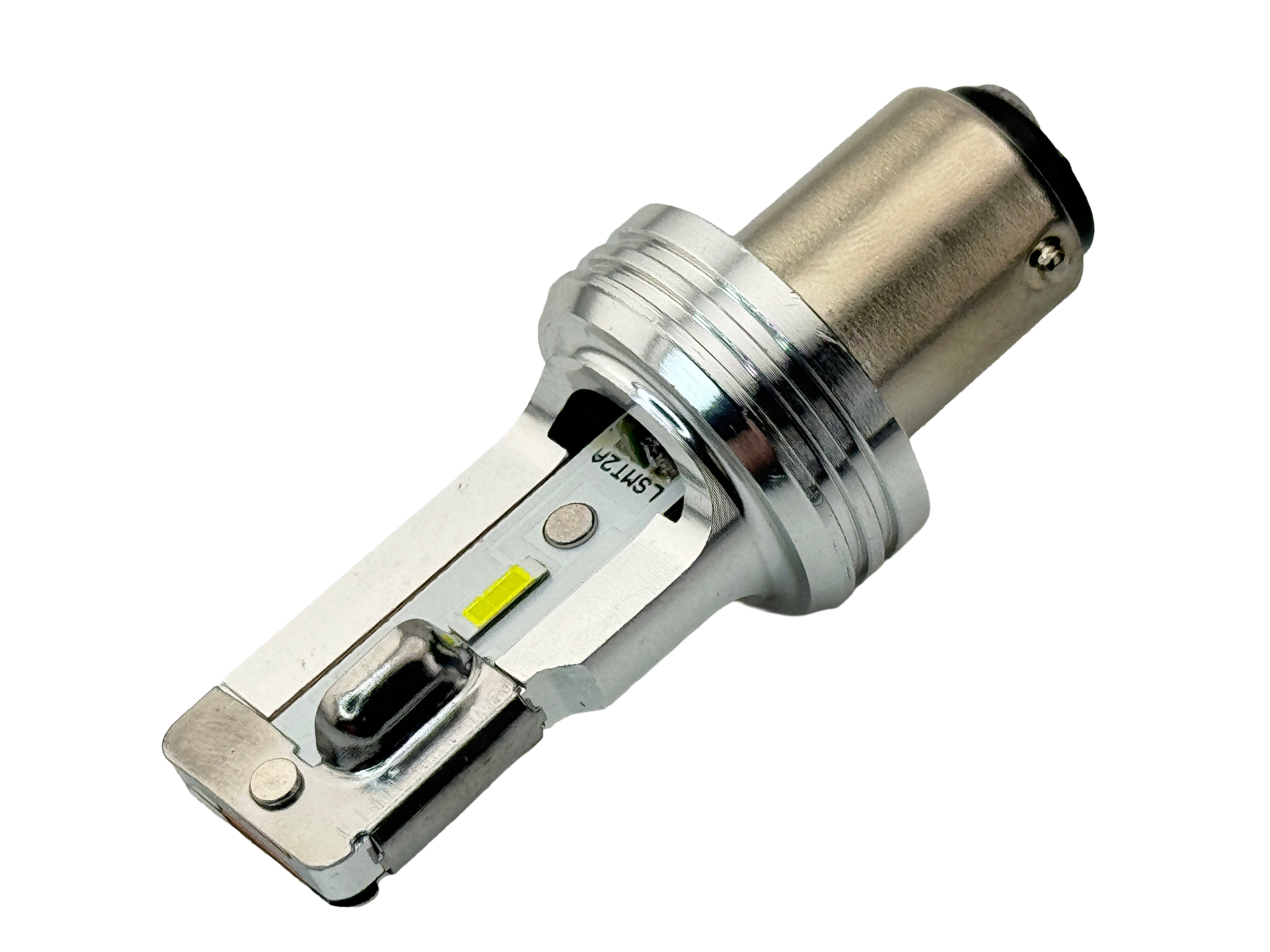

BA15D LED Headlight dual filament. Has both a low beam and high beam. The low beam is shielded to keep to a minimum glare for oncoming vehicles. Up to 1700 Lumen output for the low beam. Up to 3400 Lumen for the high beam. Uses aproximately 1.50A@6V for low or high beam. Only the low beam led's illuminate on both side of the bulb for low beam. All led's on both sides light for the high beam. The product uses CSP led's for high power, high lumen output. The CSP led's model the original incandescent filament for the best focused light output compared to a incandescent headlight lamp. The headlight will work in both positive ground chassis and negative ground chassis. Due to led headlights using 90% less energy that a incandescent bulb load equalizers may be required if the headlights blink or do not change from low beam to high beam. Please see product 65832. The bayonets are located on the top and bottom of the led bulb. The bulb is made of aircraft aluminum to keep the led's cooler so they last a longer time. The bayonets are even, the diameter of the base is 15mm. There are two contacts on the bottom one for low beam and the other contact for high beam. Since led headlights use 90% less power your generator or alternator has to work less to keep the lights on. Available in White 6000K, Daylight White 4500K and Warm White 3000K. The White 6000K is brighter by about 5% than the Daylight White or the Warm White. The Warm White has the color that best matches the color of a incandescent bulb for that original vintage look. The M.O.L. maximum overall length is 2.356". The M.O.D. maximum overall diameter is .944". The length from the base of the heatsink is 1.595". The width of the heatsink is .706".Come one per package. CE and Rohs.
