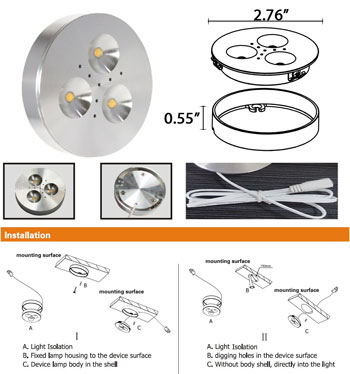

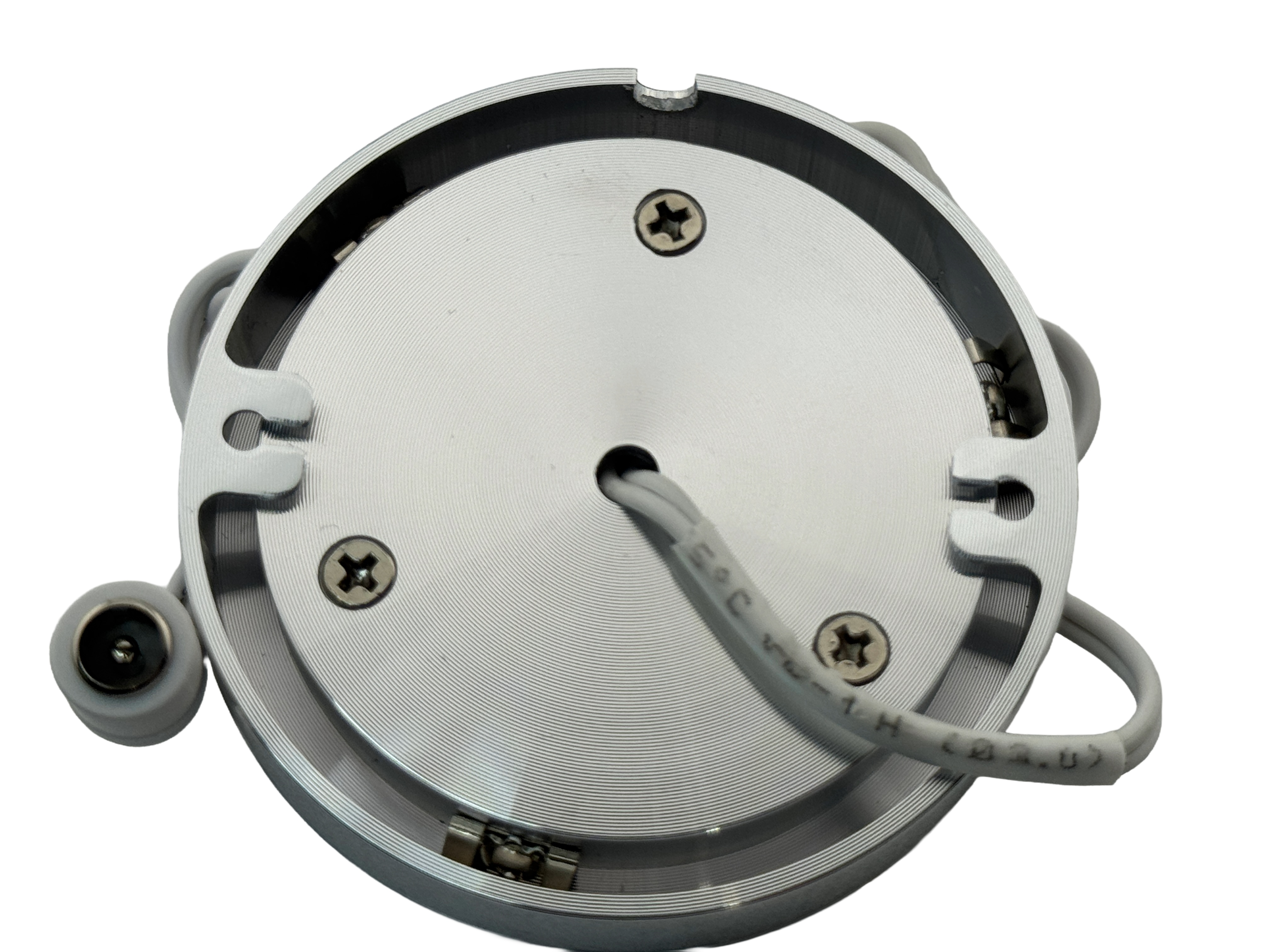

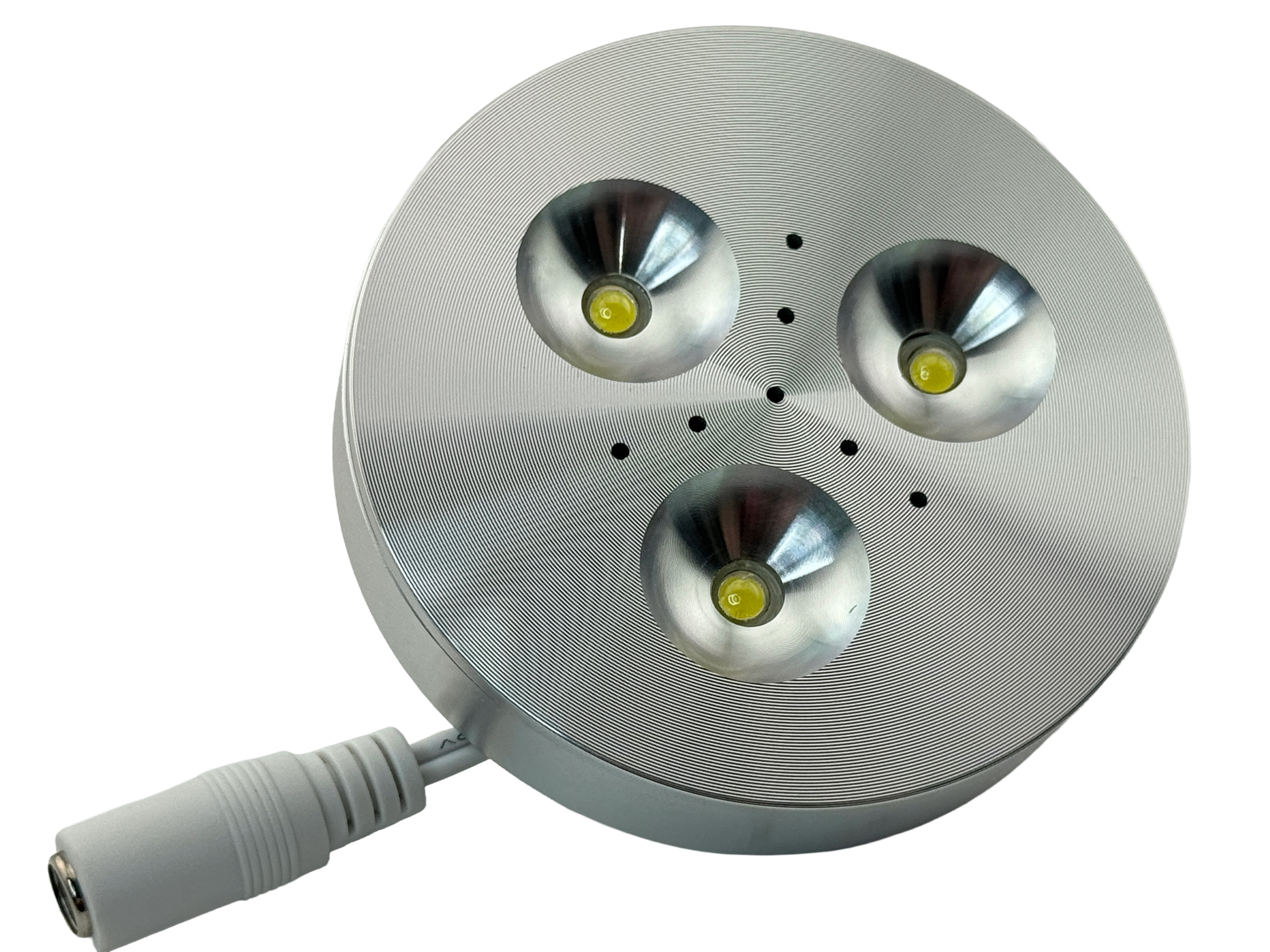

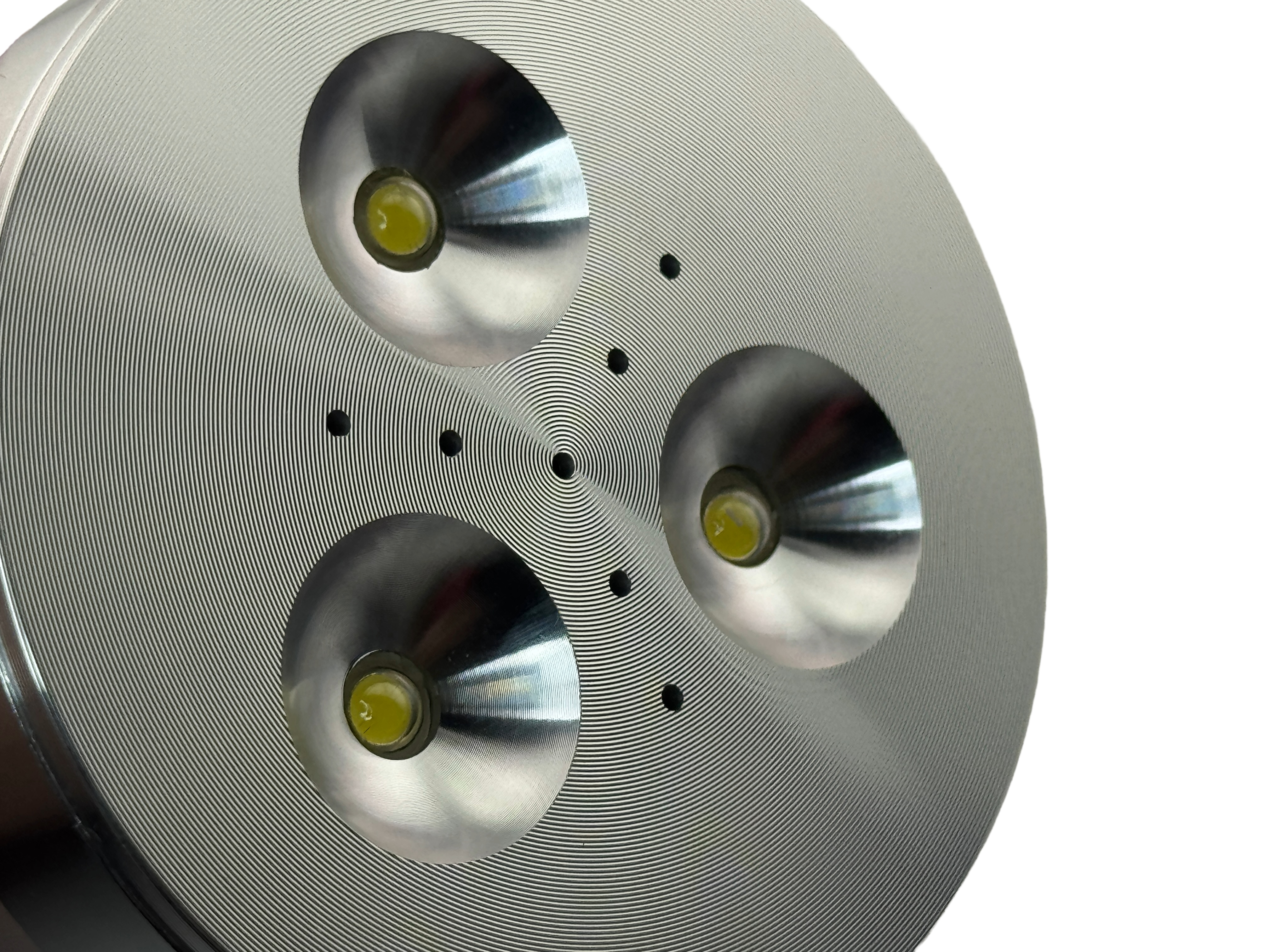

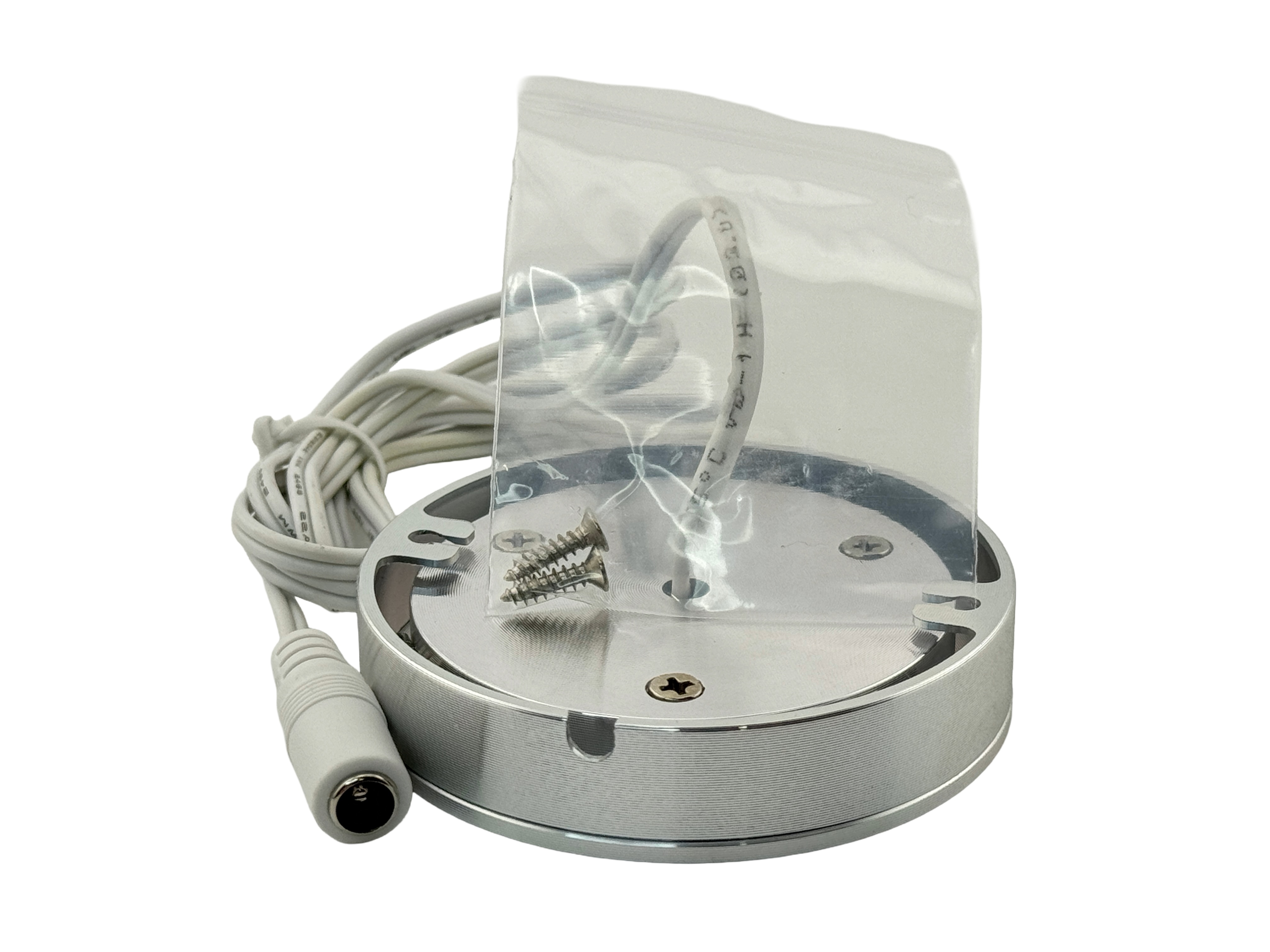

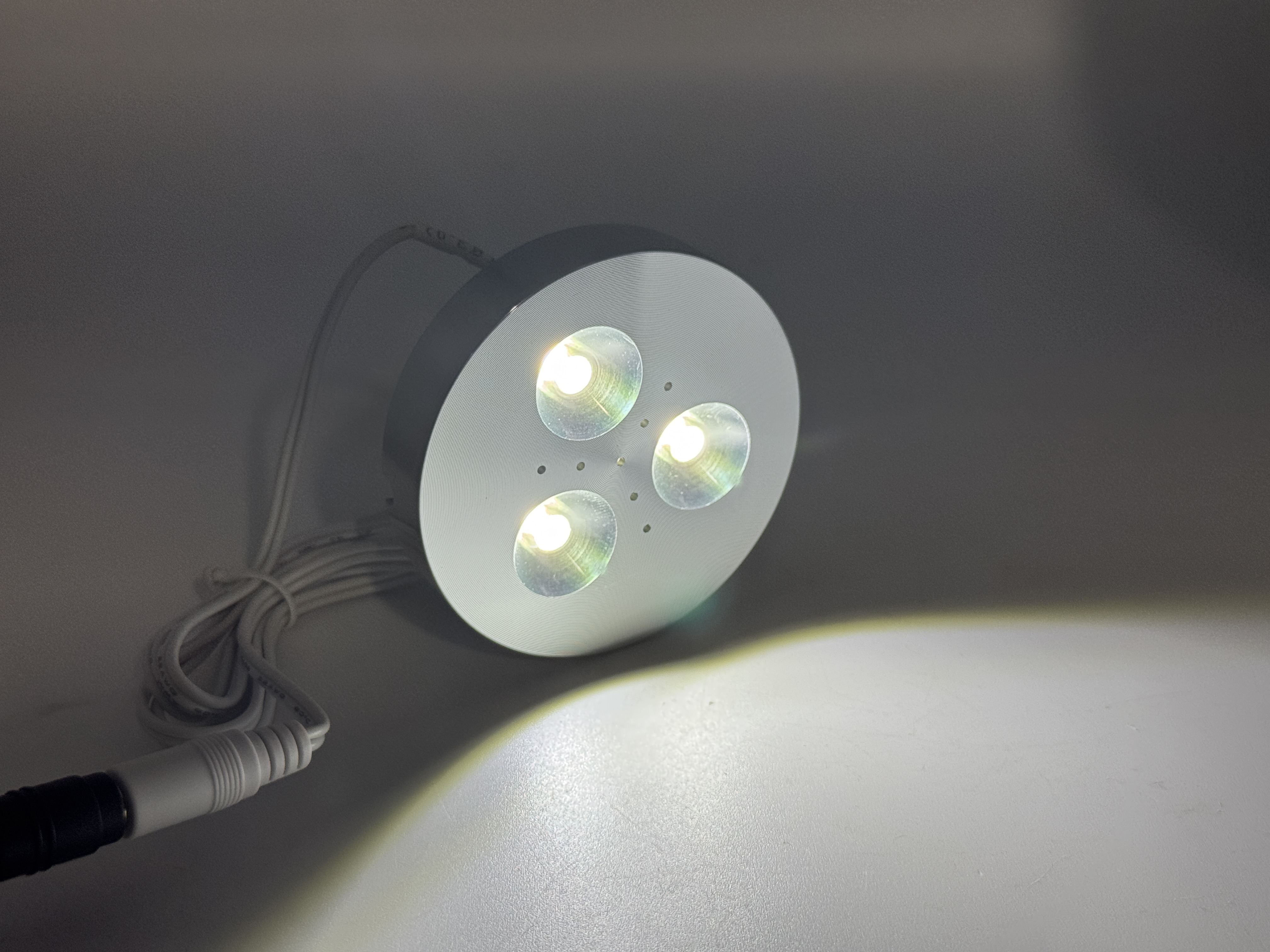

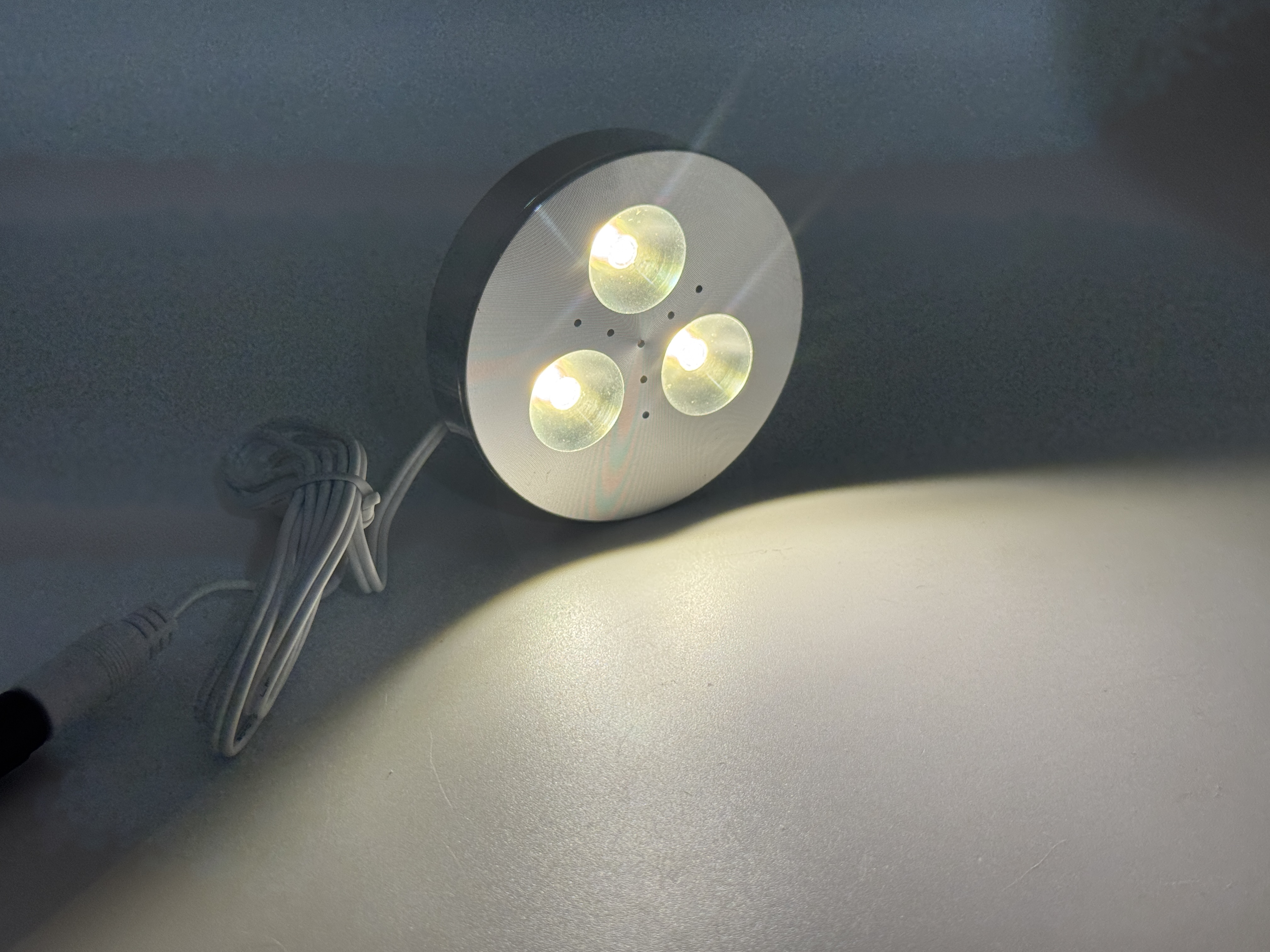

Under-Cabinet LED Puck Light 12VDC. 3 Watt. This small puck light provides a very high and even light output. Uses 3 (1 Watt) high powered LEDs. It can be surface or recessed mounted and is ideal lighting for kitchen cabinets, displays and furniture. Connect multiple puck lights with our 2-way or 3-way harnesses. The cord on each puck light is approximately 3 feet long. 120 degree beam angle. Up to 300 Lumen output. Approx. 2.76" x 0.55". Available in 6000-6500K white and Warm White 3000K. Female plug 5.54mm and 2.15mm tip. The puck is held together by 3 Phillips screws. The face plate removes if needed for smaller diameter holes such as 2.28" diameter. The back has two recessed and hidden dog ears to mount screws it is hard to see in the picture. The led cabinet light is dimmable with a variable voltage supply. CE and Rohs. Use product 65987 for a plug and play power supply and led under cabinet lighting.
| |
Recommended Items: |
|
| |
| |
|
|
|
Y Cable Harness
|
| Product Code:
35673
|
| Price:
$0.97Quantity Pricing Available |
| |
|
The Y cable allows one power supply to be hooked up to multiple tube lights 34563 at the same time. The cable has 5.5mm male and female plugs. |
| |
|
|
| |
| |
| |
|
|
|
Power Supply 12 VDC 24 Watt 2 Amp 100 to 240 VAC
|
| Product Code:
65987
|
| Price:
$7.99Quantity Pricing Available |
| |
|
LED Light Transformer.An inexpensive 12 volt AC/DC ROHS grade switching power supply adapter is for any application requiring ROHS or Energy Star 12 volts at 2 amps or less. UL-listed. |
| |
|
|
| |
| |
| |
|
|
|
|
| |
| |
| |
|
|
|
3-Way LED Light Harness Cable 12VDC White
|
| Product Code:
34589
|
| Price:
$2.79Quantity Pricing Available |
| |
|
3-Way LED Light Harness Cable. Great for use with multiple lights. This harness allows you to plug 3 different tube lights, modules or other LEDs to the same power source. |
| |
|
|
| |
| |
| |
|
|
|
Power Supply LED Light Custom Harness
|
| Product Code:
94350
|
| Price:
$2.99Quantity Pricing Available |
| |
|
Use this harness to connect the LED Power Supply 65987 to flexible led light part number 49587 or to connect other 12 VDC products to the LED power supply. The harness length is 18 Inches. |
| |
|
|
| |
| |
| |
|
|
|
LED Light Tube Custom Harness
|
| Product Code:
67452
|
| Price:
$3.99Quantity Pricing Available |
| |
|
Use this custom harness to connect LED Tube Lights part number 34563 to the 50 Watt part number 44397 or 150 power supply part number 32896. The wire is 18 Inches long. |
| |
|
|
| |
| |
| |
|
|
|
5-Way LED Light Harness Cable 12VDC White
|
| Product Code:
33287
|
| Price:
$5.99Quantity Pricing Available |
| |
|
5-Way LED Light Harness Cable. Great for use with multiple lights. This harness allows you to plug 5 different tube lights, modules or other LEDs to the same power source. |
| |
|
|
| |
