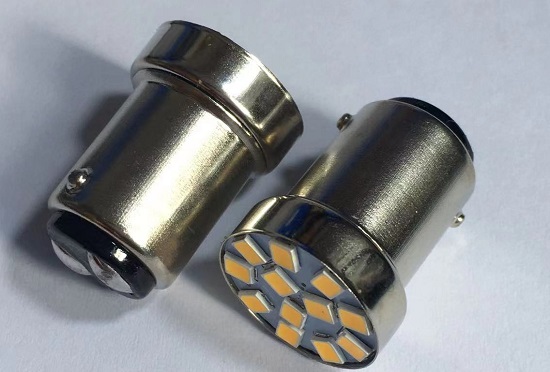

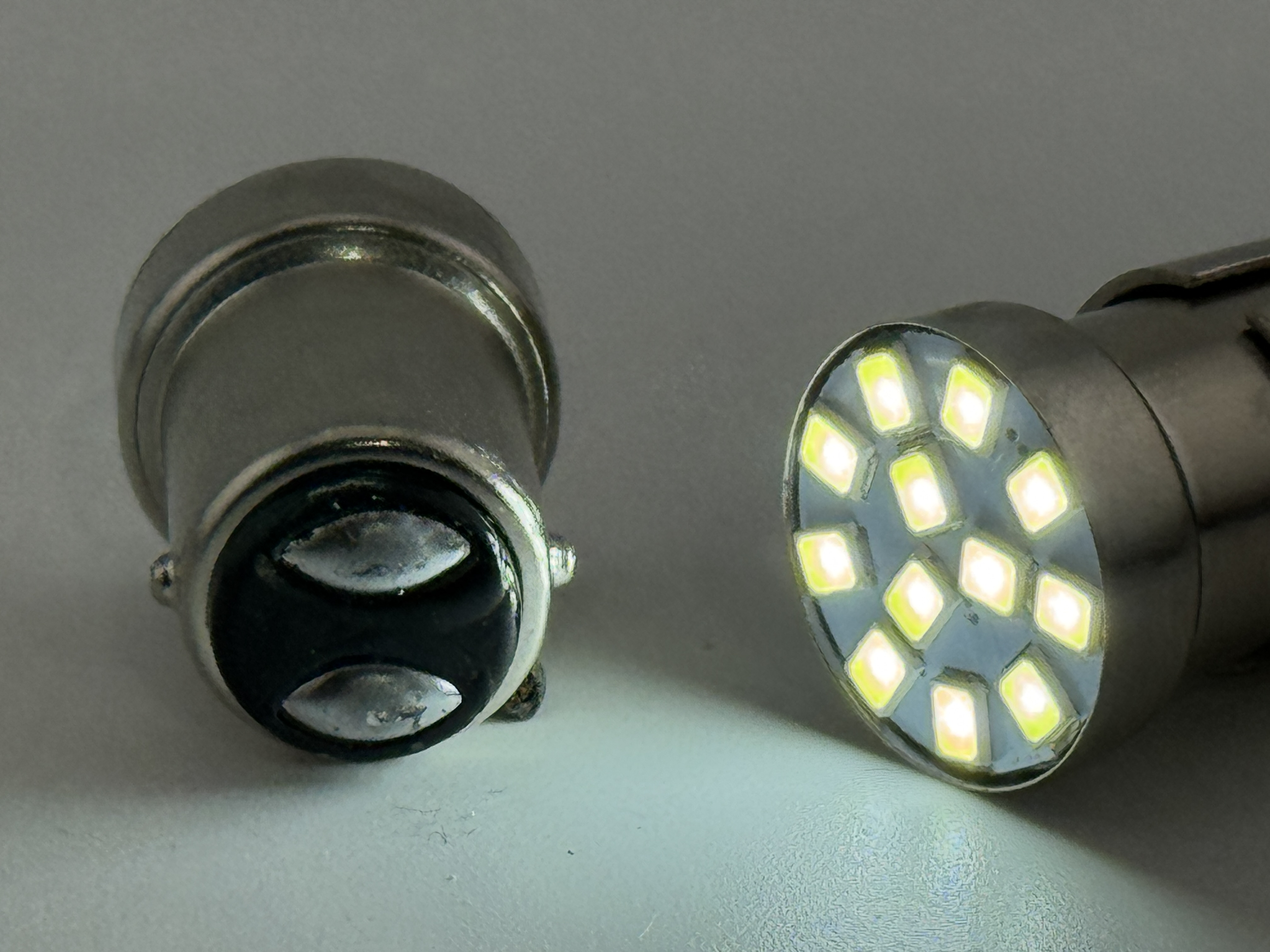

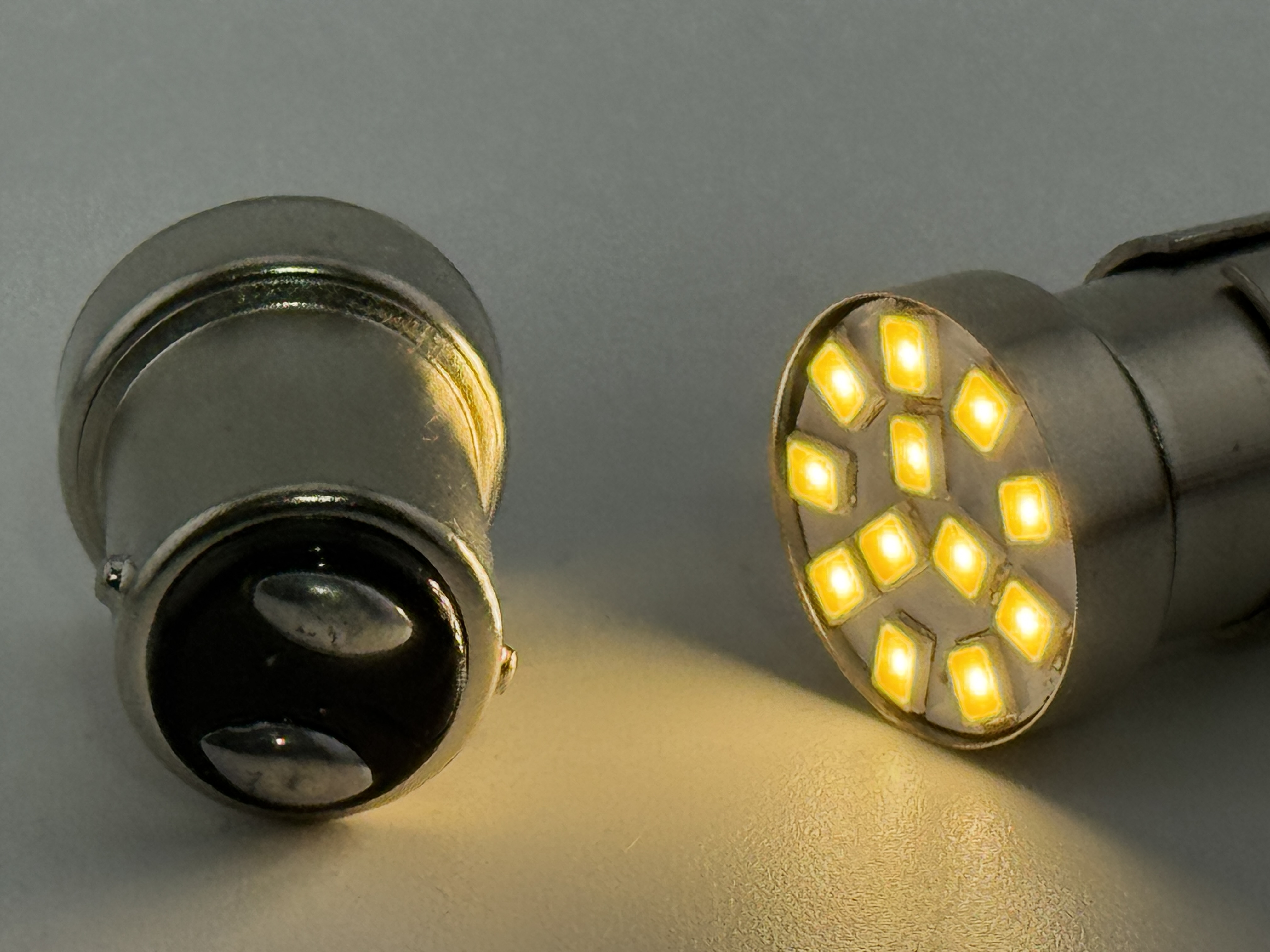

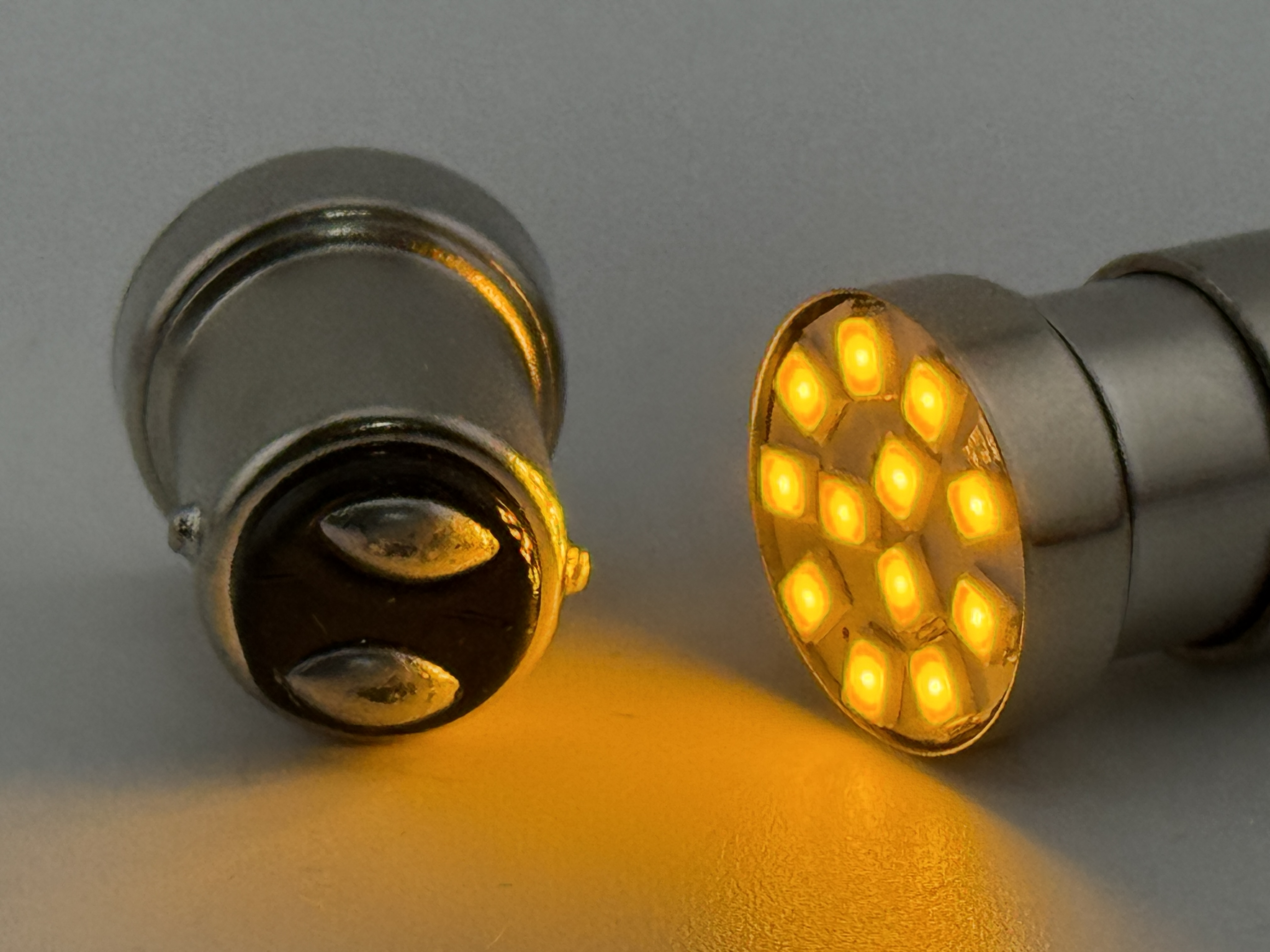

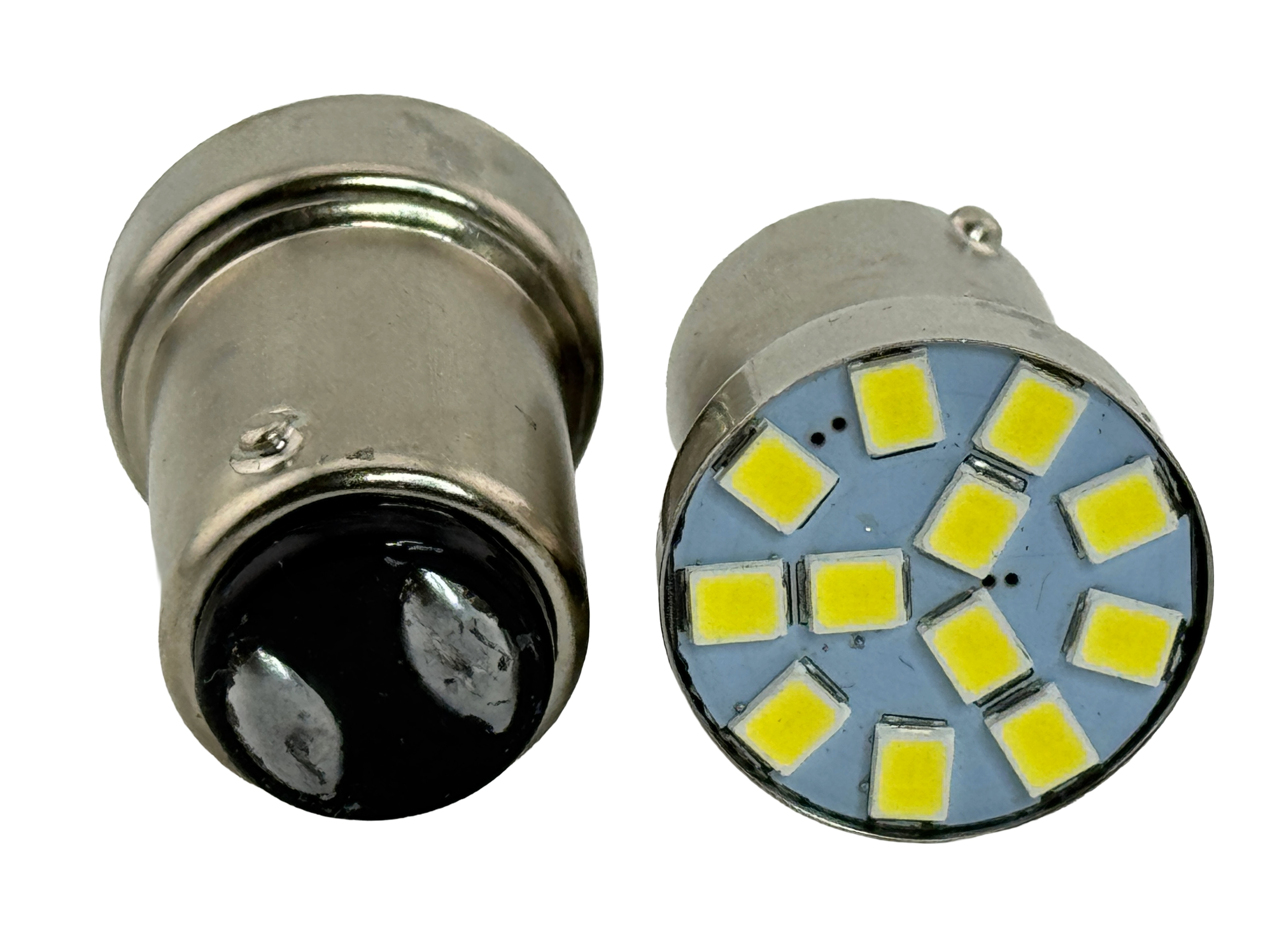

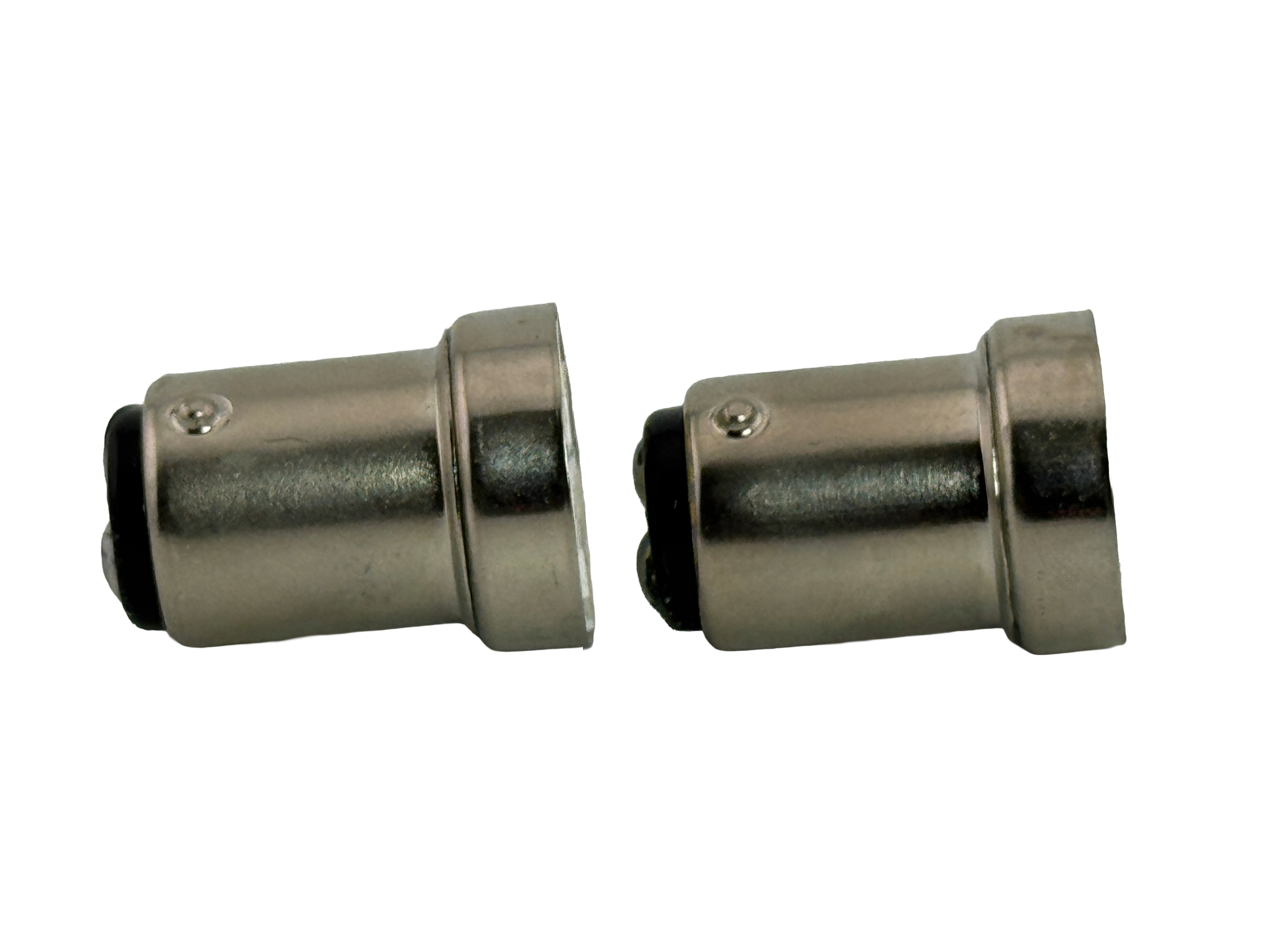

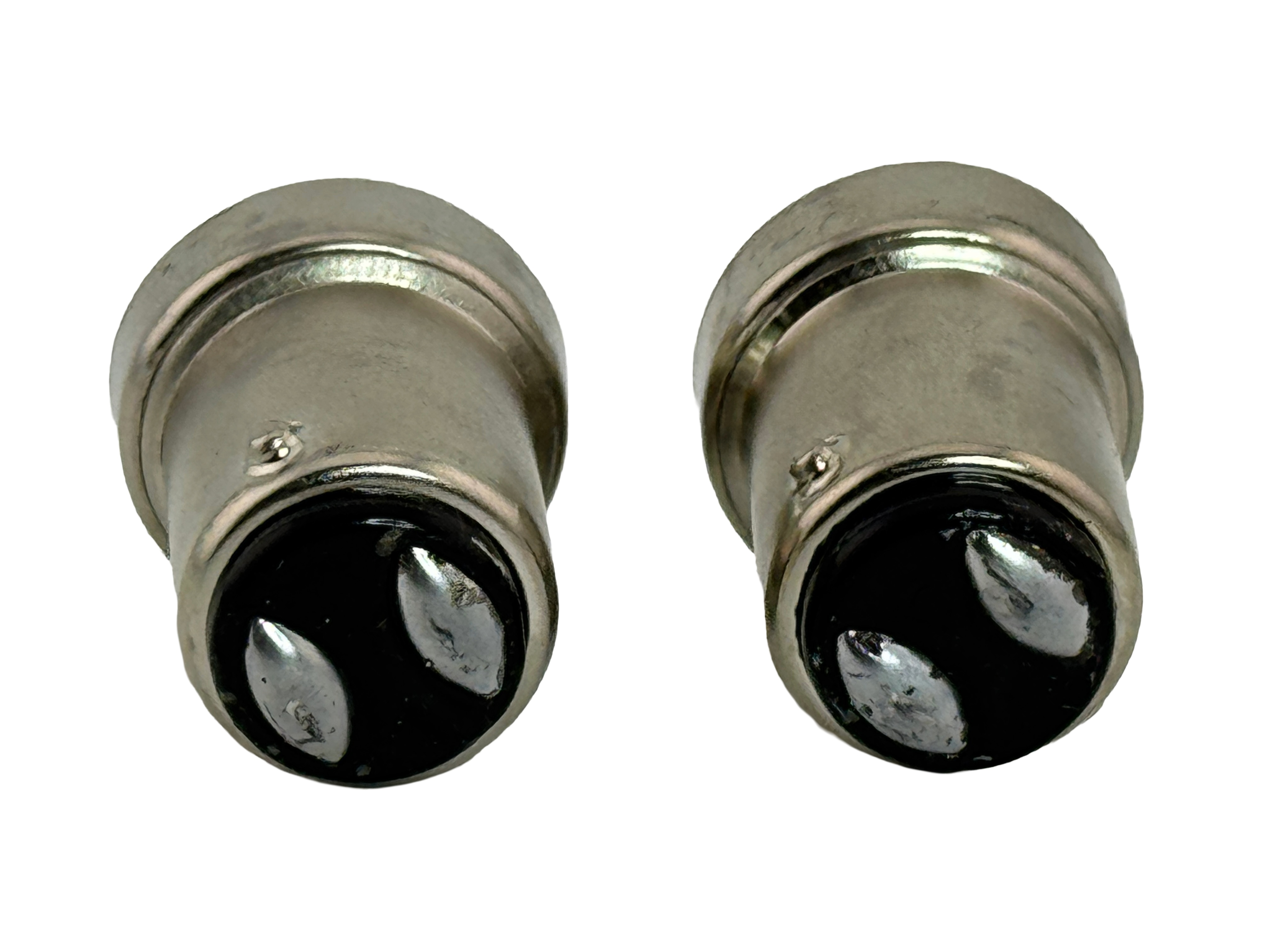

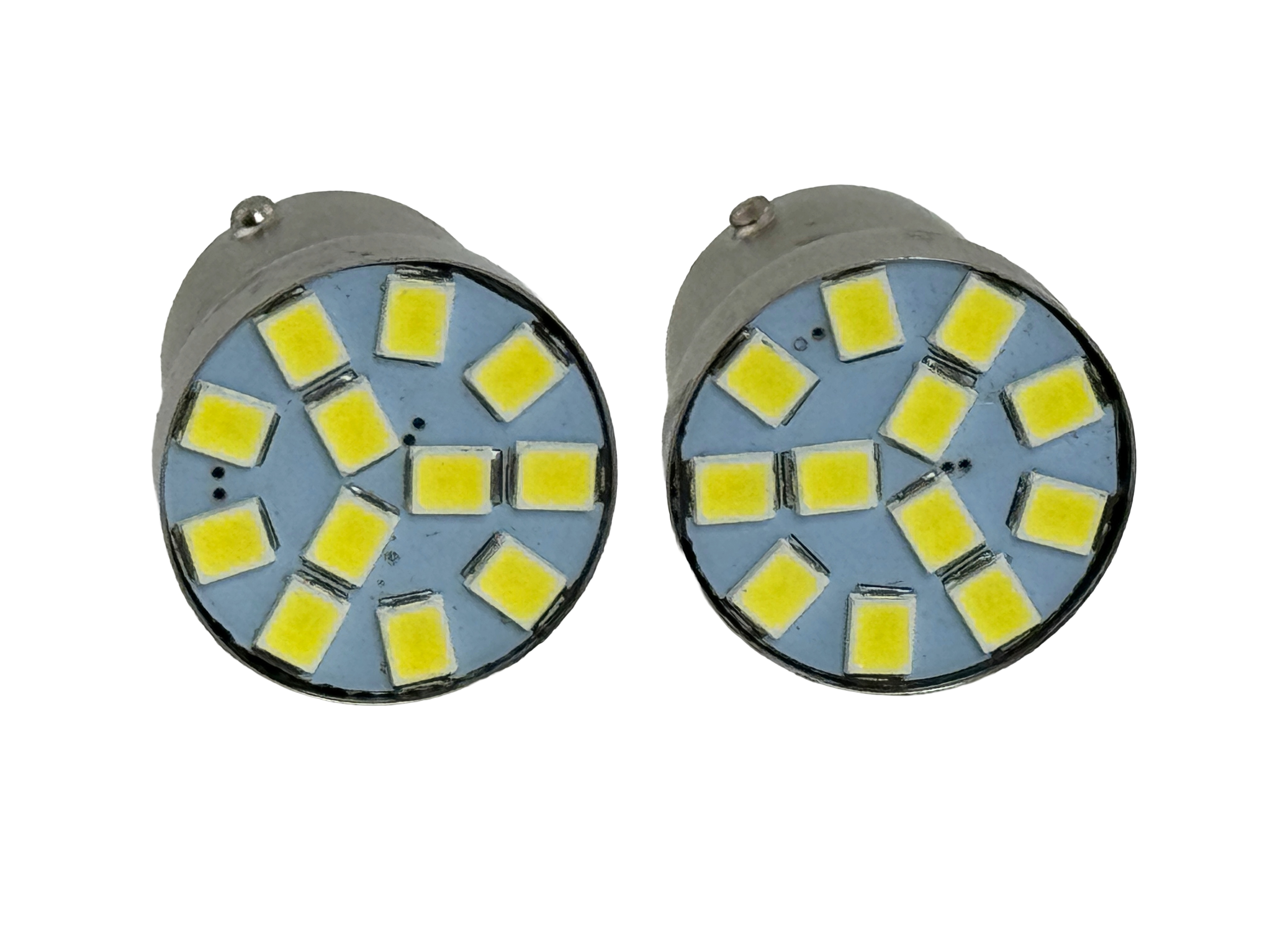

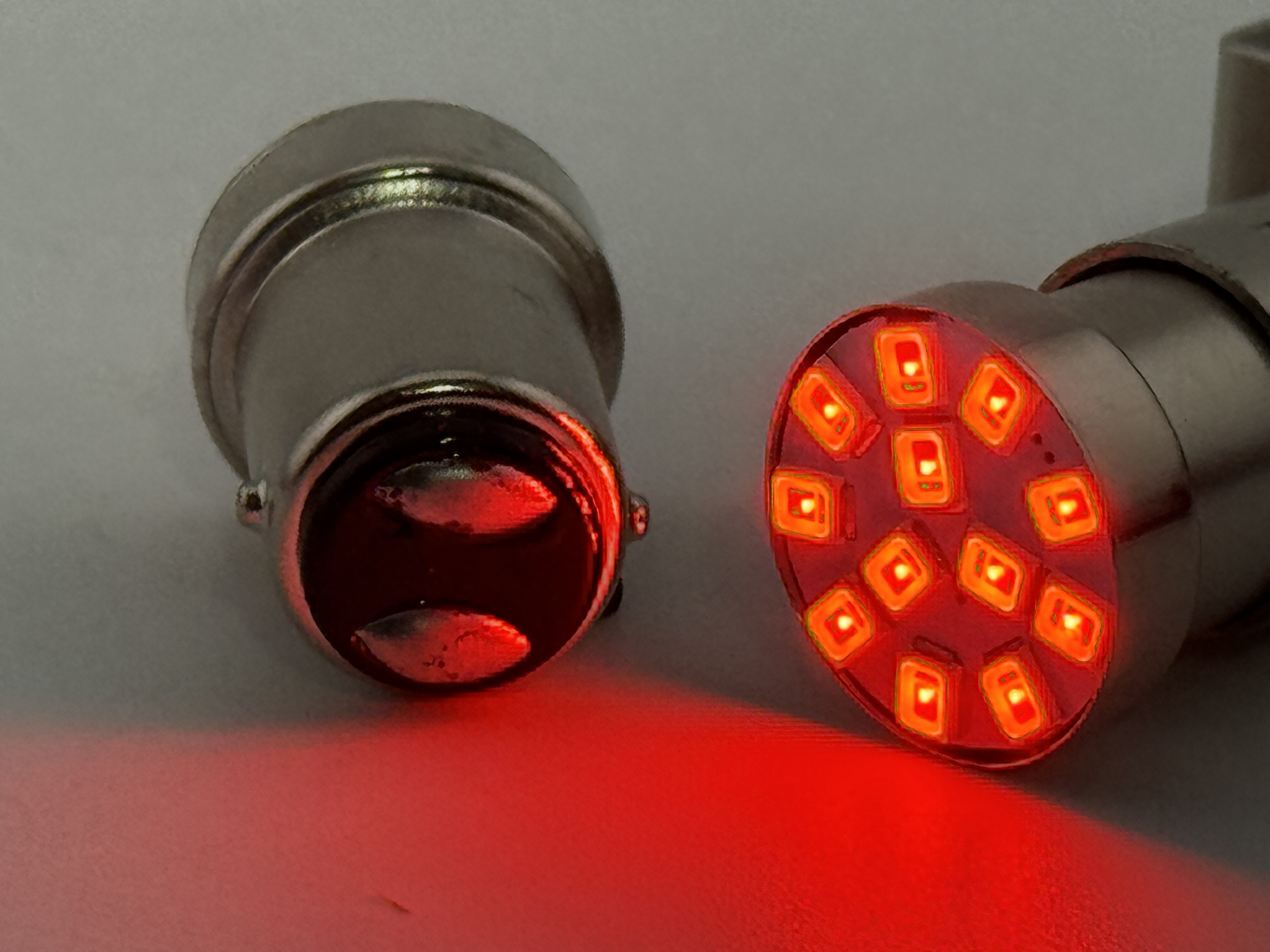

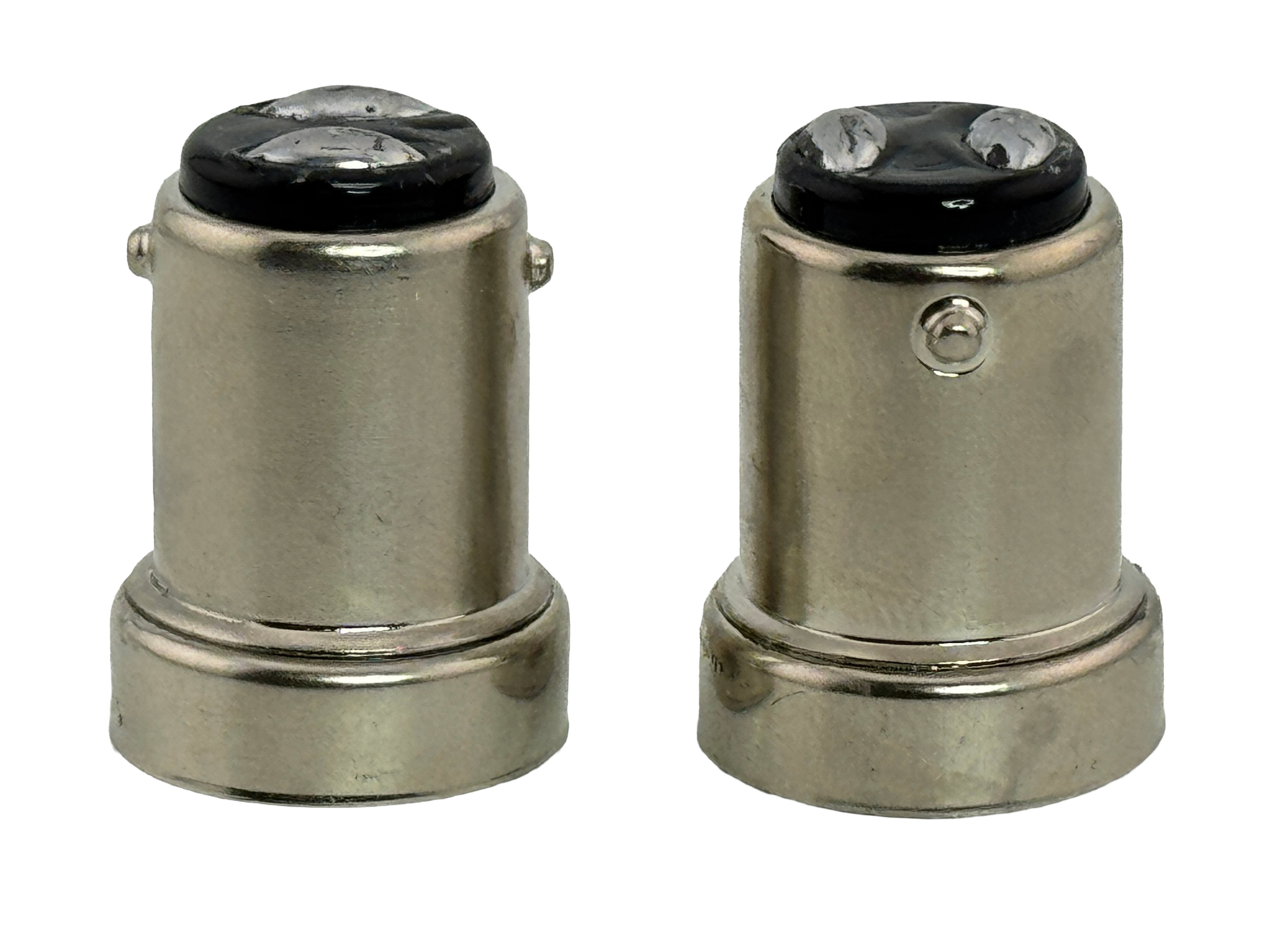

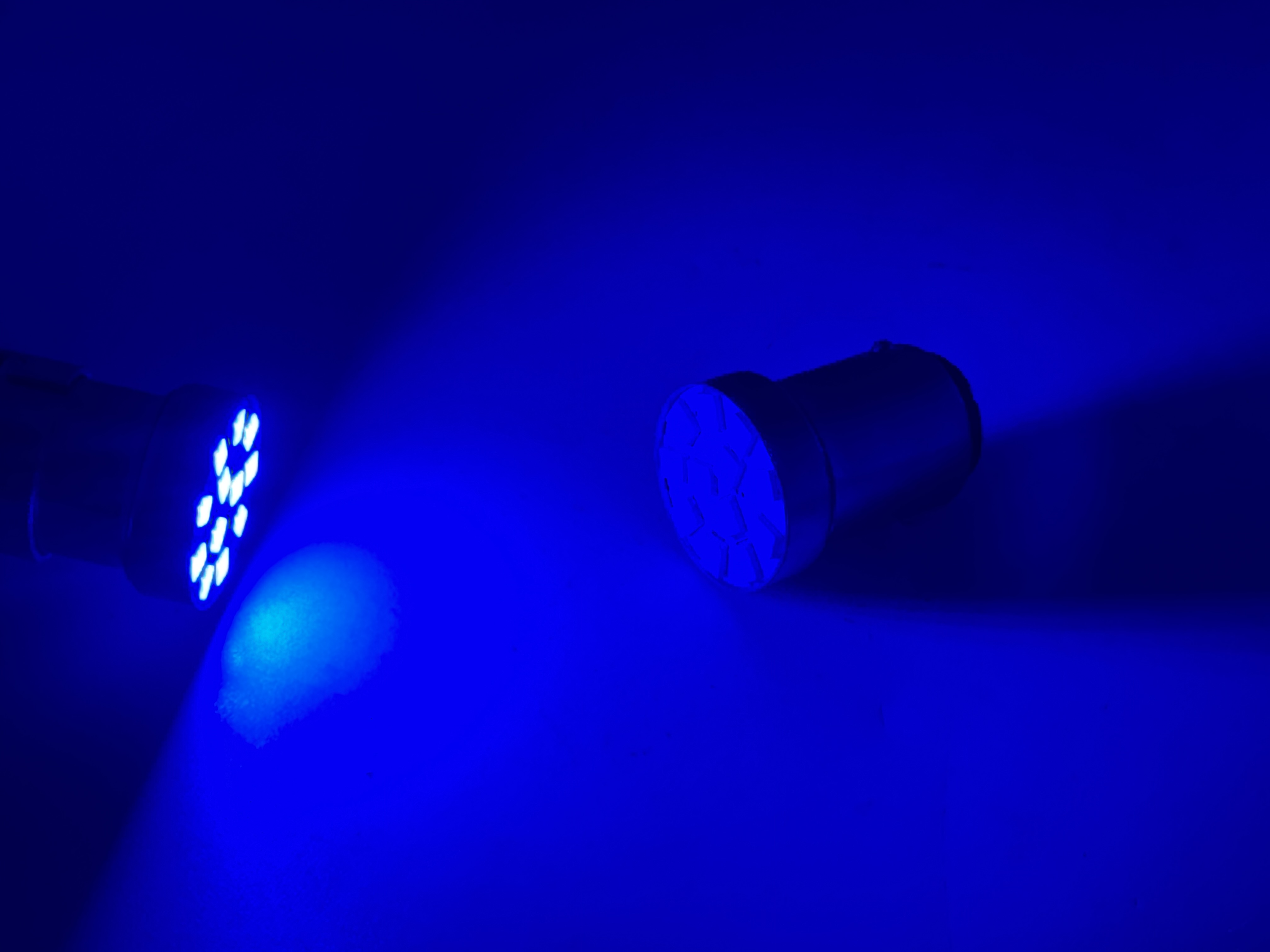

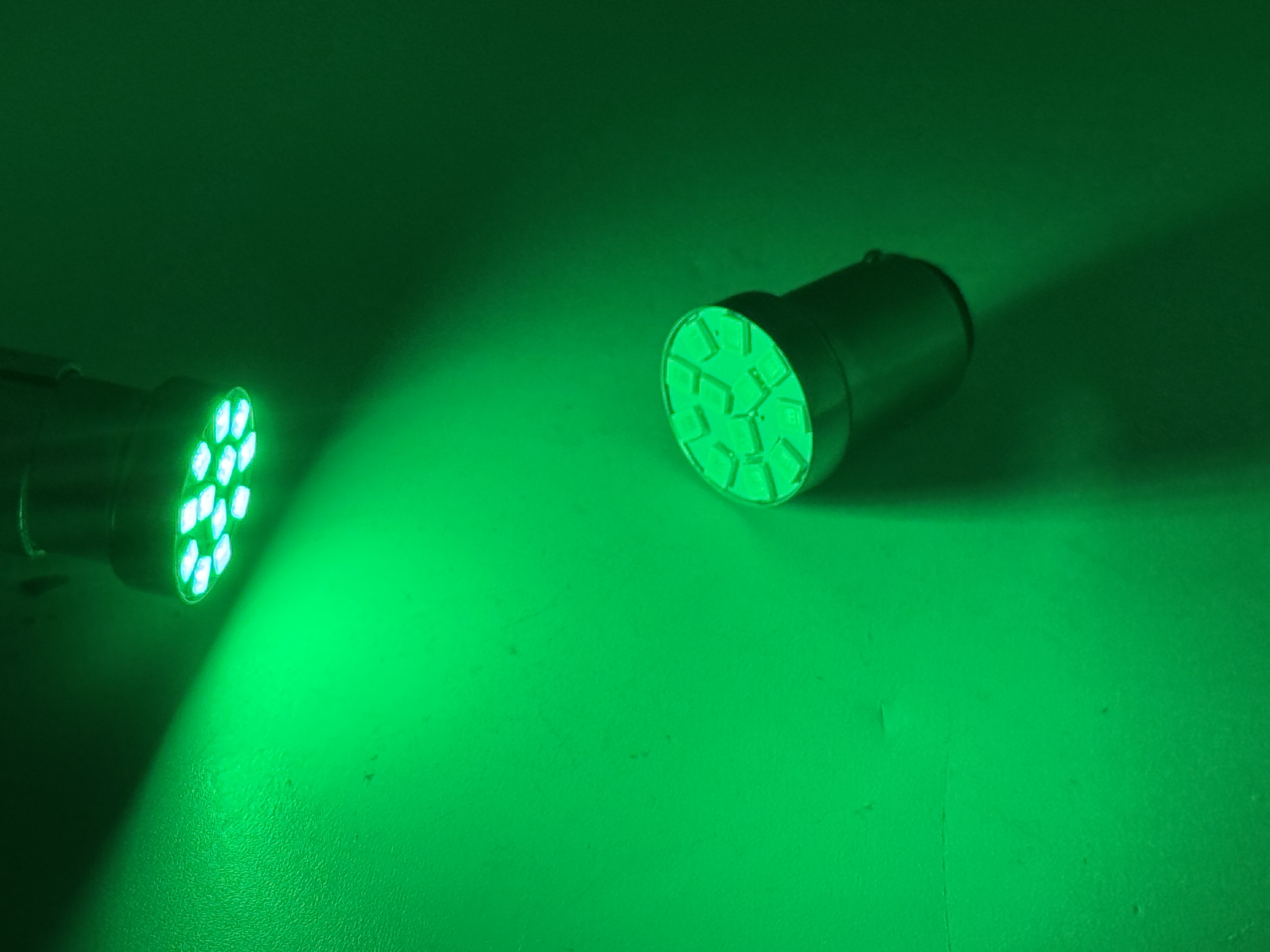

82 LED Bulb. BA15D Base. 6 Volt Positive Ground or 6 Volt Negative Ground. Up to 200 Lumen output. Up to 15 Candle Power. The maximum length is 1.25 inches and the maximum diameter is .75 inches. Comparable to a 10 to 25 Watt incandescent bulb. The L.E.D. bulb C-6 filament design. Single Filament. Uses up to 2 Watts @ 6 Volts. The base is BA15D with even bayonets. The lamp only has one brightness level. The bulb is dim-able using variable voltage supply such as dashboard knob. Great for license plate, turn, tail, brake, dome, dashboard, instrument panel lamps. The LED color is created by the material of the LED so it looks real nice monochromatic. The available colors are White 6000K, Warm White 3000K, Red 626nm, Green 526nm, Blue 646nm and Yellow 594nm. The old light bulbs were painted. Very low profile to fit Ford Model A cowl light. Long life up to 30,000 hours. This BA15D base one contact is plus and the other contact is negative to make the bulb illuminate. The led lamp is positive earth or negative earth so you do not have to worry about polarity or how the socket is wired. This led bulb operates in older pre World War II cars, trucks and tractors. Usually post World War II vehicles and trucks are 6 volt negative ground. This bulb is available in White 6000K, Warm White 3000K, Red 625 nm, Green 526 nm, Blue 464 nm & Yellow 594 nm. The bulb is designed for 6.8 Volt vehicle and cycles.
Compatible with
82
#82
Fits older vintage and classic cars and trucks such as 1928,1929,1930,1931 and 1932 Ford Model T automobiles
| |
