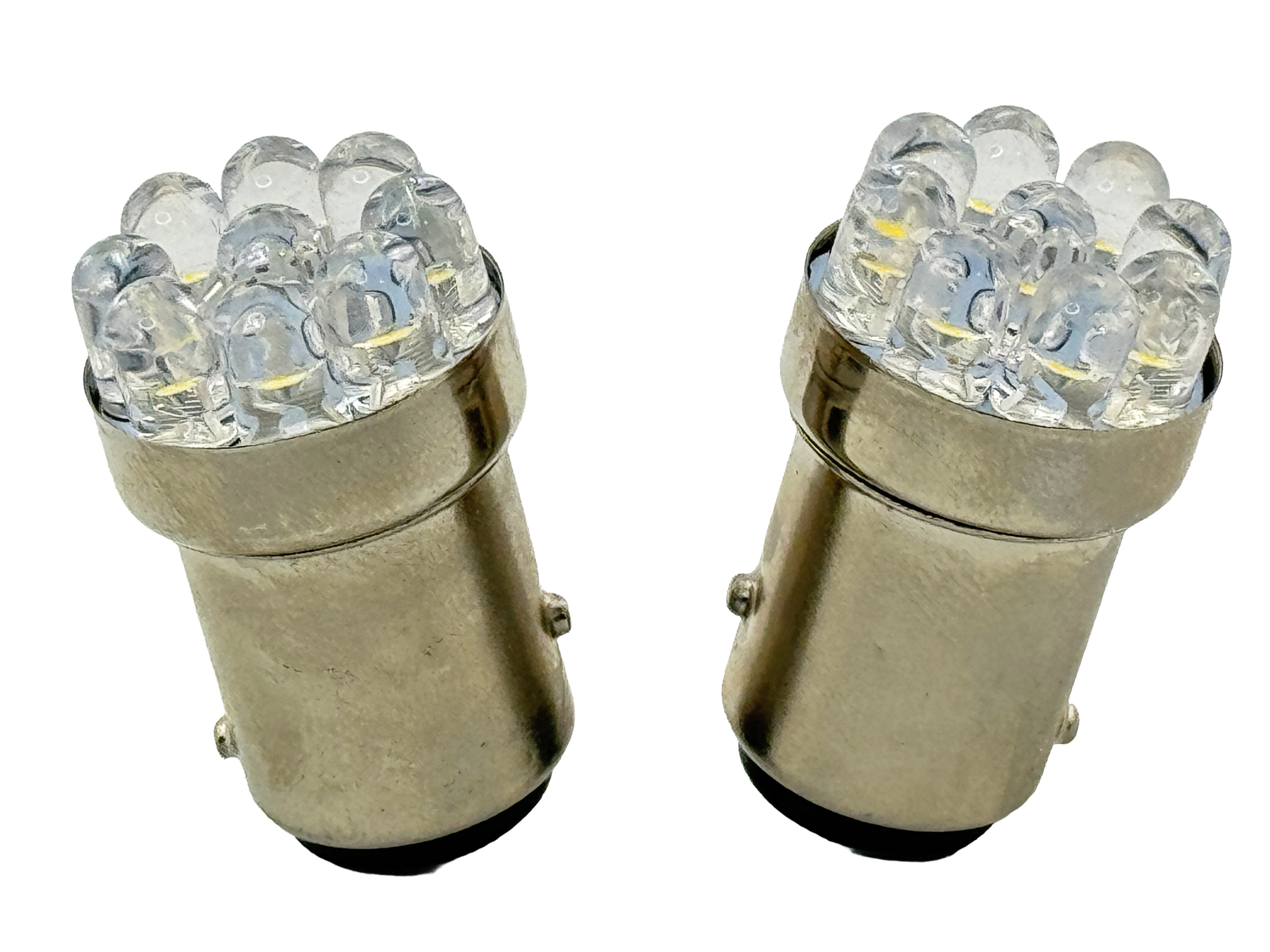

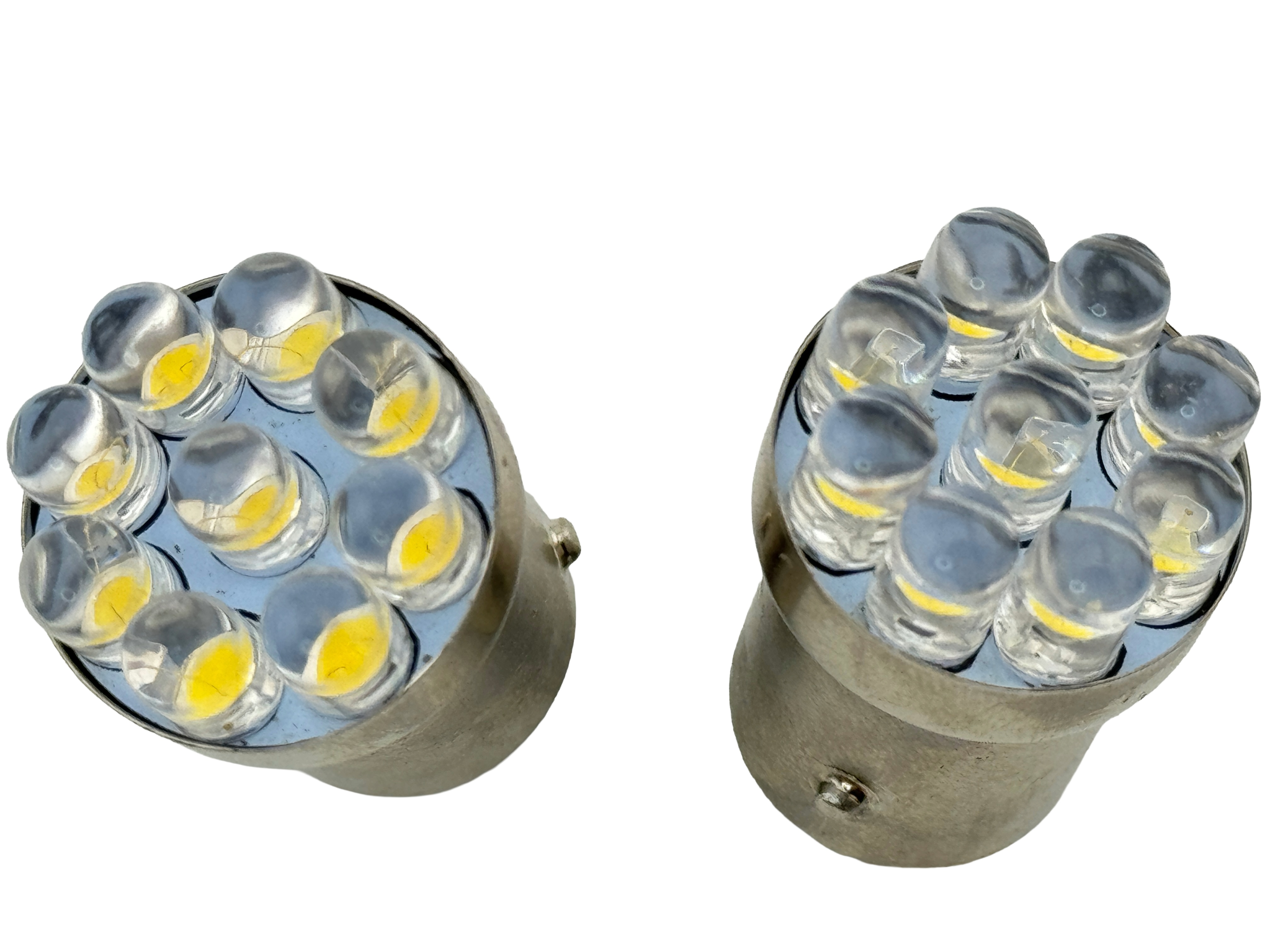

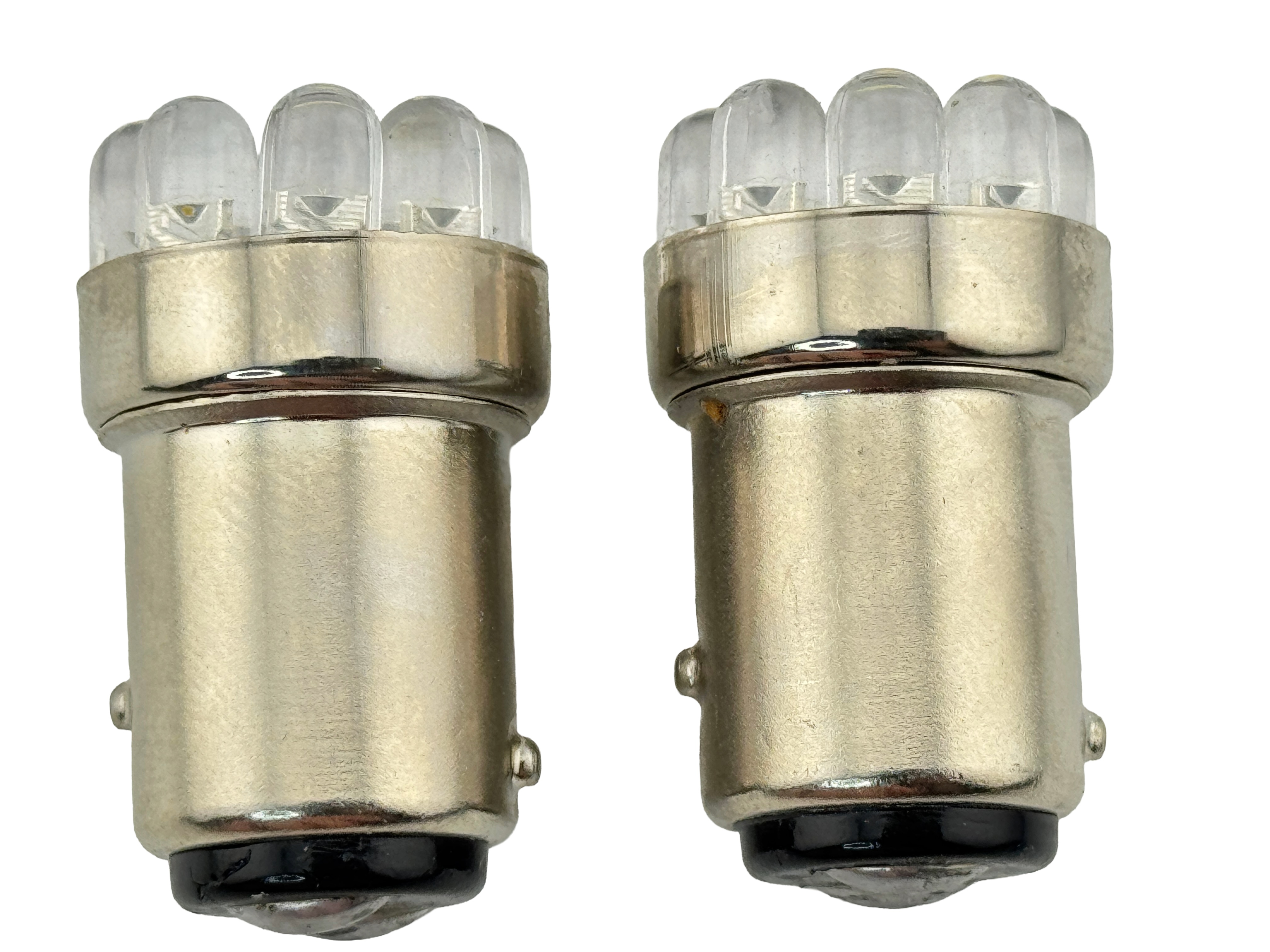

Image of a 1154 led bulb
Actual Product may vary from picture shown.
One product per package unless otherwise stated.
Click to Enlarge Image View Larger Photo

1154 Miniature Bulb 6 Volt BAY15D Base 9 LED Dual Filament

Product Code: 65877

Price : $3.49 - $3.79
spacer   Volume Price Information   spacer
 Buy 2 or more and pay $3.71 each (save 2.00%)
 Buy 4 or more and pay $3.68 each (save 3.00%)
 Buy 6 or more and pay $3.64 each (save 4.00%)
 Buy 8 or more and pay $3.60 each (save 5.00%)
 Buy 10 or more and pay $3.56 each (save 6.00%)
 Buy 25 or more and pay $3.52 each (save 7.00%)
 Buy 100 or more and pay $3.49 each (save 8.00%)
Qty:Add To Cart
Add To Saved Cart
Warranty: 12 Months

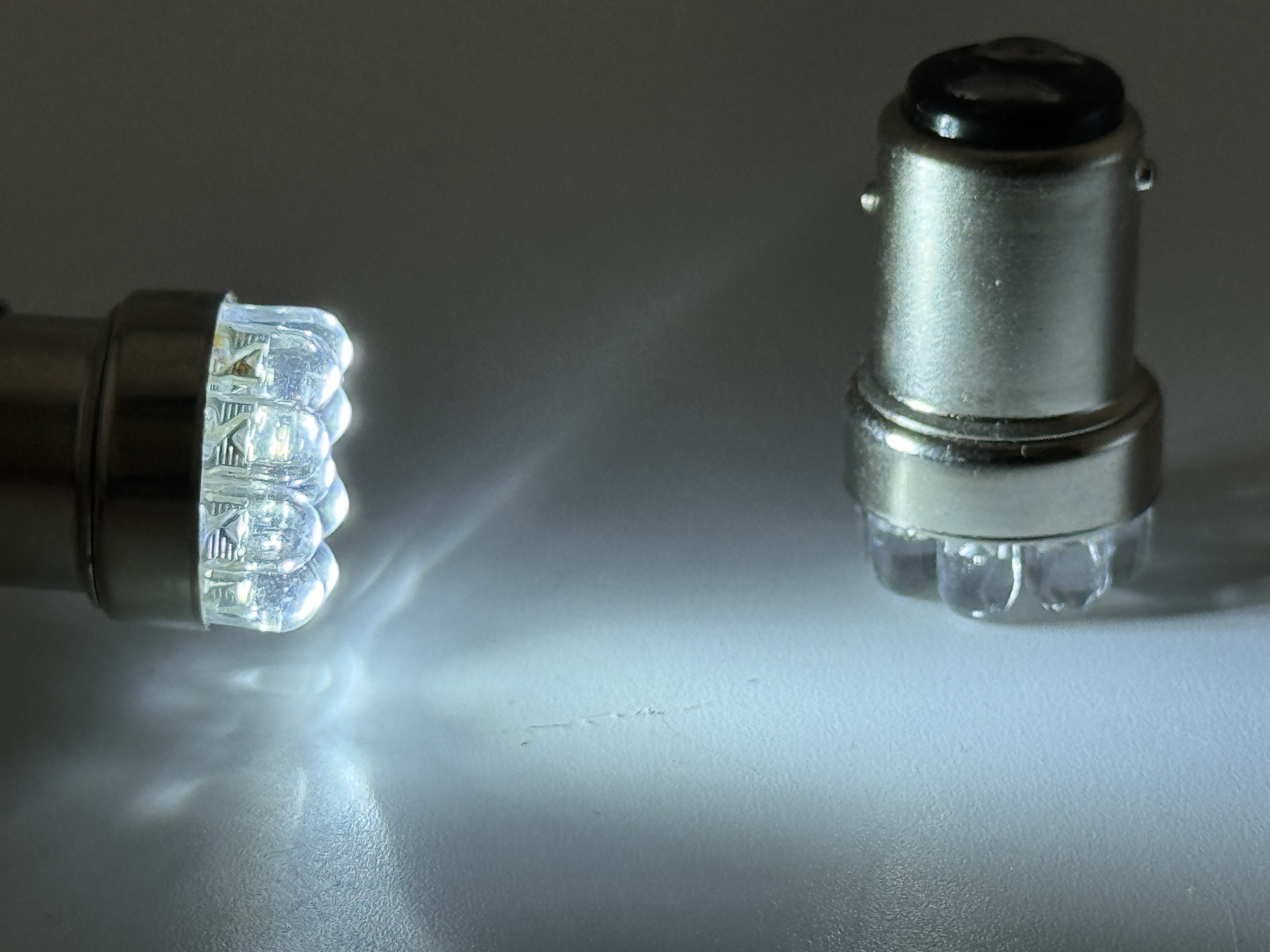

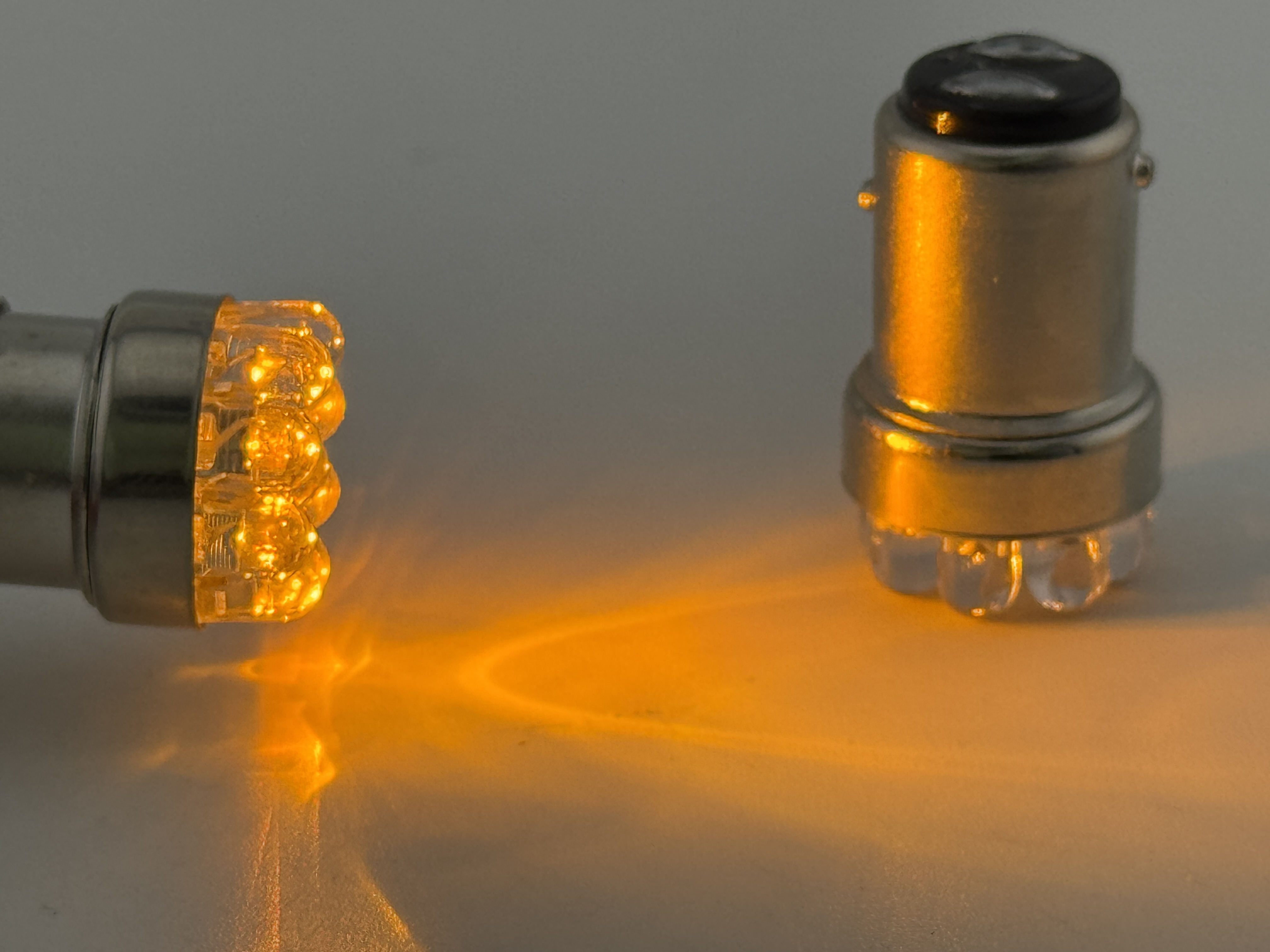

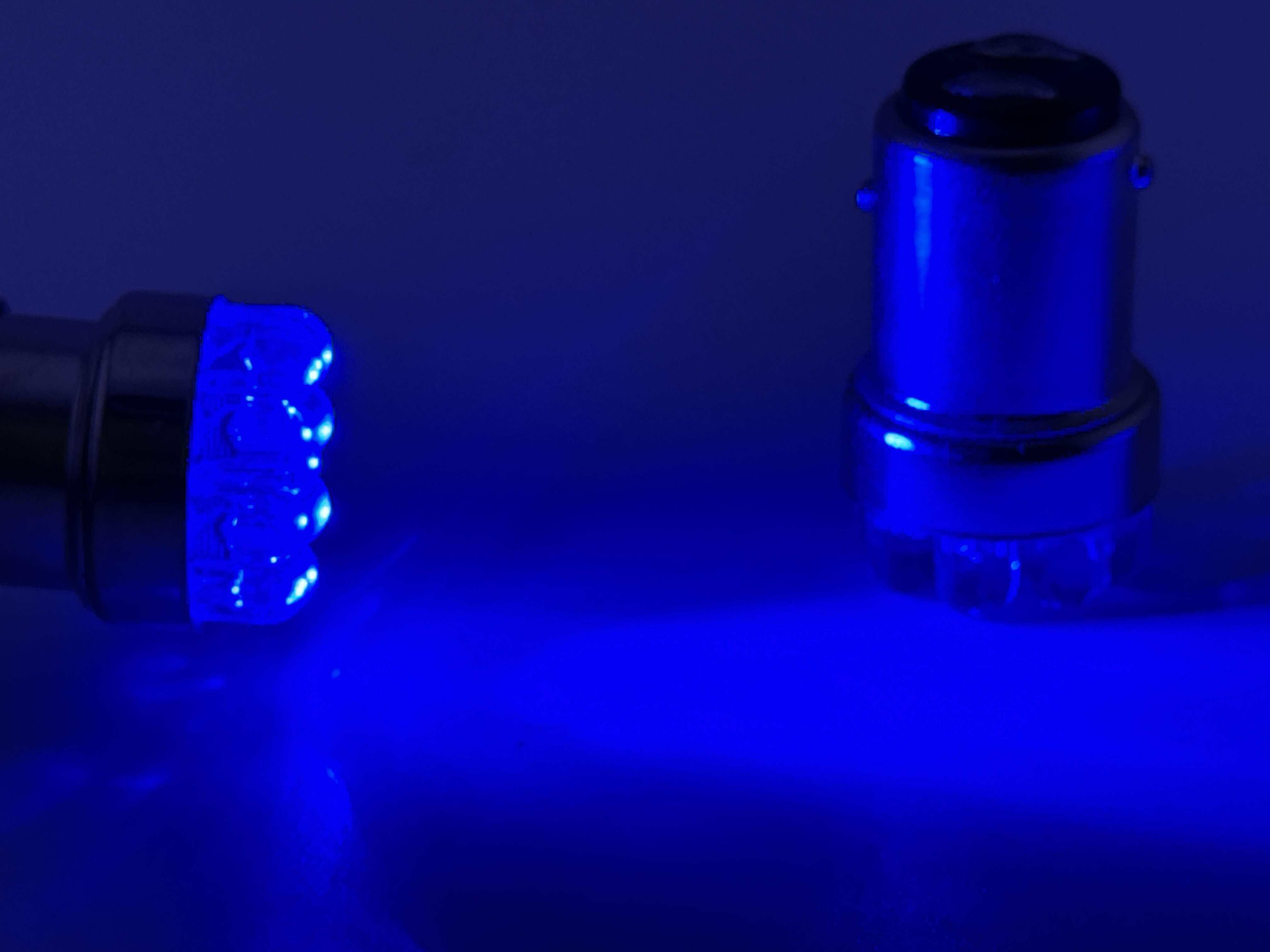

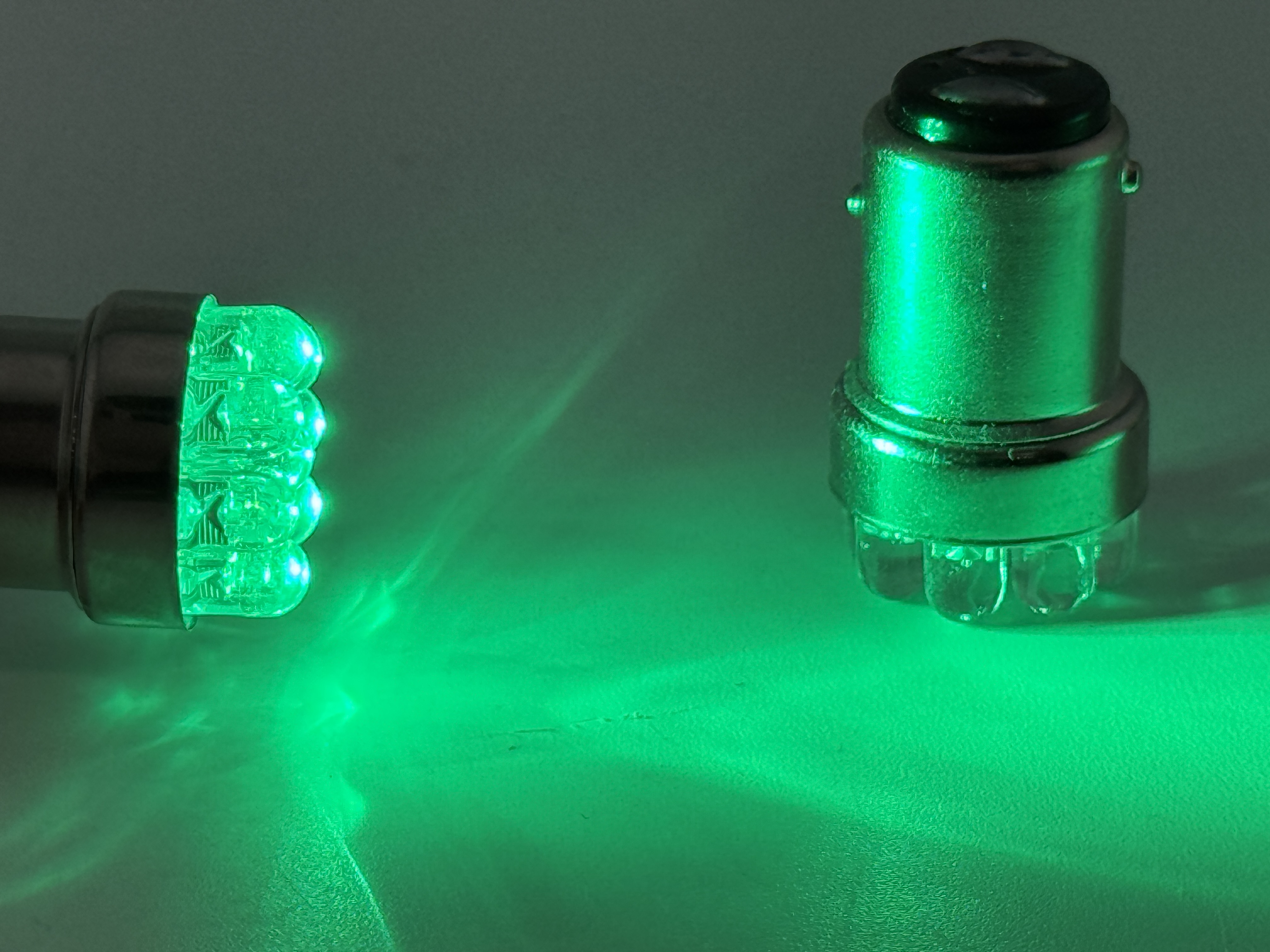

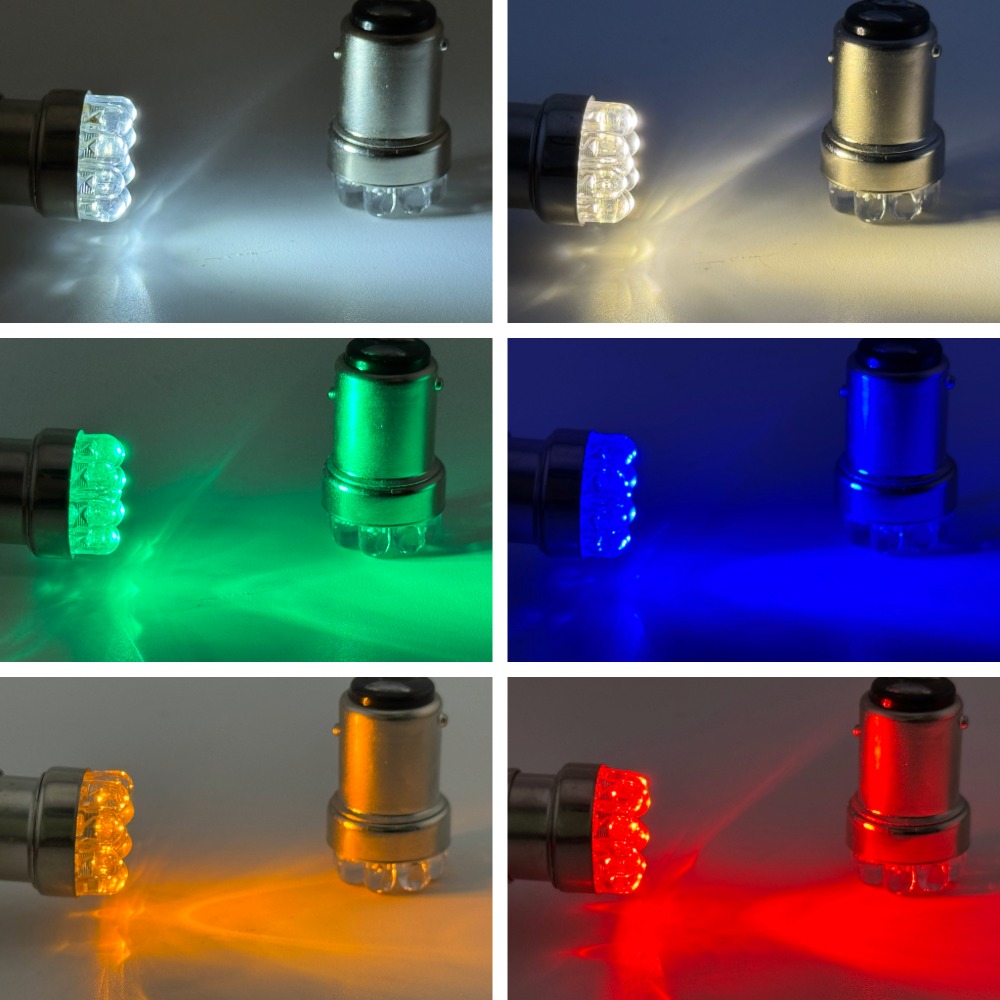

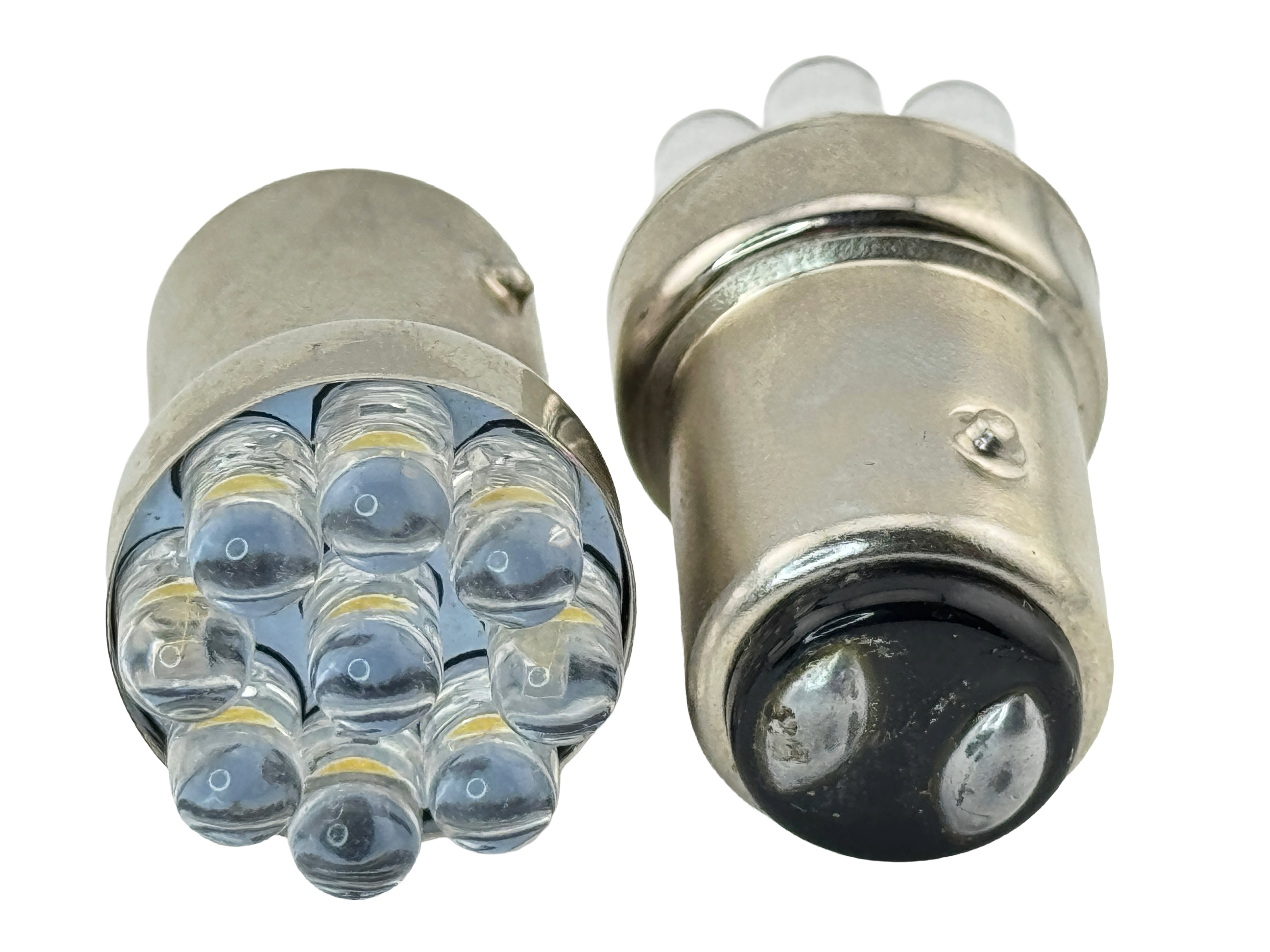

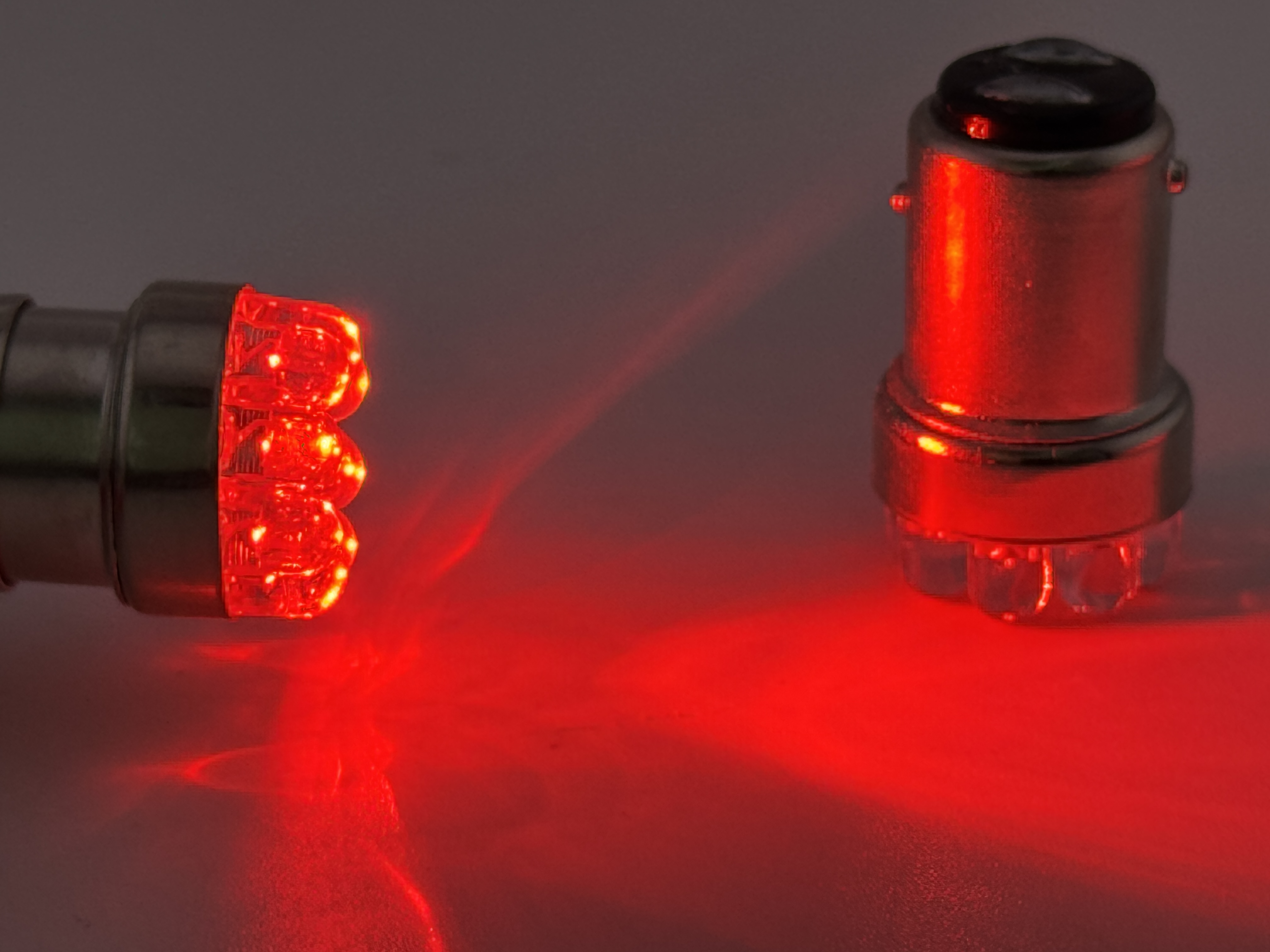

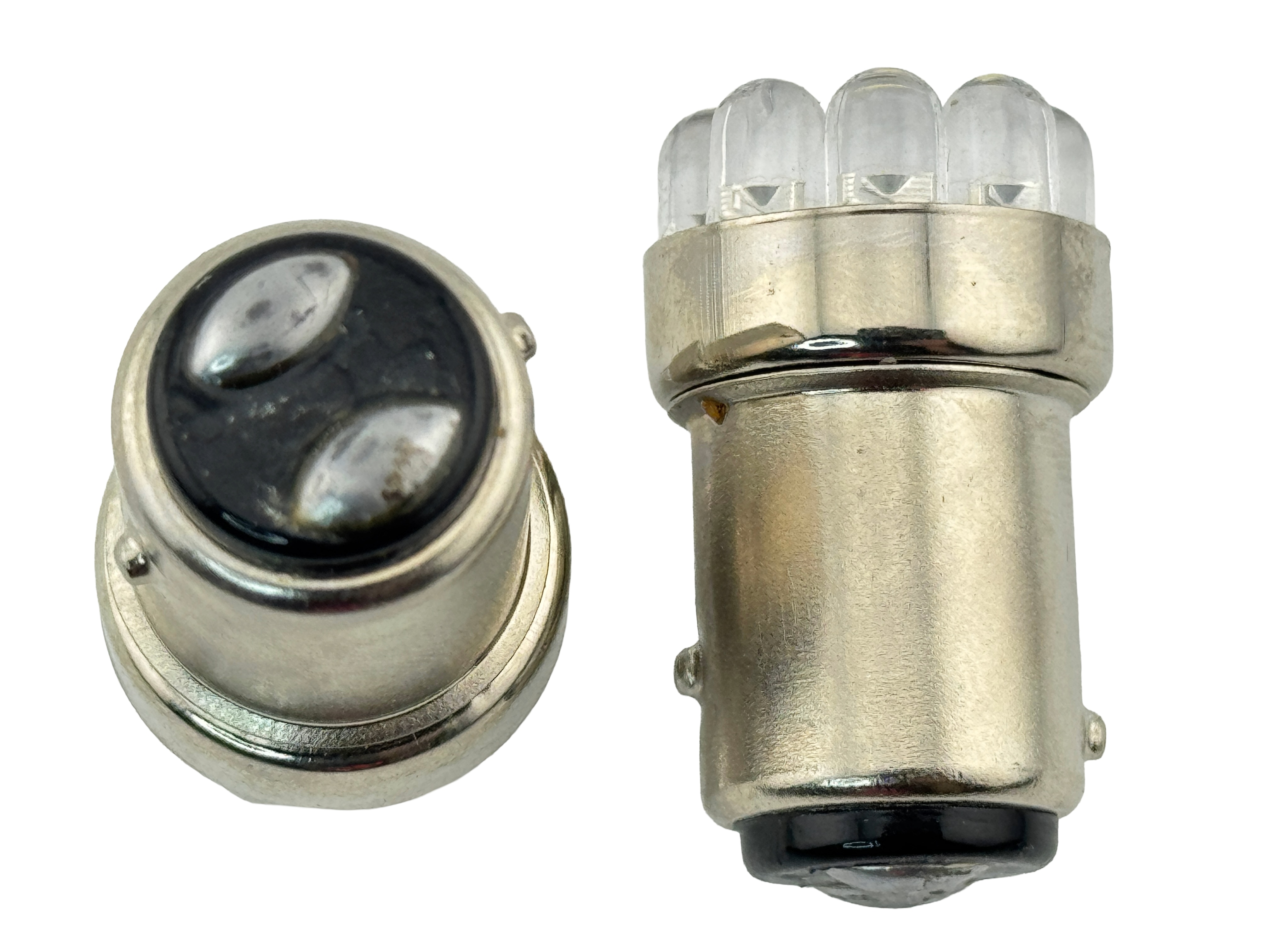

1154 Miniature LED Bulb 6 Volt. This lamp will operate either Positive Ground or Negative Ground. BAY15D dual contact offset indexed bayonet LED. Dual filament. The #1154 has both a tail light and a brake light. There are two contacts on the bottom. One contact is for taillight. One contact is for brake light. The base is 15mm diameter. The bayonets are offset. Uses up to 1 Watt at 6 volts. Approximately uses 166mA @ 6 Volts. Uses very low power. The profile is very small. The overall length is 1.25 inches and the diameter is .59 inches. The light output is up to 200 Lumens for brake and 150 Lumens for taillight. The bulb brake light has a rated output of up to 16 candle power CP. The taillight has a rated output of up 11 candle power CP. This bulb is available in White 6000K, Warm White 3000K, Red 625 nm, Green 526 nm, Blue 464 nm & Yellow 594 nm. Long life up to 30,000 hours. The colored LED's the color is created by the wave length of the LED chip material and is not painted bulb or cap like old fashioned colored incandescent bulbs. Comparable to a 10 Watt to 25 Watt incandescent light bulb. Since the led is 80 to 90% efficient versus a incandescent bulb some times the LED's will be brighter and use less power. Since led's are solid state you do not have to worry about broken or damaged filament or glass bulb. The LED bulb fits inside the outline of a S8/S25 shape miniature bulb so you do not have to worry about fit issues. Great for vintage and classic cars, motorcycles and trucks. Pre World War II vehicles, motorcycles and trucks were 6 volt positive chassis or positive ground. CE and Rohs listed. Great for instrument panels, dashboards, dome and license plate lamps. Also fits Courtesy, Map, Parking, side marker, and Tail lamp. Legal for on or off road use. Fits low profile Ford Model A cowl fixtures. If using in a turn signal circuit you should install load equalizers per each bulb or install our 6 volt flasher. Since the cowl fixture socket is aimed at 30 to 45 degree angle, this led bulb light output is reduced due to the angle of the socket. Compatible with 1929, 1930, 1931 and 1932 Model A Fords B1007
