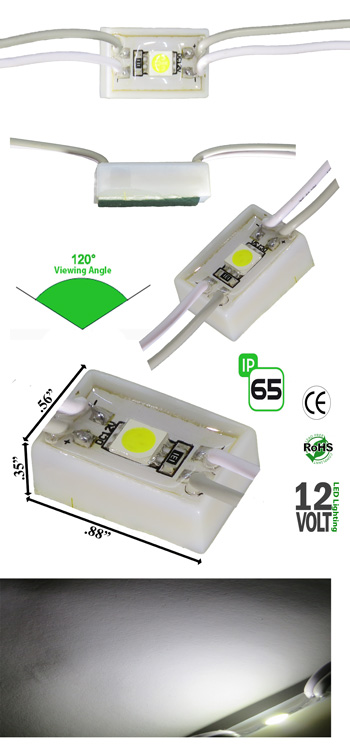

1 LED 5050 module. 12 volt D.C., 120 degree viewing angle, double sided tape on back for easy mounting, clear epoxy coating on front to protect LED, CE and Rohs listed. Uses 0.24Watts or 20mA @ 12VDC. Water-resistant operation, IP65 rated. Expected life is ≥50,000 hours. Measures .88" long, .56" wide, and .35" thick. Dimmable range 8 Volts to 13.8 Volts. Up to 16 Lumen output per module. Comparable to a 2 Watt incandescent bulb but only uses approximately .24 Watt @ 12 VDC. The grey wire is for plus 8 to 12 Volts. The white wire is for ground. You can use the wires on either side of the module. Comes 20 to a string. You can order the desired modules.
| |
Recommended Items: |
|
| |
| |
|
|
|
Module 4 5050 3 Chip SMD 2 Side Mount Holes NCNR
|
| Product Code:
58448
|
| Price:
$2.19Quantity Pricing Available |
| |
|
4 5050 3 Chip SMD Module with 2 Side mount Holes. This module has clear epoxy sealant to protect LED's from environment. The Module is 12 Volt D.C. only. Non Cancel-able Non-Returnable |
| |
|
|
| |
| |
| |
|
|
|

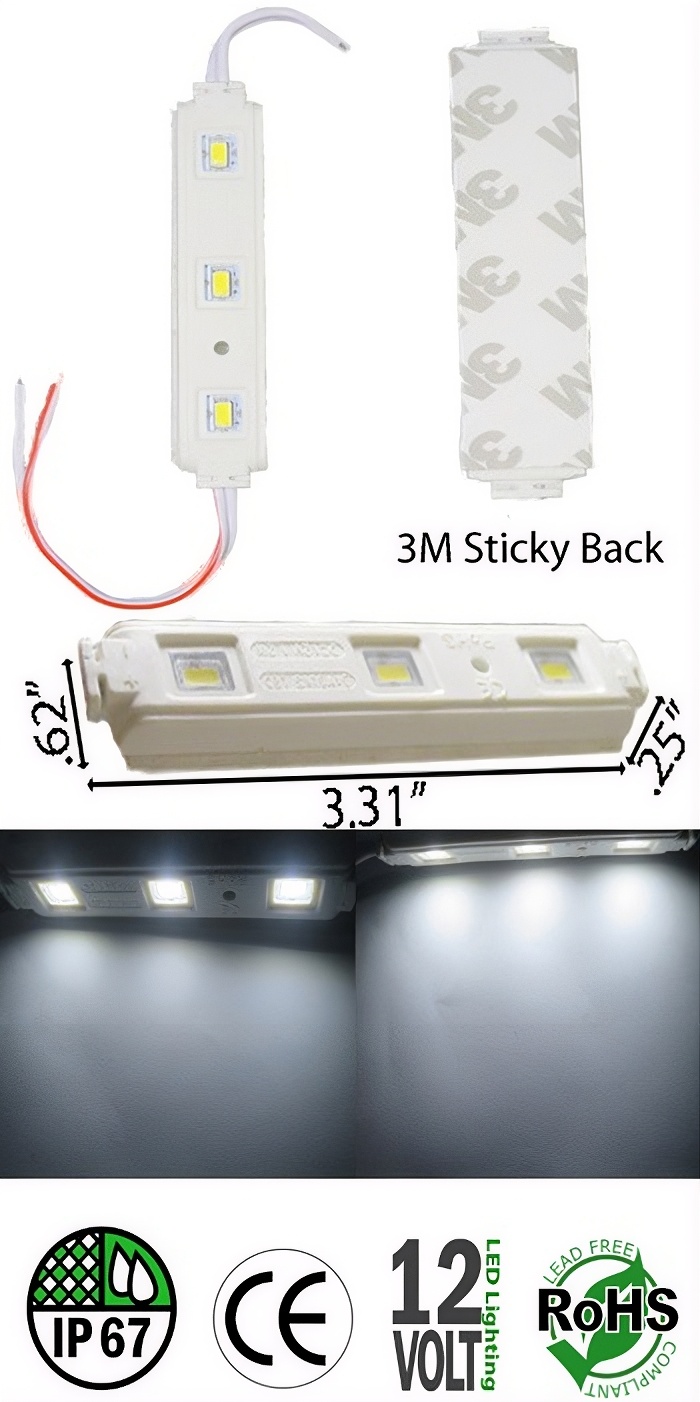

Module 3 LED 5630 SMD 12VDC 1.2 Watt IP67
|
| Product Code:
26435
|
| Price:
$1.24Quantity Pricing Available |
| |
|
Module uses 3 5630 SMD LEDs. IP67 rated, almost completely water proof. 12 VDC. Long life up to 50,000 hours. Solid state, long life, replaces defective neon signs. |
| |
|
|
| |
| |
| |
|
|
|
|
| |
