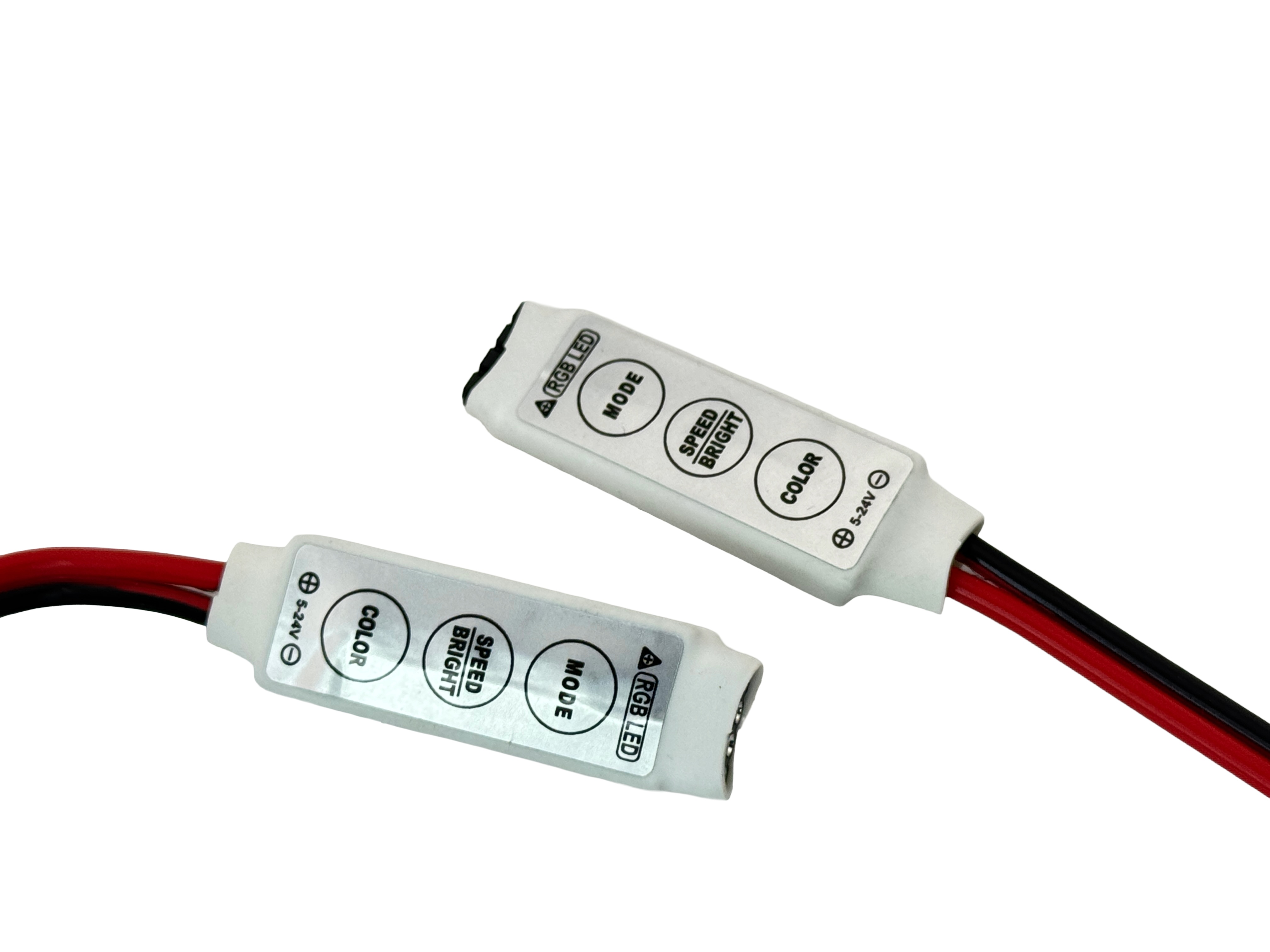

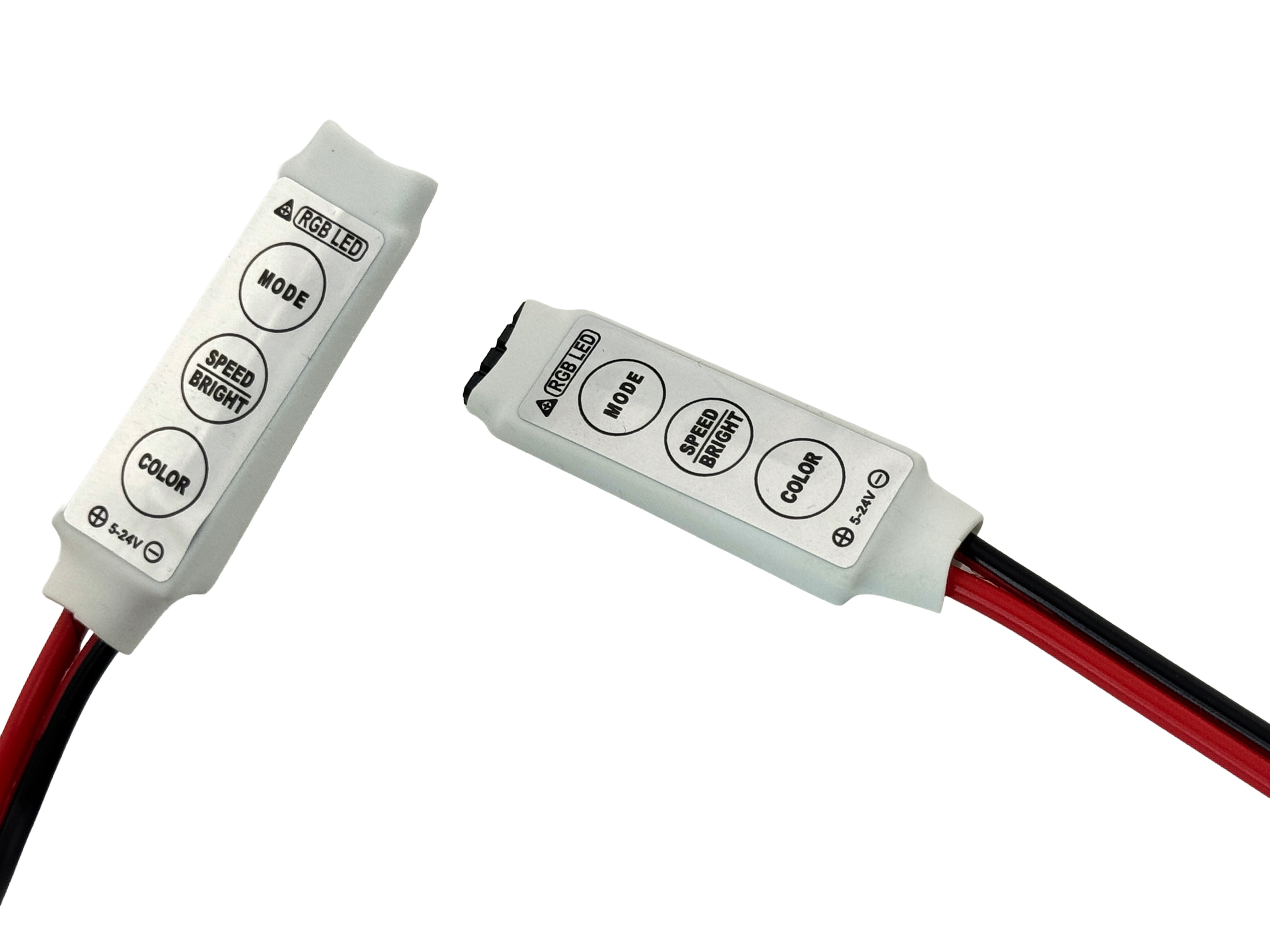

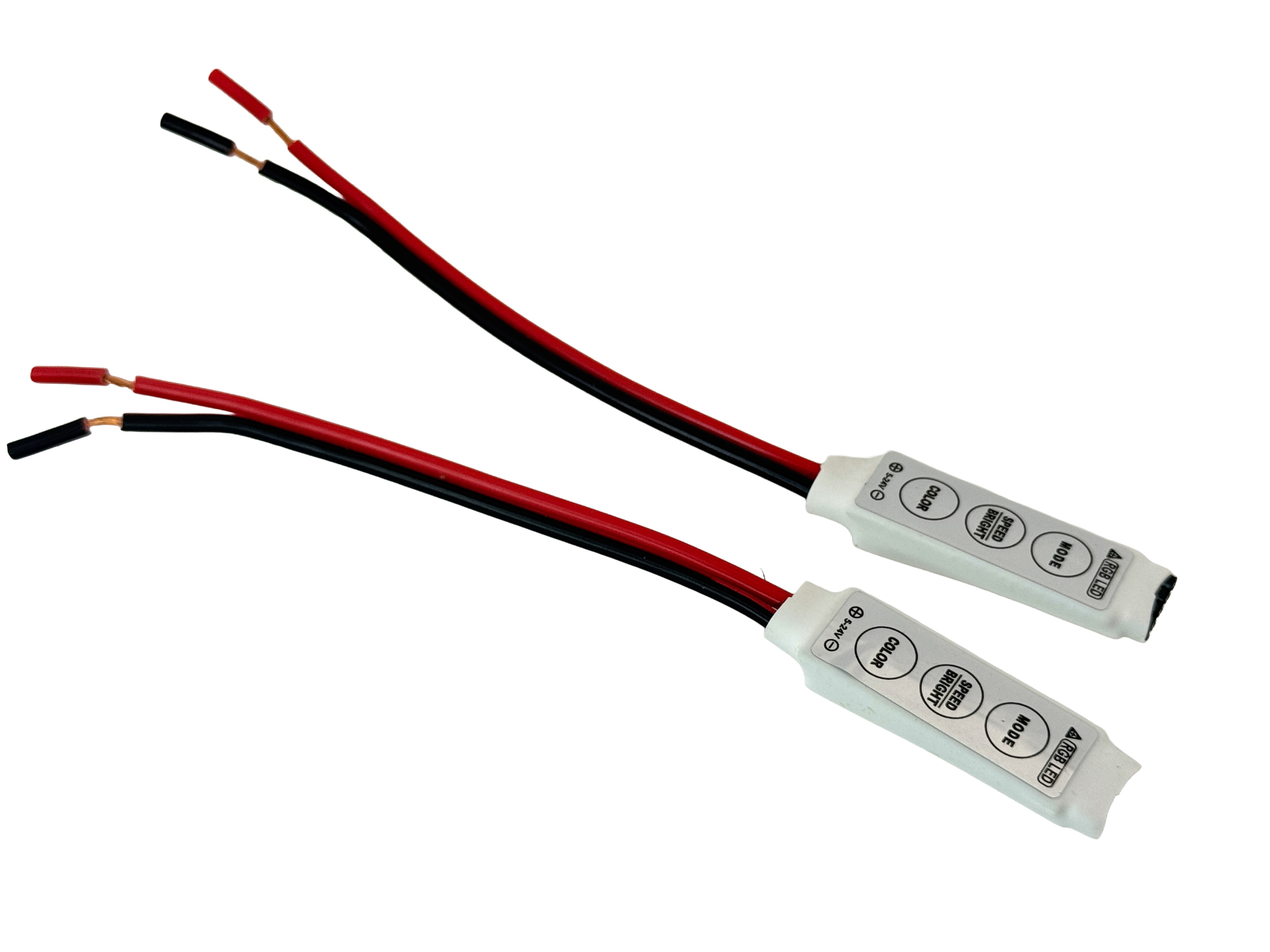

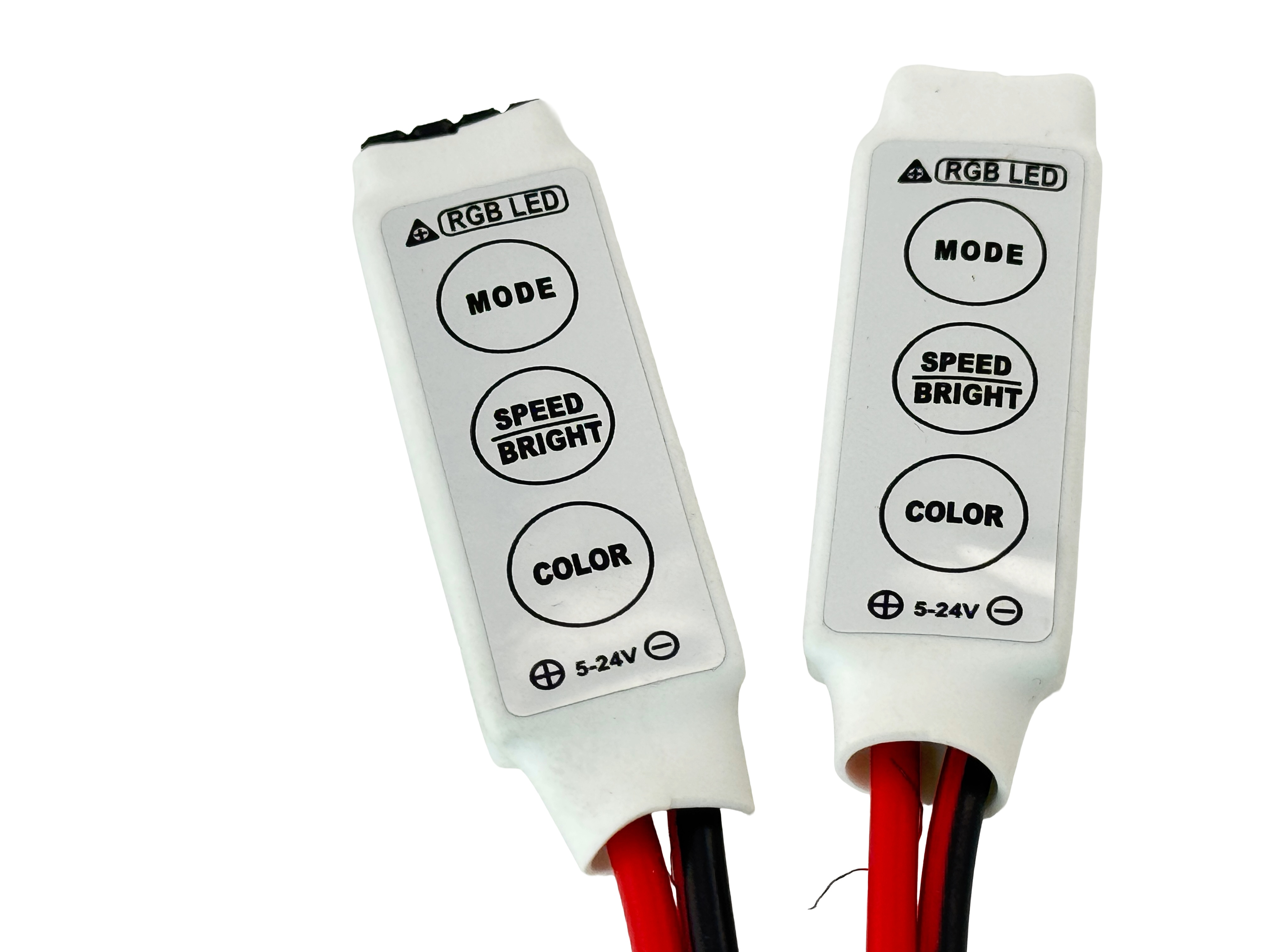

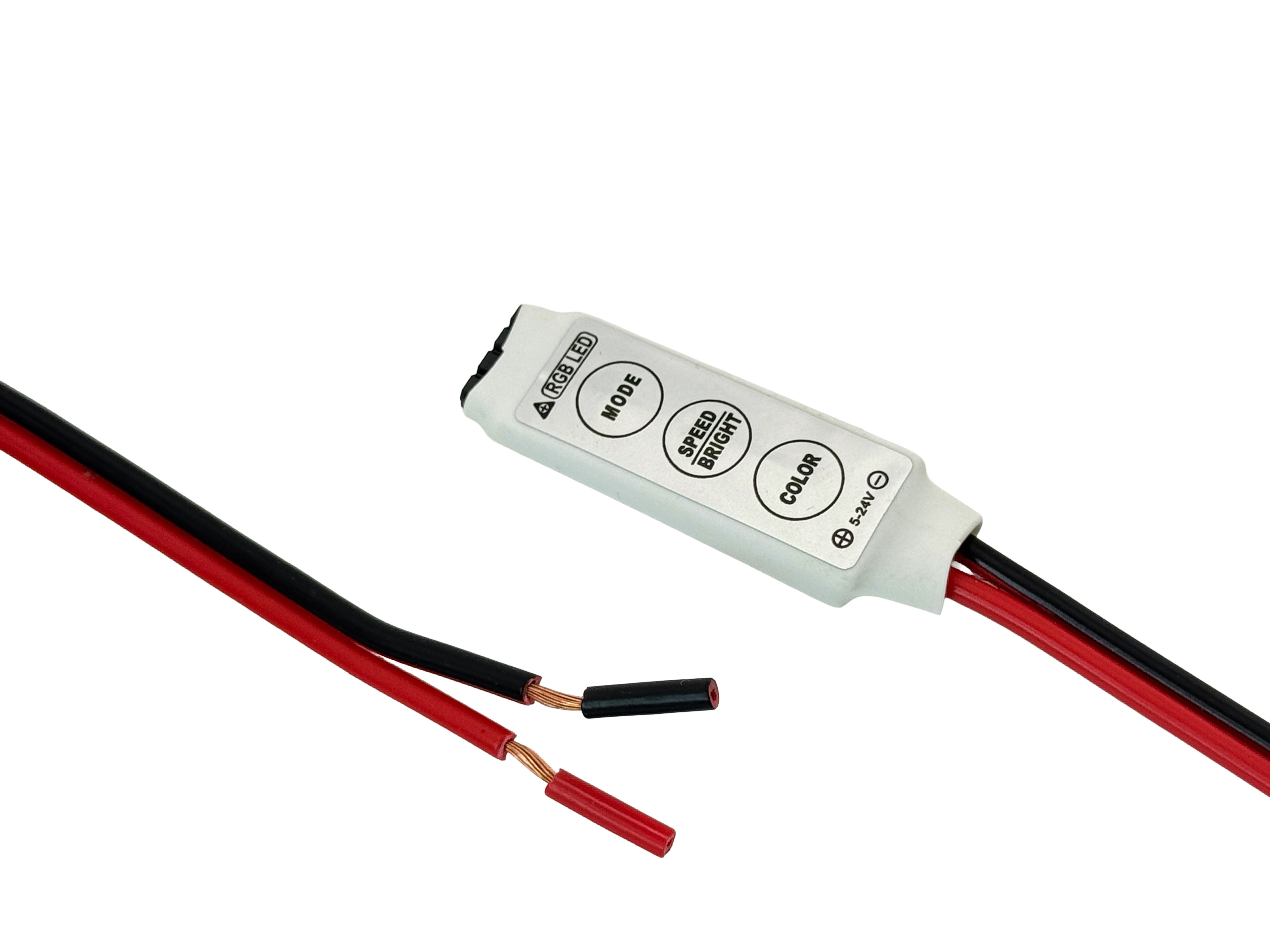

Rebaydo 2pcs LED Mini RGB LED Controller Common Anode 12VDC 6A 72W 3 Channel

Rebaydo 2pcs LED Mini RGB Color Controller is a compact 12V DC RGB lighting controller designed for tight installation spaces, featuring 19 dynamic modes, 20 static colors, and 256-level PWM control for precise brightness and speed adjustment with 5 levels each. It operates as a 3-channel controller with up to 2A per channel and supports total output up to 72W at 12V DC or up to 144W depending on configuration, with a maximum output current of 3 x 4A and working voltage range of DC 8~16V / 5~24V. Designed for common anode LED systems, it includes auto-cycle dynamic mode, memory function, and simple 3-key control for mode, color, and brightness adjustments. The unit operates within temperature ranges of -30°C to +75°C and -20°C to 60°C depending on usage conditions, and measures approximately 42 x 12 x 3 mm (approx. 0.47 in x 1.65 in x 0.12 in). It is ideal for LED strips, LED flexible strips, LED tubes, and decorative lighting in bars, restaurants, patios, backyards, porches, and event setups, with easy installation by connecting LED strips to output channels and applying 12V DC power. The RGB flexible strip is inserted into the top using a 42623 flexible connector. Works great with product 67432.
