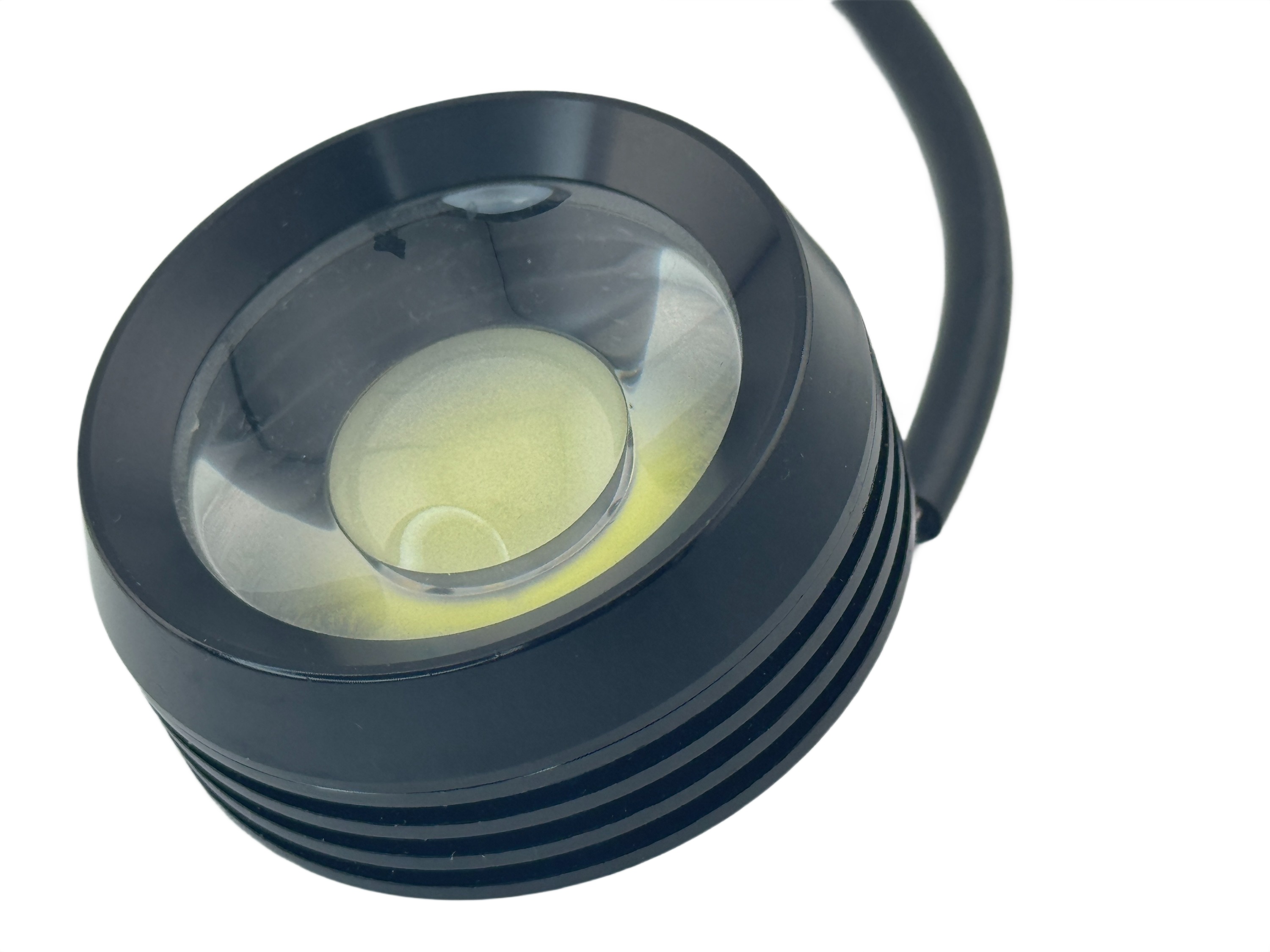

Rebaydo LED Puck Light 10W Module 12 VDC Dimmable

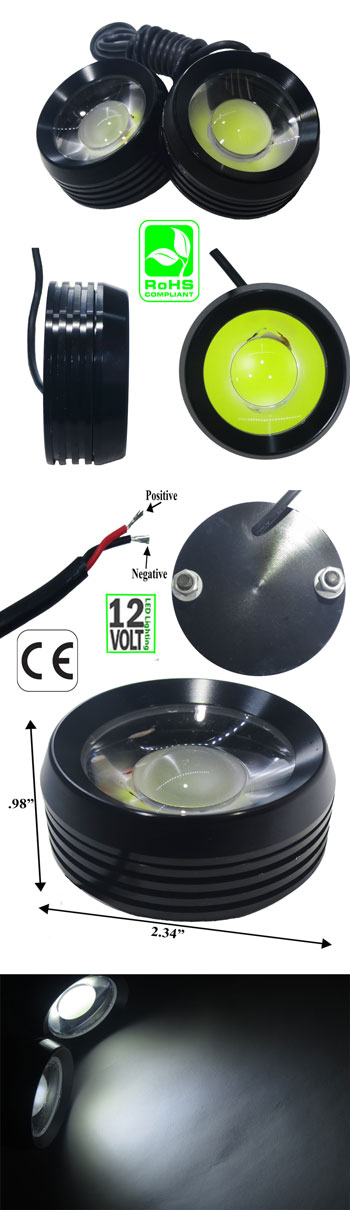

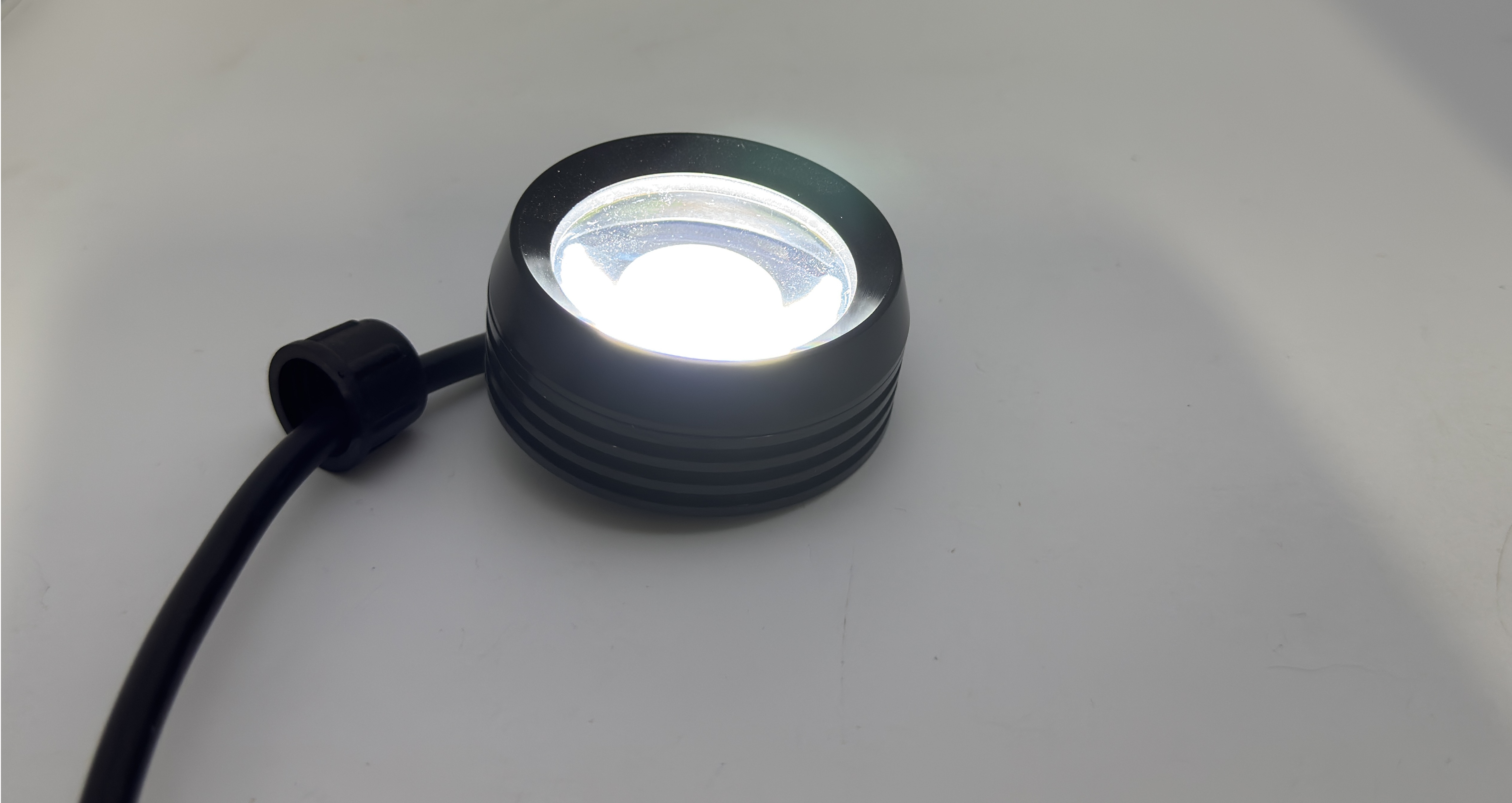

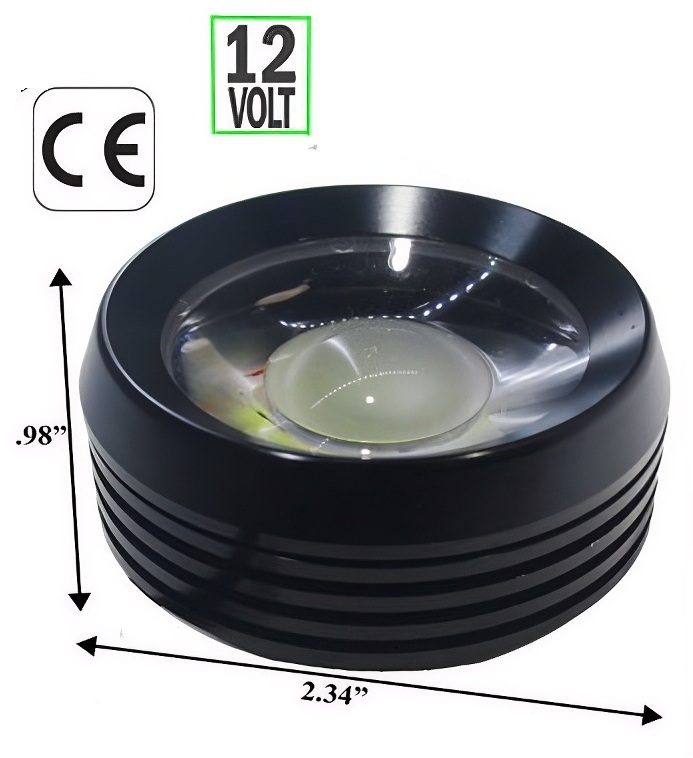

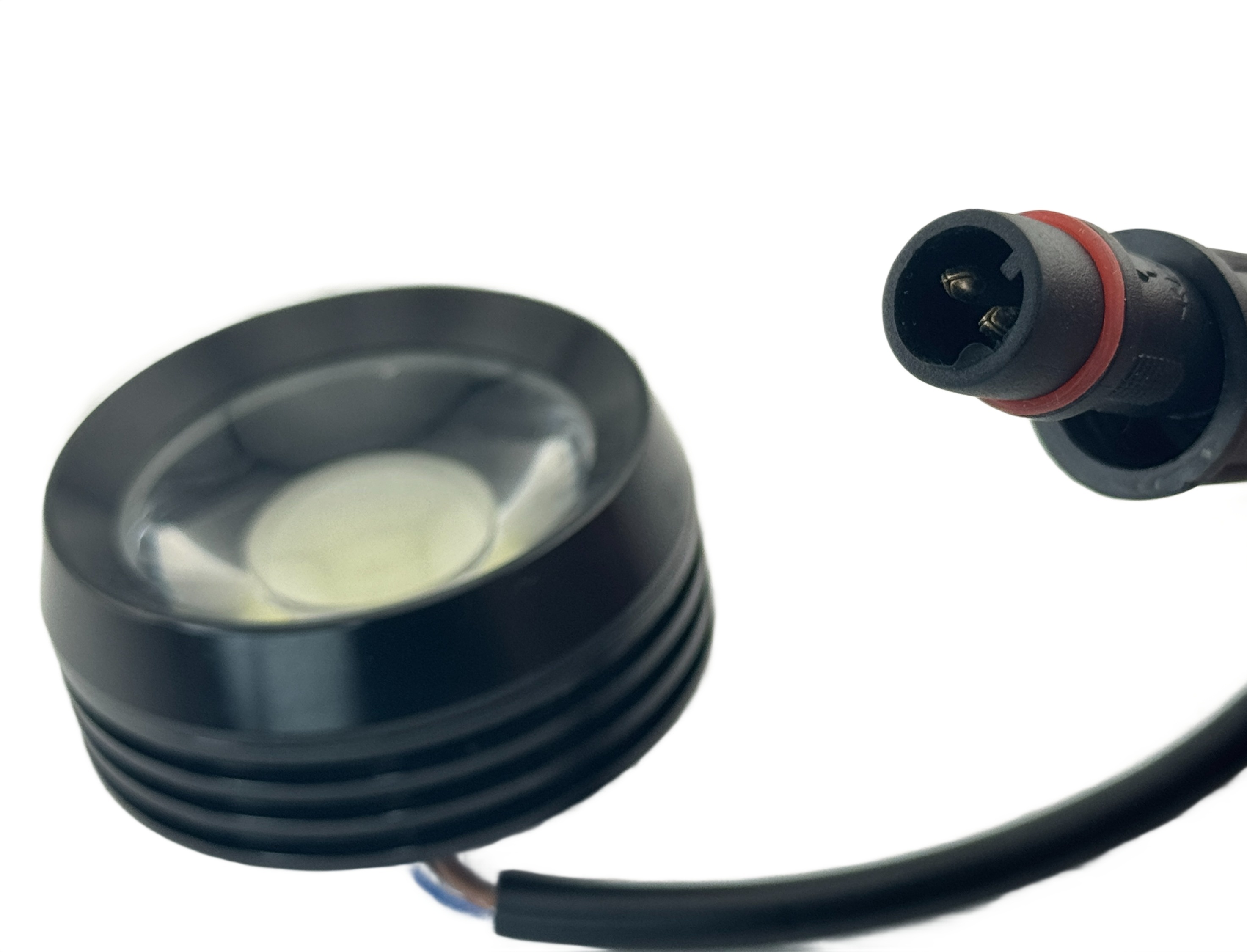

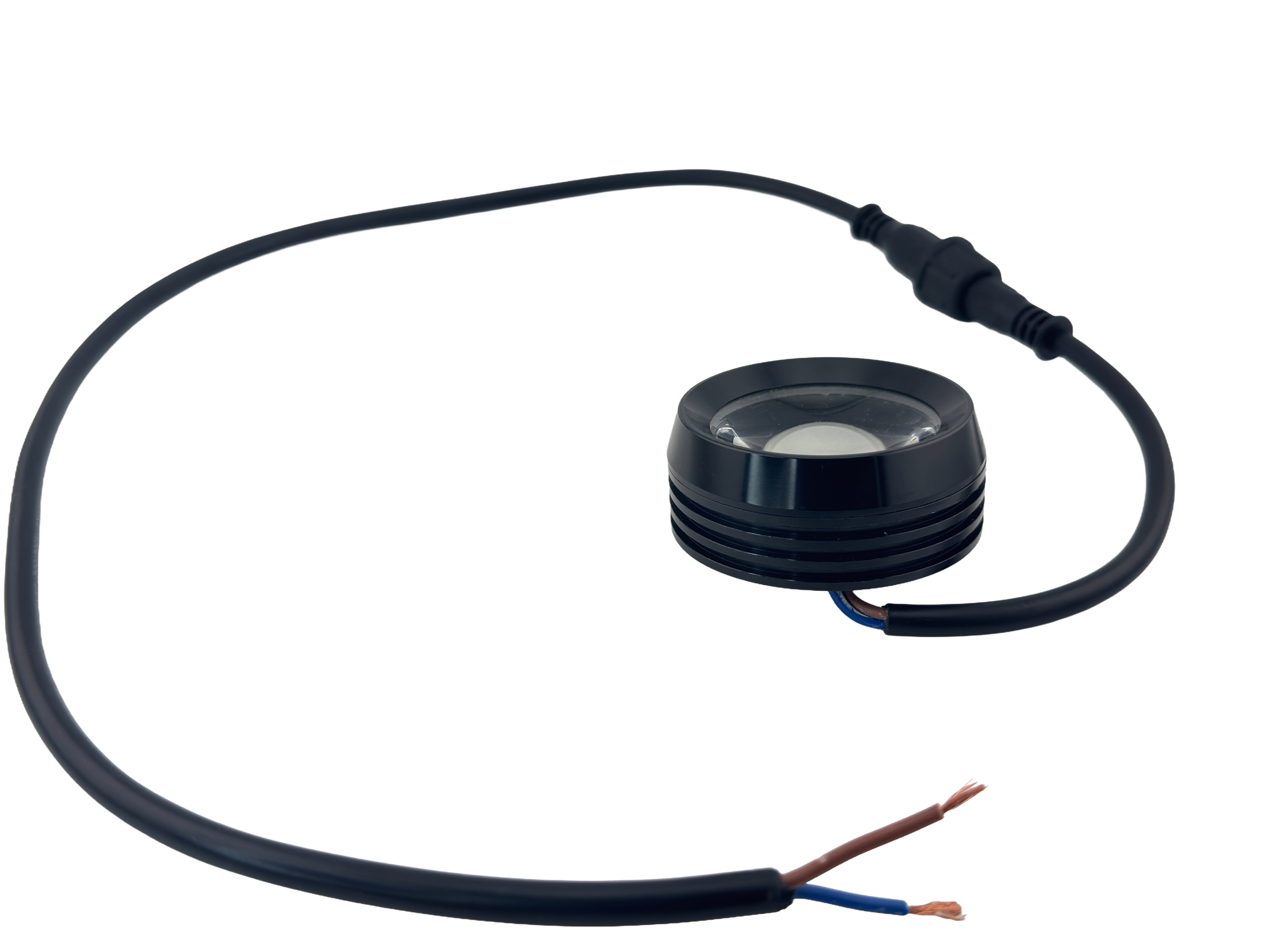

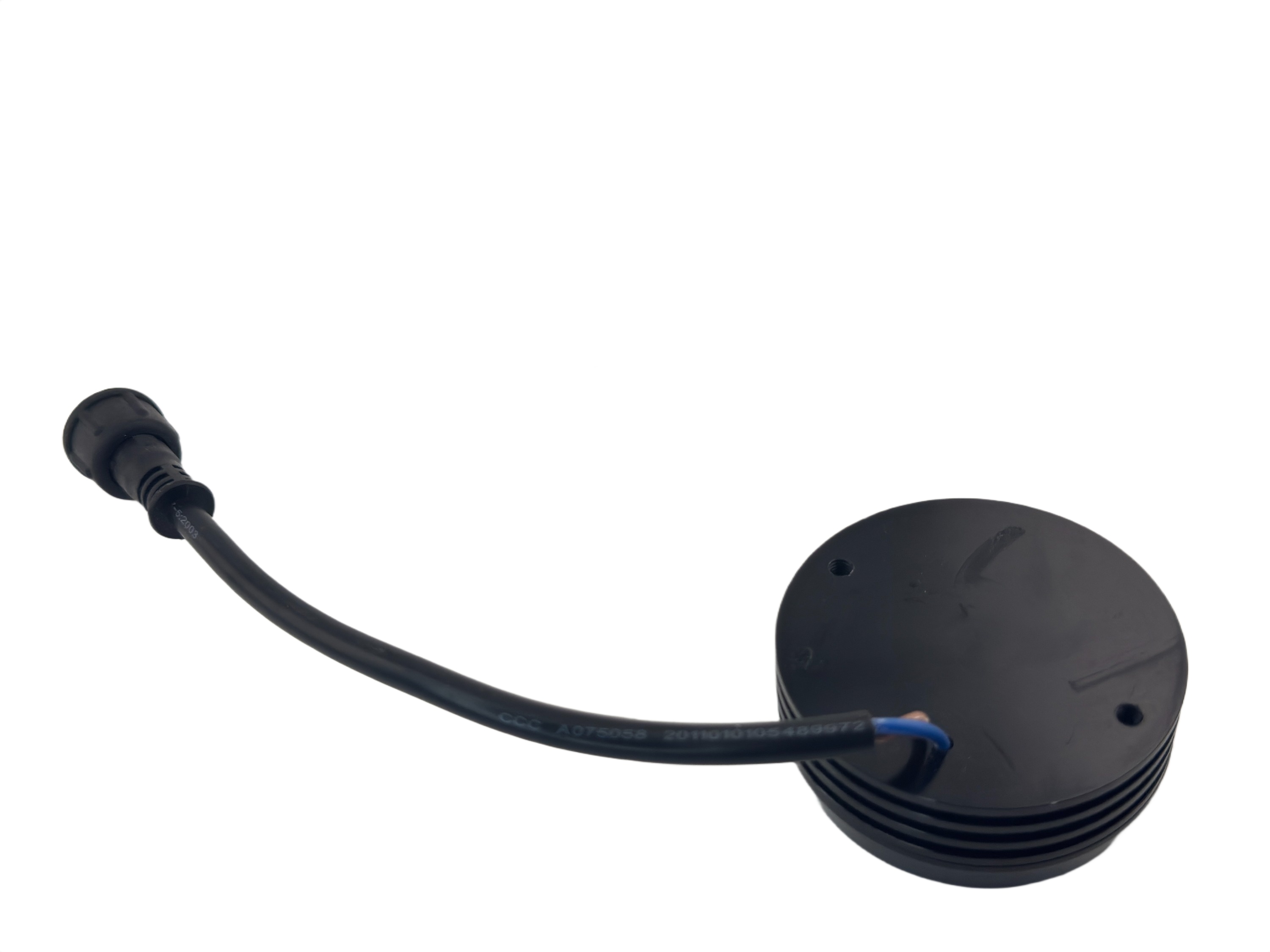

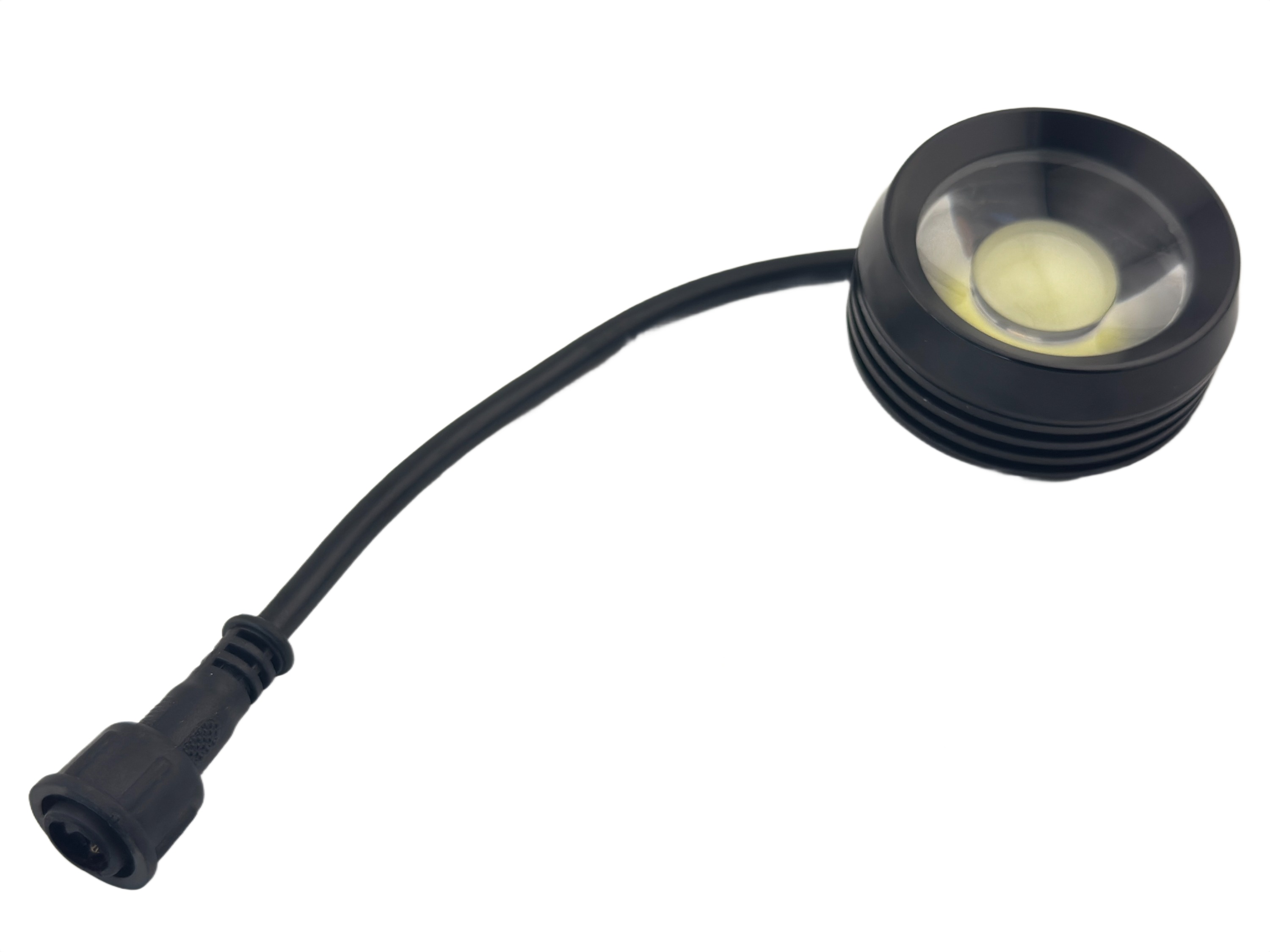

Rebaydo 1pc LED Puck 10W Module 12 VDC Dimmable is designed for under cabinet lighting, display cabinets, showcases, retail displays, art exhibits, museums, accent lighting, spot lighting, kiosks, trade show displays, architectural lighting, and other display applications. Operating on 12 VDC, this 10W LED module produces up to 850 lumens of 6000K white light with a wide 120° viewing angle while generating low heat for long service life. The water-resistant LED housing is paired with a water-resistant 2-pin polarized connector featuring a keyed tab that ensures proper installation orientation. The light remains on whenever power is applied and can be dimmed using a variable voltage supply. Overall dimensions are approximately 2.34" in diameter and 0.98" in height. The attached cable measures approximately 7.5" with the connector, including approximately 6.5" of 20 AWG wire inside protective sheathing. Hole-to-hole mounting spacing is approximately 1.9" with a mounting hole diameter of approximately 0.131". At 13.8 volts, the module draws approximately 530 mA and provides light output comparable to an 80 Watt incandescent bulb. CE and RoHS certified.

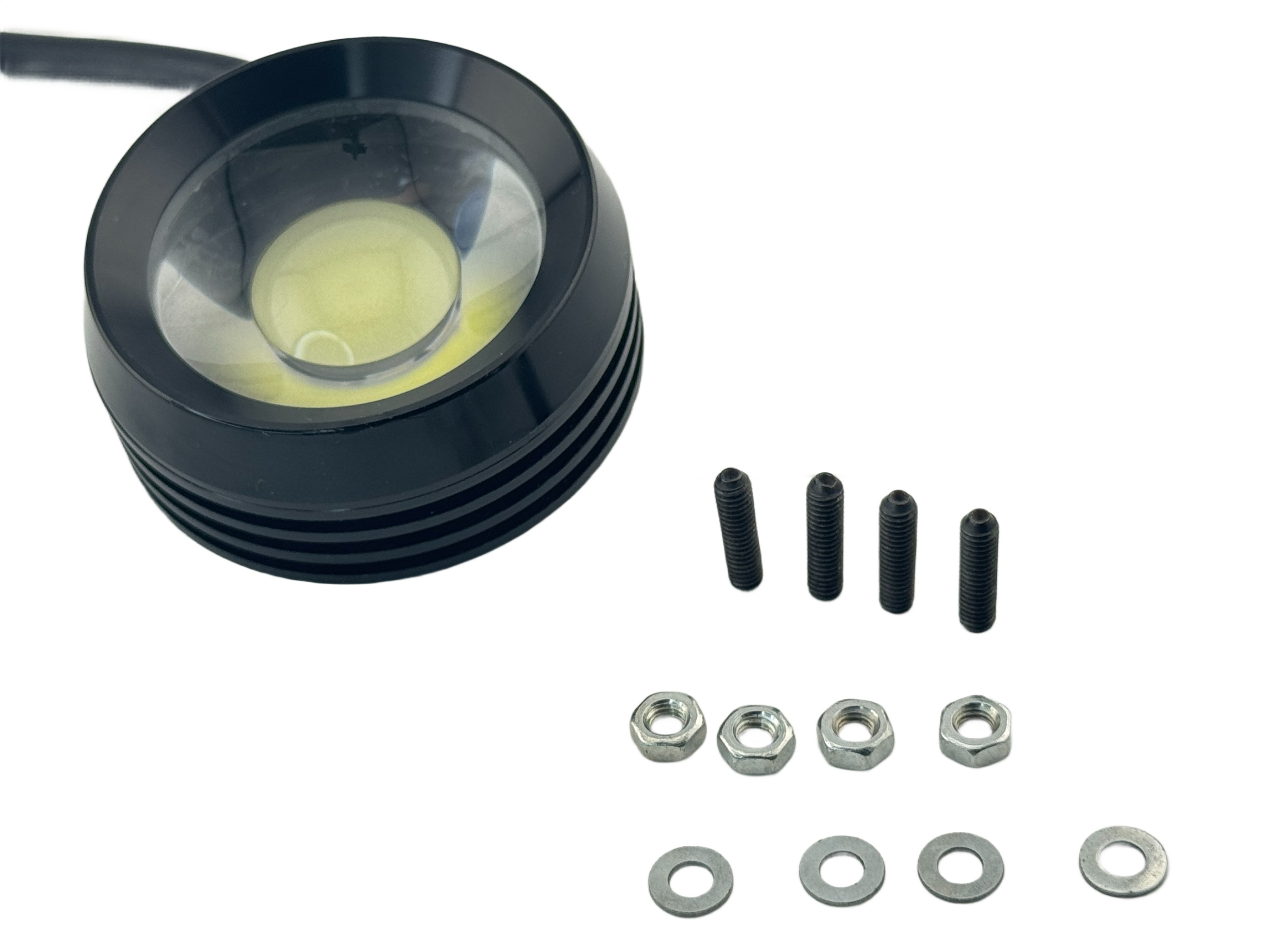

Each package includes 1 LED Puck Light, 4 mounting screws, 4 nuts, and 4 washers.
