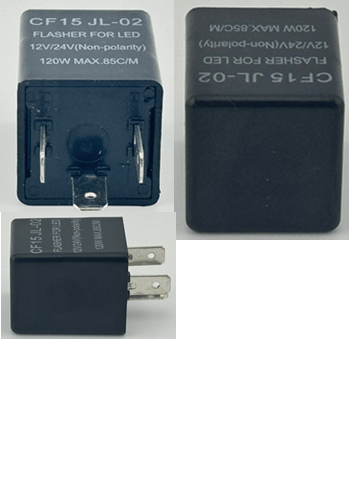

LED Flasher CF15 JL-02 12 to 24 Volt AC-DC 3 Terminal 120 Watt

CF LED flasher works either 12 volt or 24 volt AC or DC non polarity. The flasher has 3 pins. The flasher works either with incandescent bulbs or led bulbs or both. The flasher eliminates hyper flashing or load equalizers. The flasher rated load in up to 120 Watts. The terminals are labeled "B", "L" and "E". The approximate terminal width is 0.250" and the approximate terminal length is 0.4". The "B" terminal stands for Battery and should be connected to the battery. The "L" stands for Load should be connected to the load. The "E" terminal connected to ground. The flasher has a audible click. The flash rate is 60 to 120 flashes per minute. The duty cycle is 30% to 75%. The flasher operates from 10 Volts to 24 Volts. The approximate size of the flasher is 1.04" width by 1.30" tall. CE and Rohs.
