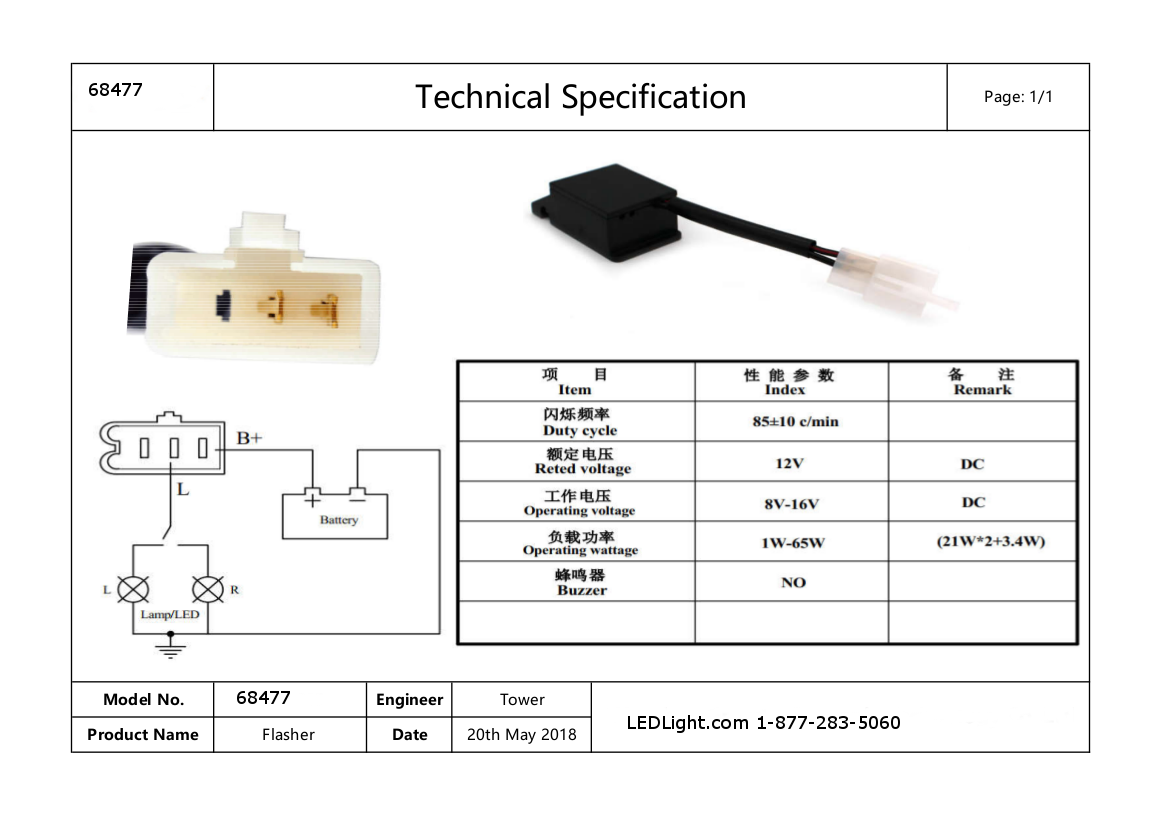

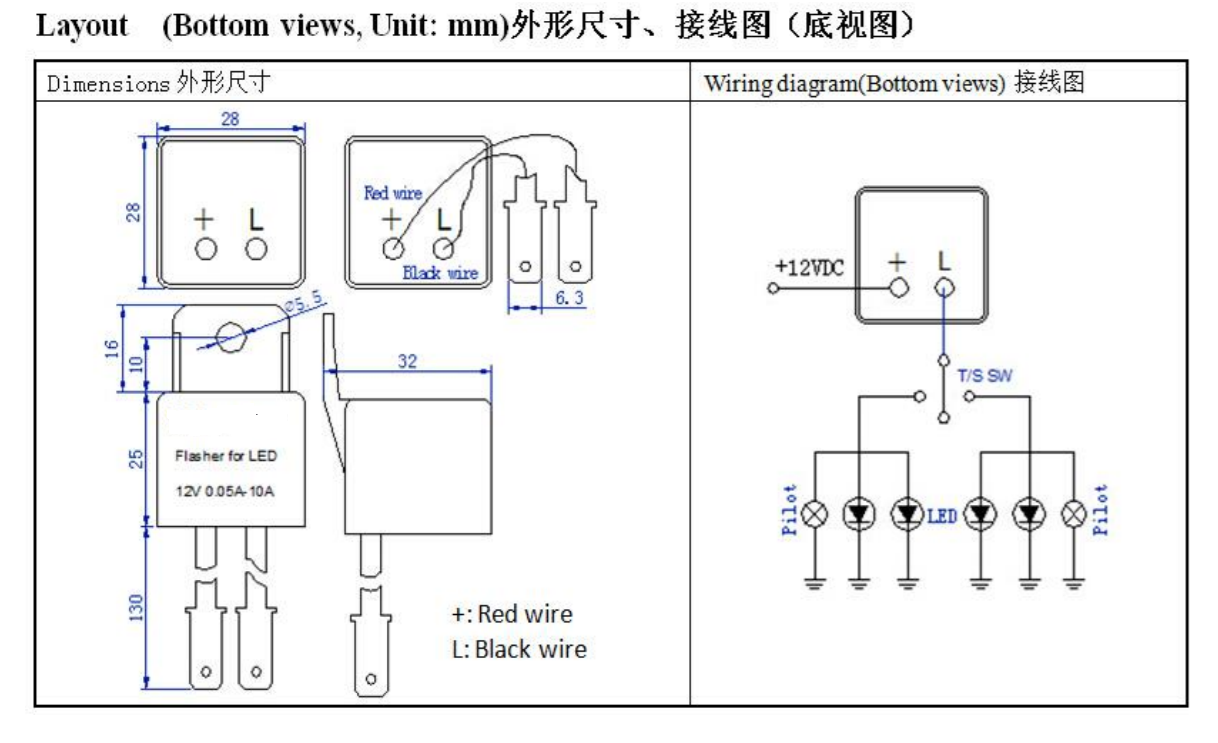

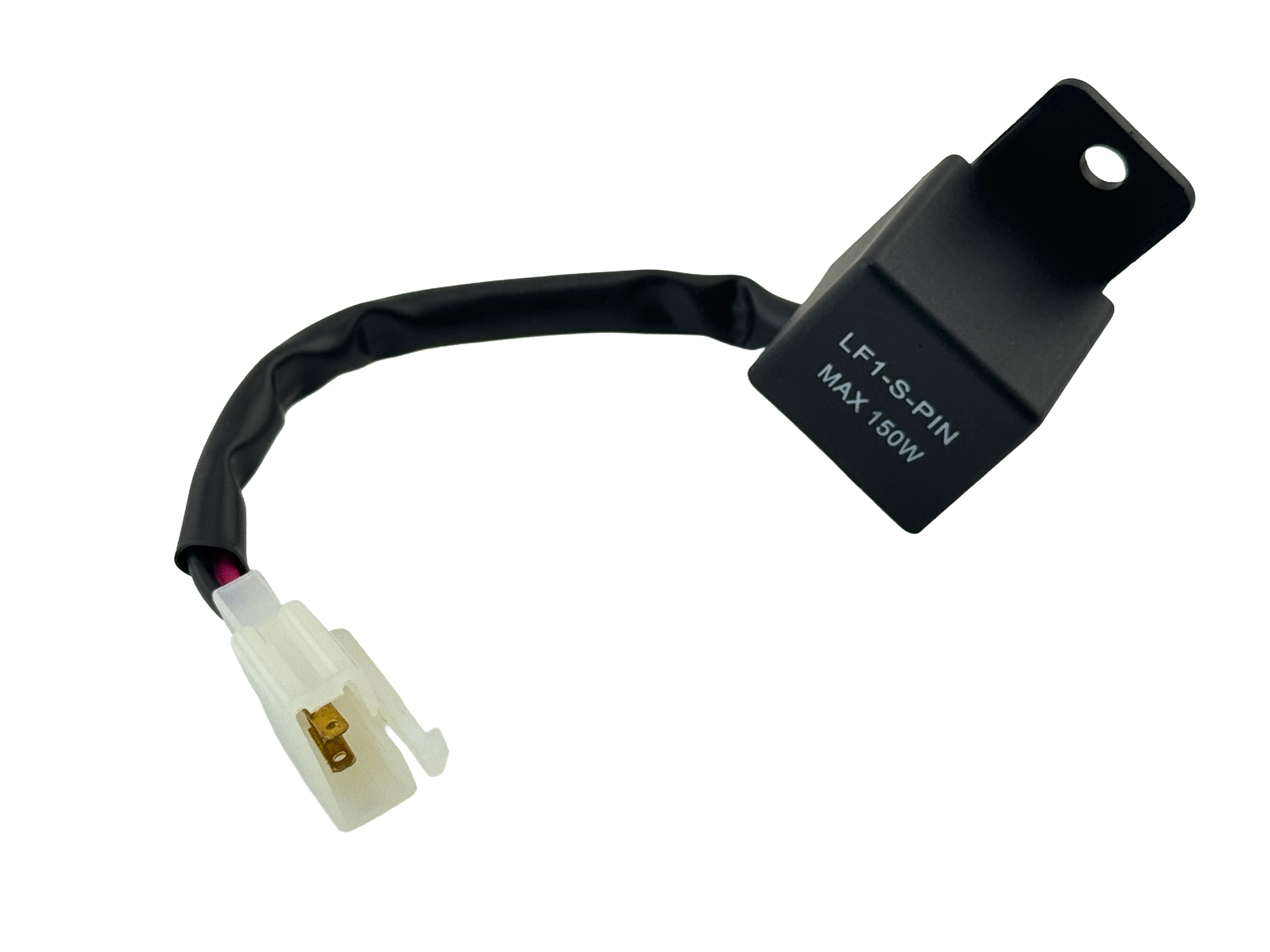

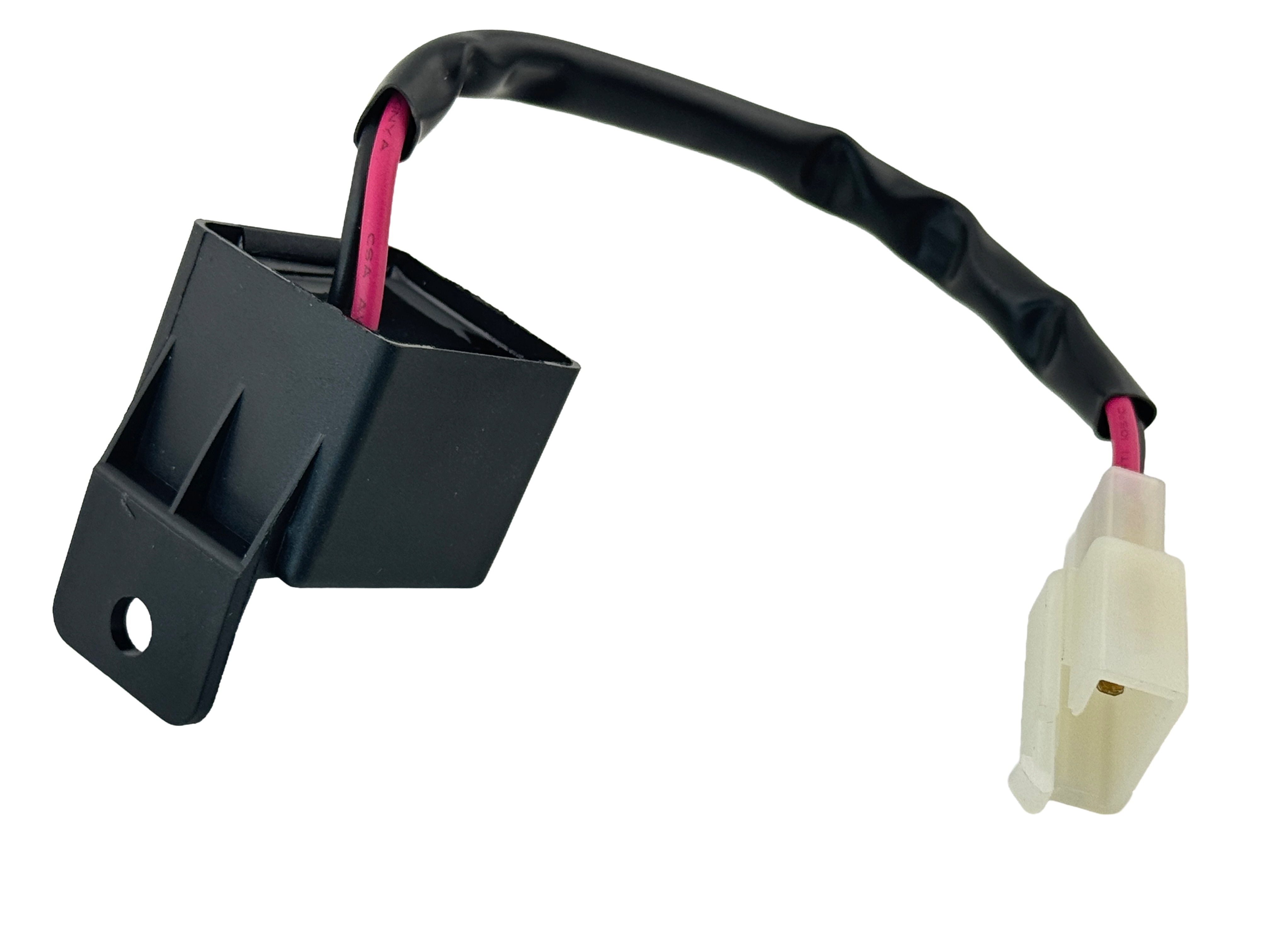

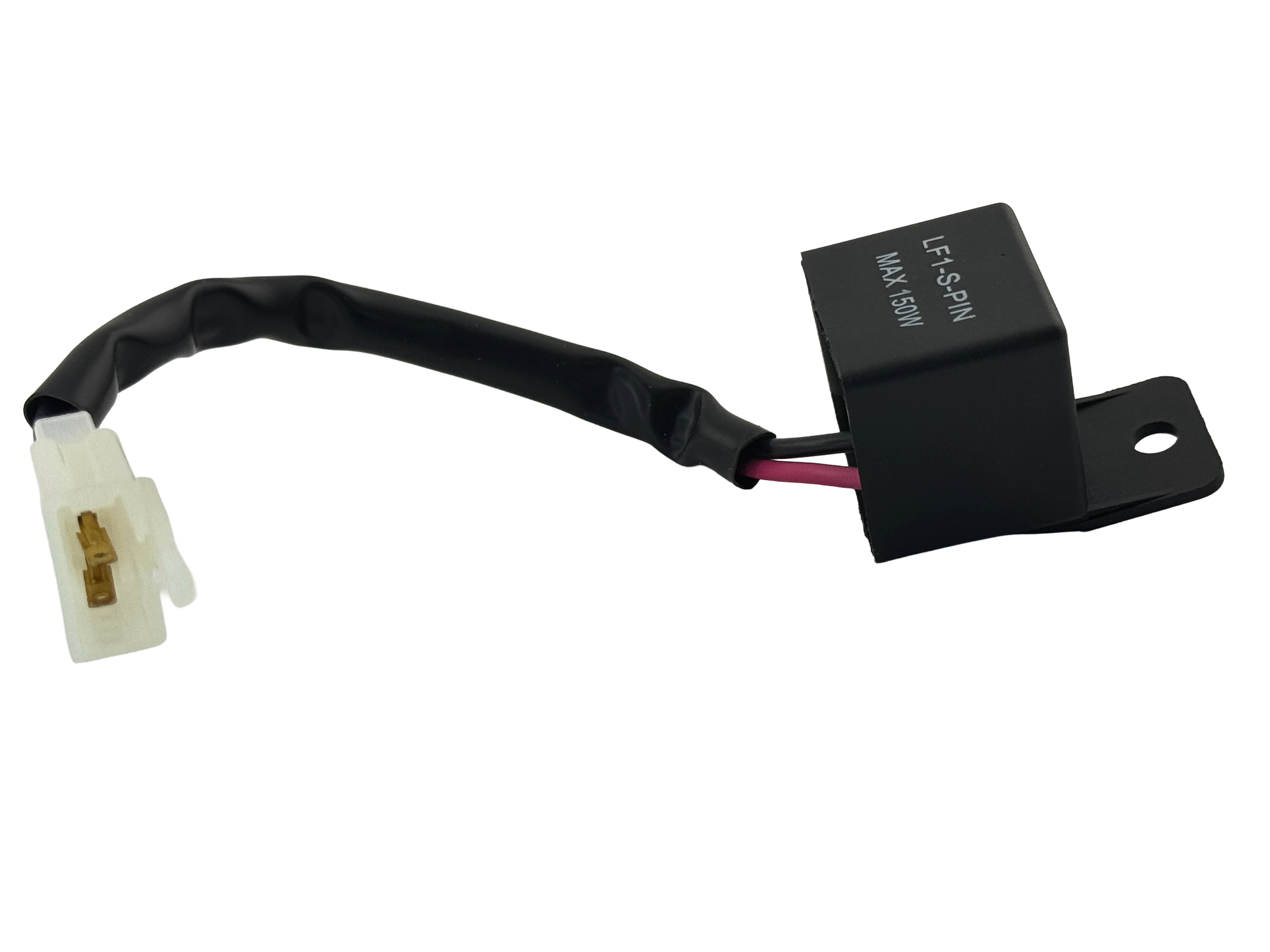

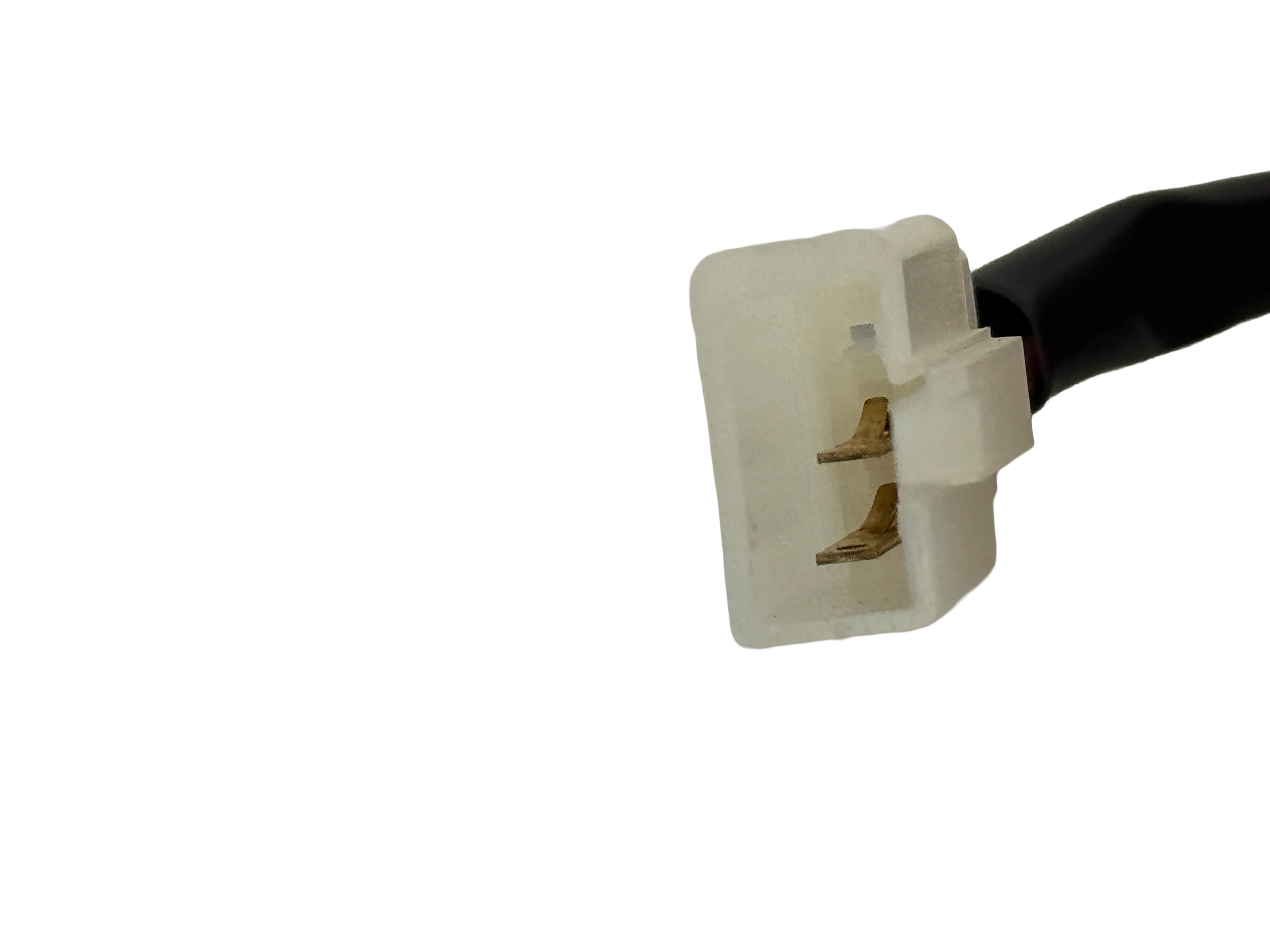

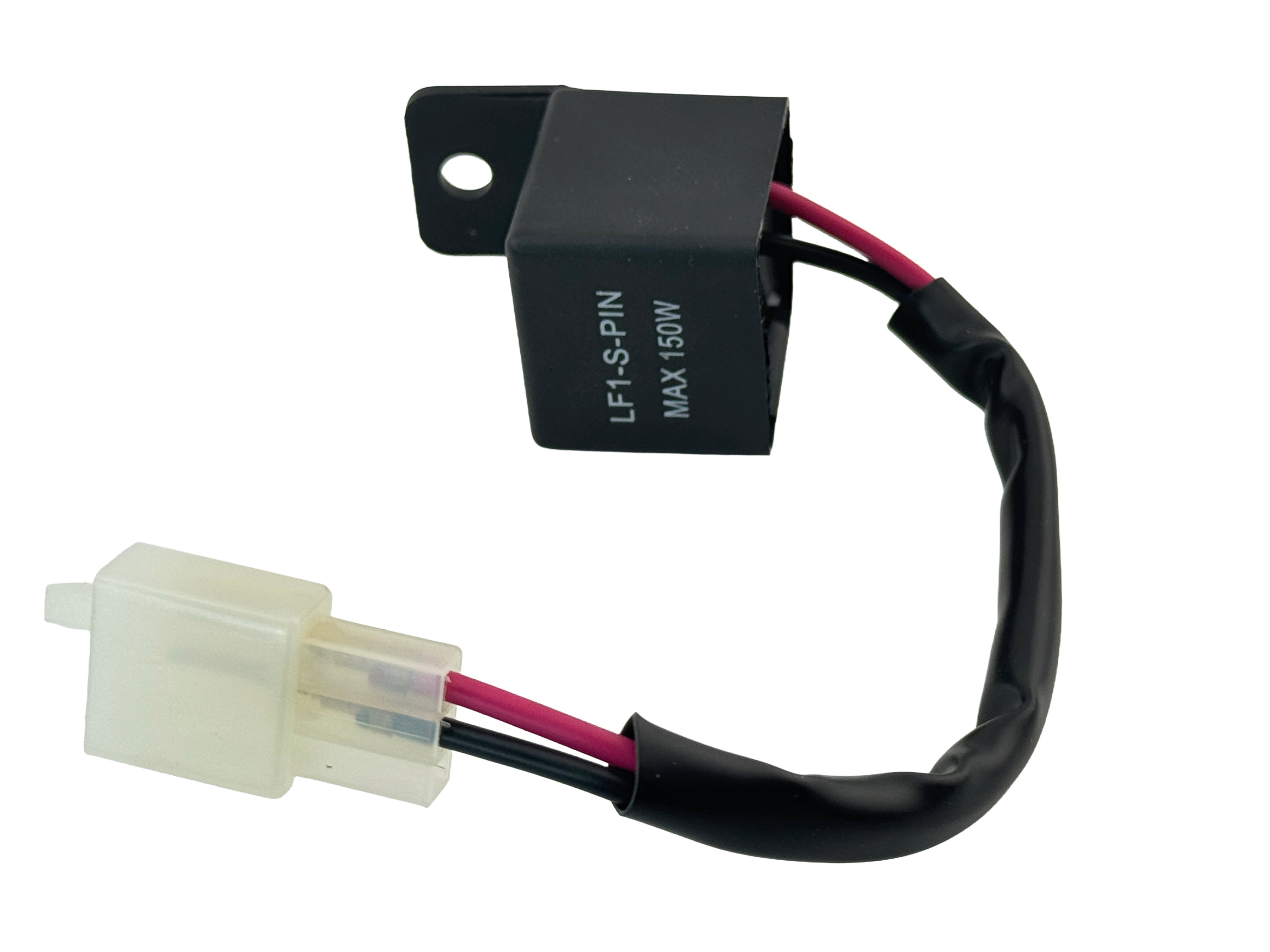

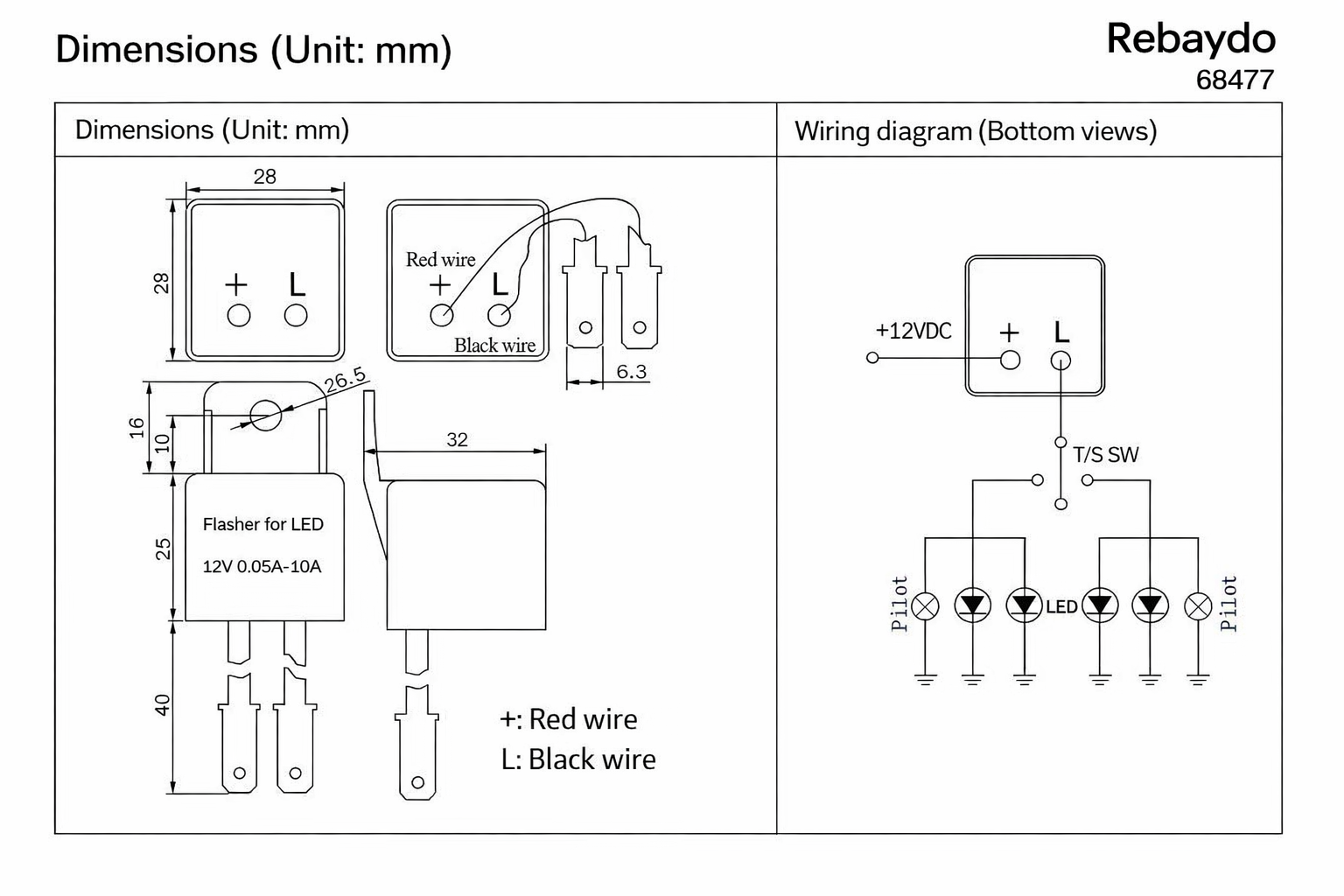

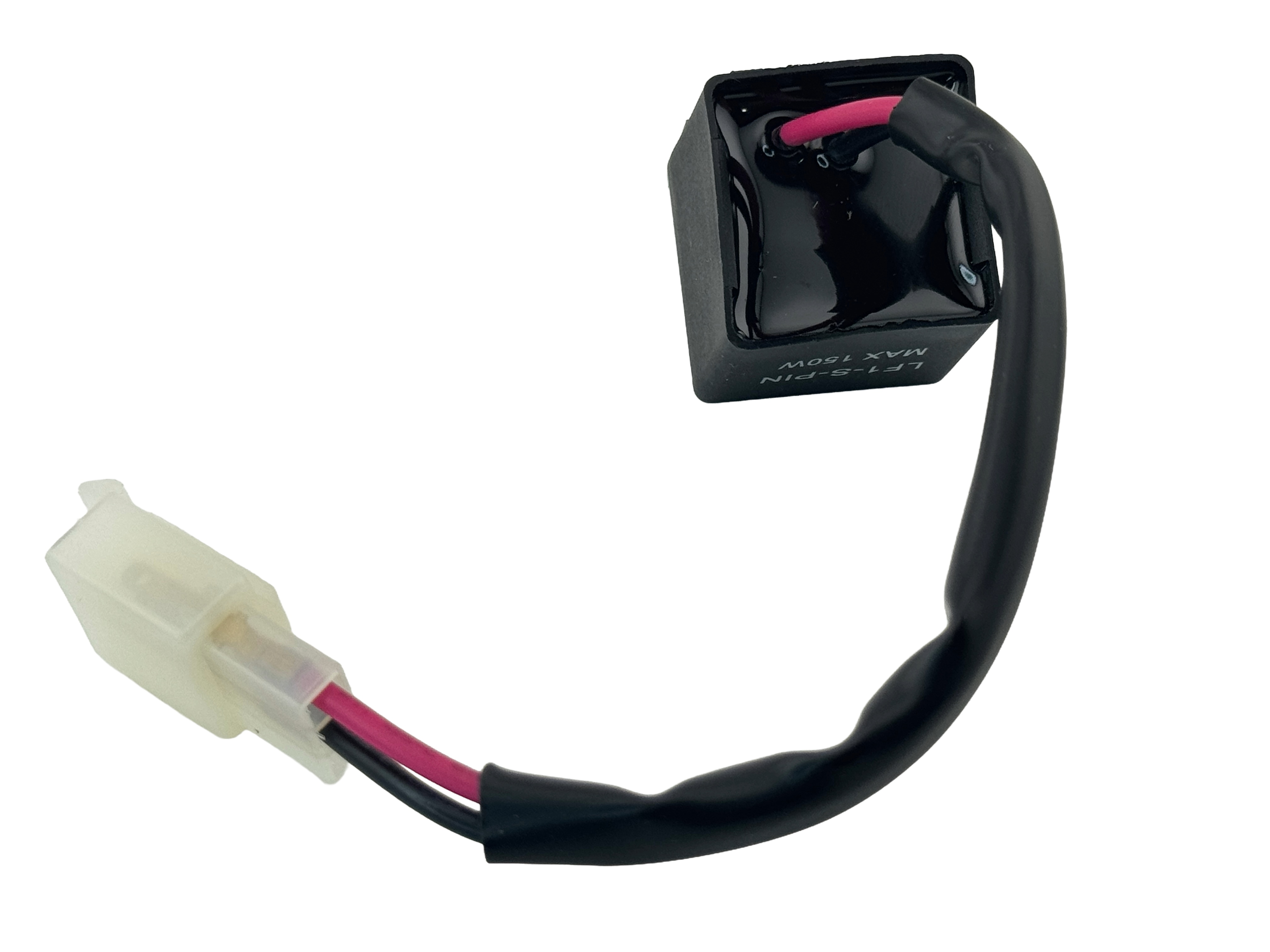

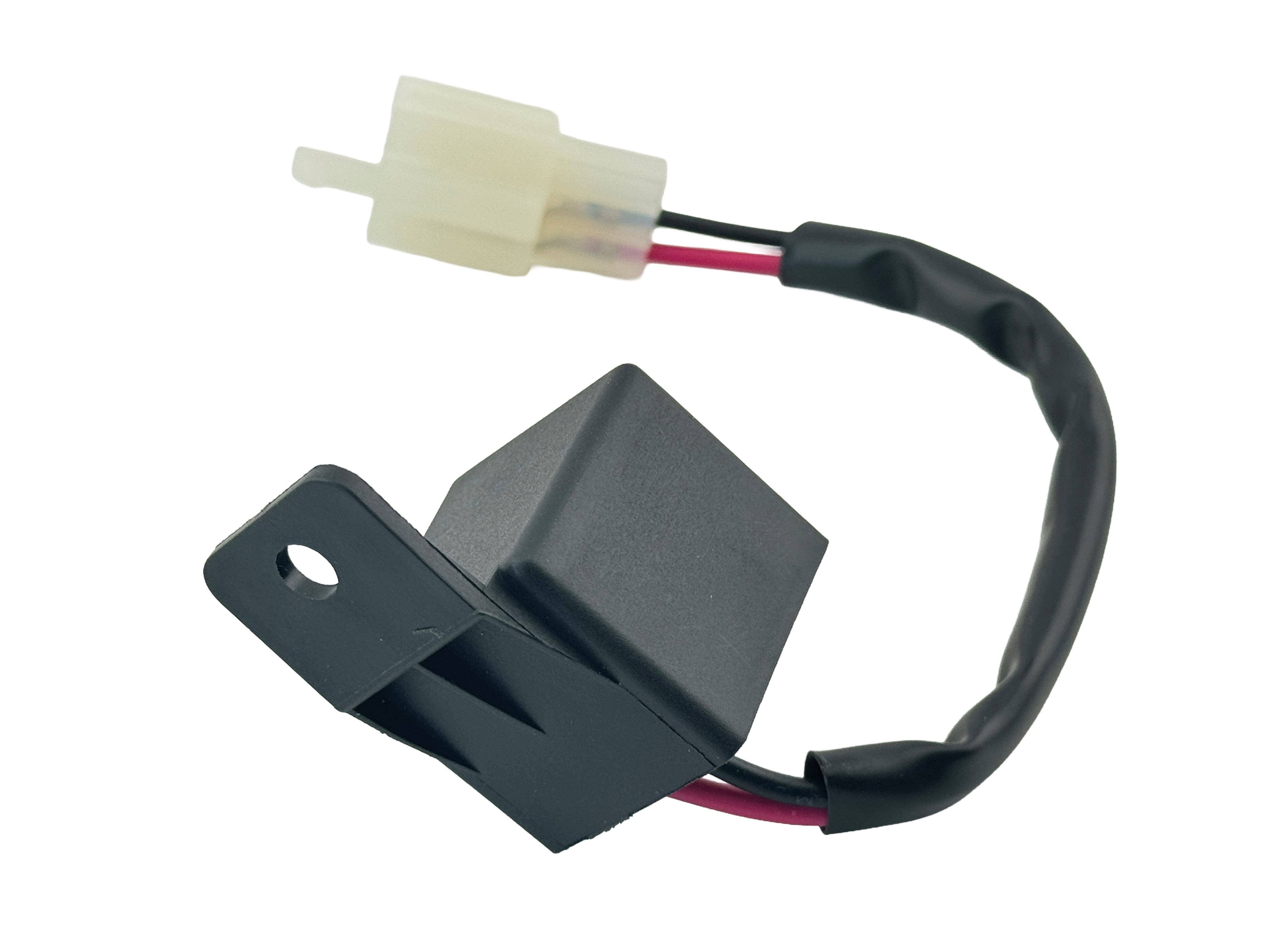

LED Flasher 2 pin for motorcycles, scooters, golf cart, go carts and Ebikes. This flasher is designed for motorcycles that have upgraded to LED lighting.This flasher relay will decode or eliminate hyper flashing due to LED lighting. This flasher can operate for 400 hours continues flashing. The flasher can handle maximum up to 65 Watts of lamps per side. The lamps can be either LED or incandescent or both. The flasher will flash from 60 to 120 times per second. The duty cycle is from 30% to 70% or 85 +-10 c/min. The lamp Wattage can be from 1 Watt to 65 Watts maximum power. The operating voltage is from 8 volts DC to 16 Volts DC. The rated voltage is 12 Volts DC. The operating temperature is from -40C to +80C. The flasher is CE and Rohs listed. The two terminals are L for load and + for the positive battery terminal. Please hook up your anode of your led bulb to the L load pin of the flasher. Please connect your cathode of your led bulb to ground. The flasher will solve or decode your hyper flashing so you do not have to worry about being pulled over for hyper flashing. The flasher has a built in bracket so you can mount this flasher so it is solid and will not vibrate loose. The standard Wattage of an incandescence bulb is 21 Watts. The flasher can handle 1 to 2 incandescent bulbs per side. The flasher is 12 Volts DC. Super clean and professional installation DIY. Very easy plug and play installation. Disconnect power, remove old flaher, insert new flasher, reconnect power. The flasher is made of ABS plastic and metal parts for a long life.
