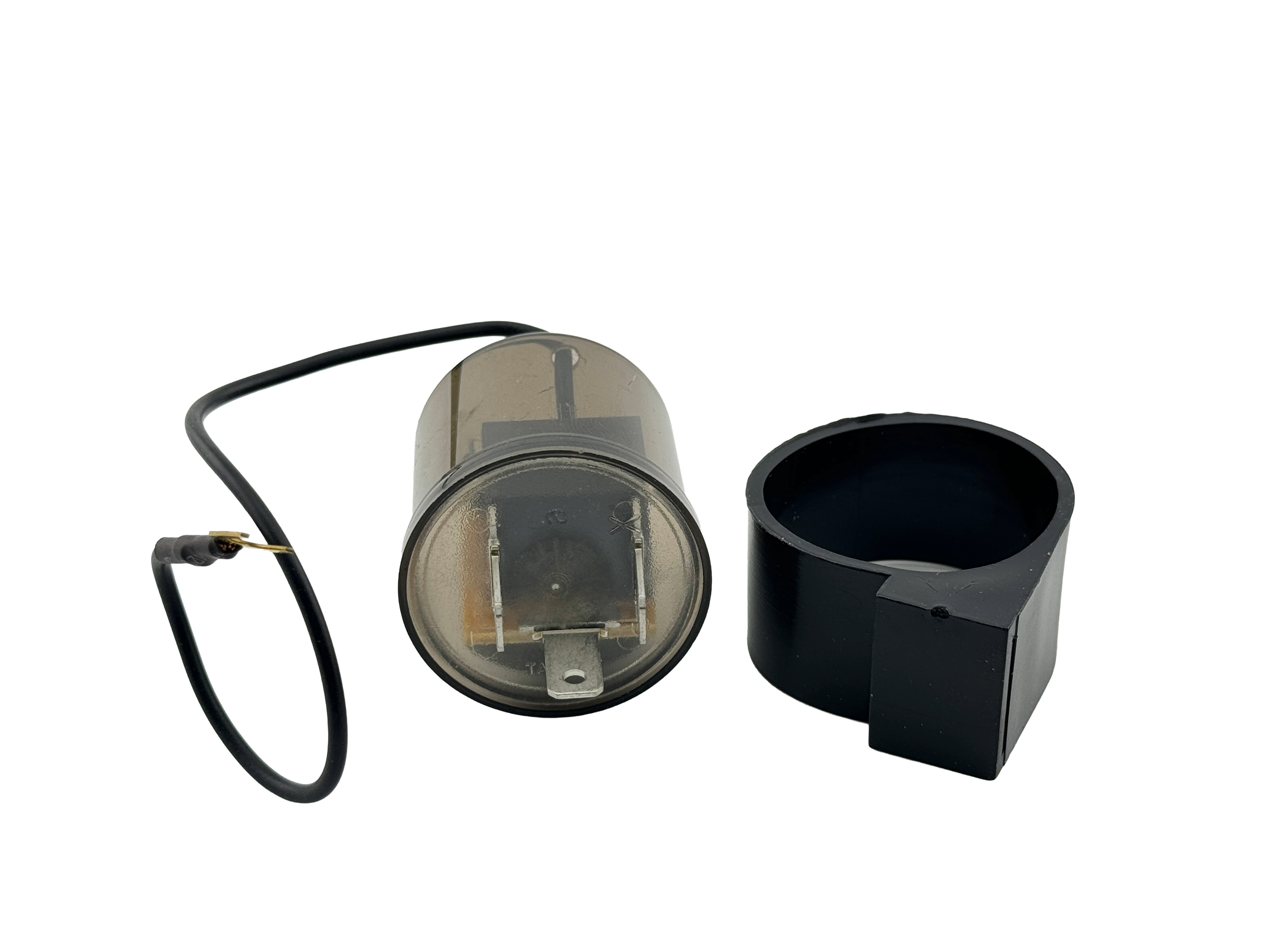

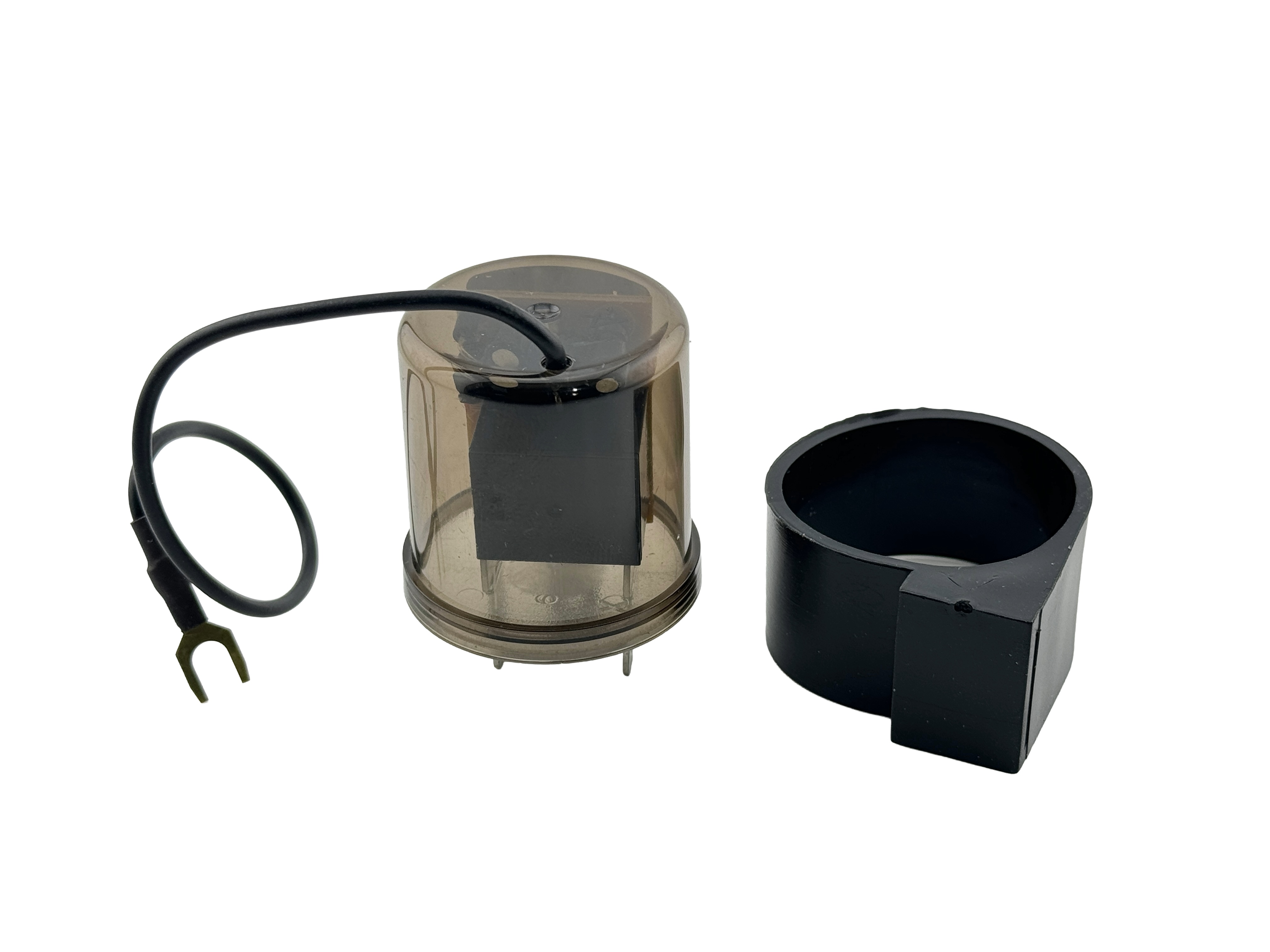

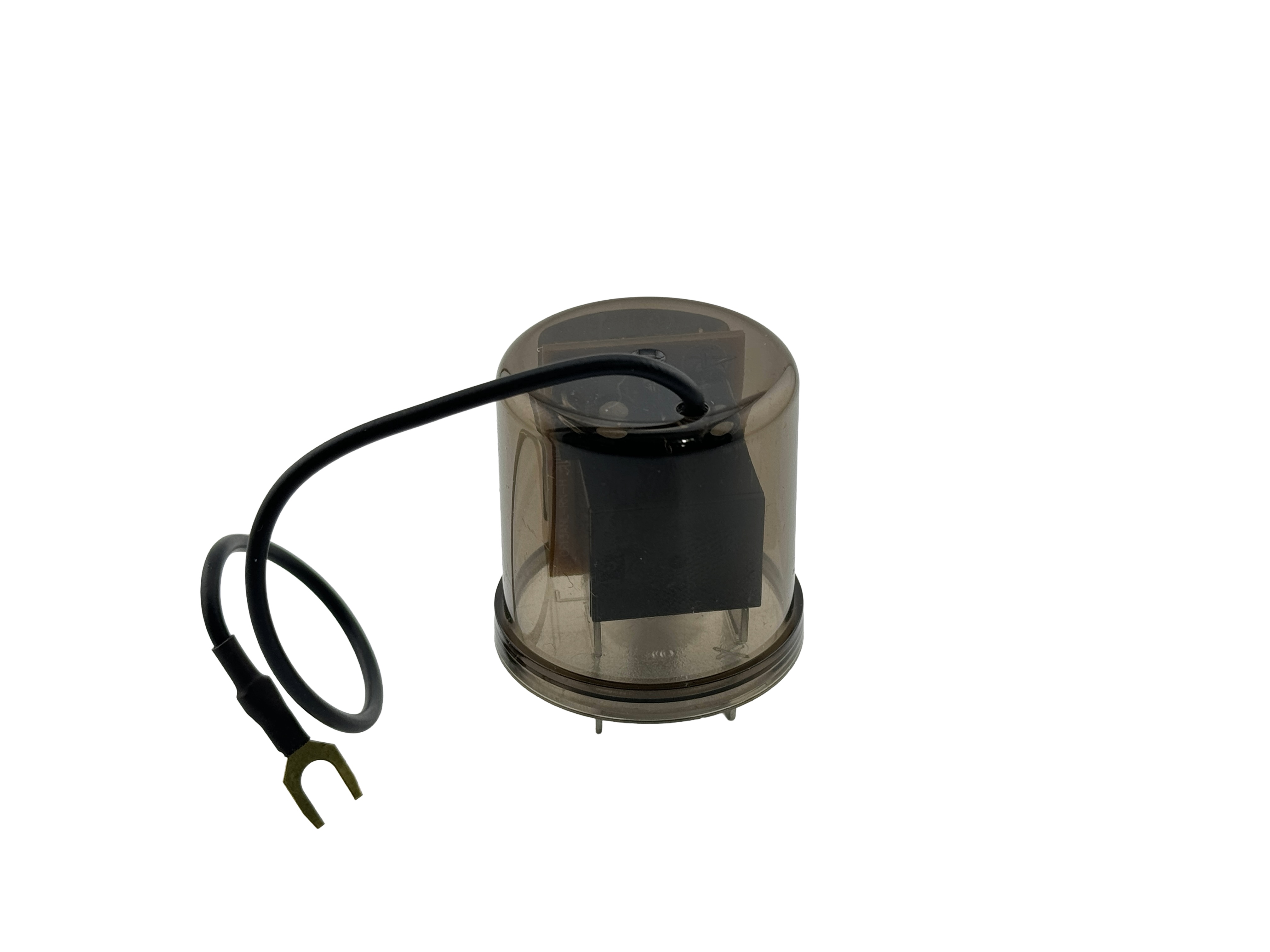

12 Volt LED compatible flasher for 12 Volt positive ground vehicles, motorcycles or scooters. The rated voltage is from 11 to 15 Volts. Has 3 contacts plus a pigtail wire. The 3 contacts are input X, which will make the flasher flash if low control contact. Contact L which will connect to the load which could be either incandescent or led bulb and if a non polarized led bulb would be the cathode. The contact P for Pilot light which will connect to the pilot light which could be either a incandescent or led. The pigtail wire which connects to the positive ground chassis. The flasher rated load is up to 120 Watts. The flasher can work with incandescent or led or a combination of both. This LED compatible flasher will fix your hyper flashing. The flasher has rated life up to 400 hours. The standby current is 20 mA. 60 to 120 flashes per minute. Lamp rated amperage .1 to 20 Amps self adjusting to lamp draw. Shell construction made of plastic. -25F to 140F operating temperature. Voltage drop at rated current 500mV. Time to first flash less than 1.5 seconds. Duty cycle 30% to 75%. Approximate size 1.313" width, 1.422" height, pigtail wire length 7.5", contact depth from bottom of flasher. Please see specifications for further electrical and mechanical information. Please fuse the input lead. Please use a 20 Amp fuse inline with the X input. Fits socket product code 34265. CE and Rohs.
Compatible with:
Land Rover series 2a
