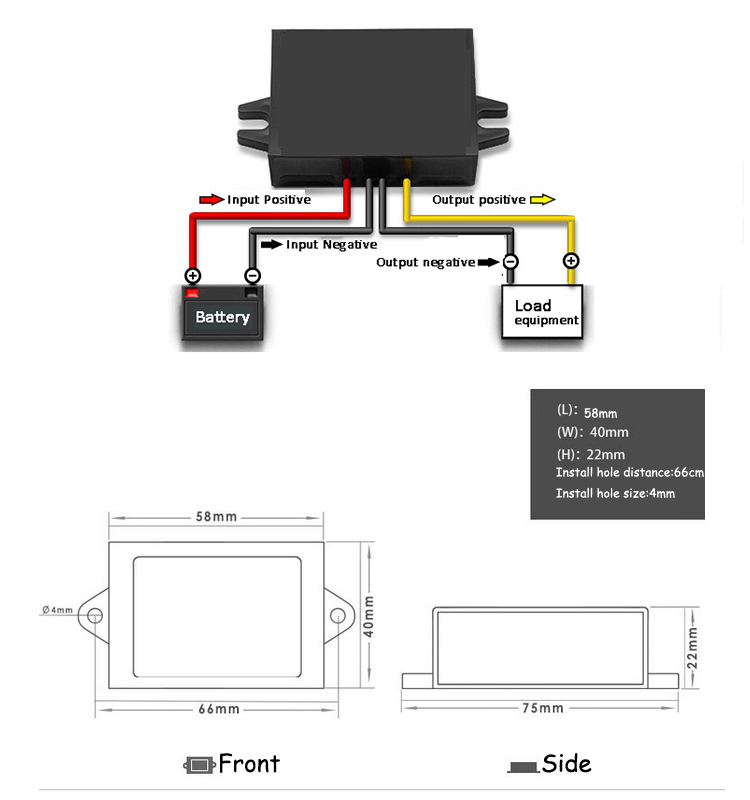

Converts your 6 Volt vehicle to be able to power 12 Volt accessories. Powers anything that is 4 Amps @ 12 Volt. The ballast has enough power in a small size. The input is 8 Amps @ 6 Volt input and the output is 4 amps @ 12 Volt. Works on both 6 Volt negative ground and 6 Volt positive ground cars, trucks, tractors and motorcycles. Long warranty please set page details for further warranty information. Easy to connect for (DIY) do it yourself retrofit. The ballast is water proof and is a isolated design. Please connect the ground and input 6 volt signal to the input side of the ballast such as a cigarette lighter receptacle. Please connect the output to a 12 Volt device. With this ballast you can have DVD, Bluetooth, WIFI, USB port in your vintage and classic vehicles designed and built before World War II. Compatible with 12 Volt: audio, navigation, monitoring, led, air conditioning, electric fans, CB, ham radio, DVD, lights, motors, pumps and industrial equipment. Works good for Model T and Model A and other 6 volt cars, trucks, tractors and motorcycles. Use your 12v car radio in a 6 volt system. The red and black wire are connected to 5-11 volts input up to 8 Amps @ 6 Volts. The red wire would connect to your positive ground and the black input wire would connect to your control signal, that would be active when low. For negative ground 6 volt vehicles connect your black input wire to the ground of the vehicle and connect the red input wire to a positive control that would be active when the wire has positive 6 volts. The output wires Black and Yellow provide a 12 volt @ 4 amp load. The no load current draw is 20mA. Works on 8 Volt Fords. The yellow output wire would connect to the 12 volt input of the device. The output ground would connect to the ground wire of the 12 volt device. Please add a switch to the positive input wire to help with battery drain from the no load current of 20 mA, if the vehicle is not used regularly. Great for 12 volt solenoids. Please add a 10 Amp fuse to the positive input wire to protect the converter from overload. Please do not add more than a 10 Amp fuse to the positive input or it will void the warranty of the converter.
