49 available

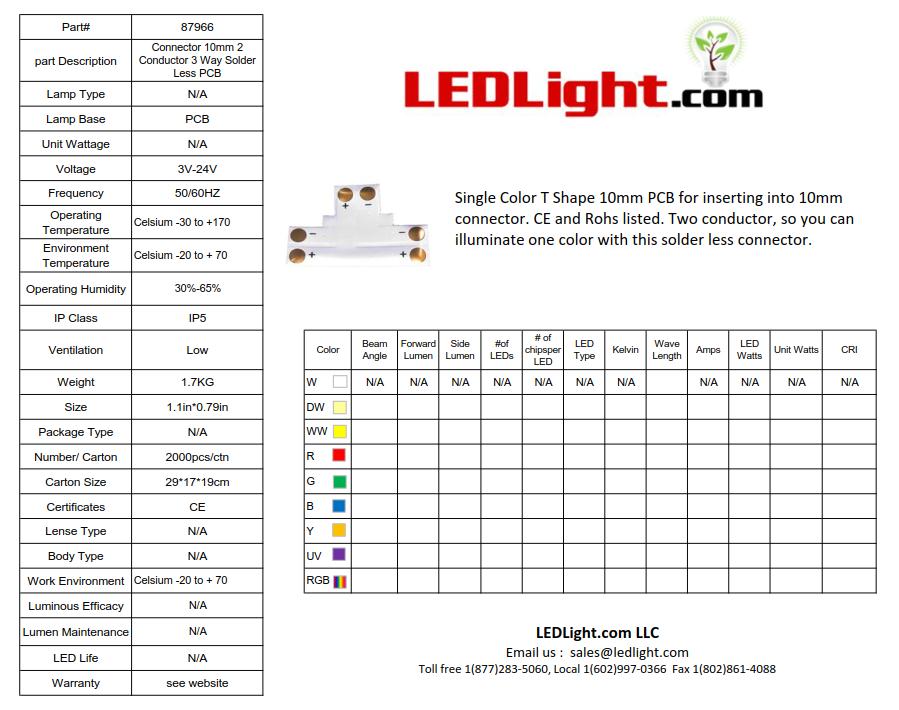

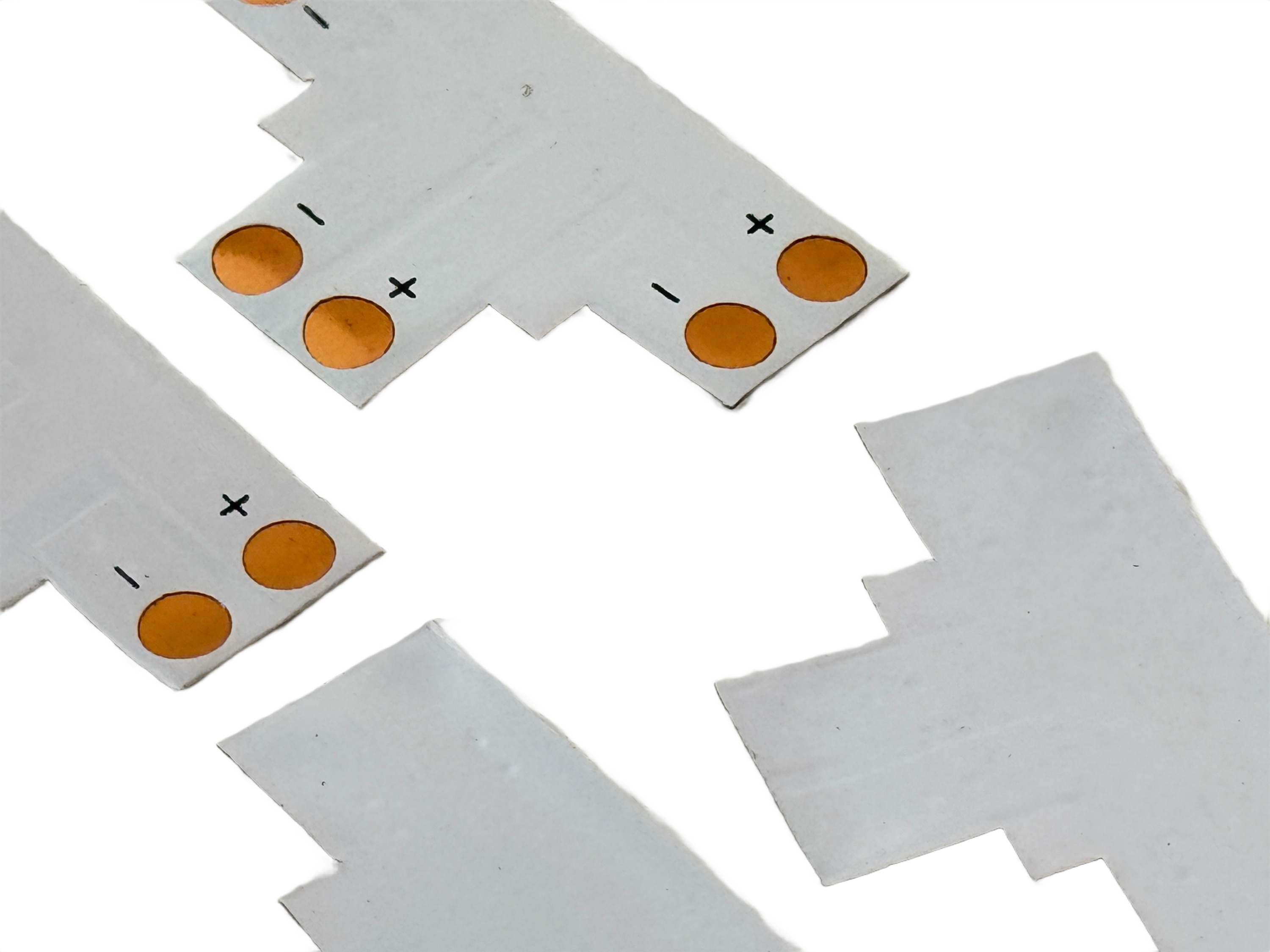

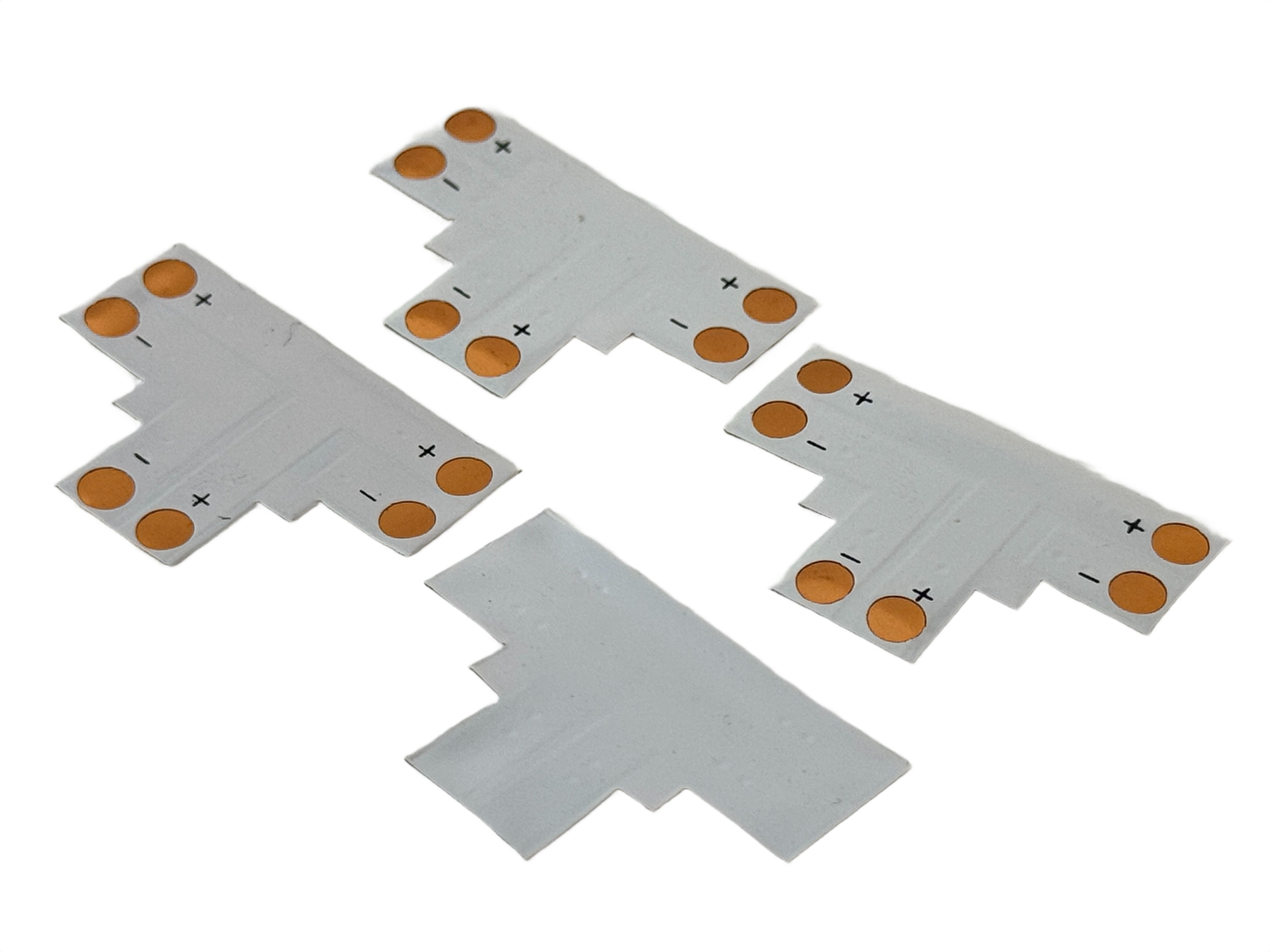

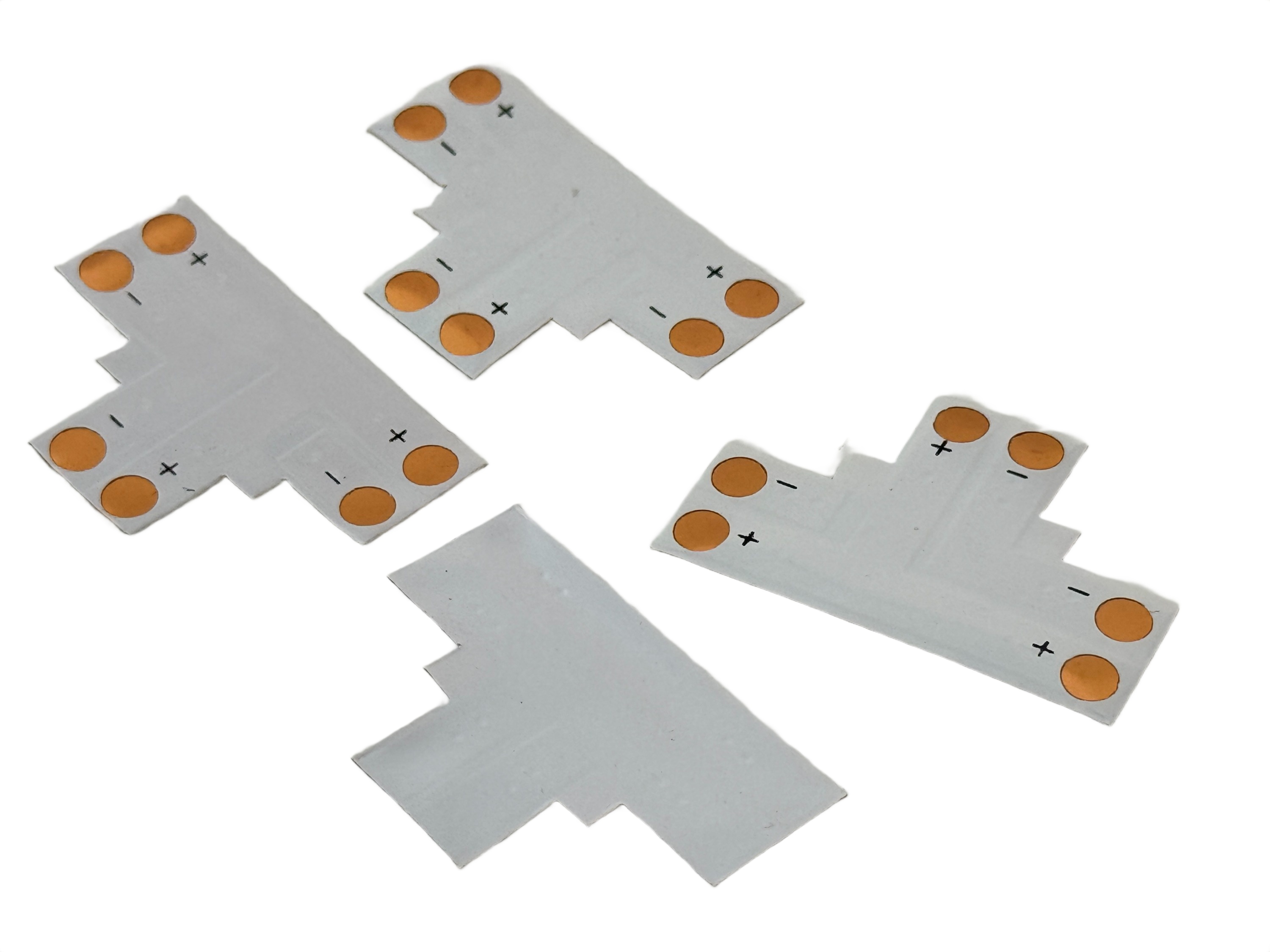

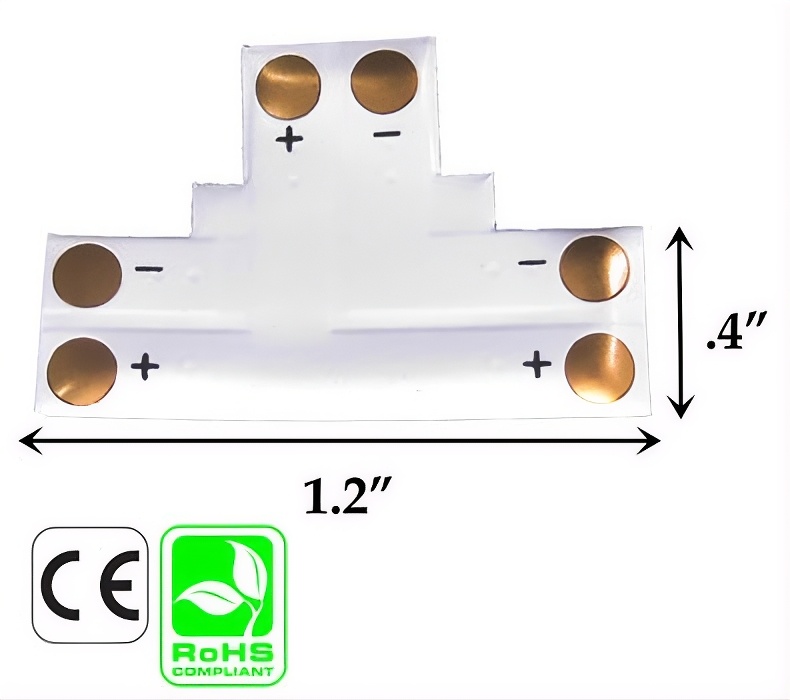

Rebaydo 4pcs 10mm 2 Conductor 3 Way T Shape Solderless PCB Connector is a single-color T-shaped 10mm PCB designed for inserting into a 10mm connector. The two-conductor design allows one color to be illuminated using this solderless connector, with no special tools needed. The white PCB features positive and negative connection points and is designed for 3V-24V operation at 50/60Hz. The operating temperature is -30 to +170 Celsius, environment temperature is -20 to +70 Celsius, operating humidity is 30%-65%, and IP5 protection class with low ventilation. Dimensions are approximately 1.2 inches wide by .4 inch high, with the specification also listing a size of 1.1 inches x .79 inch. The listed weight is 1.7KG. The connector is CE and RoHS listed and is designed for single-color lighting applications using 10mm connectors and 10mm PCB connections.
