BAY15D 1154 6 Volt 60 SMD 5730 Dual Filament Reduced Profile product
Actual Product may vary from picture shown.
One product per package unless otherwise stated.
Click to Enlarge Image View Larger Photo

BAY15D 1154 6 Volt 60 SMD 5730 Dual Filament Reduced Profile

Product Code: 73195

Price : $6.89 - $7.49
spacer   Volume Price Information   spacer
 Buy 2 or more and pay $7.34 each (save 2.00%)
 Buy 4 or more and pay $7.27 each (save 3.00%)
 Buy 6 or more and pay $7.19 each (save 4.00%)
 Buy 8 or more and pay $7.12 each (save 5.00%)
 Buy 10 or more and pay $7.04 each (save 6.00%)
 Buy 25 or more and pay $6.97 each (save 7.00%)
 Buy 100 or more and pay $6.89 each (save 8.00%)
Qty:Add To Cart
Add To Saved Cart
Warranty: 12 Months

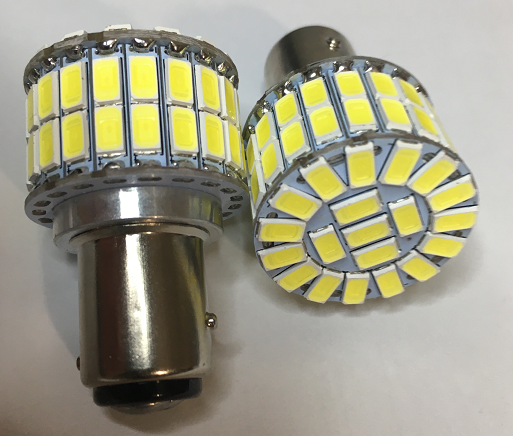

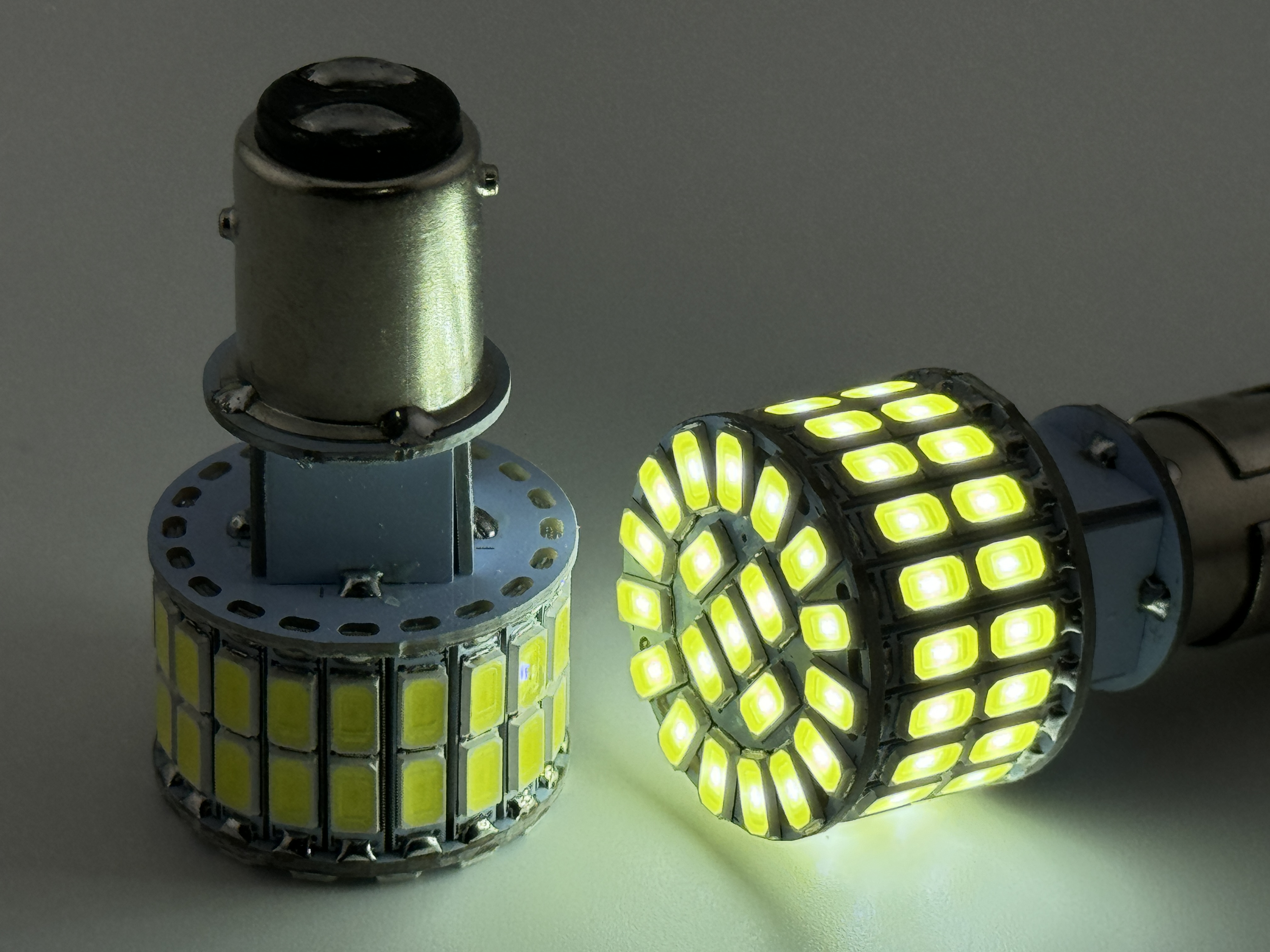

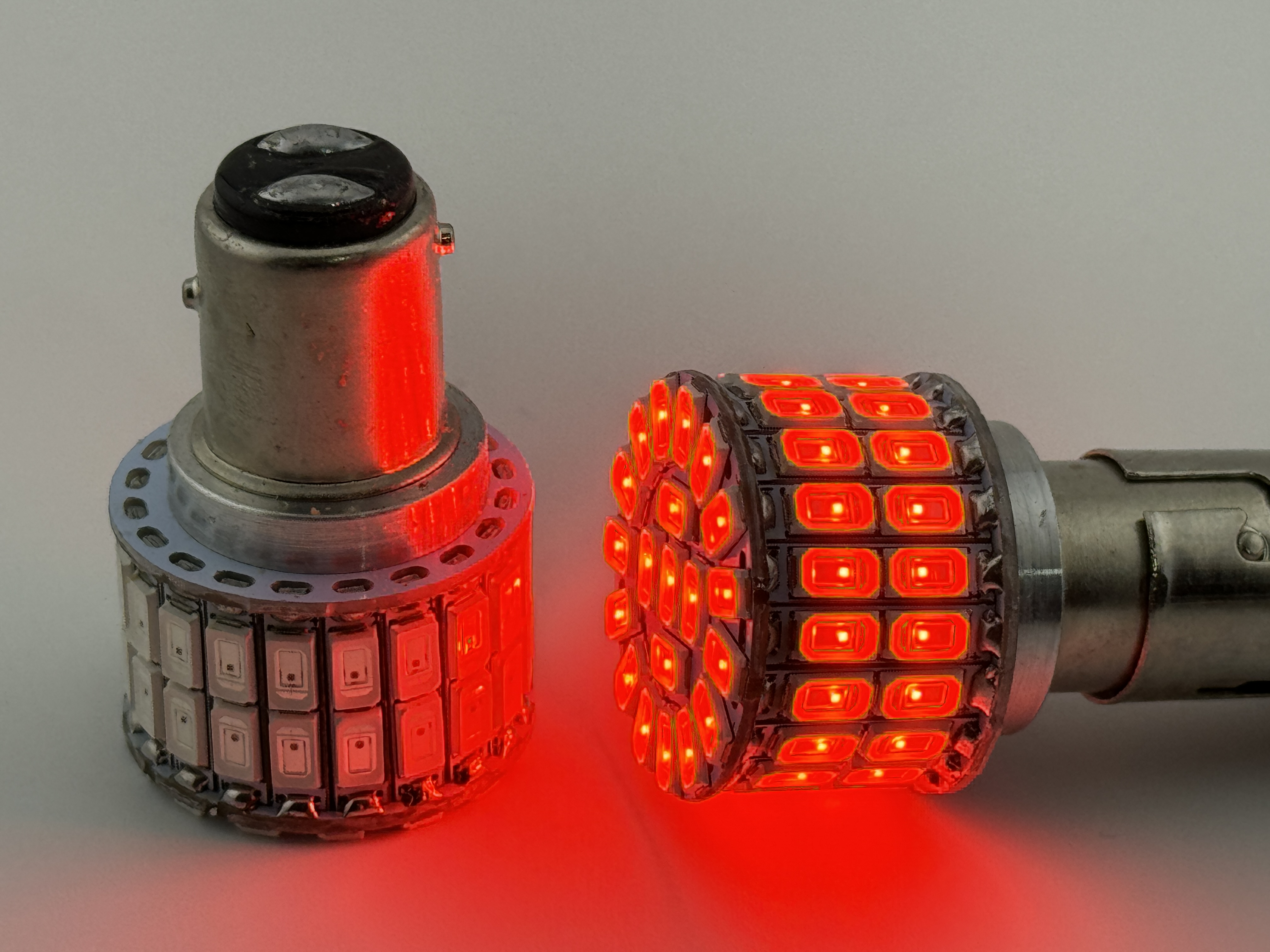

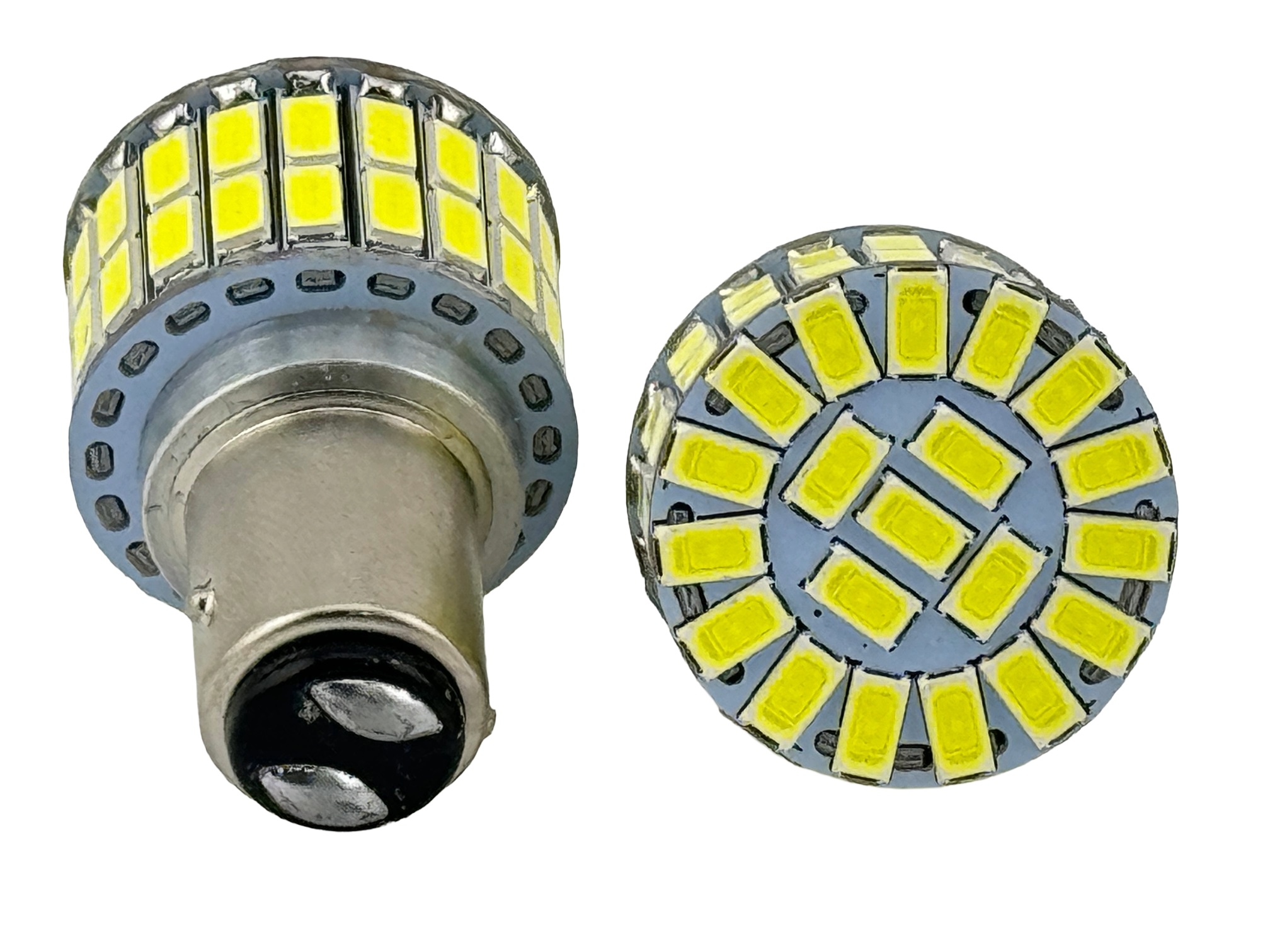

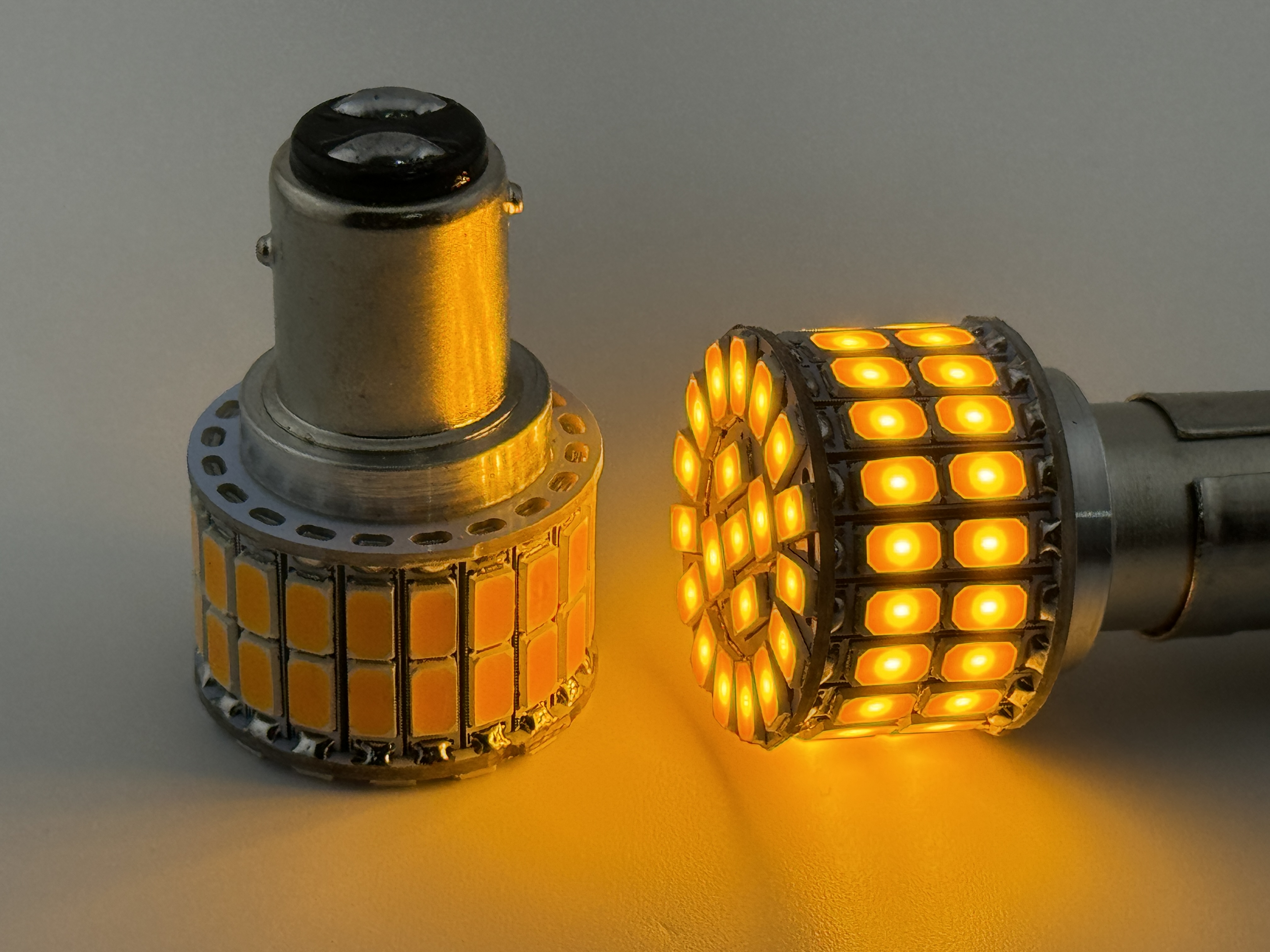

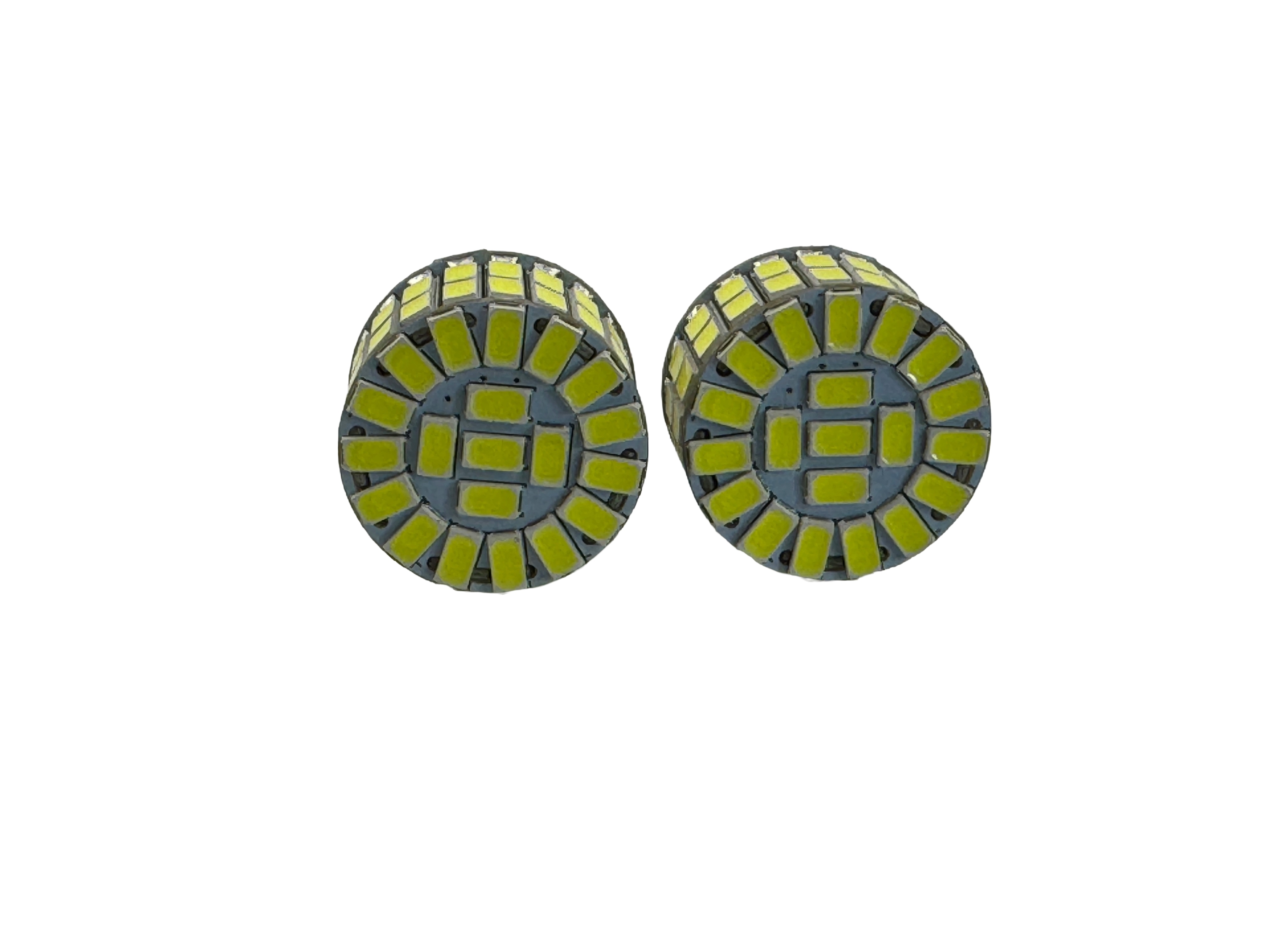

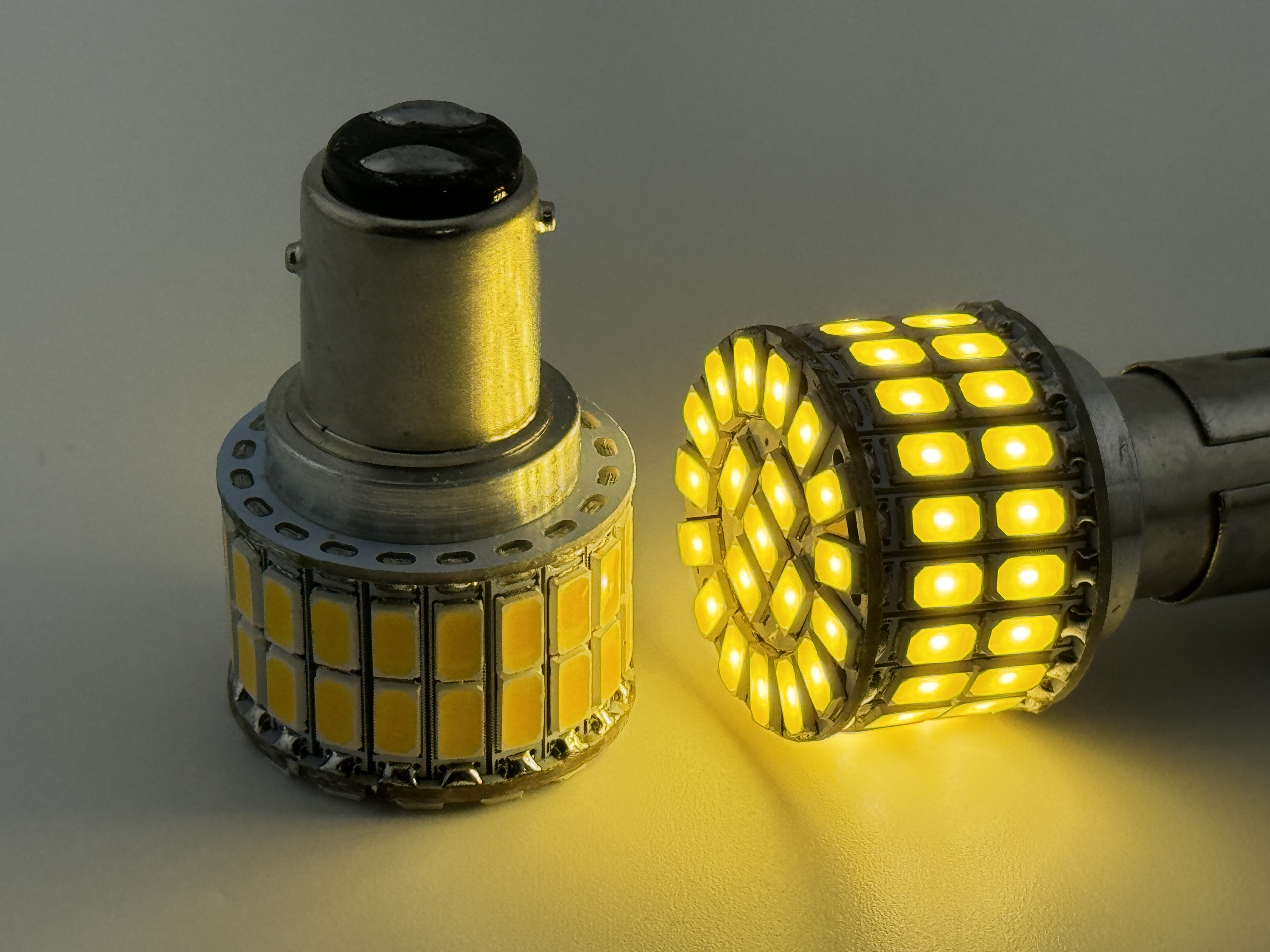

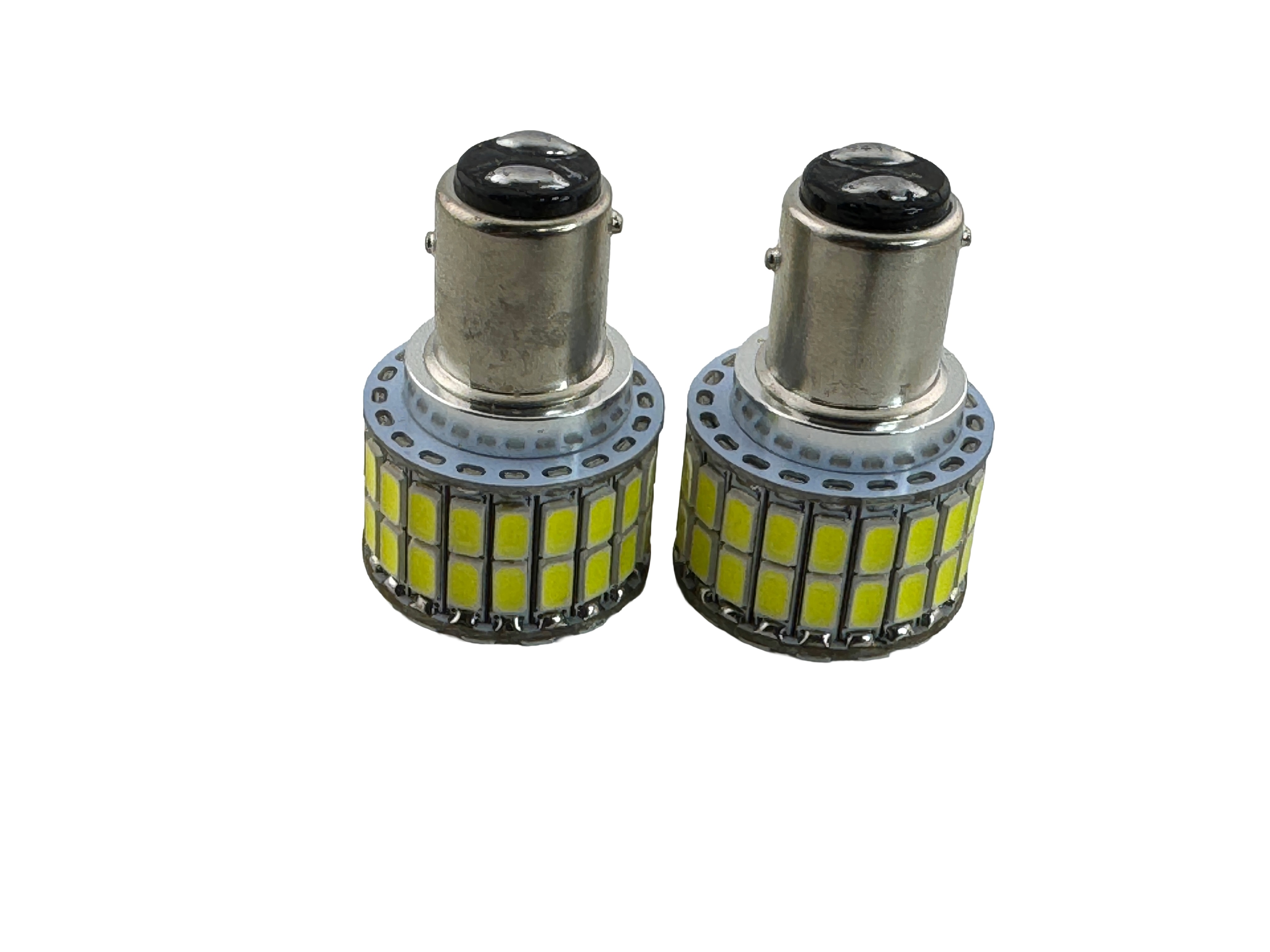

BAY15D 1154 6 Volt 60 SMD 5730 Dual Filament Reduced Profile. This bulb operates 6v positive ground or 6V negative ground. Up to 900 Lumen output for brake light and up to 500 Lumens for tail light. Up to 340 forward firing Lumens and 560 side firing Lumens. Long life up to 30,000 hours. Made with total 60 leds, 44 side firing and 16 forward firing. This lamp is a two filament bulb. The base has offset bayonets and two contact on the bottom. This bulb is only designed for 6 volt vintage vehicles, motorcycles and scooters. Please make sure you voltage is regulated to 6 volts. The light bulb can be dimmed with a variable voltage supply if needed. The leds are aligned to be the optimum height for maximum light output using a reflector and lens. Available in White 6000K, Warm White 3000K, Red and Yellow. Maximum overall length is 1.694". The maximum diameter is 1.058". These lights led are solid state for low power and super long life. SMD means surface mount device it is the square led. Uses about 1A @ 6.3 Volts for the brake light. CE and Rohs.
