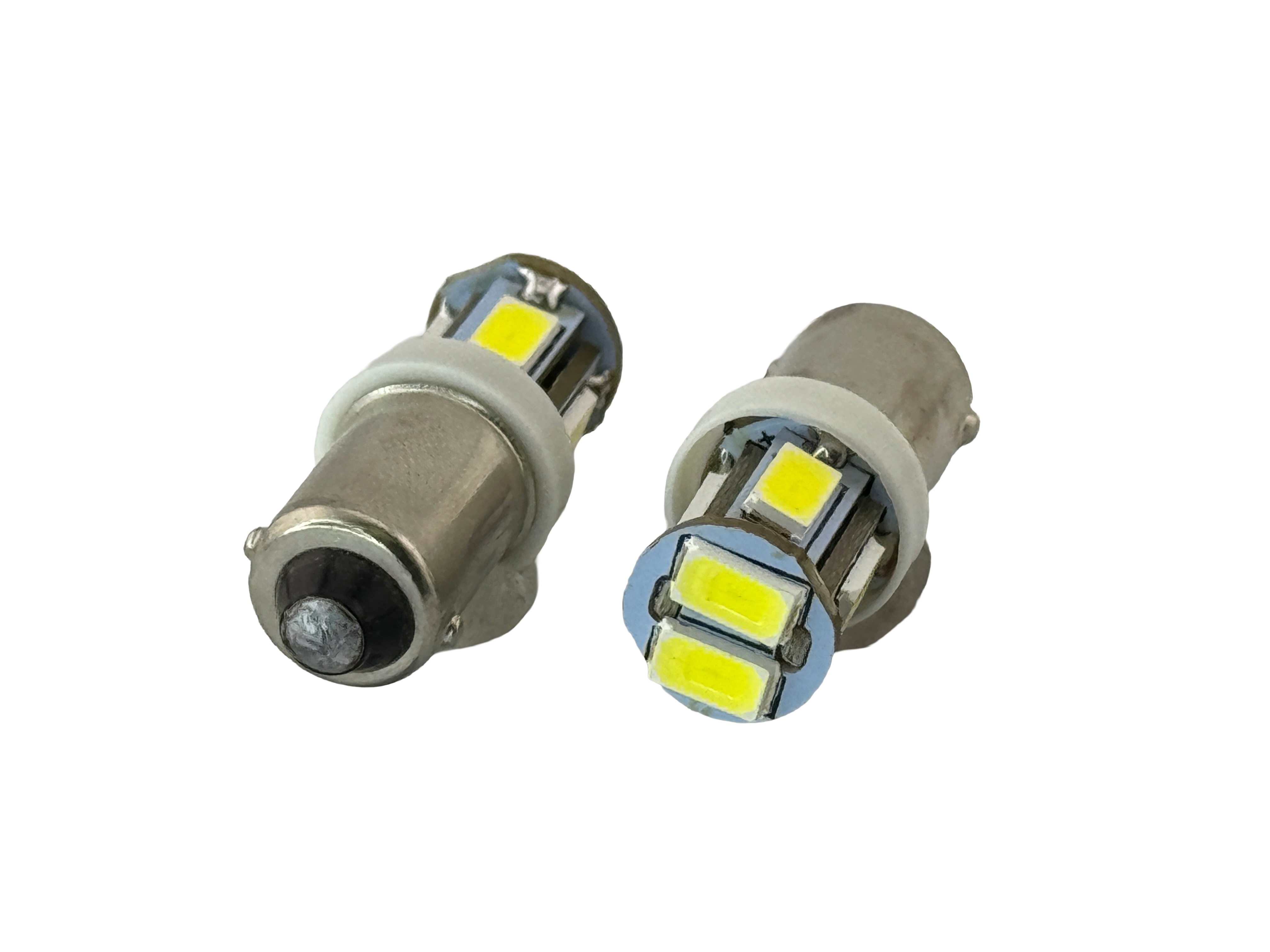

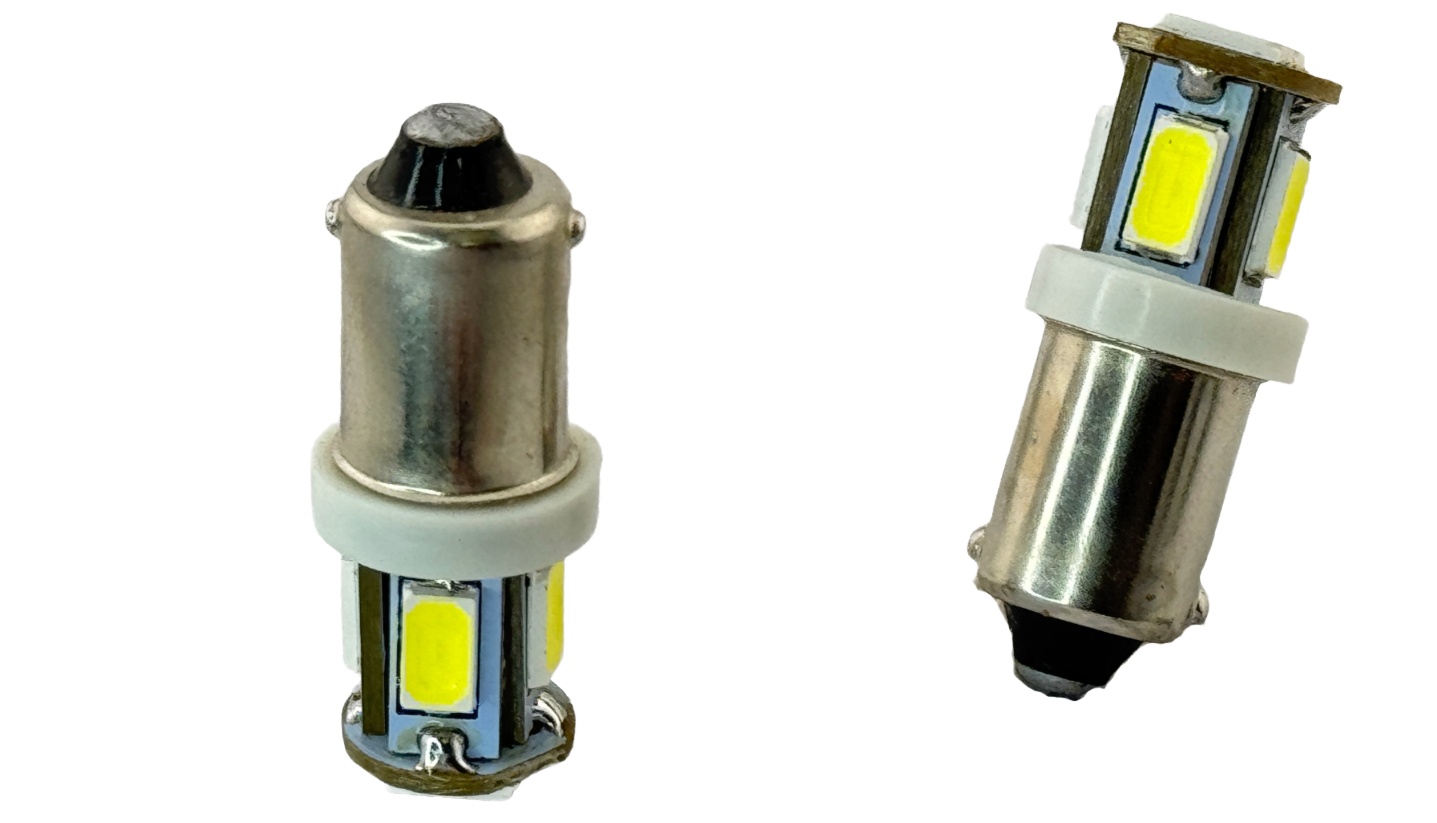

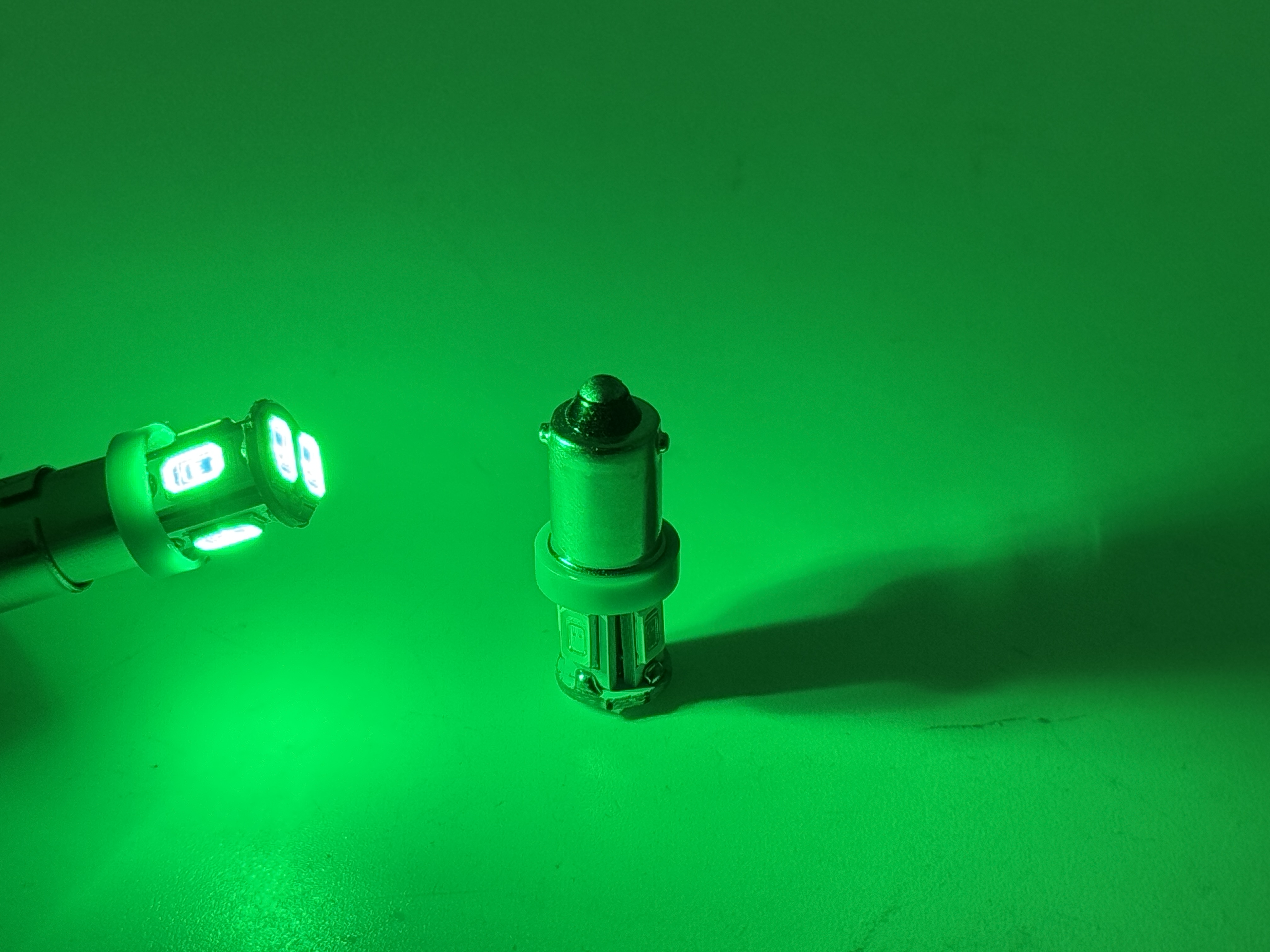

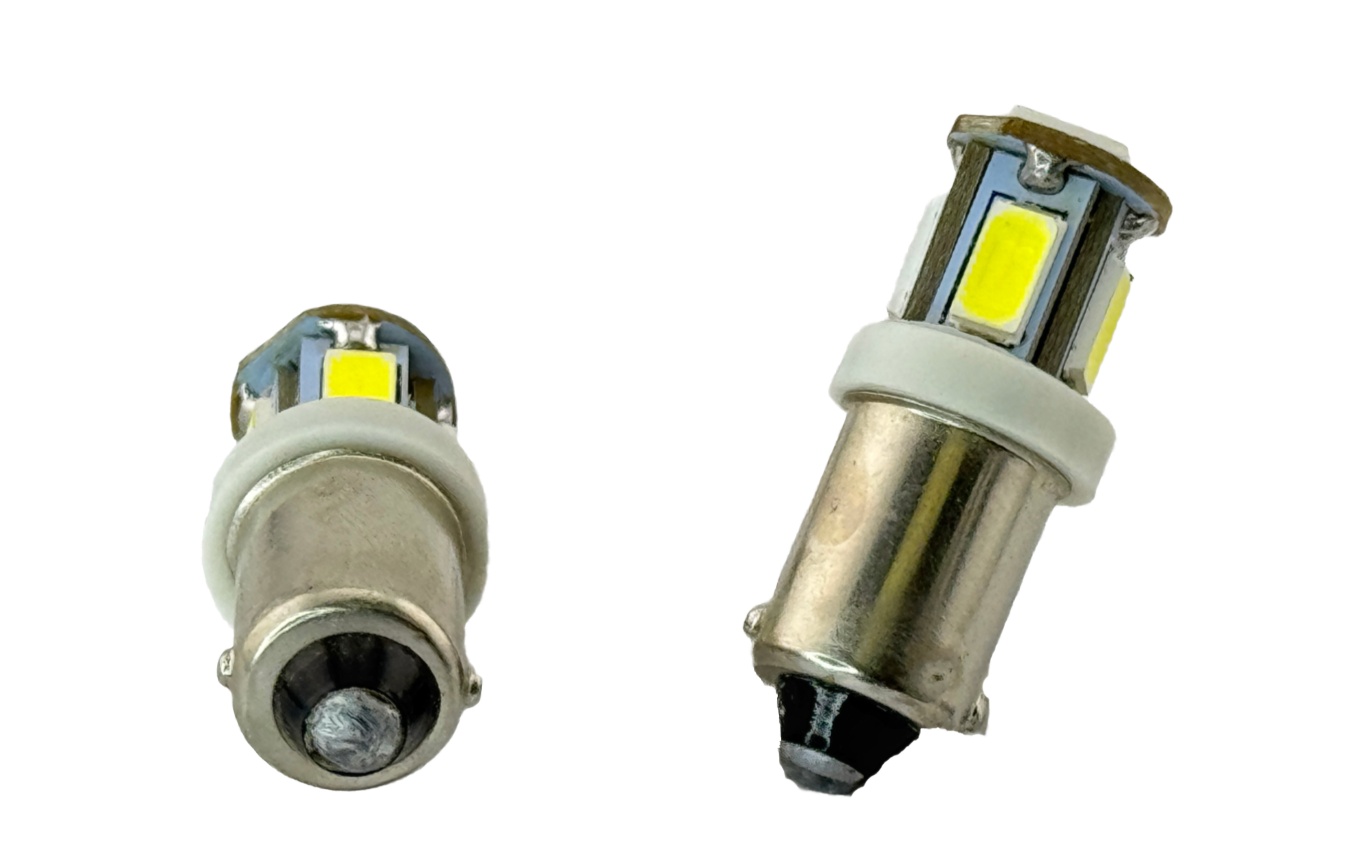

1847 Miniature Bulb BA9S Base 6 Volt 1 Watt T3 1/4 with 6 LED's
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

#1847 Miniature Bulb BA9S Base 6 Volt 6 SMD 12V DC T3 1/4

Product Code: 23694

Price : $3.49 - $3.79
spacer   Volume Price Information   spacer
 Buy 2 or more and pay $3.71 each (save 2.00%)
 Buy 4 or more and pay $3.68 each (save 3.00%)
 Buy 6 or more and pay $3.64 each (save 4.00%)
 Buy 8 or more and pay $3.60 each (save 5.00%)
 Buy 10 or more and pay $3.56 each (save 6.00%)
 Buy 25 or more and pay $3.52 each (save 7.00%)
 Buy 100 or more and pay $3.49 each (save 8.00%)
Qty:Add To Cart
Add To Saved Cart
Warranty: 12 Months

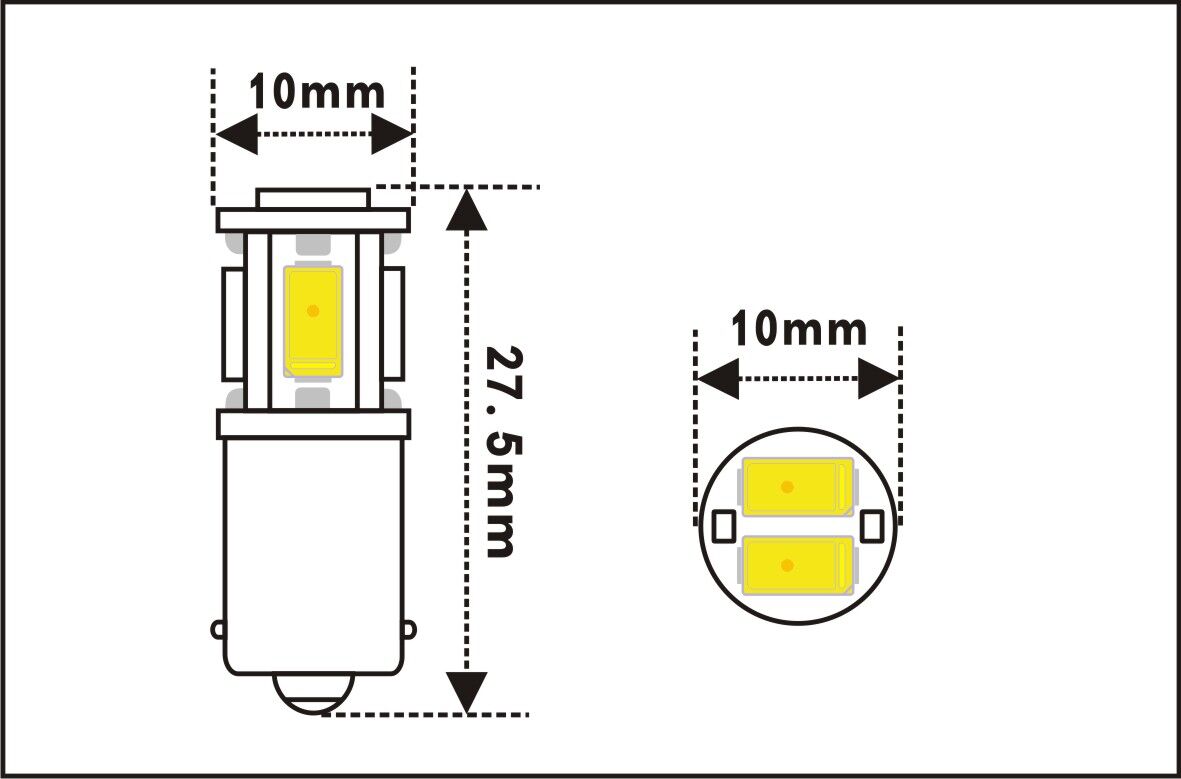

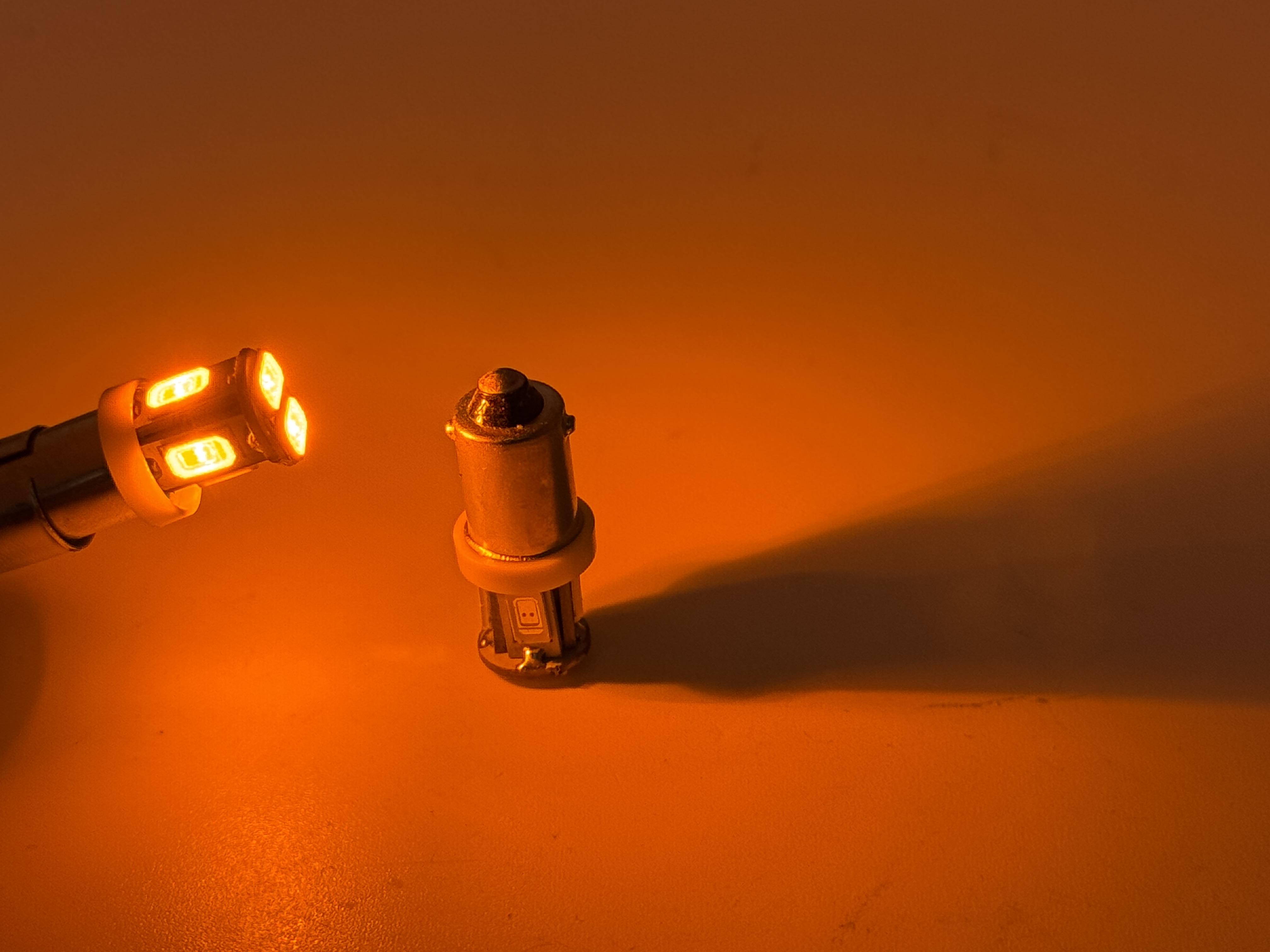

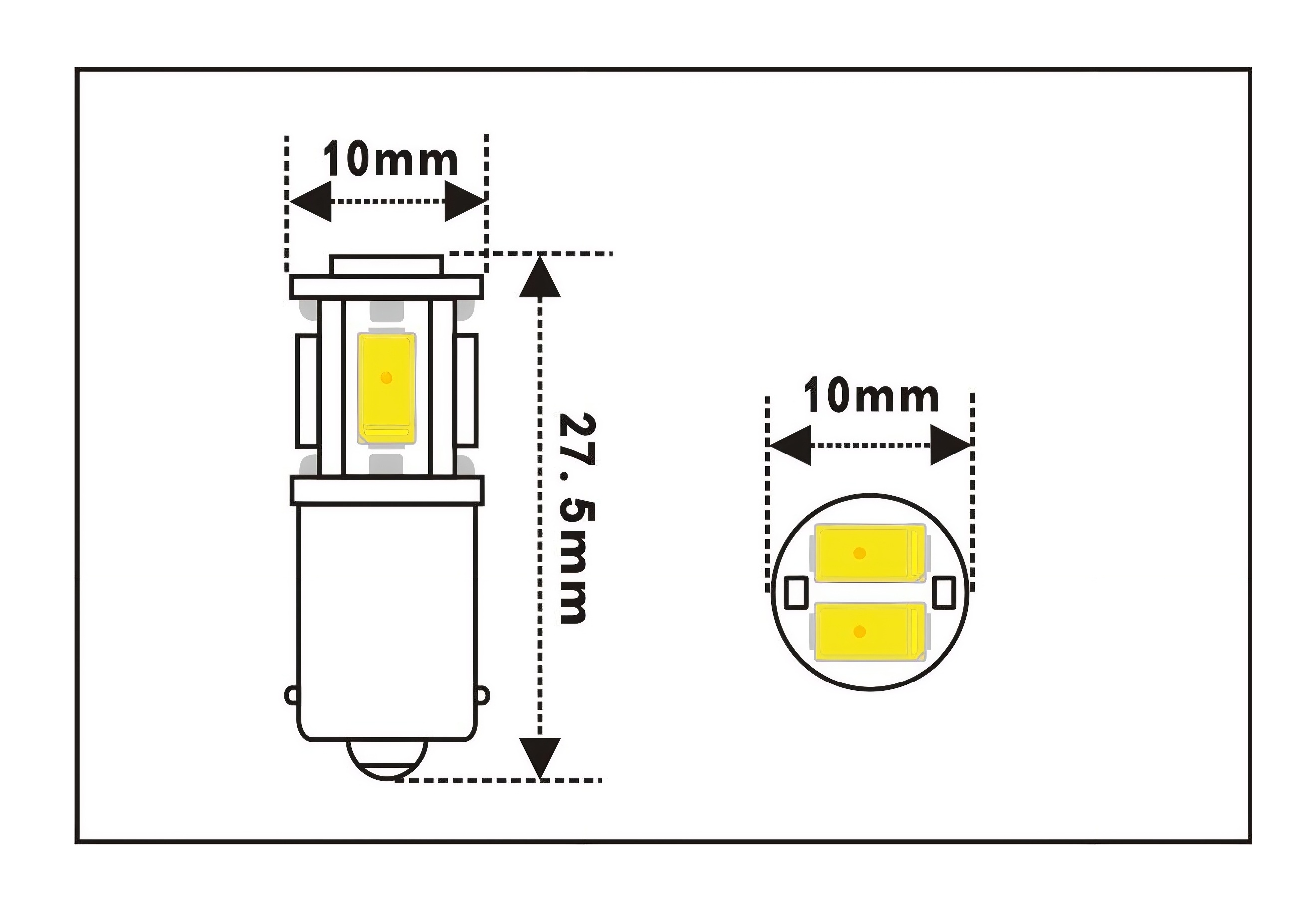

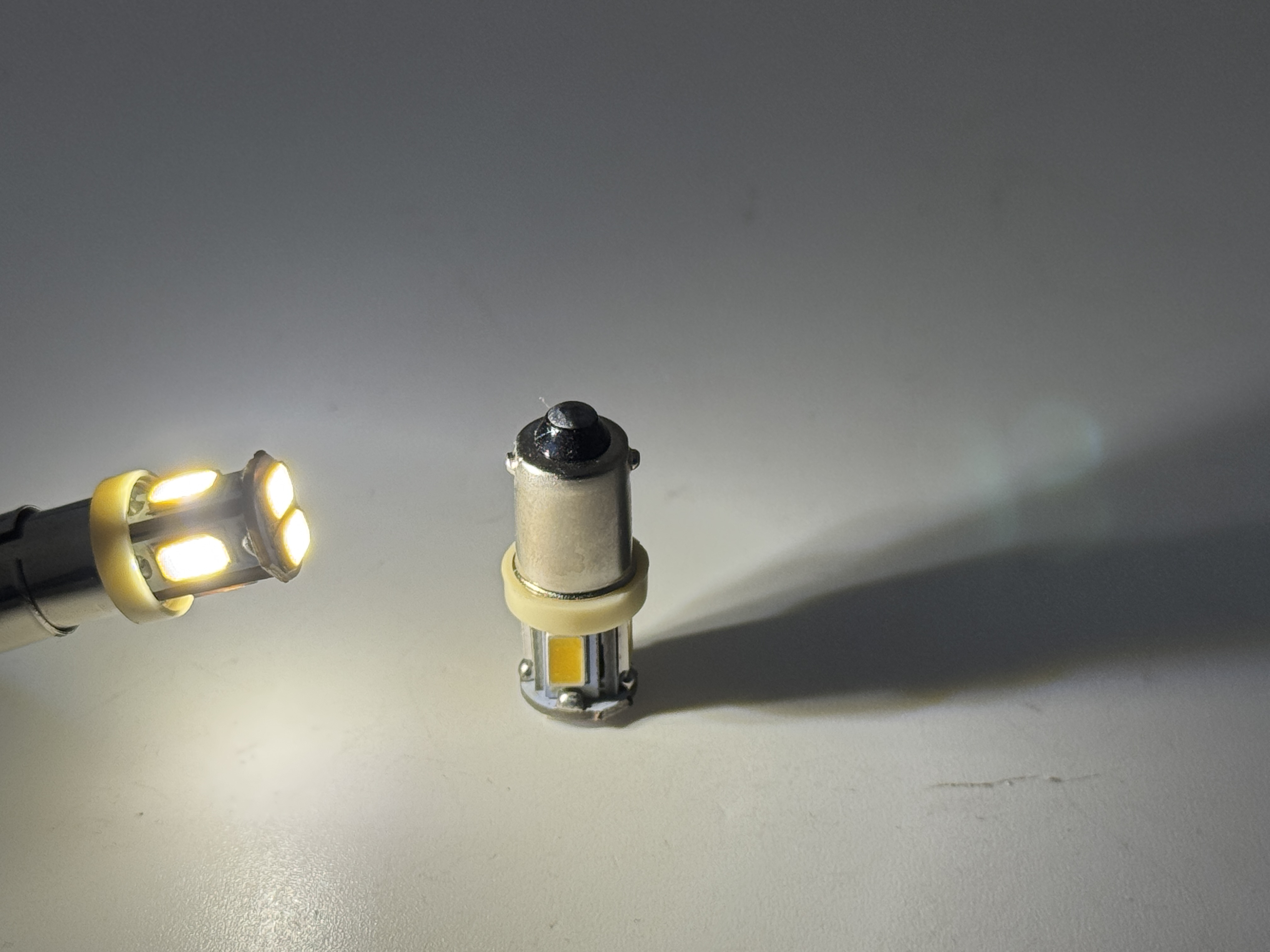

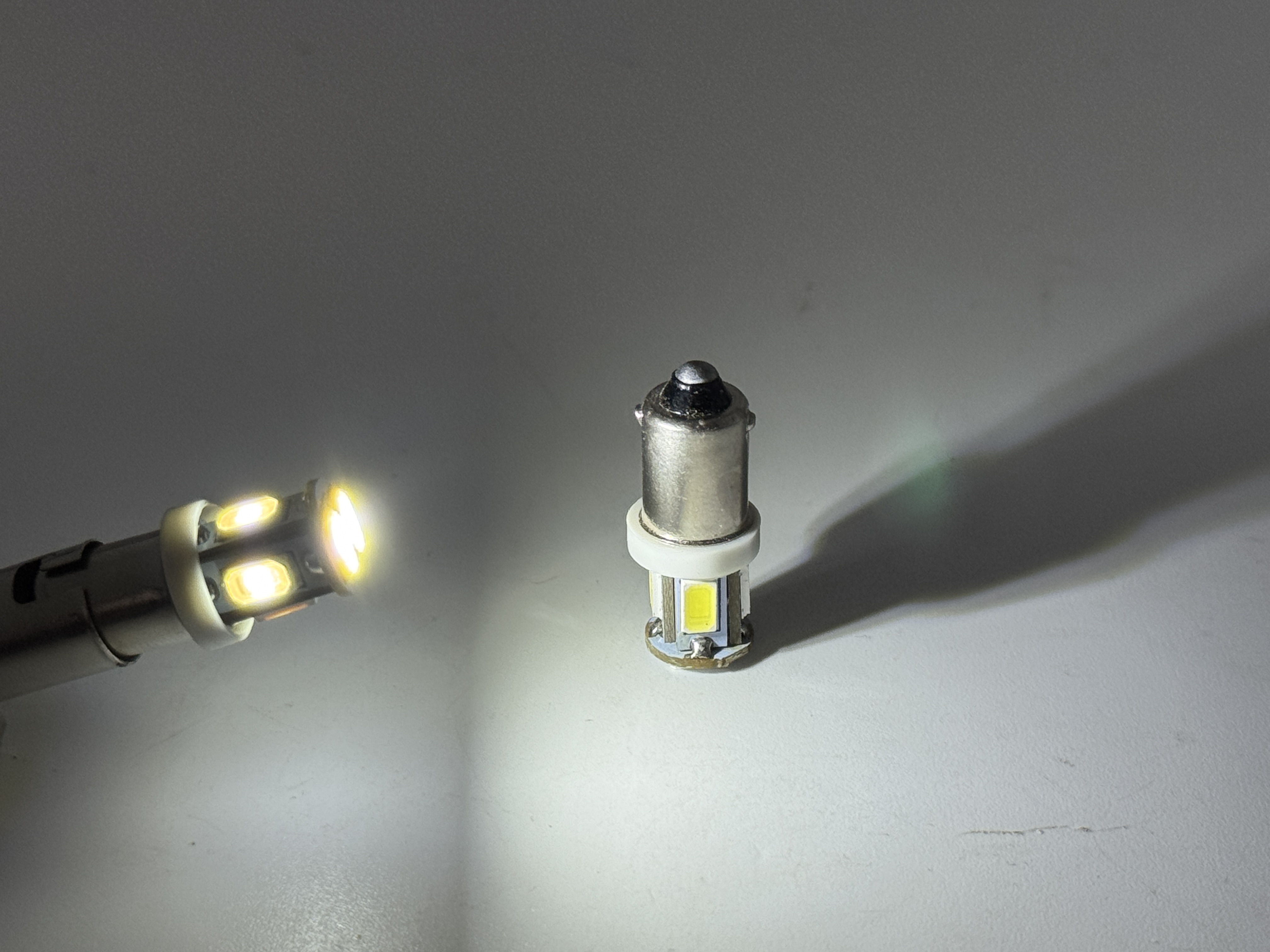

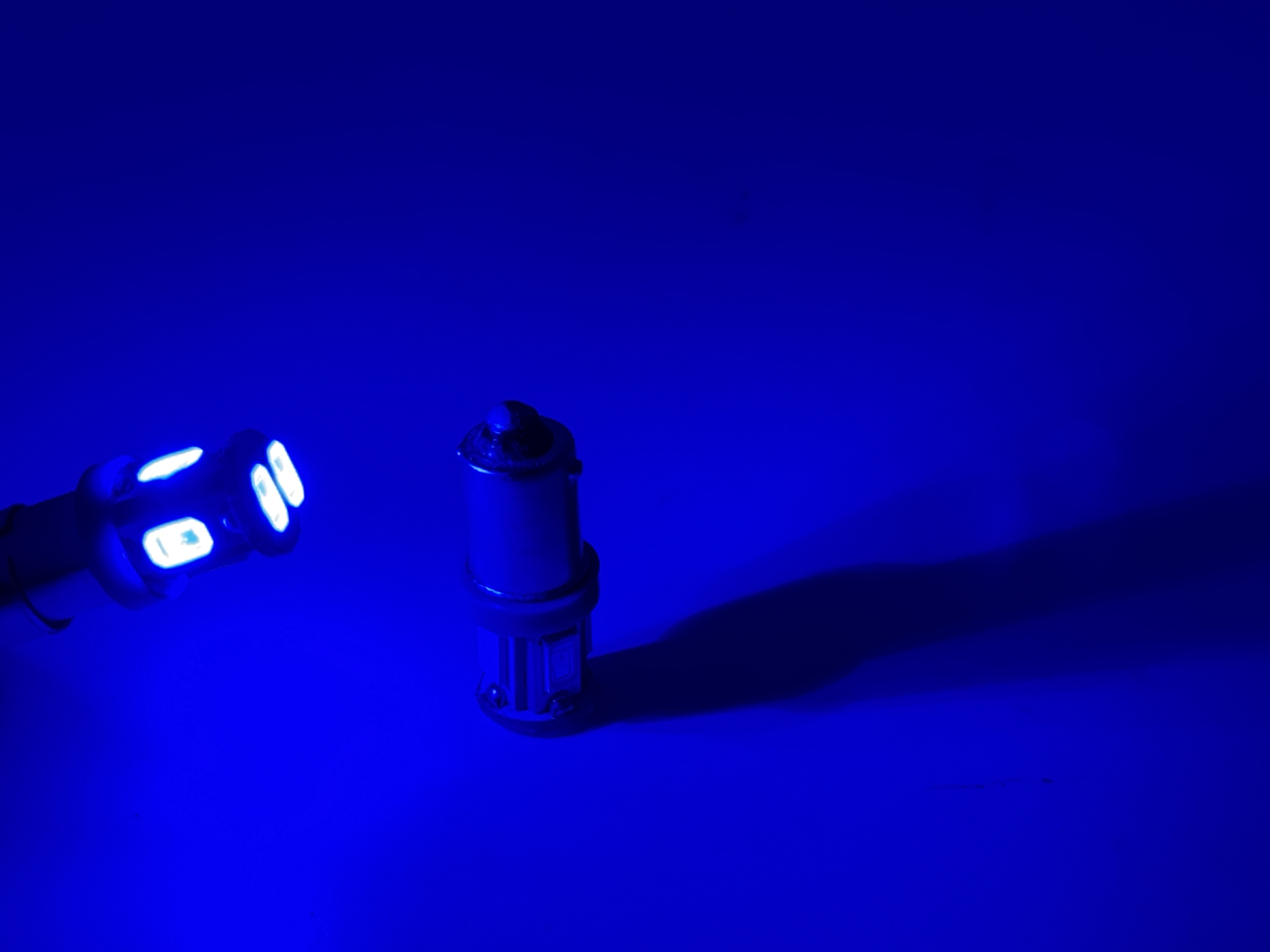

Positive chassis or negative chassis non-polarity 6 Volt BA9S. Sub miniature bayonet. Up to 80 Lumens, about 40 forward firing and 40 Lumens side firing. This bulb is dim-able using a variable power supply such as the dashboard dimmer knob. Rated life up to 30,000 hours. Uses .09 Amps @ 6 Volts. Up to 1 watt LED power comparable to a 10 Watt incandescent bulb. Made with six 5630 SMD led chips. Overall length 1.097" and .47" diameter. T3 1/4 Tubular package. Great for vintage, classic, cars, trucks, tractors, scooters or motorcycles. Excellent replacement for pinball, arcade and amusement rides. This 6v led bulb work great for indicators, turn signals, dome light, interior car lighting, glove box lighting since it is positive ground or negative ground led lamp. The Warm White looks like the original incandescent bulb, the White 6000K is brighter than the Warm White for better illumination. Available in White 6000 K, Warm White 3000 K, Red 625 nm, Green 526 nm, Blue 464 nm & Yellow 594 nm. The old fashioned incandescent lens was painted to produce different colors. The led colors red, green, blue and yellow are created by the led chip material so the color is emitted as pure or monochromatic light. Since the led light is solid state you do not have to worry about a broken filament or broken glass bulb. The led lamp operates much less temperature that will help out to keep the old plastic dashboard indicator lens will last longer due to less heat. Since leds use less power and this led is dim-able the older switches, wiring and sockets last longer due to less power, less amperage is used to turn on a led bulb versus a incandescent bulb. This bulb is compatible with T3 1/3 or T3.25 BA9S sub miniature bayonet. Single contact replacement bulb. Compatible with the following: #1810 #1847 #1855 #1866 #316 #1850 #47 #44 #87 #755 #55 #1888 #1906 #44B #44G #44R #44Y #44A #130 #503 #239 #51 #238 #267 #240 #6251 #1949 Mazda 51 GE 27819 GE 25450 T6418AMB T6418RED 3 Candle Power Compatible with 1931 Buick
