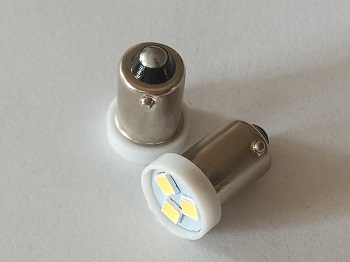

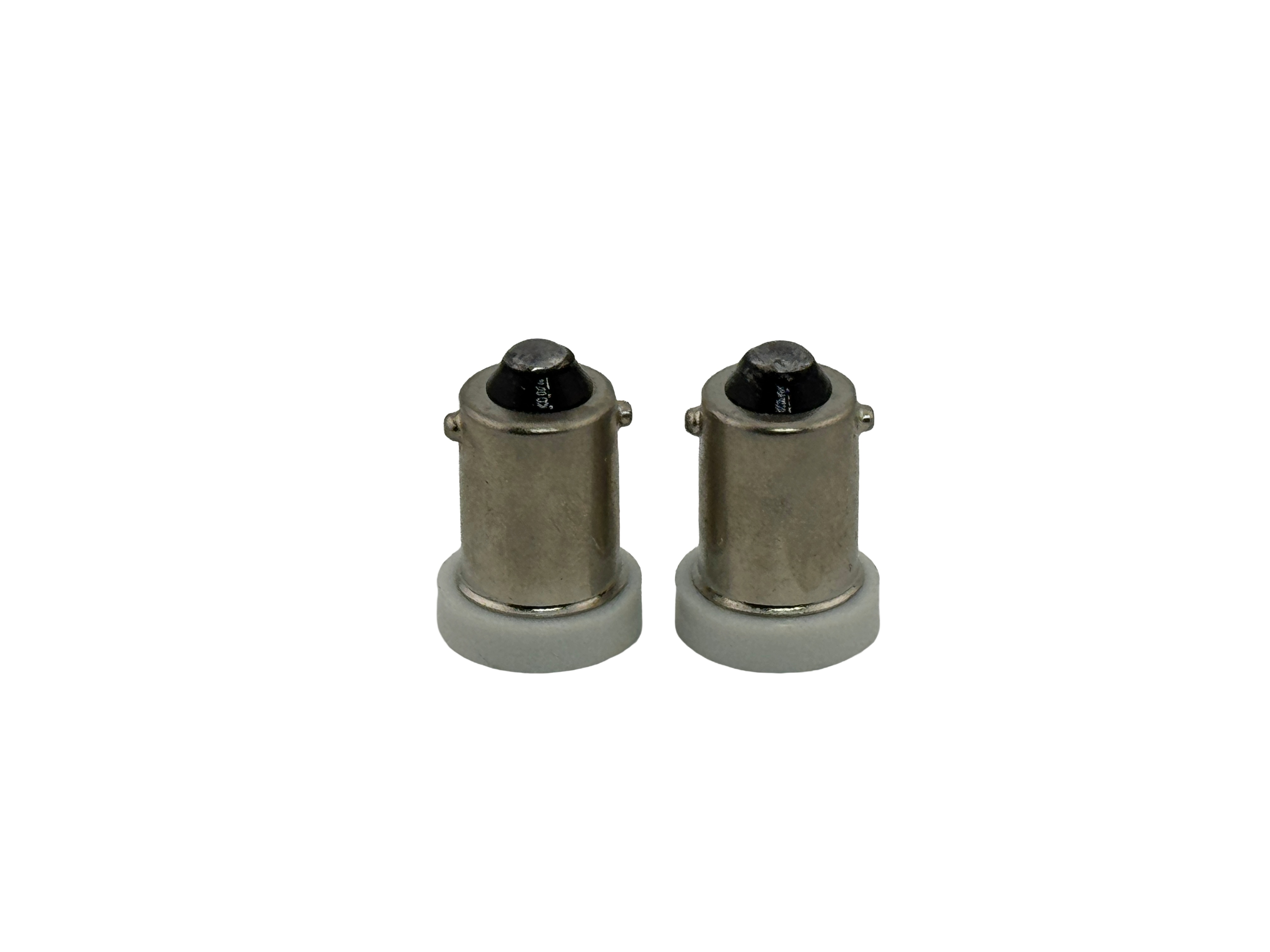

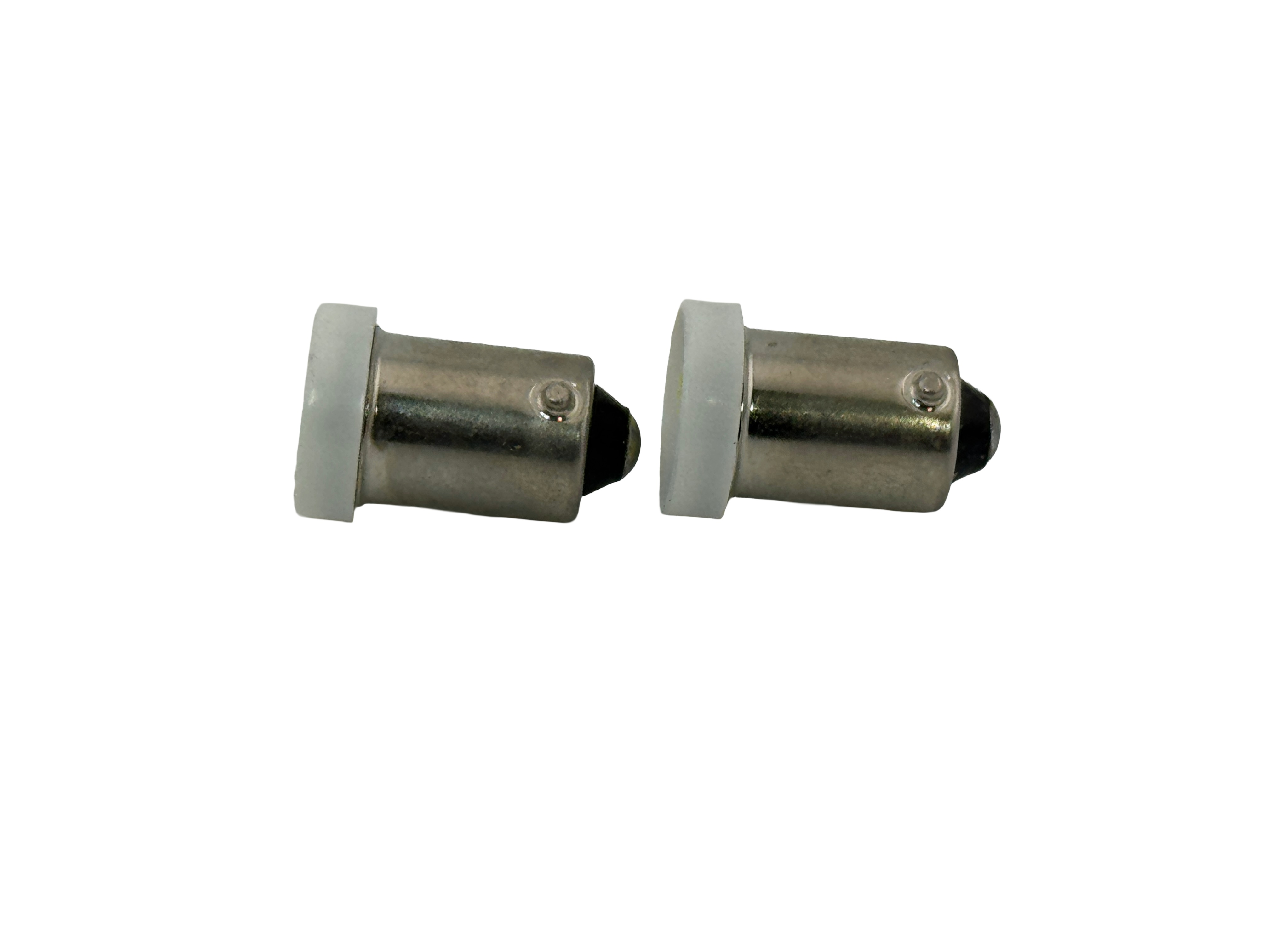

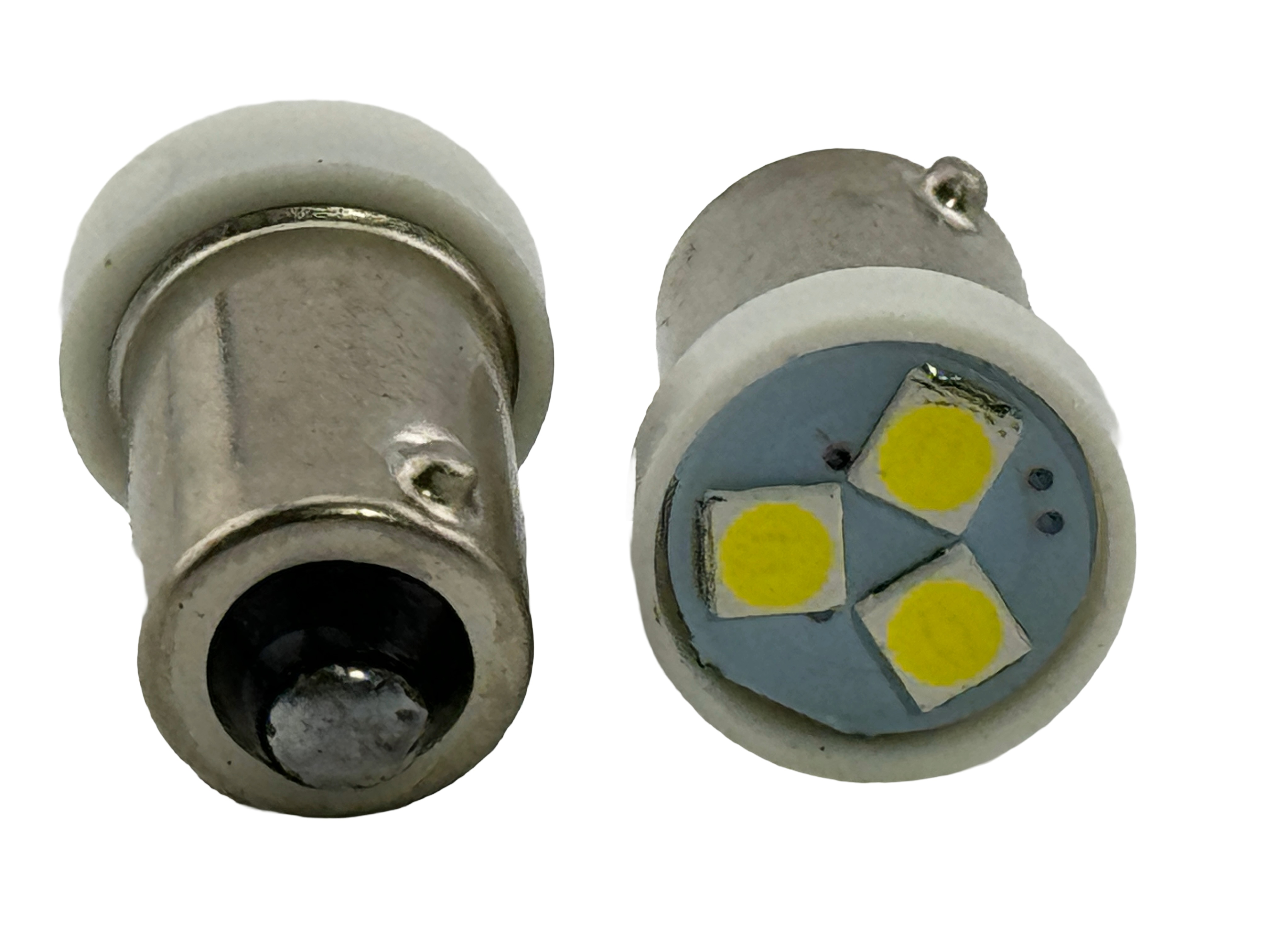

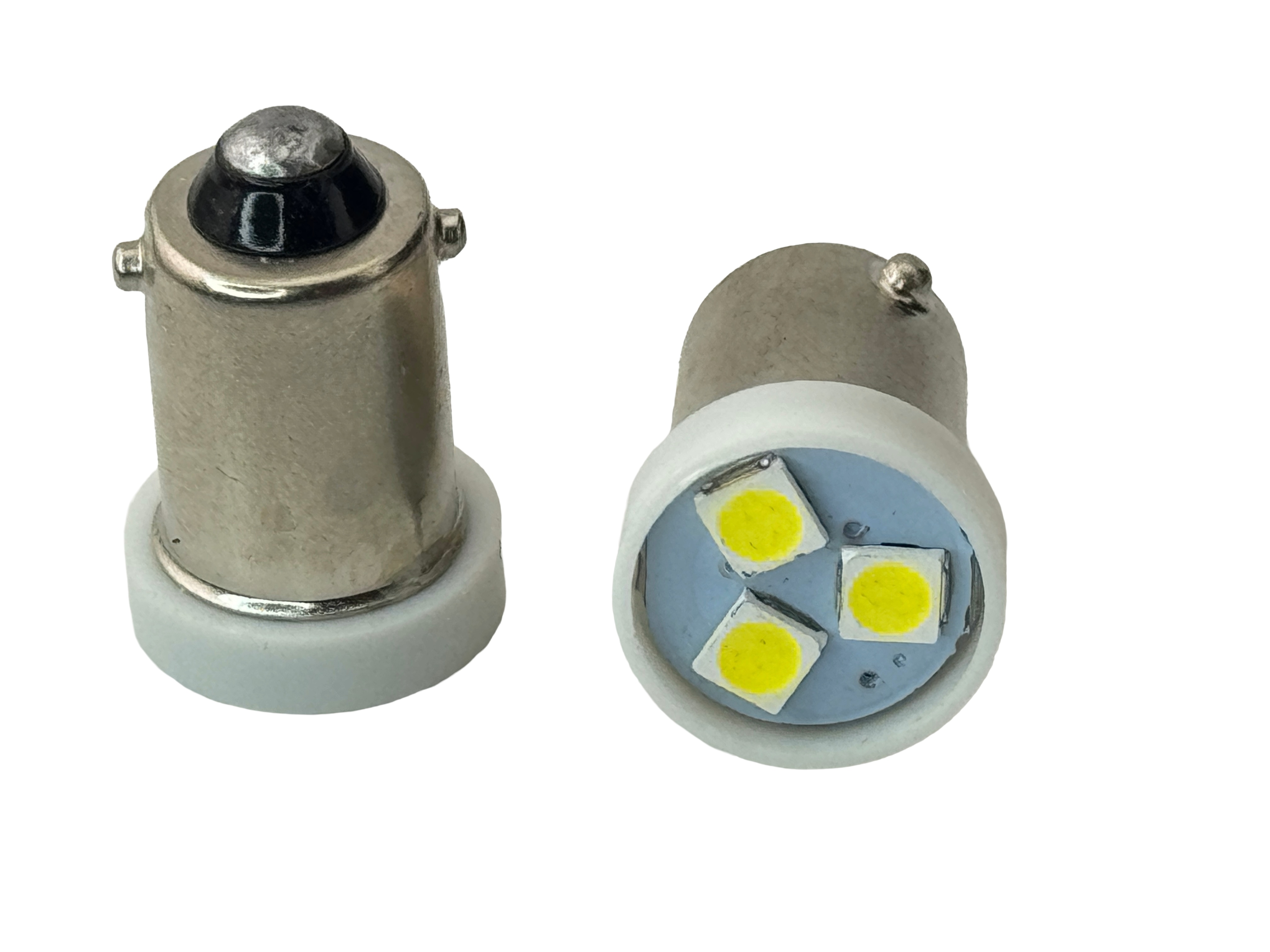

Small outline to match the 55 Miniature bulb. .7 inches long by .46 inches wide at the plastic ring. The base diameter is .39". Up to 135 Lumen output forward firing or up to 10 CP candle power. The led's are small 3030 smd so they are very low profile. Each 3030 smd can output up to 130 Lumens. The BA9S base is designed to operate at 6 volt ac or dc for both positive ground and negative ground vehicles. The life is up to 30,000 hours. This led lamp is dimmable using a variable voltage supply such as a dashboard dimmer. The bulb is comparable to a 4 to 10 watt halogen light bulb. The viewing angle of the 3030 LED's is 120 degrees. Available in White 5500K to 6500K, Warm White 2700K-3300K, Red, Green, Blue and Yellow/Amber. CE and Rohs listed. This bulb uses 90% less energy great for old generators. Uses .079mA at 6.8 volts.
Compatible with the following:
GE 51
Mazda 55
55N
755
