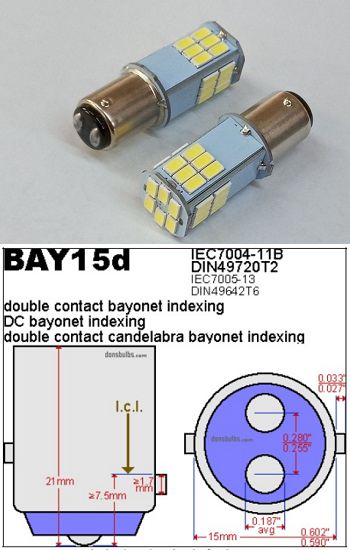

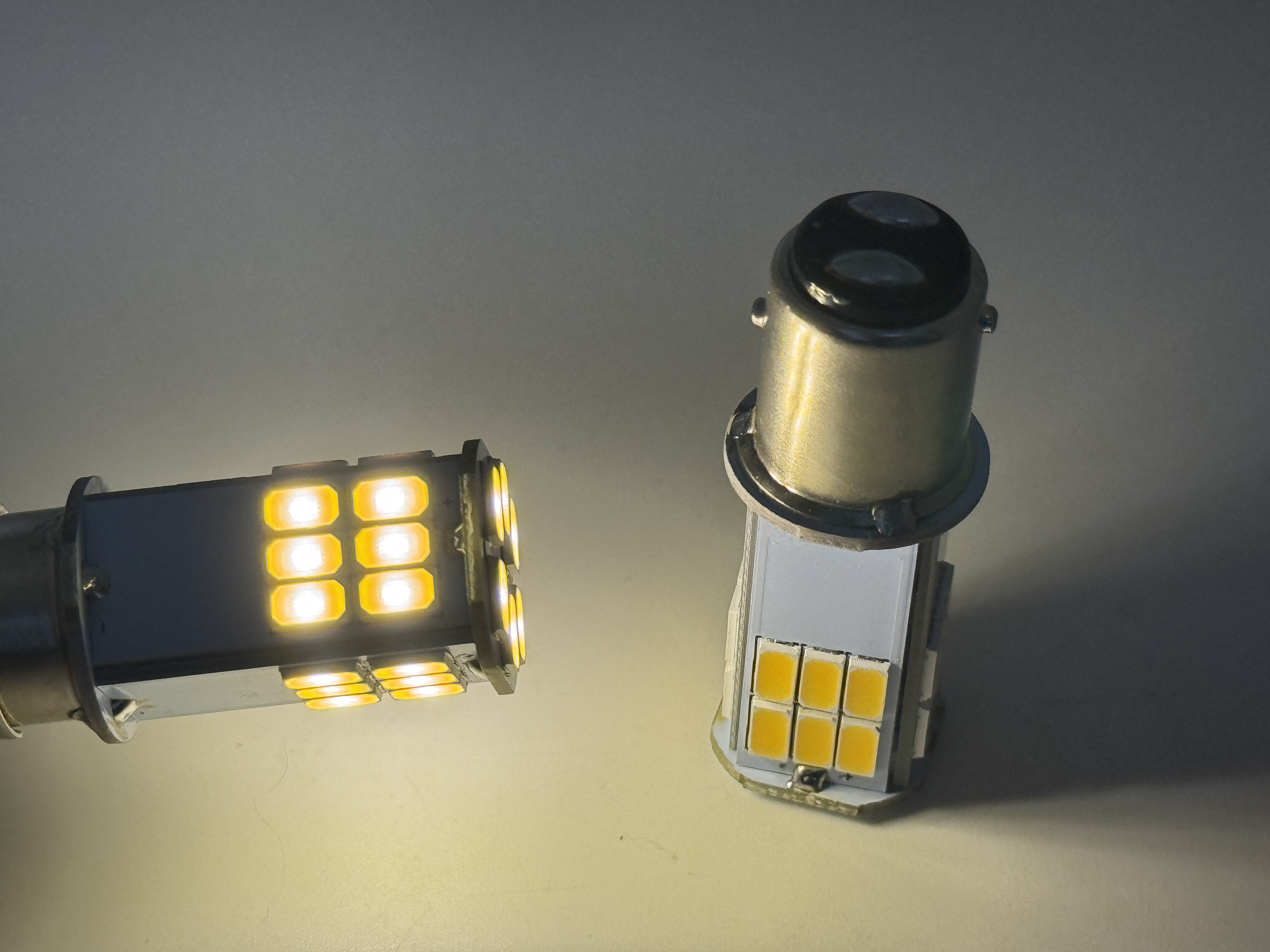

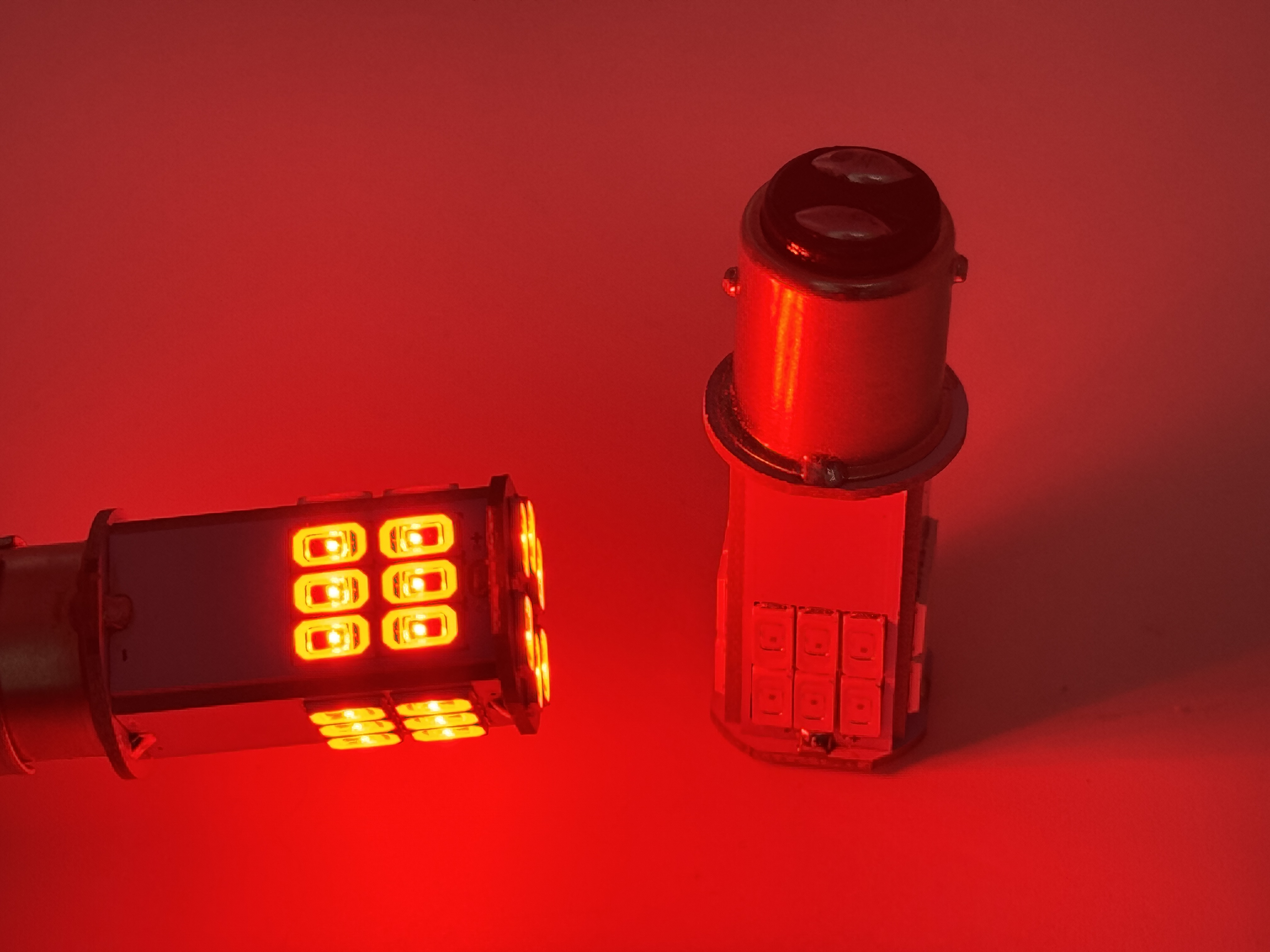

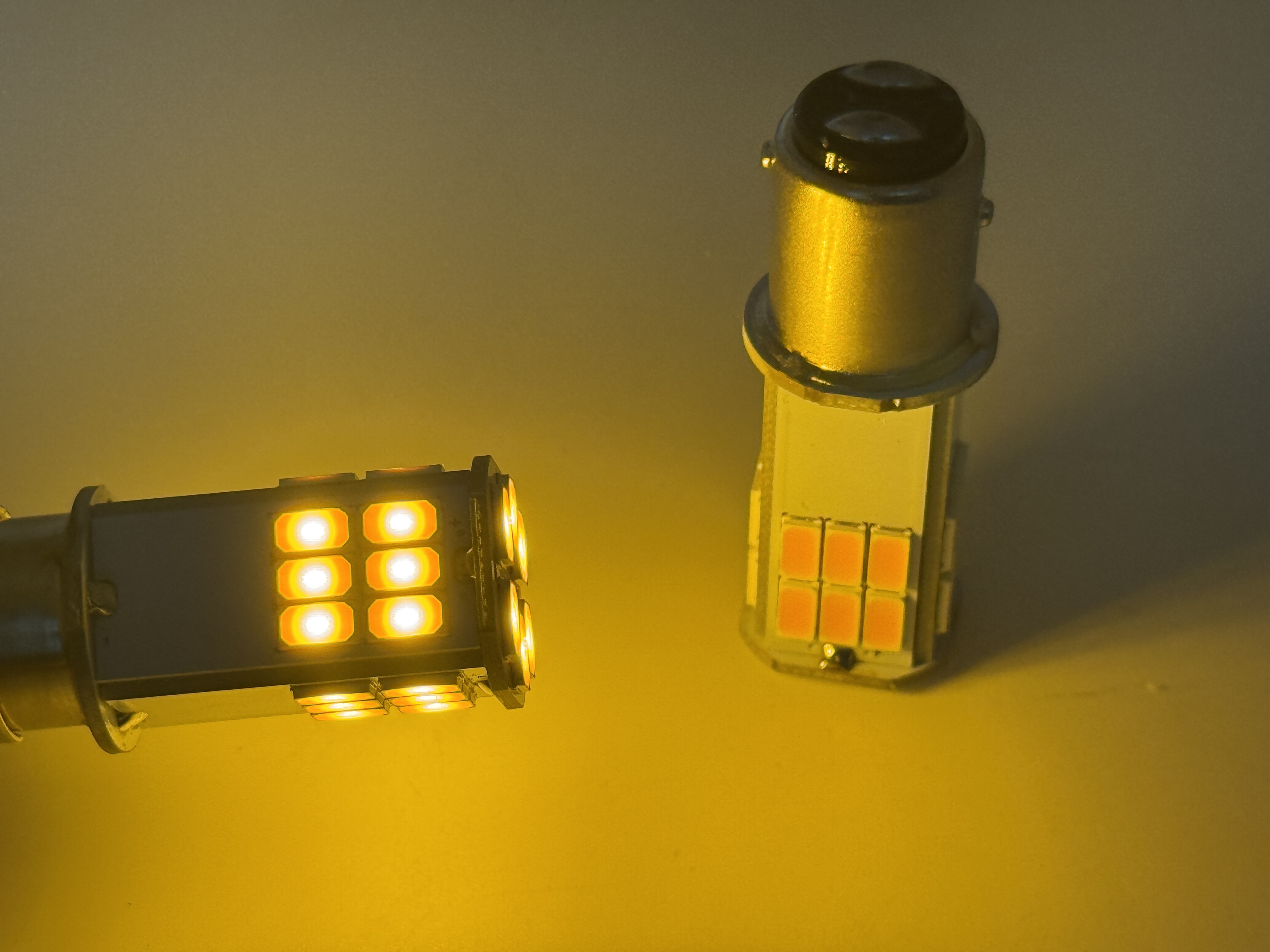

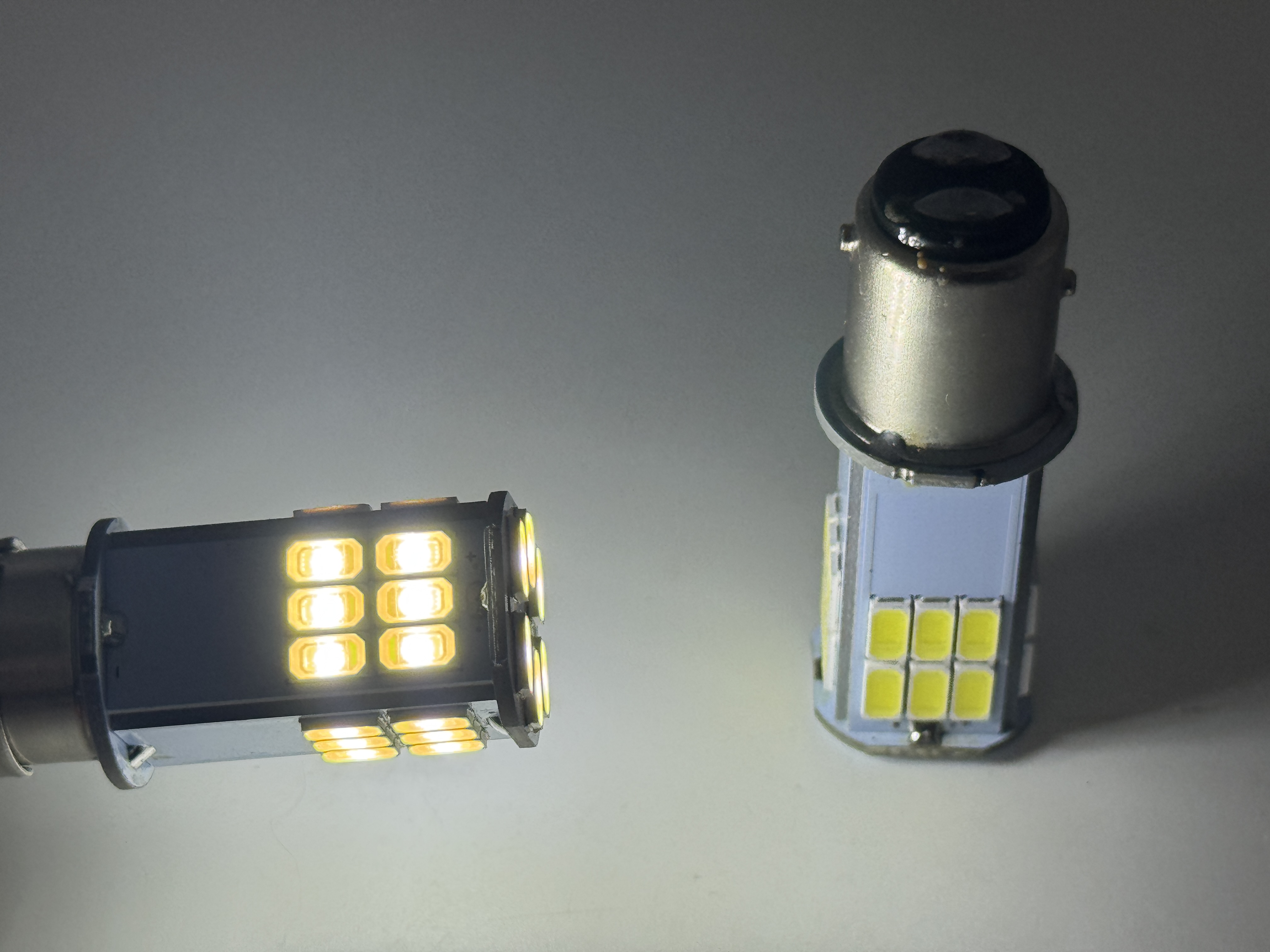

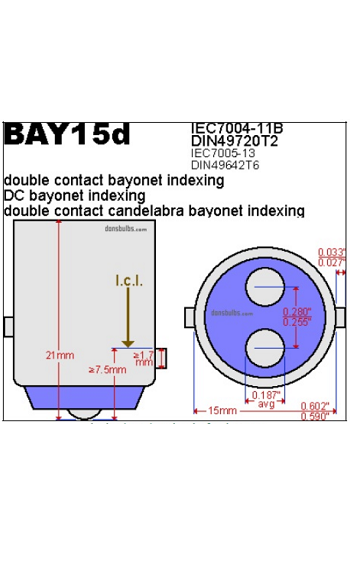

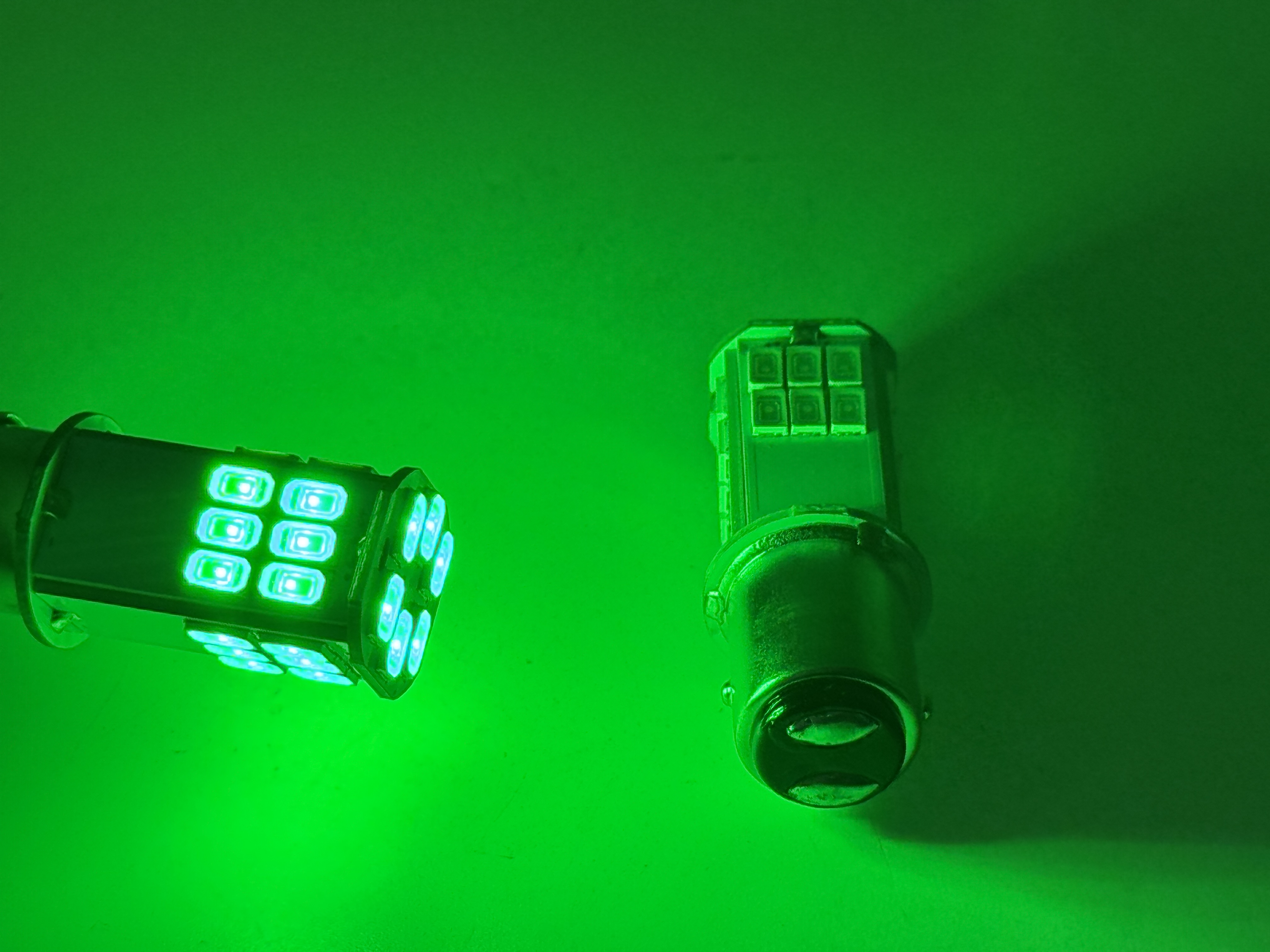

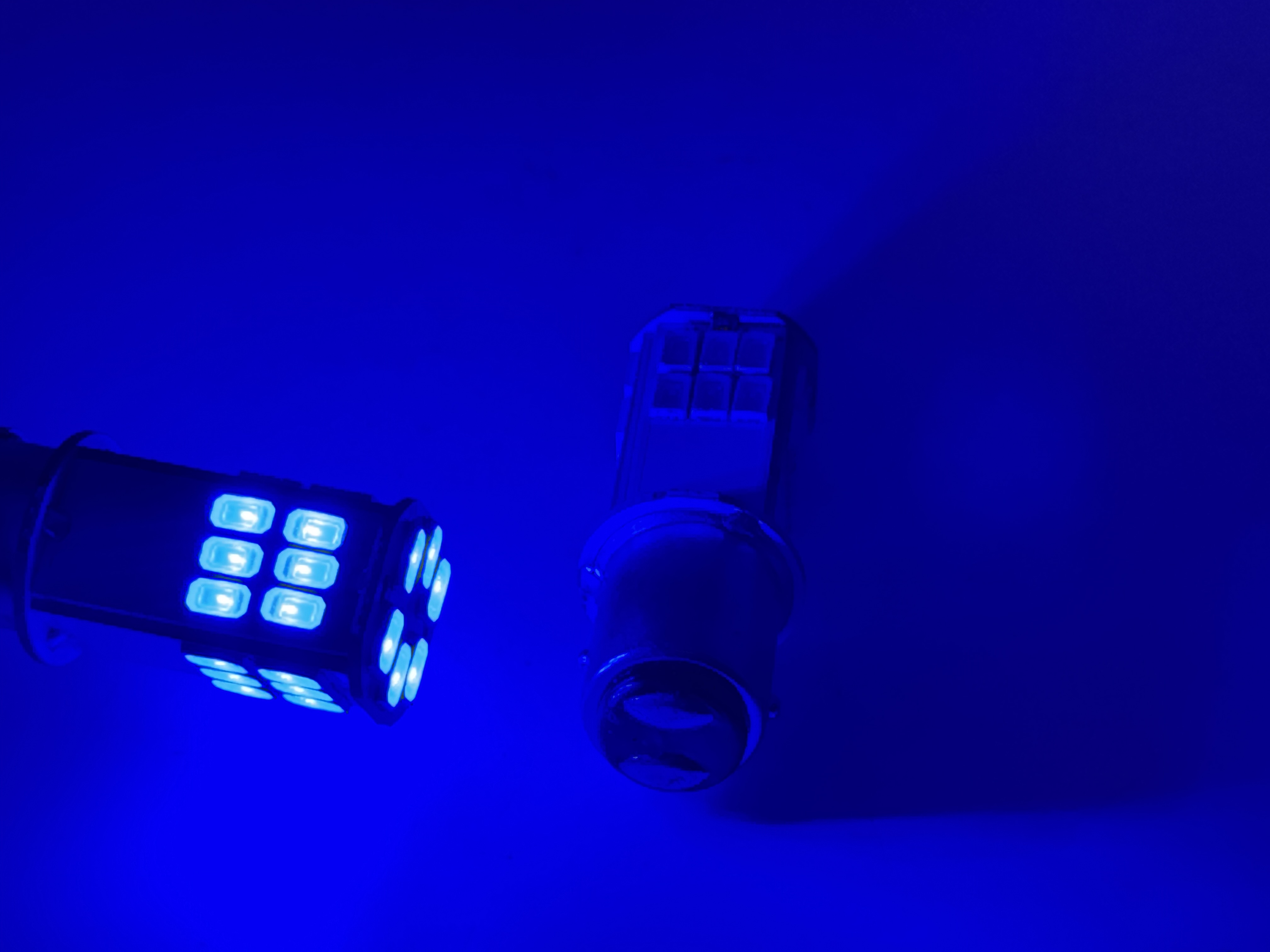

The Rebaydo #1154 6 Volt LED Bulb set includes two (2) bulbs designed for 6-volt electrical systems commonly found in vintage and classic vehicles, trucks, tractors, and other equipment. These bulbs are compatible with both positive and negative ground chassis systems and use a BAY15D base with dual contacts and offset bayonets in a dual-filament C-6 configuration, allowing one circuit to function as a tail or running light and the other as a brake light or turn signal. The LEDs are optically aligned to the original filament positions so the reflector and lens distribute light efficiently, producing up to 400 lumens of usable output. Electrical current draw at 6 volts is approximately 0.07 A low beam and 0.29 A high beam for White, Warm White, and Yellow, and 0.09 A low beam with 0.27 A high beam for Red. Available colors include White 6000K, Warm White 3000K, Red 625 nm, Green 526 nm, Blue 464 nm, and Yellow 594 nm. The bulbs have a maximum overall length of 1.962 inches and a maximum diameter of 0.741 inches, and their low current draw helps reduce strain on older 6-volt charging systems while solid-state LED construction resists vibration and eliminates filament failure. Compatible with #1154 and equivalent BAY15D dual-filament sockets, each bulb is tested before shipment. If the bulb does not illuminate on initial installation, remove it, rotate it 180 degrees, and reinstall. CE and RoHS listed.
Compatible with:
1154
#1154
