Puck LED Under Cabinet Light 12VDC 3 Watt product 12855
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

Puck LED Under Cabinet Light 12VDC 3 Watt

Product Code: 12855

USD Price: 16.49
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%
Qty: Add To Cart

Buy Now
Add To Saved Cart
Watch the Video
Warranty: 12 Months

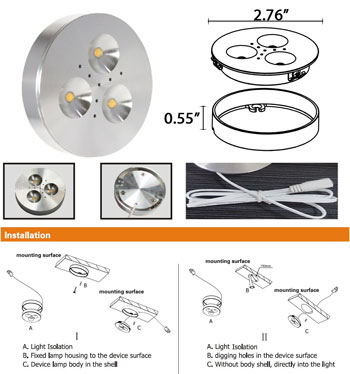

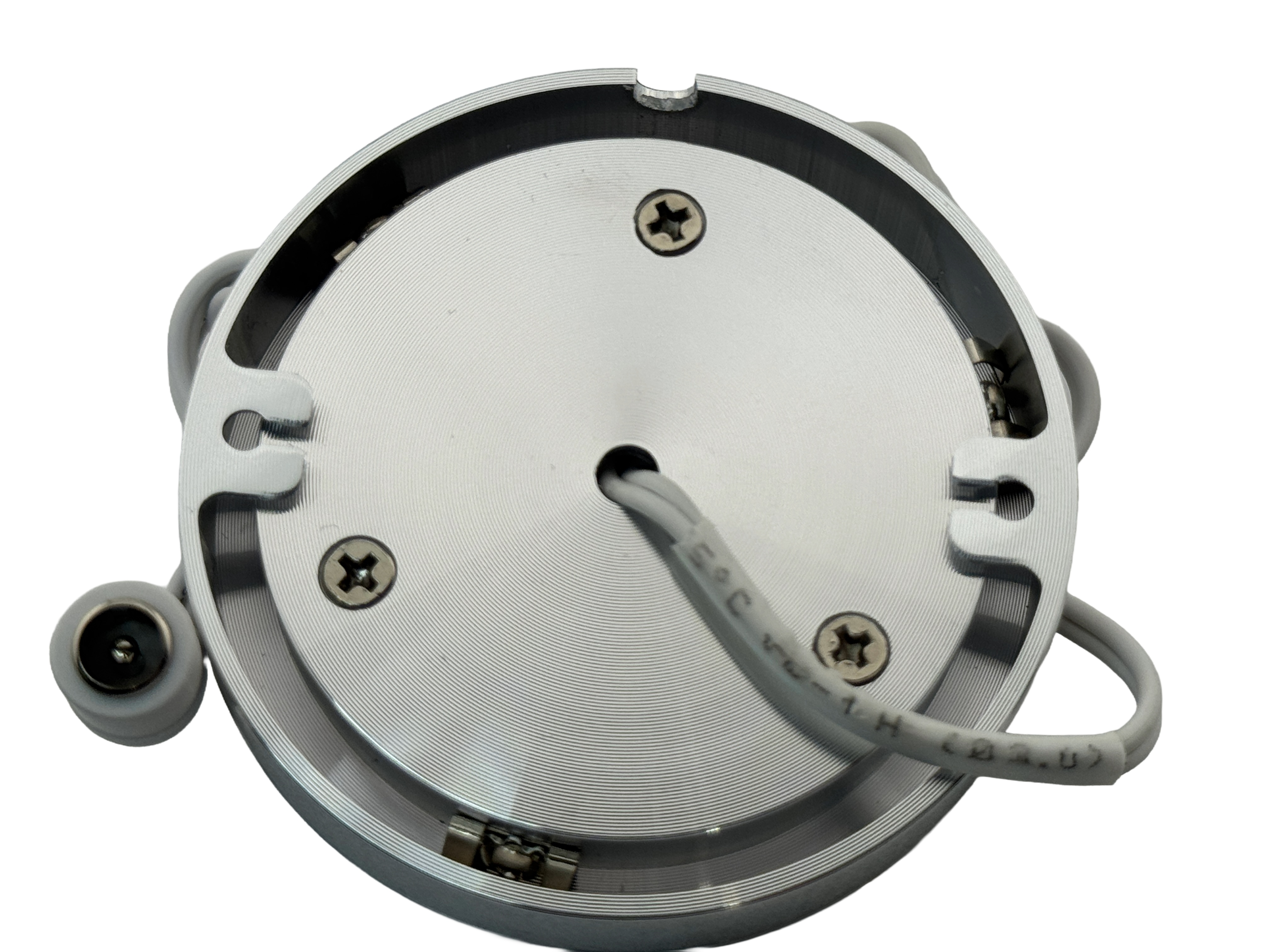

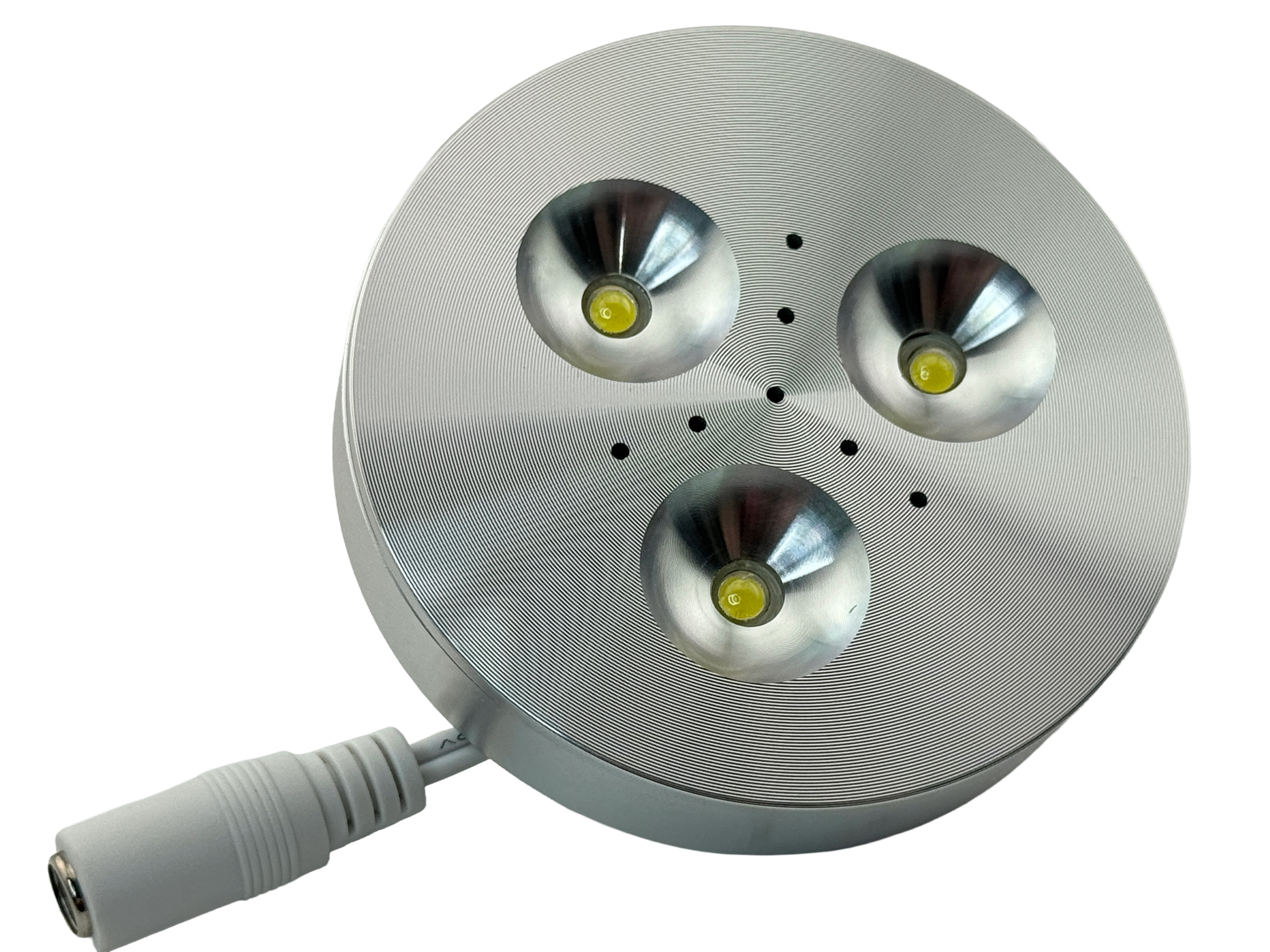

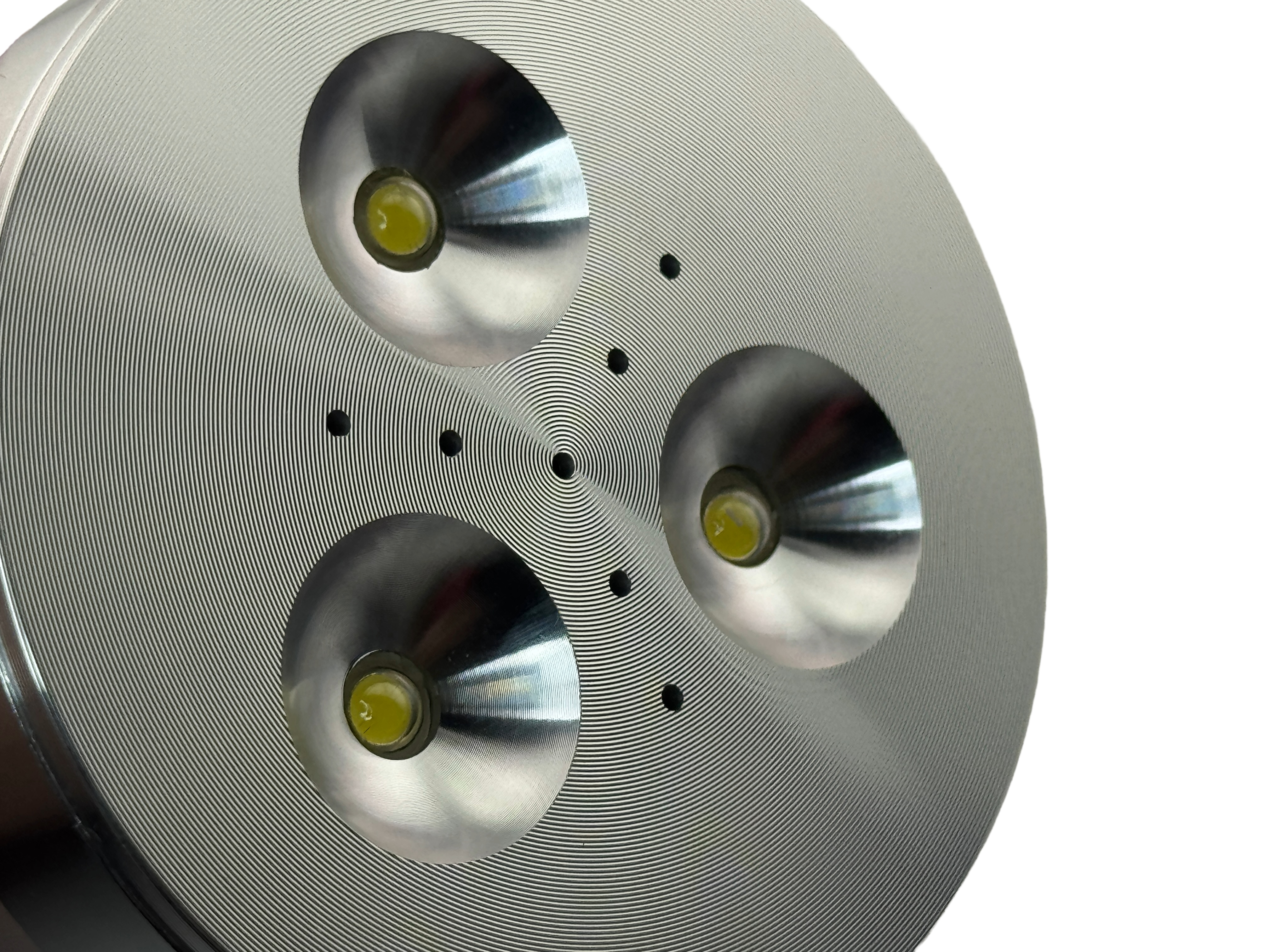

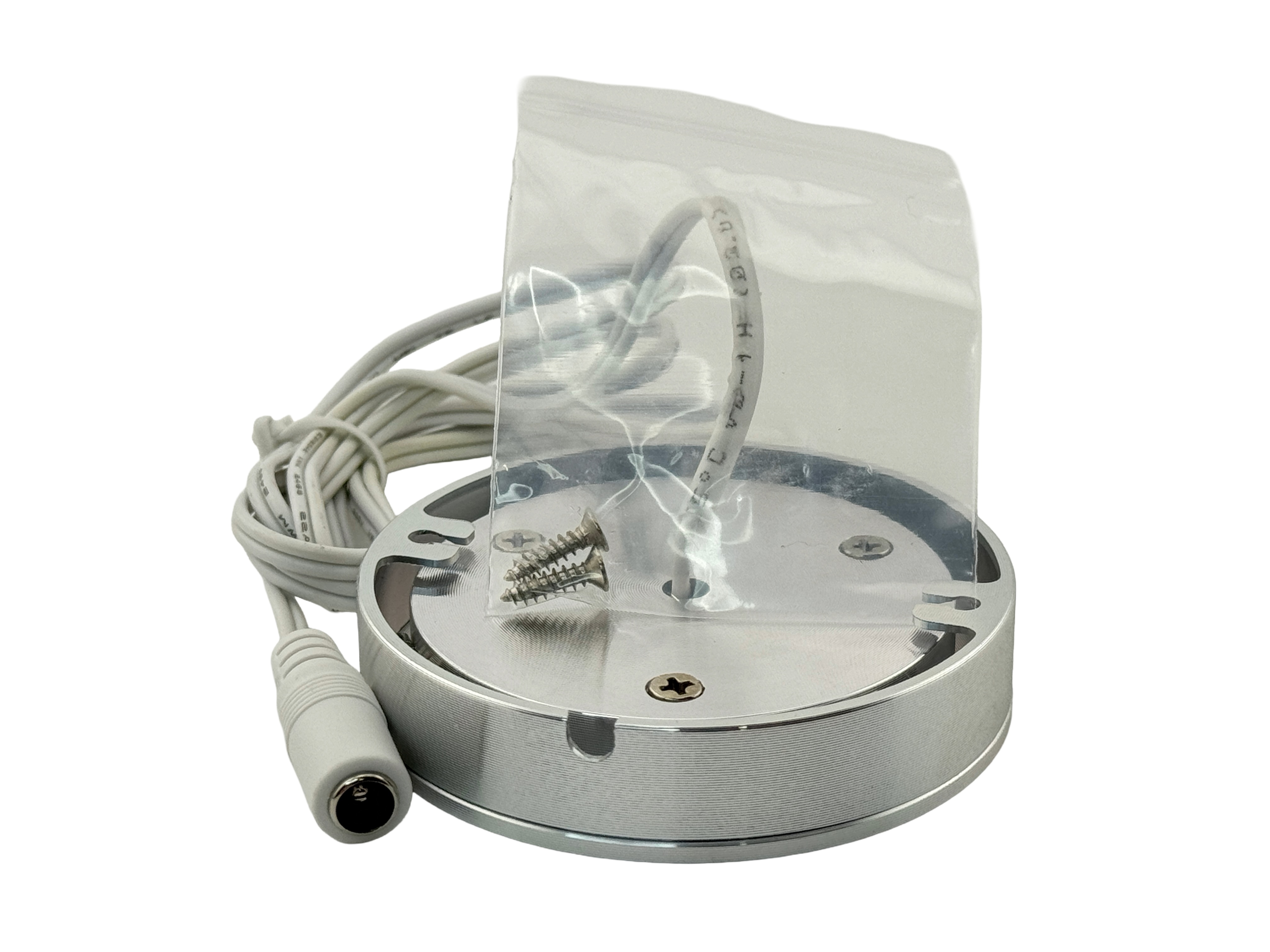

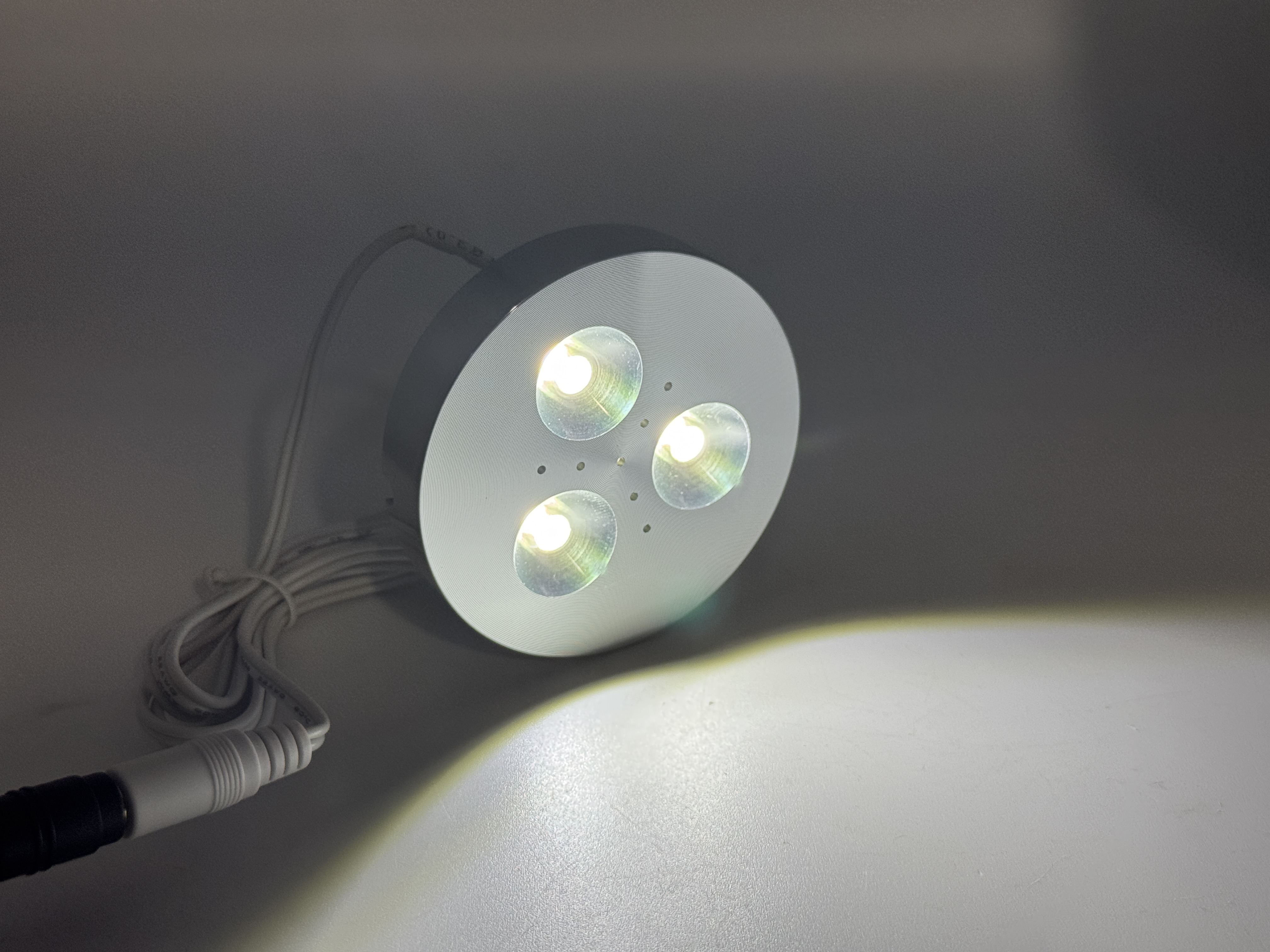

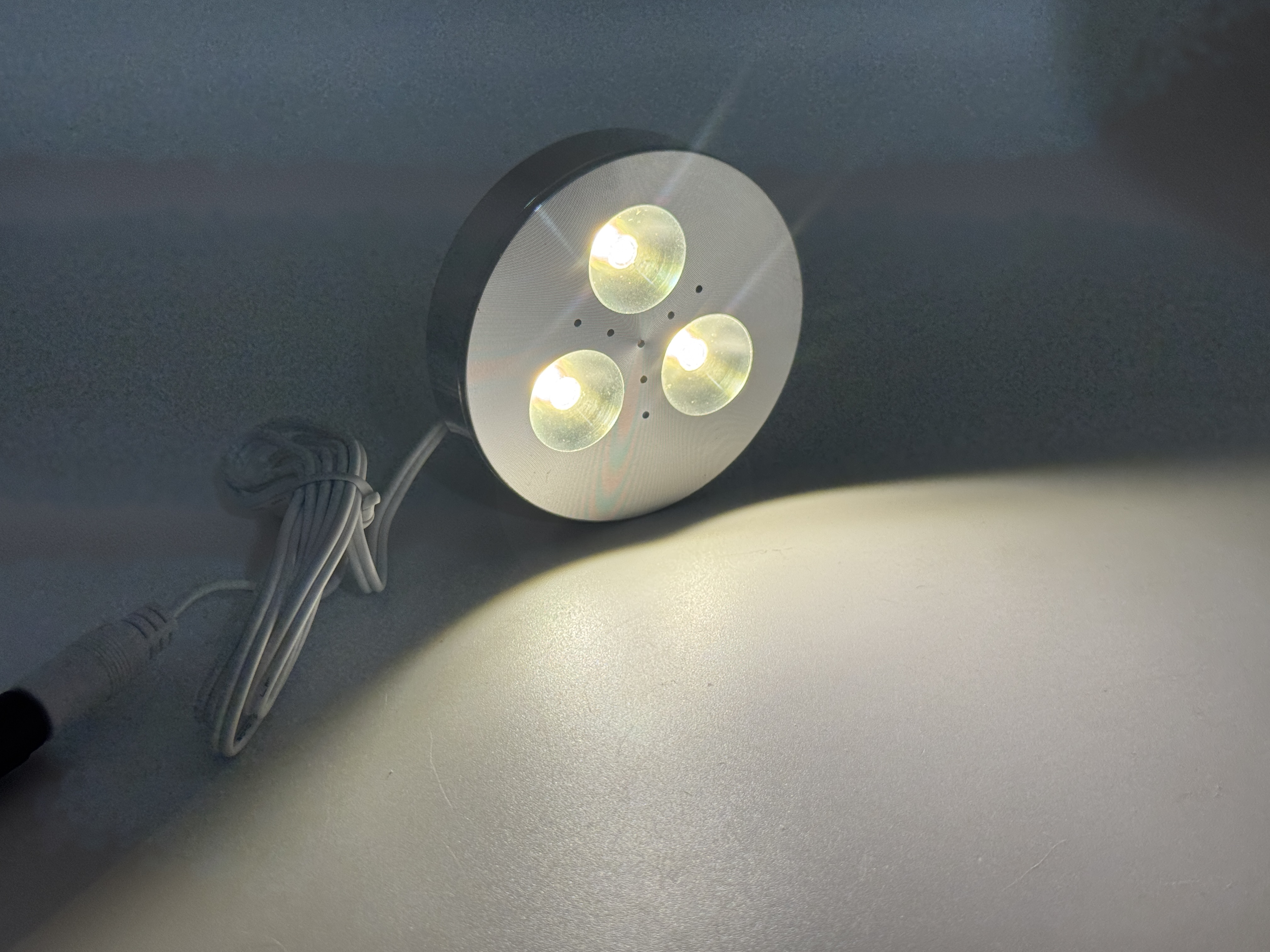

Under-Cabinet LED Puck Light 12VDC. 3 Watt. This small puck light provides a very high and even light output. Uses 3 (1 Watt) high powered LEDs. It can be surface or recessed mounted and is ideal lighting for kitchen cabinets, displays and furniture. Connect multiple puck lights with our 2-way or 3-way harnesses. The cord on each puck light is approximately 3 feet long. 120 degree beam angle. Up to 300 Lumen output. Approx. 2.76" x 0.55". Available in 6000-6500K white and Warm White 3000K. Female plug 5.54mm and 2.15mm tip. The puck is held together by 3 Phillips screws. The face plate removes if needed for smaller diameter holes such as 2.28" diameter. The back has two recessed and hidden dog ears to mount screws it is hard to see in the picture. The led cabinet light is dimmable with a variable voltage supply. CE and Rohs. Use product 65987 for a plug and play power supply and led under cabinet lighting.
