Image p45t led headlight
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

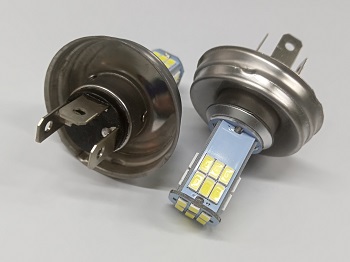

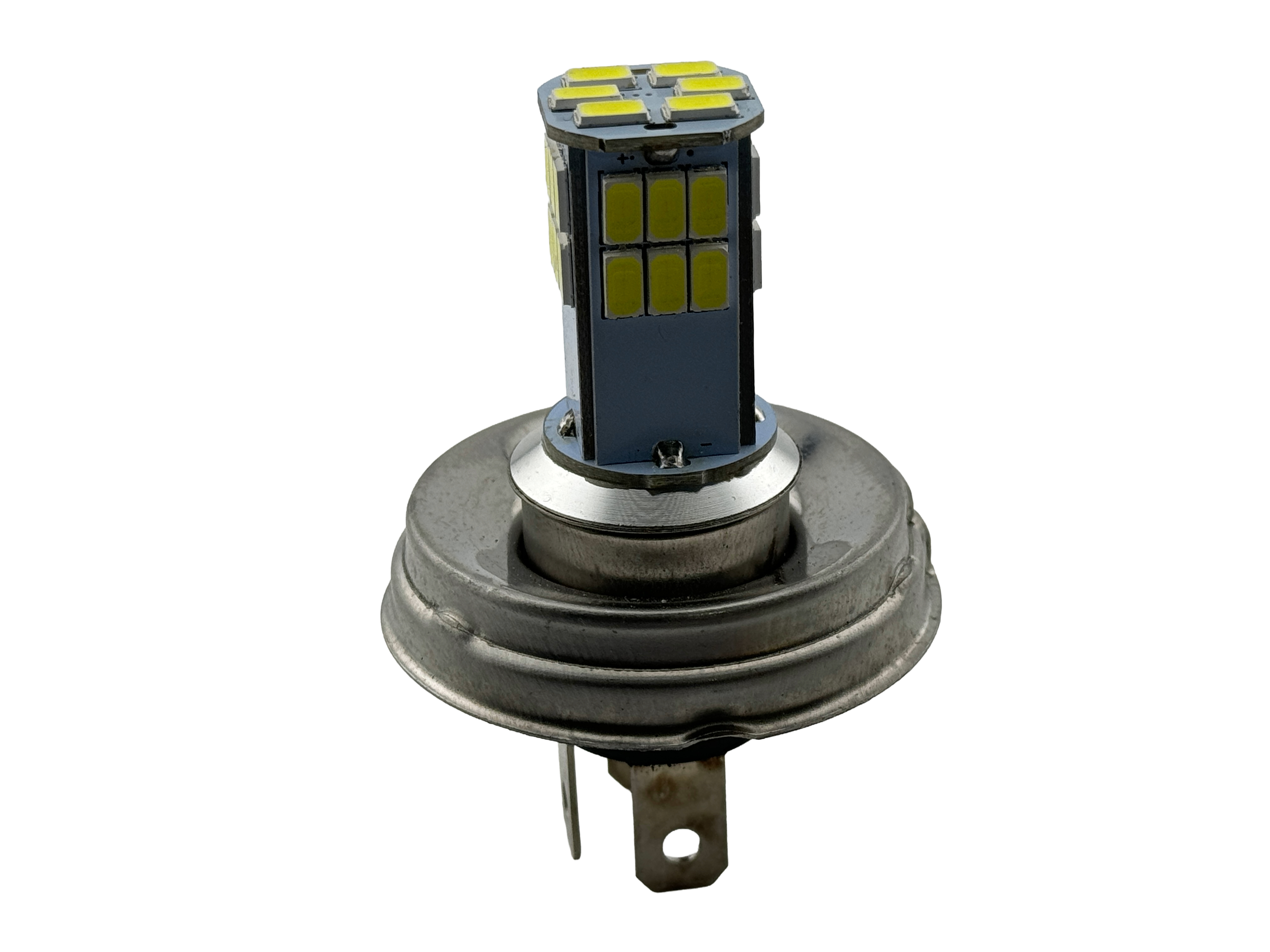

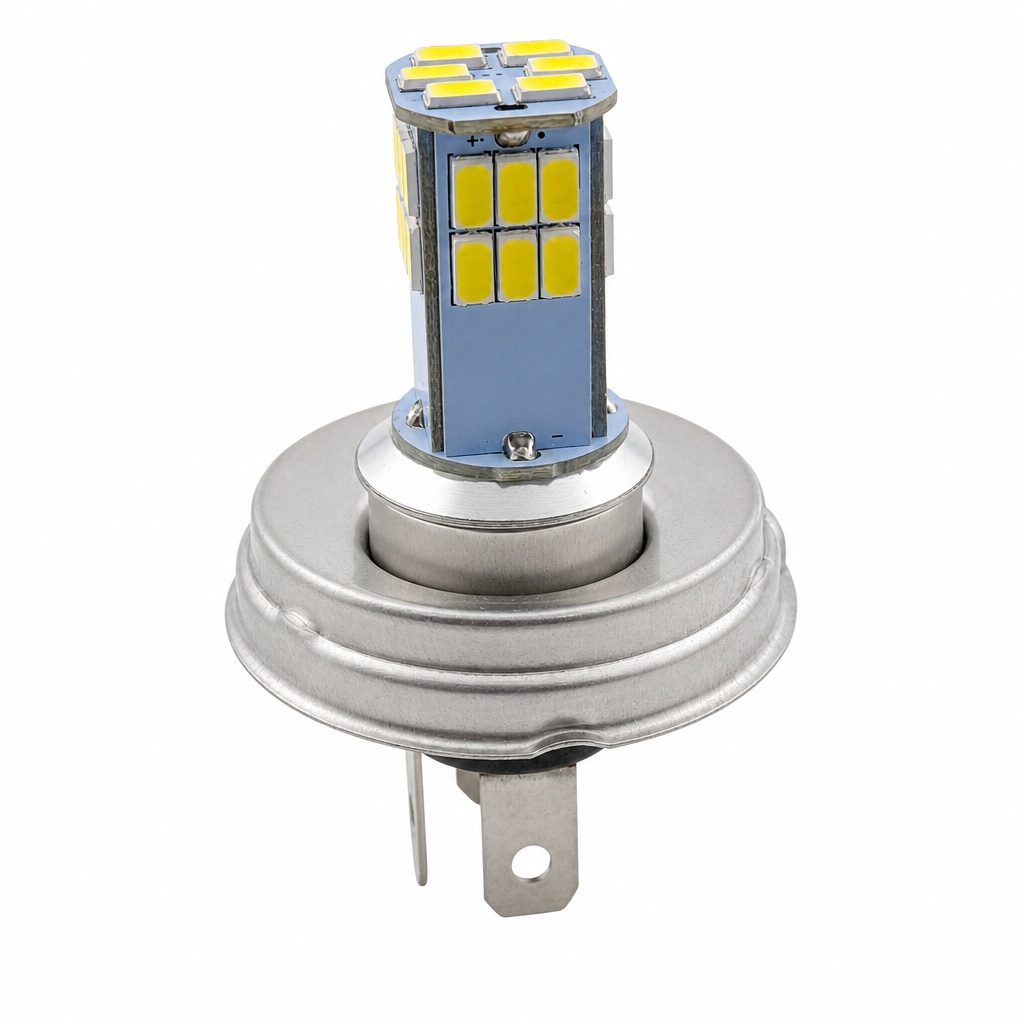

p45t 6 Volt LED Headlight 6 Volt 30 SMD Dual Filament No polarity

Product Code: 68469

USD Price: 7.49
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%
Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 12 Months

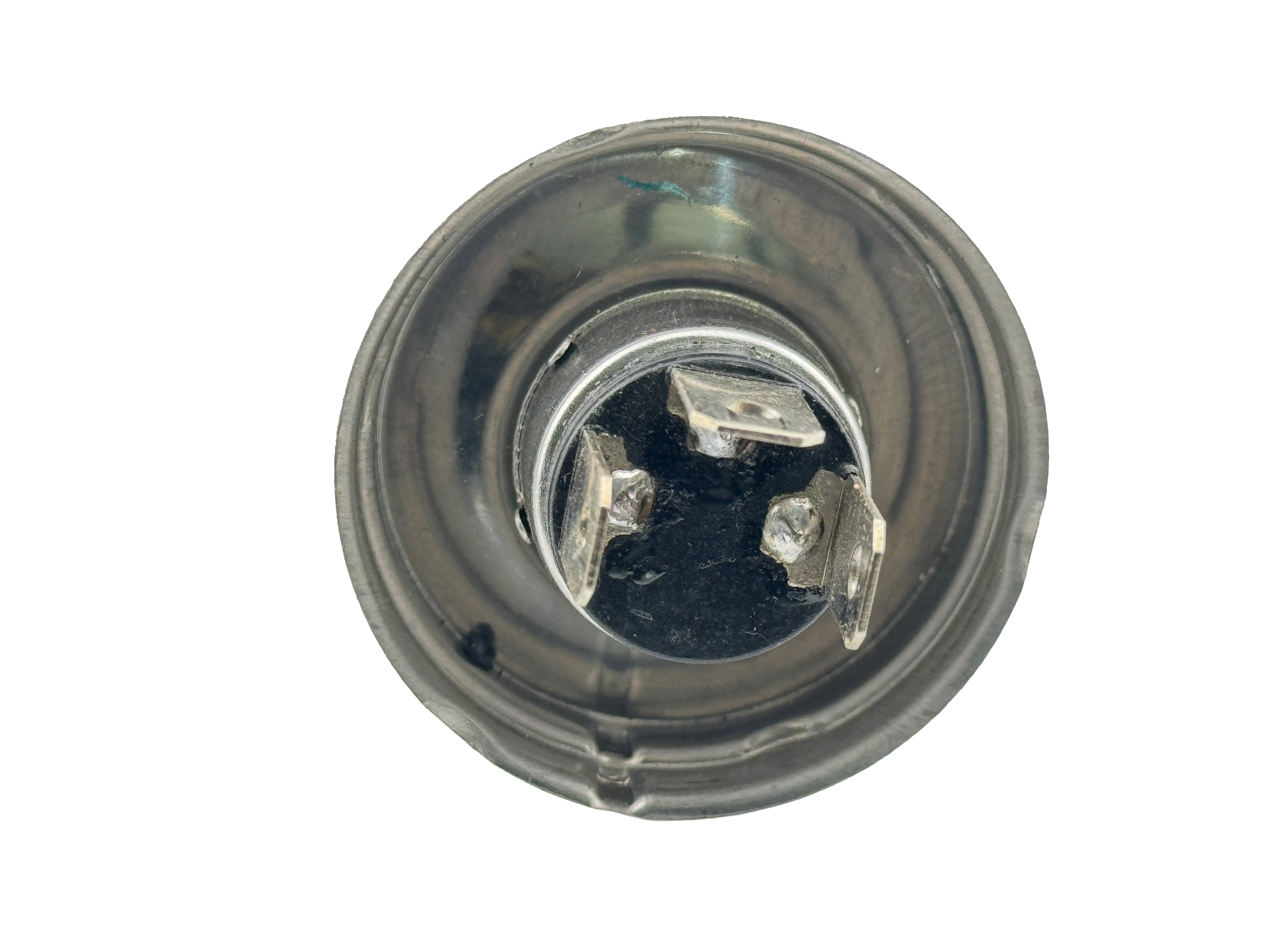

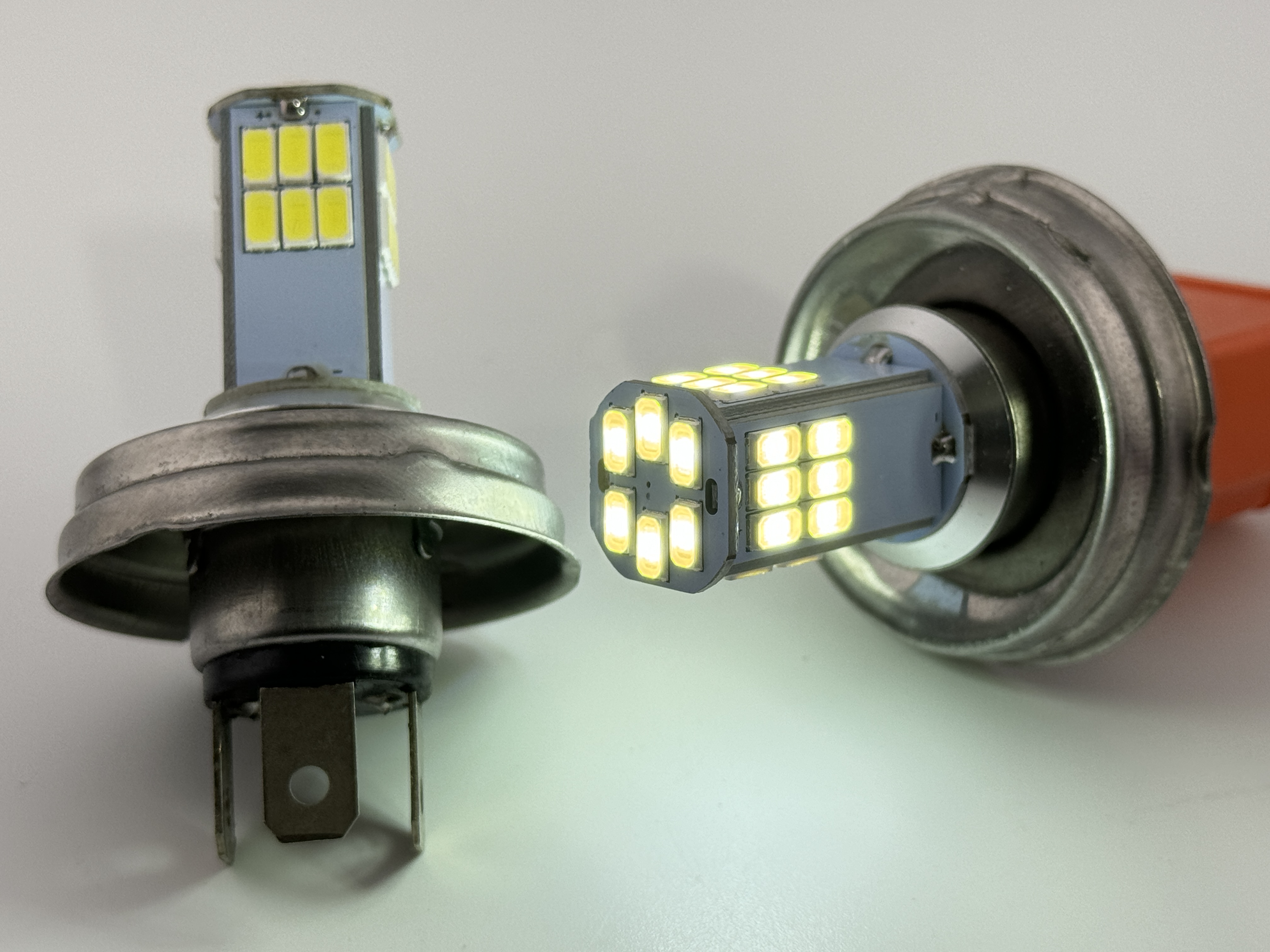

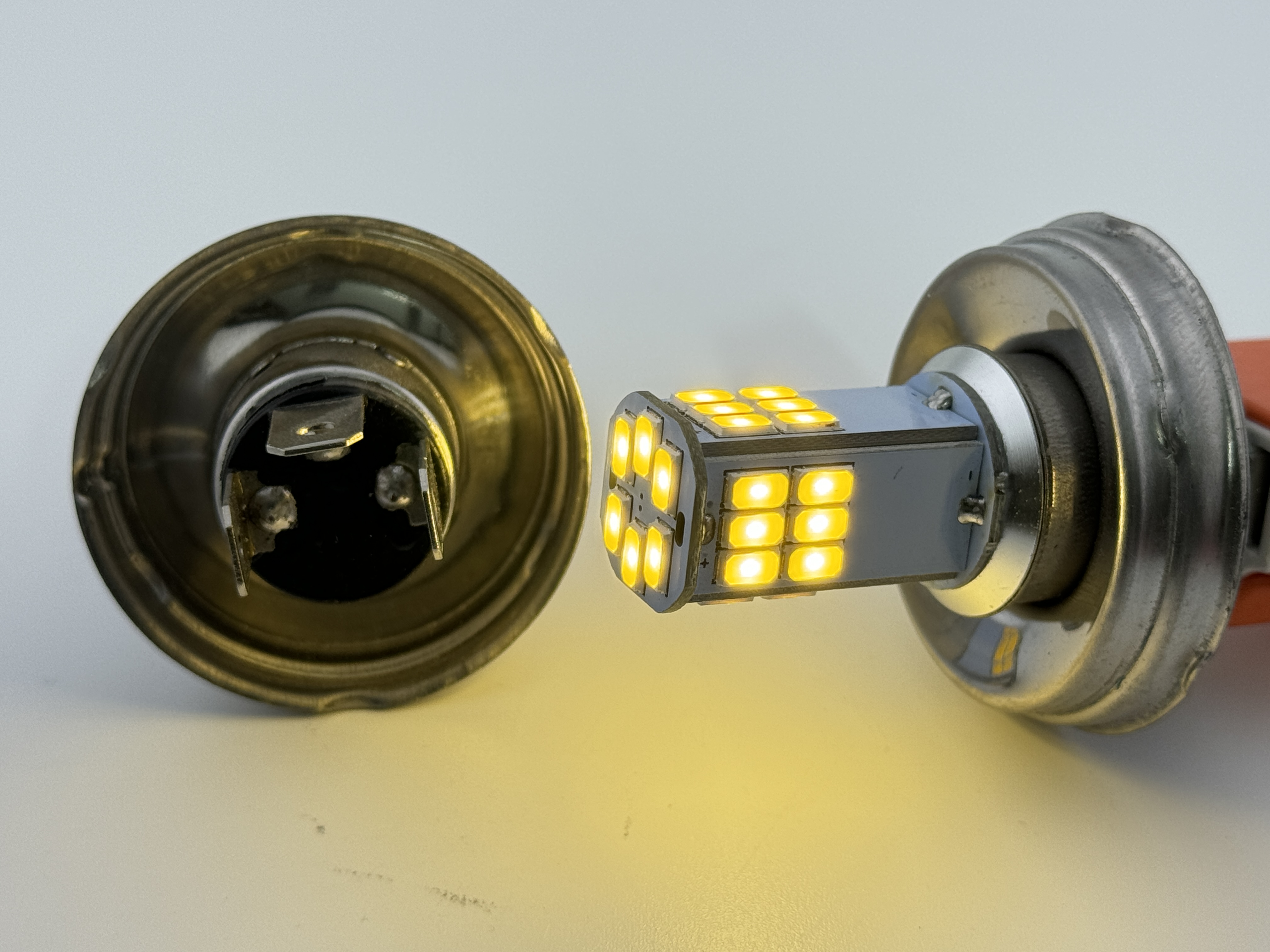

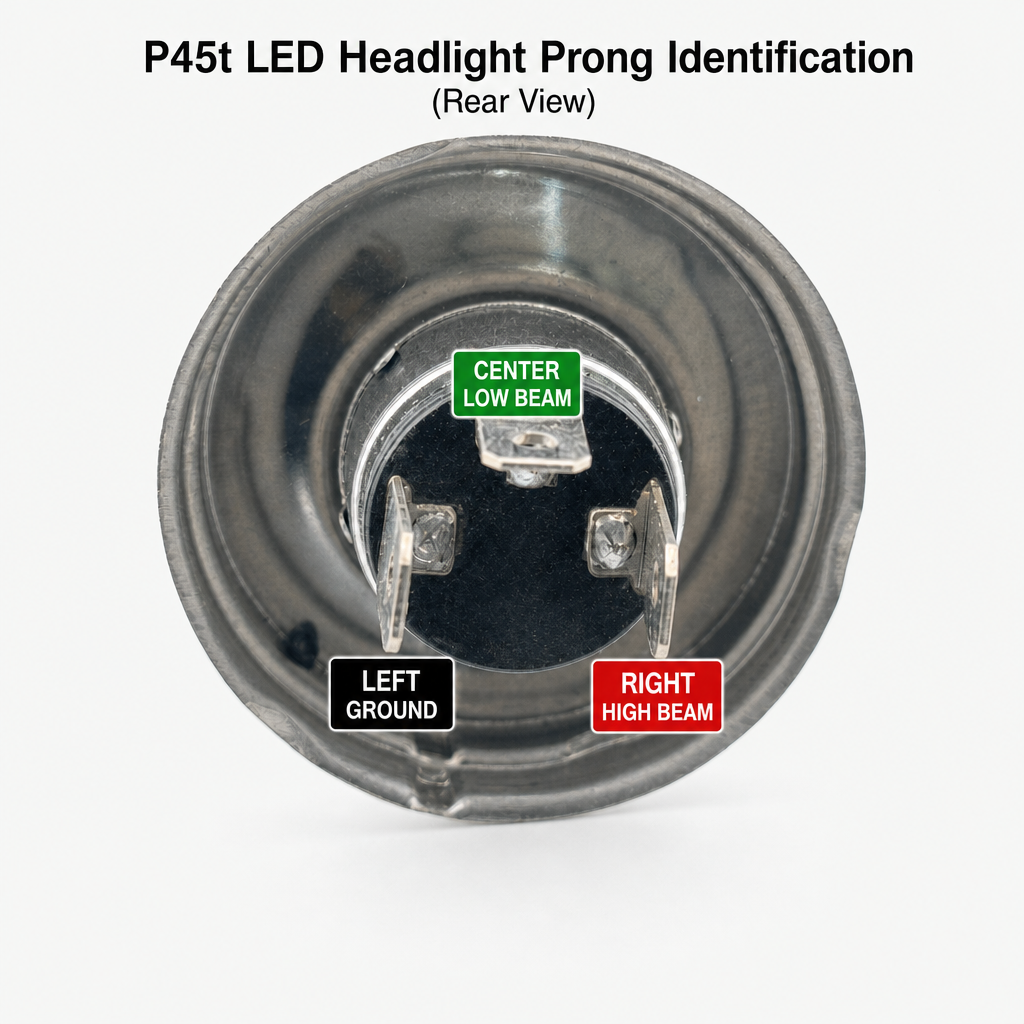

p45t LED Headlight 6 volt. Up to 650 Lumen output or 60 CP. Dual filament high and low beam. Made with 5730 smd leds for long life. Rohs and CE listed. Designed for easy installation, just remove old headlight and insert new headlight. Works both 6 volt positive ground and 6 volt negative ground. Great for old classic and vintage automobiles, motorcycles and tractors. Available in white 6000K and warm white 3000K. Long life up to 30,000 hours. Comparable to a 45 to 55 watt incandescent bulb. The maximum overall length is 1.944 inches. The maximum diameter is .760 inches. The pin out as follows when looking at the connector from the rear. The left most contact is ground. The center contact is low beam. The right most connector is high beam. This lamp will fit a standard H4 HB2 9003 3 prong female Socket connector such as part number 34265.
