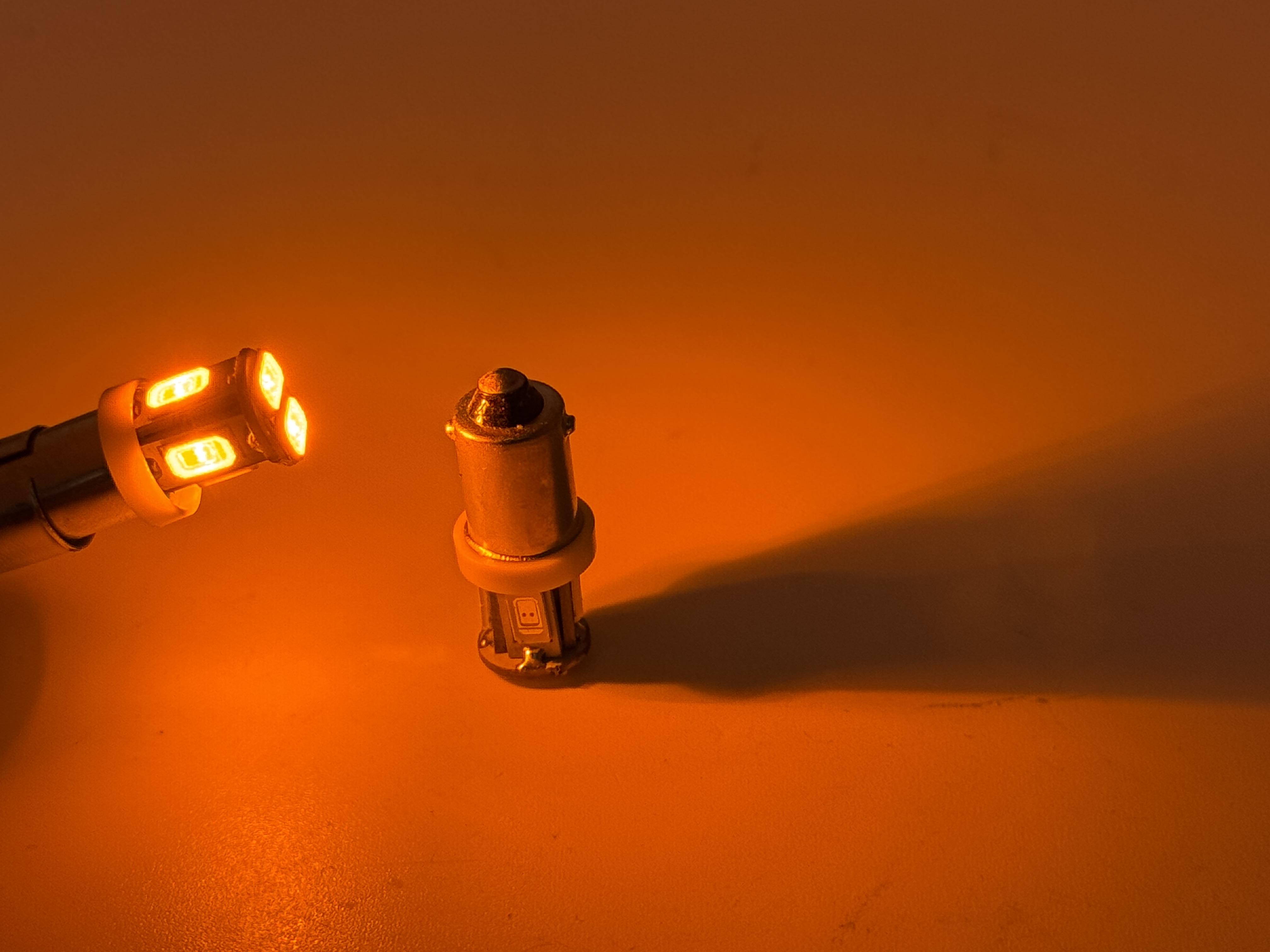

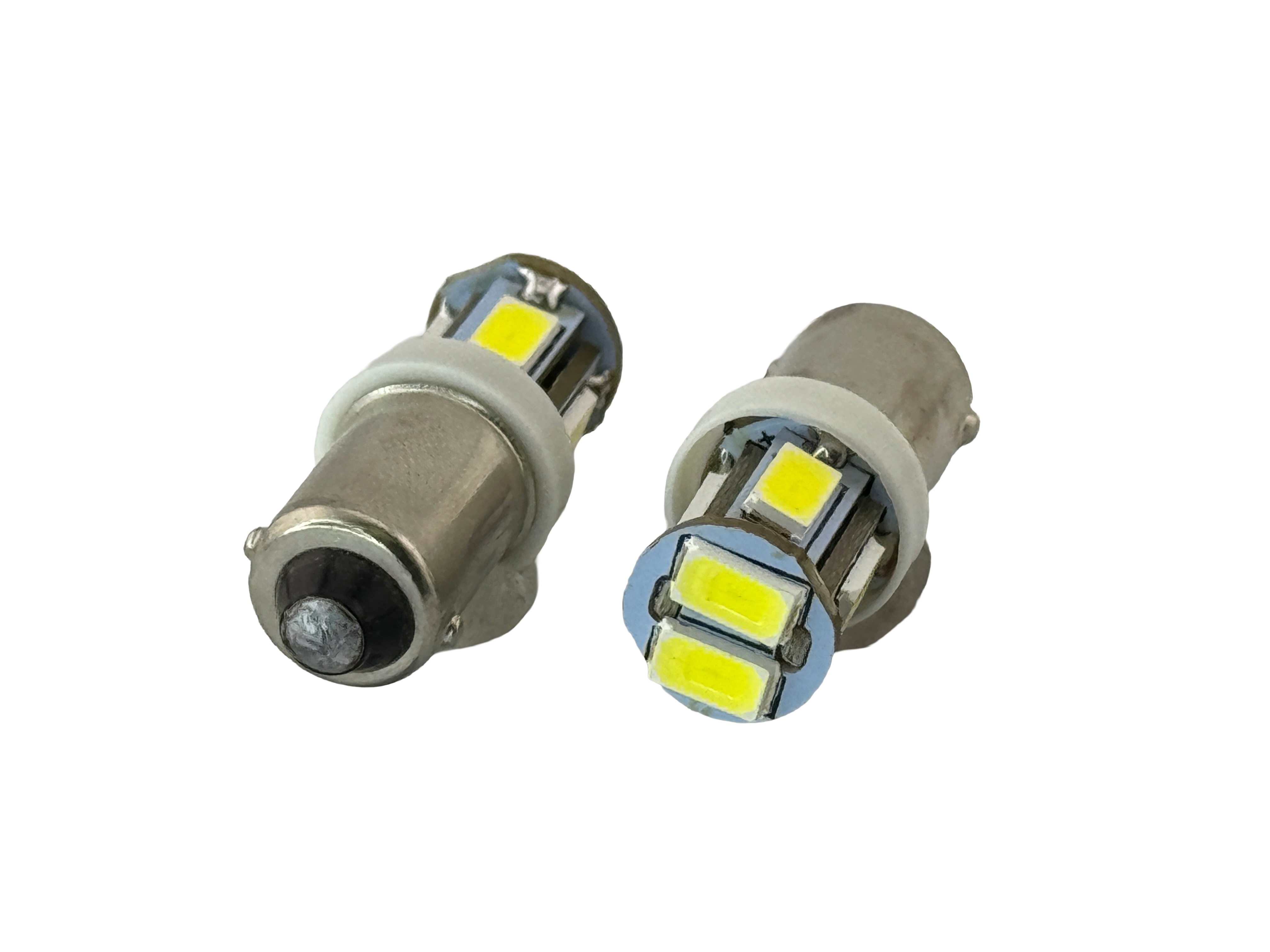

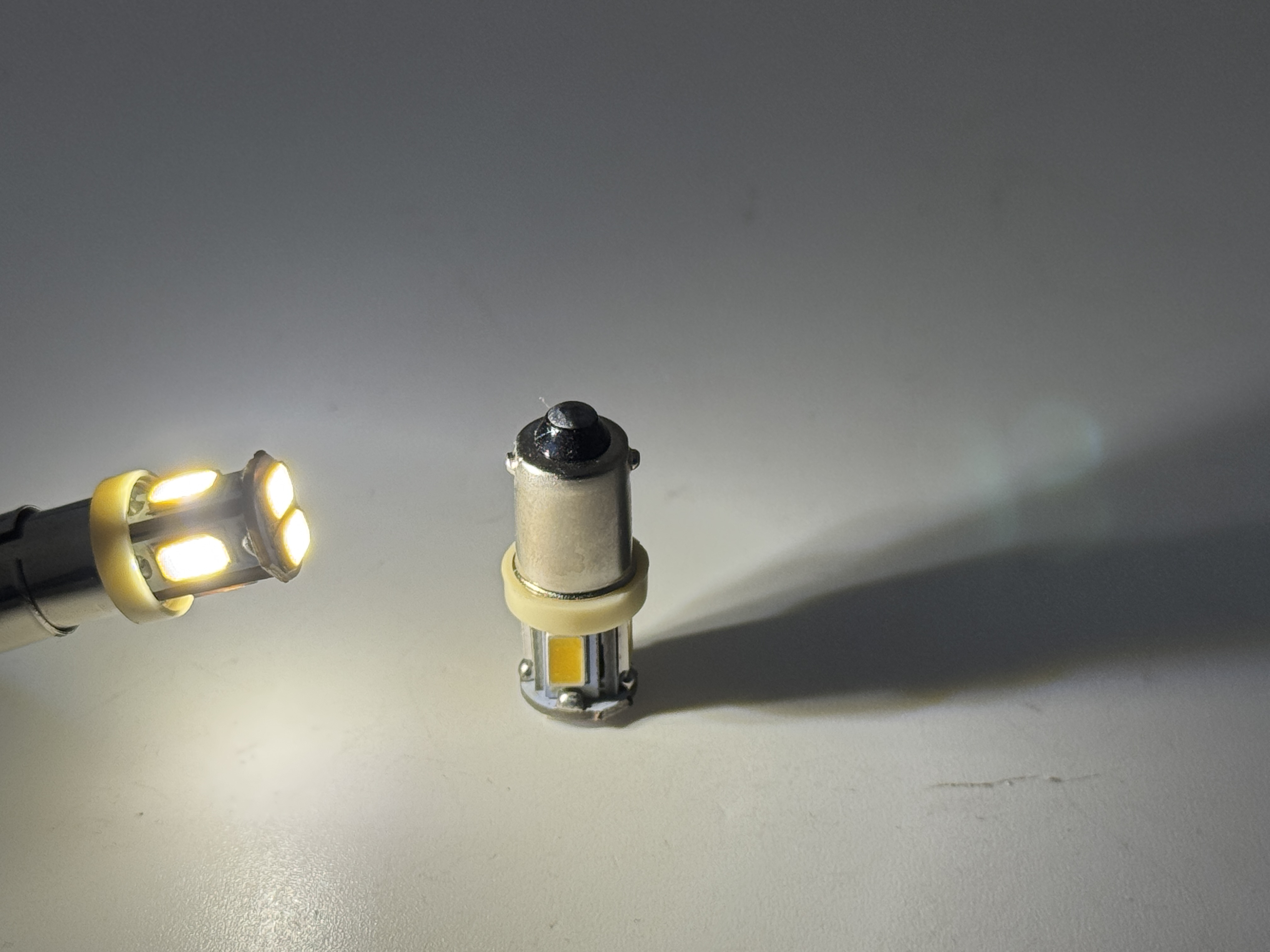

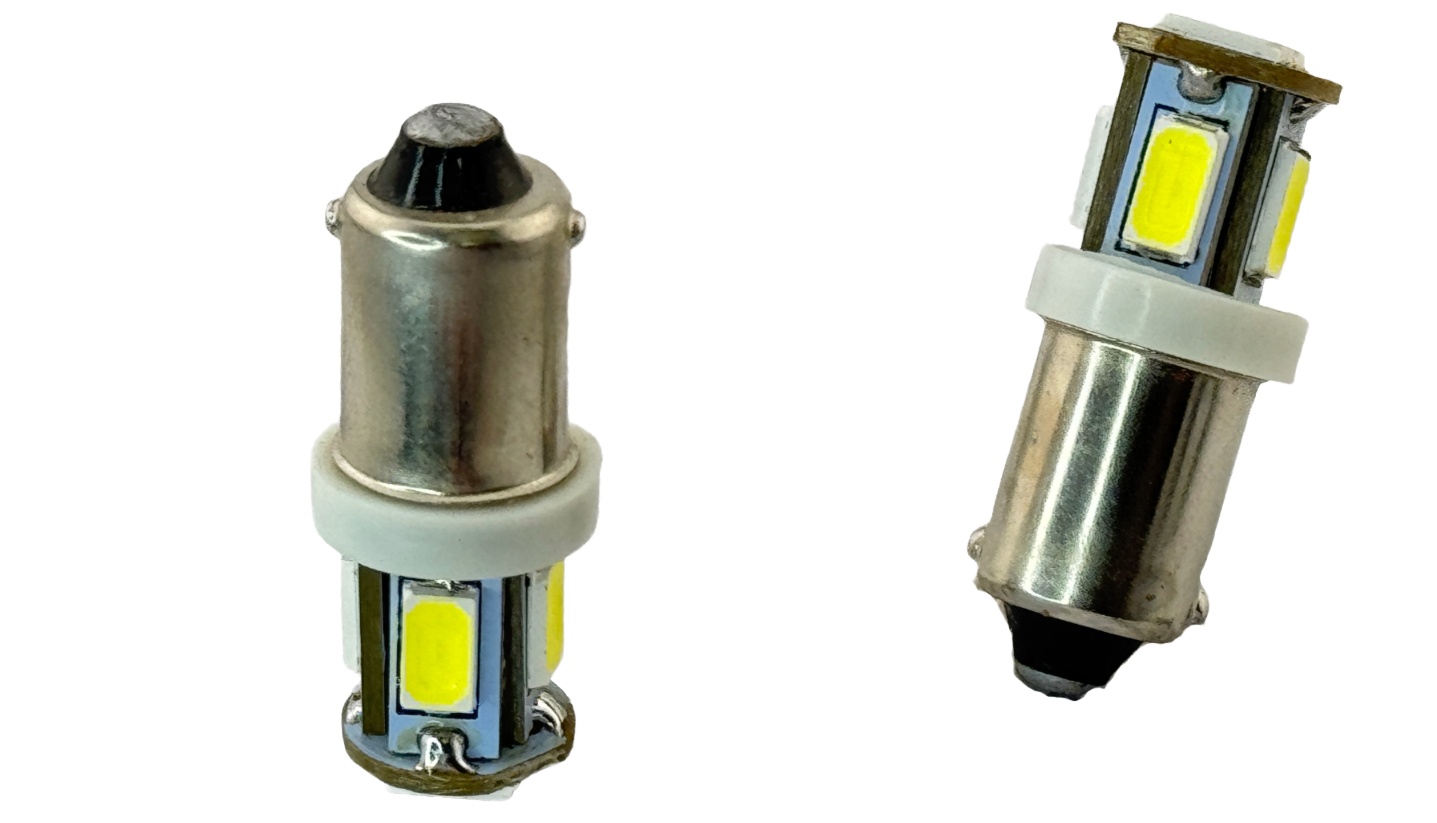

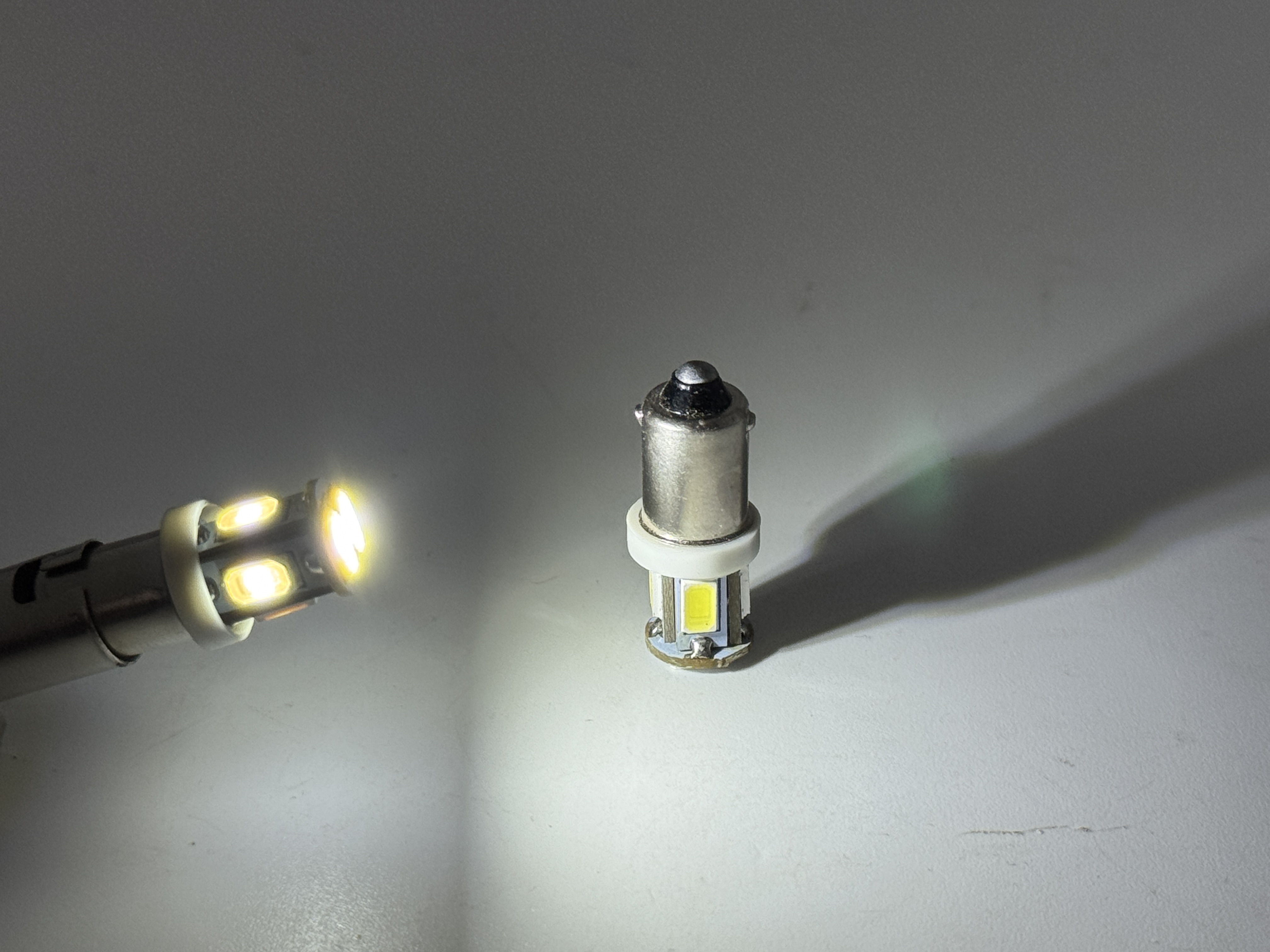

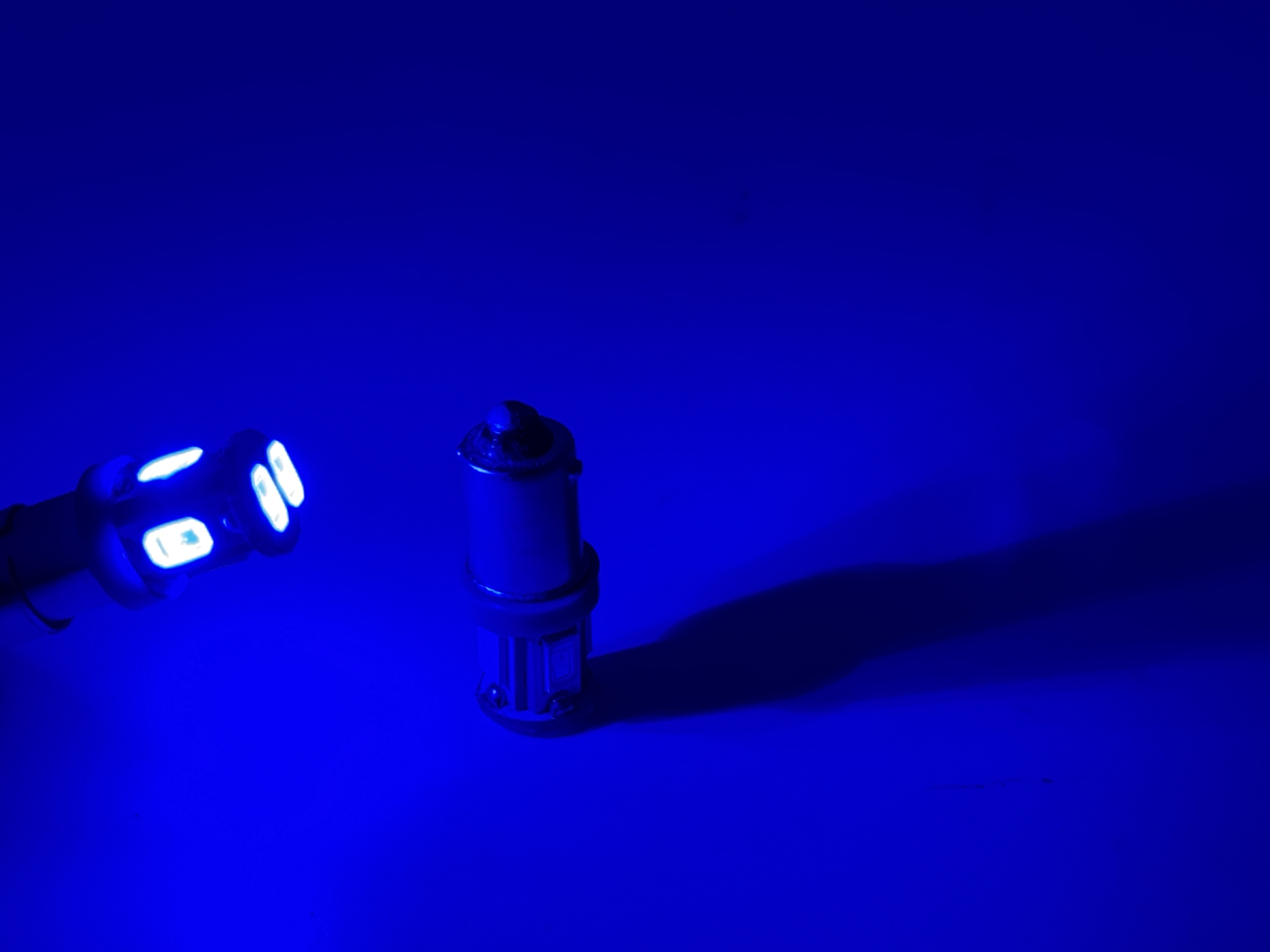

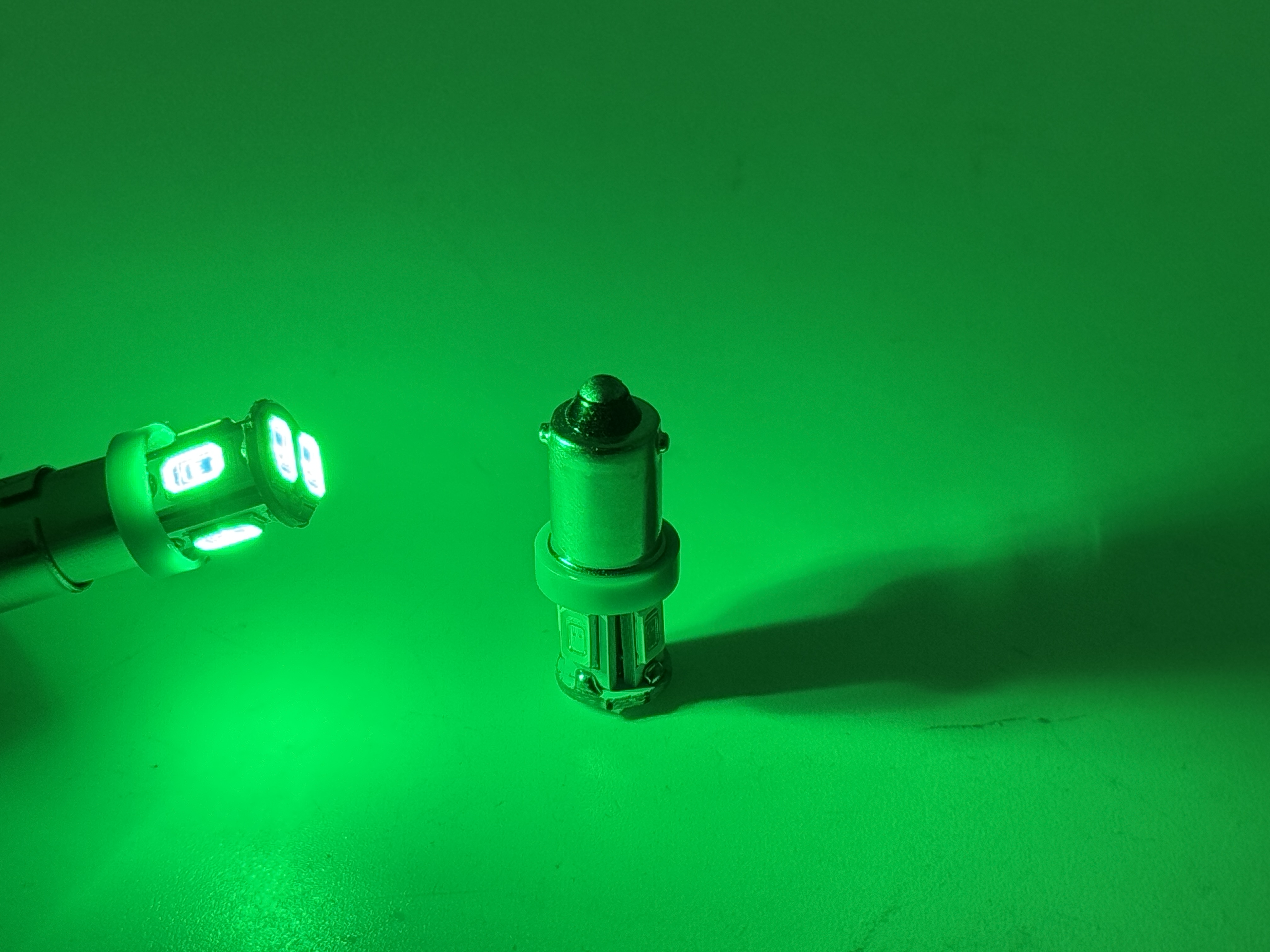

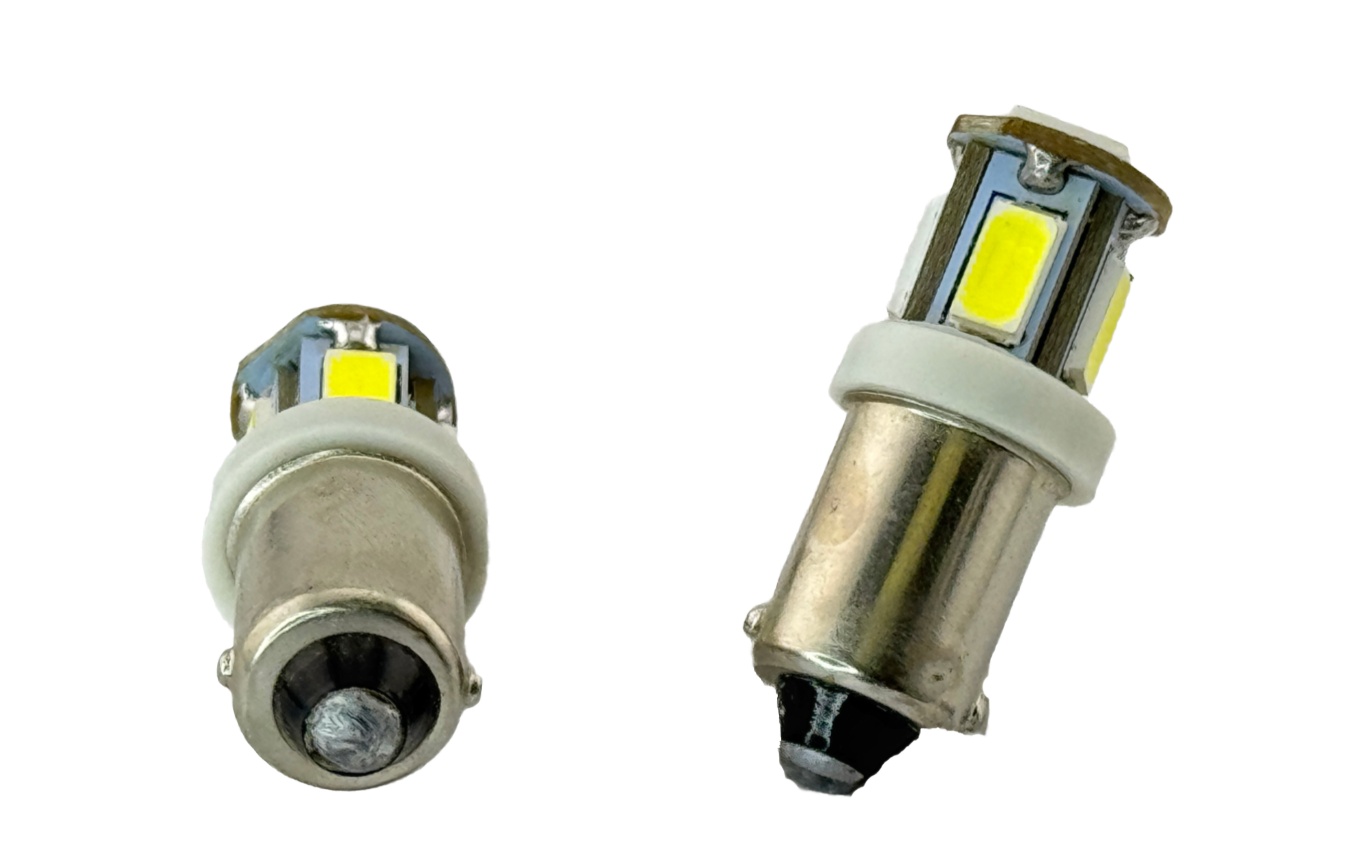

1847 LED Miniature Bulb product 23694
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

1847 LED Miniature Bulb BA9S Base 6 Volt 6 SMD

Product Code: 23694

USD Price: 3.79
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%
Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 12 Months

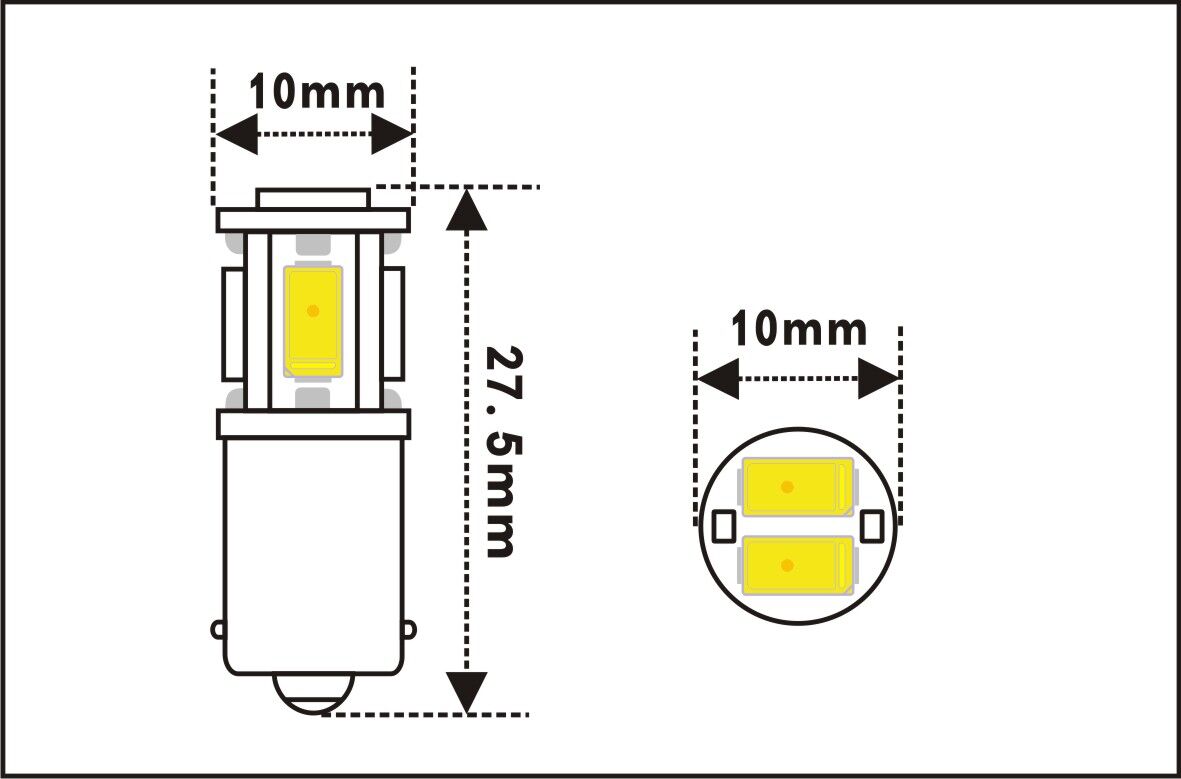

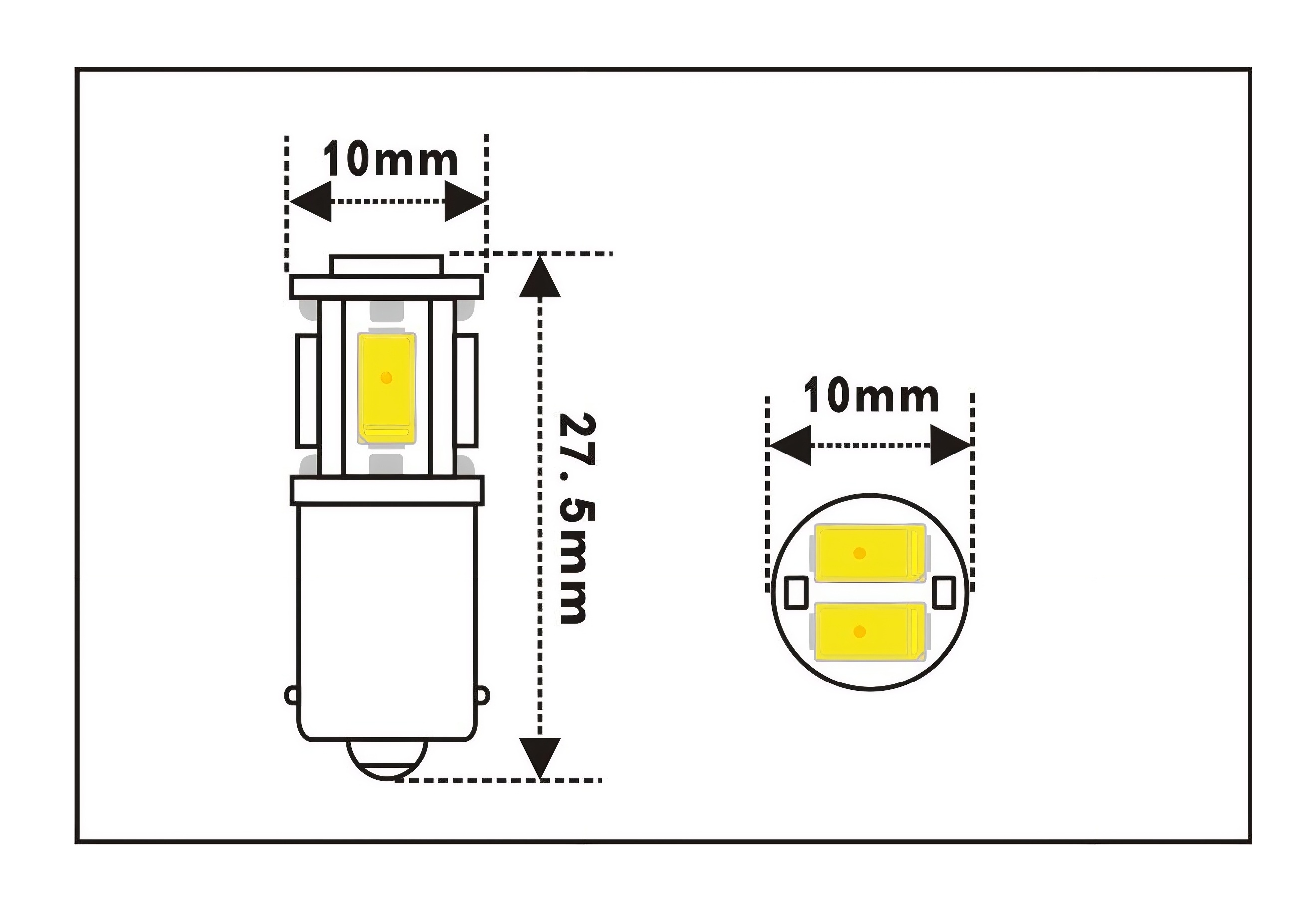

1847 LED Miniature Bulb works for both 6V positive ground chassis or 6V negative ground chassis. The led bulb is non-polarity 6 Volt BA9S. Sub miniature bayonet. Up to 80 Lumens, about 40 forward firing and 40 Lumens side firing. Up to 3 CP candle power forward firing and up to 3 CP candle power side firing. This bulb is dim-able using a variable power supply such as the dashboard dimmer knob. Rated life up to 30,000 hours. Uses .09 Amps @ 6 Volts. Up to 1 watt LED power comparable to a 10 Watt incandescent bulb. Made with six 5630 SMD led chips. Overall length 1.097" and .47" diameter. T3 1/4 Tubular package. Great for vintage, classic, cars, trucks, tractors, scooters or motorcycles. Excellent replacement for pinball, arcade and amusement rides. This 6v led bulb work great for indicators, turn signals, dome light, interior car lighting, glove box lighting since it is positive ground or negative ground led lamp. The Warm White looks like the original incandescent bulb, the White 6000K is brighter than the Warm White for better illumination. Available in White 6000 K, Warm White 3000 K, Red 625 nm, Green 526 nm, Blue 464 nm & Yellow 594 nm. The old fashioned incandescent lens was painted to produce different colors. The led colors red, green, blue and yellow are created by the led chip material so the color is emitted as pure or monochromatic light. Since the led light is solid state you do not have to worry about a broken filament or broken glass bulb. The led lamp operates much less temperature that will help out to keep the old plastic dashboard indicator lens will last longer due to less heat. Since leds use less power and this led is dim-able the older switches, wiring and sockets last longer due to less power, less amperage is used to turn on a led bulb versus a incandescent bulb. This bulb is compatible with T3 1/3 or T3.25 BA9S sub miniature bayonet. Single contact replacement bulb. The diameter of the plastic ring is 11.5 mm. Compatible with the following: 6v5w 205 GE #51 GE 51 1810 1847 1855 1866 316 1850 47 44 755 #55 1888 1906 Mazda 44 44B 44G 44R 44Y 44A 130 503 239 51 238 267 240 Sylvania #755 755 6251 1949 Mazda 51 GE 27819 GE 25450 T6418AMB T6418RED 3 Candle Power 1931 Buick Honda BULB, SPEEDOMETER (6V 1.7W) 34908-230-000 1971 Honda ATC 90 1972 Honda ATC 90 1973 Honda ATC 90 1974 Honda ATC 90 1975 Honda ATC 90 1976 Honda ATC 90 1977 Honda ATC 90 1978 Honda ATC 90 1939 Cadillac LaSalle A-62 6V 3W 287 2W 988 3W SCMB G4-1/2 6v 2CP Philips 6929 OSRAM 6v t4w 37R (E1) 0005-n828 7813466 New Holland Bulb Part # 7813466 Part #: 7813466 Replaces: 125588 1952 Vincent Rapide
