LED Module High Power 0.72 Watt SMD2835 * 3 DC12V Beam 180 IP65 NCNR product 26424
Product is Non-Cancelable, Non-Returnable
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

LED Module High Power 0.72 Watt SMD2835 * 3 DC12V Beam 180 IP65 NCNR

Product Code: 26424

Price : $1.03 - $1.12
spacer   Volume Price Information   spacer
 Buy 2 or more and pay $1.10 each (save 2.00%)
 Buy 4 or more and pay $1.09 each (save 3.00%)
 Buy 6 or more and pay $1.08 each (save 4.00%)
 Buy 8 or more and pay $1.06 each (save 5.00%)
 Buy 10 or more and pay $1.05 each (save 6.00%)
 Buy 25 or more and pay $1.04 each (save 7.00%)
 Buy 100 or more and pay $1.03 each (save 8.00%)
Qty:Add To Cart
Add To Saved Cart
Warranty: 3 Months

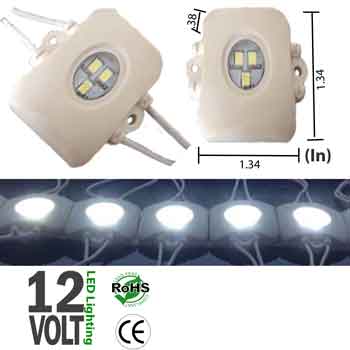

High power led module, uses three 2835 SMD leds. 12 Volt power, uses up to 1.25 watts. Up to 125 Lumen output per module. IP 65 rated. Viewing angle 120 degrees. CE & Rohs listed. .34 x .34 mm. Has two mounting holes. Each mounting hole is .110" in diameter. Spacing between modules 100mm center to center or about 1.4". Available in White 6000K. 6.5" spacing between modules. 20 modules per string. Modules are cut with 3.25" wire on each end. Modules are dim-able using a variable voltage supply. Each string is about 11 feet 4 inches in length. Each module uses .090 Amps @ 13.8 Volts DC. Each module is comparable to a 10 Watt incandescent bulb. Each module has 3M double stick tape. Each model is 1.71" L x 1.36" W x .38" D. We will try to cut to desired module quantity in a single string but may have to cut multiple strings to complete the order.
