Minature Bulb BAY9S Base 5 SMD 12 Volt DC T3 1/4 product 84975
Actual Product may vary from picture shown.
One product per package unless otherwise stated.

Minature Bulb BAY9S Base 5 SMD CanBus 12 Volt DC T3 1/4

Product Code: 84975

USD Price: 1.69
spacer   Volume Discount Percentage   spacer
 Buy 2 or more and save 2.00%
 Buy 4 or more and save 3.00%
 Buy 6 or more and save 4.00%
 Buy 8 or more and save 5.00%
 Buy 10 or more and save 6.00%
 Buy 25 or more and save 7.00%
 Buy 100 or more and save 8.00%

50 available

Qty: Add To Cart

Buy Now
Add To Saved Cart
Warranty: 12 Months

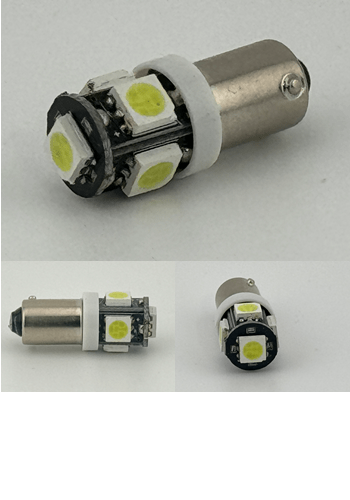

BAY9S base led light bulb. This base bayonets are positioned 120 degrees apart. This bulb is also Canbus compatible. This is not a standard BA9S where the bayonets are positioned 180 degrees apart. There are five 5050 leds up to 150 Lumen output. Uses only 1.5 Watts at 12 volts dc. Each LED has 3 LED chips. Durable, shock and vibration proof, instant On/Off. Comparable to a 12-15 watt incandescent bulb. Measures .45in wide and 1.17in from top to bottom. Available in super white 6000K. Uses about .110 A @ 13.8V DC. Please note this product is polarity sensitive operates on negative ground chassis. Dim-able. Self ballast rated voltage from 8V to 15V. 360 degree viewing angle. Dim-able using a variable voltage supply such as a dashboard dimmer switch. Since this bulb is CanBus compatible this will eliminate error codes by using a non CanBus bulb. Approximate length from top to bottom is 1.155". The diameter is 0.460". CE and Rohs.
